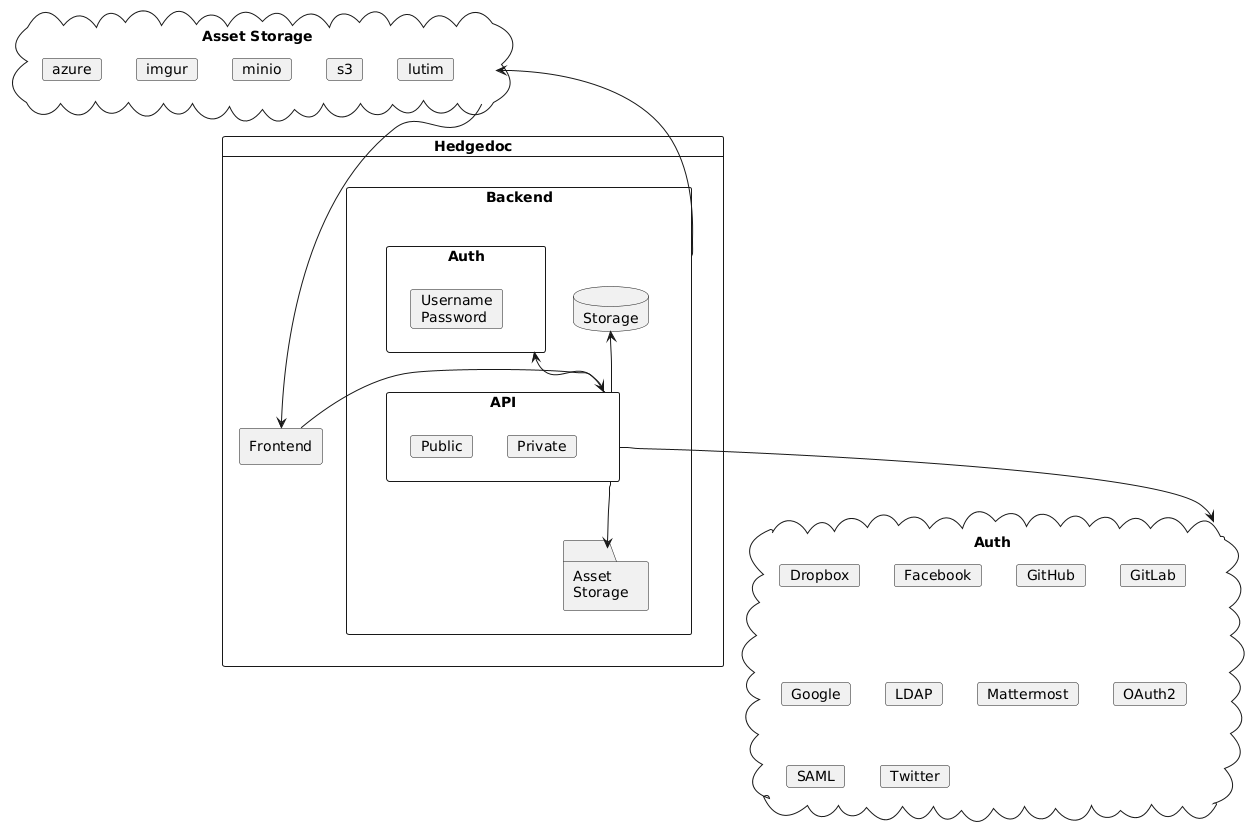

@startuml cloud Auth as auth.external { card "Dropbox" card "Facebook" card "GitHub" card "GitLab" card "Google" card "LDAP" card "Mattermost" card "OAuth2" card "SAML" card "Twitter" } cloud "Asset Storage" as assets.external { card azure card imgur card lutim card minio card s3 azure -[hidden]> imgur minio -[hidden]> s3 } card Hedgedoc { rectangle "Frontend" as front rectangle Backend as back { rectangle Auth as auth.local { card "Username\nPassword" } rectangle API { card "Public" as api.pub card "Private" as api.priv } database "Storage" as storage.local folder "Asset\nStorage" as assets.local } front -> API API -u-> storage.local API -u-> auth.local } API --> auth.external API --> assets.local front <-u- assets.external back -u-> assets.external @enduml
