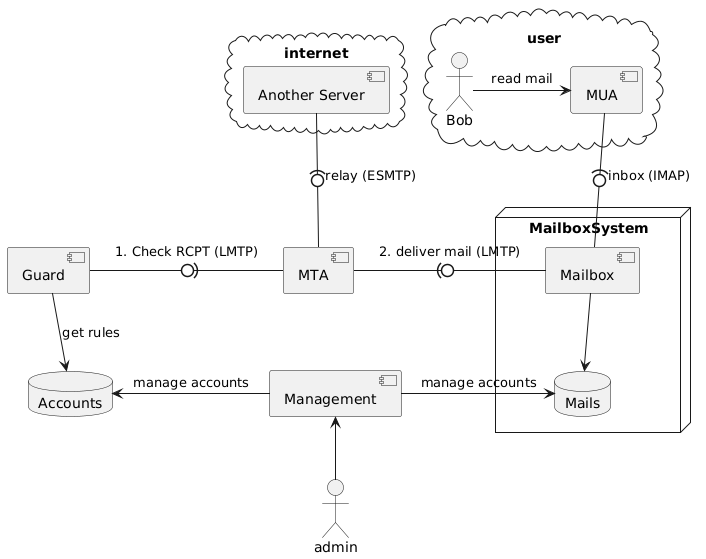

@startuml database "Accounts" node "MailboxSystem" { [Mailbox] database "Mails" } cloud internet { [Another Server] } cloud user { :Bob: [MUA] } :Bob: -> [MUA]: read mail :admin: -up-> [Management] [Management] -right-> Mails: manage accounts [Management] -left-> Accounts: manage accounts [MUA] -(0- [Mailbox]: inbox (IMAP) [MTA] -left(0- [Guard]: 1. Check RCPT (LMTP) [MTA] -right(0- [Mailbox]: 2. deliver mail (LMTP) [Guard] -down-> Accounts: get rules [Another Server] -(0- MTA: relay (ESMTP) [Mailbox] -down-> Mails @enduml
