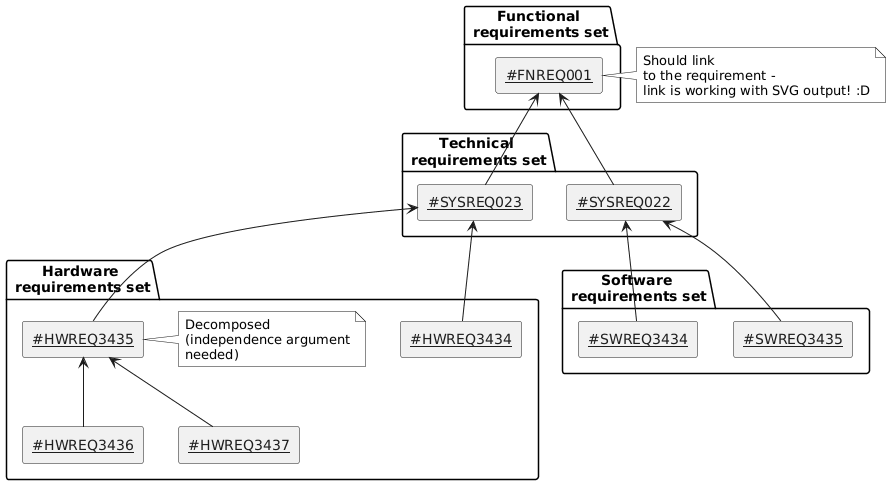

@startuml skinparam monochrome true folder "Functional\n requirements set" { rectangle "[[#FNREQ001]]" as FNREQ001 } folder "Hardware\n requirements set" { rectangle "[[#HWREQ3434]]" as HWREQ3434 rectangle "[[#HWREQ3435]]" as HWREQ3435 note right Decomposed (independence argument needed) endnote rectangle "[[#HWREQ3436]]" as HWREQ3436 rectangle "[[#HWREQ3437]]" as HWREQ3437 } folder "Software\n requirements set" { rectangle "[[#SWREQ3434]]" as SWREQ3434 rectangle "[[#SWREQ3435]]" as SWREQ3435 } folder "Technical\n requirements set" { rectangle "[[#SYSREQ022]]" as SYSREQ022 rectangle "[[#SYSREQ023]]" as SYSREQ023 } SWREQ3434 -u-> SYSREQ022 SWREQ3435 -u-> SYSREQ022 HWREQ3436 -u-> HWREQ3435 HWREQ3437 -u-> HWREQ3435 HWREQ3435 -u-> SYSREQ023 HWREQ3434 -u-> SYSREQ023 SYSREQ022 -u-> FNREQ001 SYSREQ023 -u-> FNREQ001 note right of FNREQ001 Should link to the requirement - link is working with SVG output! :D endnote @enduml
