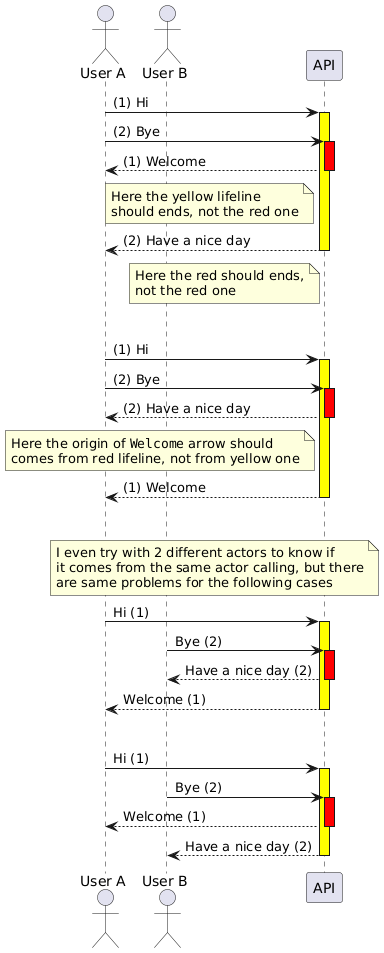

@startuml 'note <<body>> over participant: sdqsd 'rnote <<body>> over actor: sdqsd 'hnote <<body>> over actor: sdqsd Actor "User A" as a Actor "User B" as b Participant API as api a -> api++ #yellow: (1) Hi a -> api++ #red: (2) Bye a <-- api--: (1) Welcome note left of api Here the yellow lifeline should ends, not the red one endnote a <-- api--: (2) Have a nice day note left of api Here the red should ends, not the red one endnote ||30|| a -> api++ #yellow: (1) Hi a -> api++ #red: (2) Bye a <-- api--: (2) Have a nice day note left of api Here the origin of ""Welcome"" arrow should comes from red lifeline, not from yellow one endnote a <-- api--: (1) Welcome ||30|| note over a, api I even try with 2 different actors to know if it comes from the same actor calling, but there are same problems for the following cases endnote a -> api++ #yellow: Hi (1) b -> api++ #red: Bye (2) b <-- api--: Have a nice day (2) a <-- api--: Welcome (1) ||30|| a -> api++ #yellow: Hi (1) b -> api++ #red: Bye (2) a <-- api--: Welcome (1) b <-- api--: Have a nice day (2) @enduml
