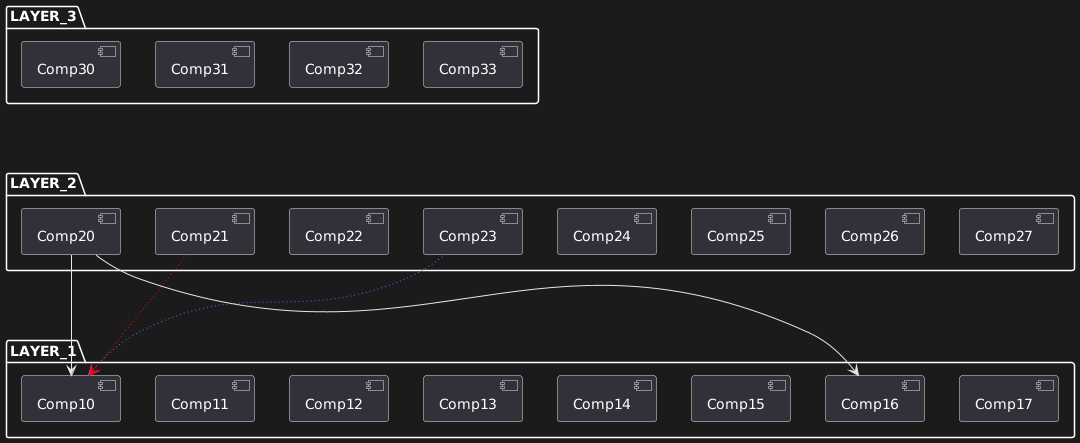

@startuml
package LAYER_3 {
    component Comp30 {
    }
    component Comp31 {
    }
    component Comp32 {
    }
    component Comp33 {
    }
}

package LAYER_2 {
  component Comp20 {
  }
  component Comp21 {
  }
  component Comp22 {
  }
  component Comp23 {
  }
  component Comp24 {
  }
  component Comp25 {
  }
  component Comp26 {
  }
  component Comp27 {
  }
}

package LAYER_1 {
    component Comp10 {
    }
    component Comp11 {
    }
    component Comp12 {
    }
    component Comp13 {
    }
    component Comp14 {
    }
    component Comp15 {
    }
    component Comp16 {
    }
    component Comp17 {
    }
}

' Hidden connections
' ------------------

' Use hidden right connections to encourage the components
' within each layer to be placed in the desired order.
Comp30 -[hidden]r- Comp31
Comp31 -[hidden]r- Comp32
Comp32 -[hidden]r- Comp33
Comp20 -[hidden]r- Comp21
Comp21 -[hidden]r- Comp22
Comp22 -[hidden]r- Comp23
Comp23 -[hidden]r- Comp24
Comp24 -[hidden]r- Comp25
Comp25 -[hidden]r- Comp26
Comp26 -[hidden]r- Comp27
Comp10 -[hidden]r- Comp11
Comp11 -[hidden]r- Comp12
Comp12 -[hidden]r- Comp13
Comp13 -[hidden]r- Comp14
Comp14 -[hidden]r- Comp15
Comp15 -[hidden]r- Comp16
Comp16 -[hidden]r- Comp17

' Use hidden down connections between the first component in each
' layer to encourage all the layers to be left-aligned.
' NOTE: Use longer arrows to force more space between the layers, so
' that the visible arrows can be more clearly distinguished.
' NOTE: Since we later create a *visible* connection from Comp20 to
' Comp10, we omit create a hidden connection here, otherwise the
' visible connection ends up curving to avoid the hidden one.
Comp30 -[hidden]d-- Comp20
'Comp20 -[hidden]d-- Comp10

' Visible connections
' -------------------

' NOTE: Use norank to prevent these visible connections from taking
' prescedence over the hidden connections and breaking the layout,
' *except* for the visible connections which are equivalent to the
' hidden connections that we have omitted.
Comp23 -[norank,#6666ff,dotted]-> Comp10
Comp21 -[norank,dotted,#red]-> Comp10
Comp20 -d--> Comp10
Comp20 -[norank]-> Comp16
@enduml
