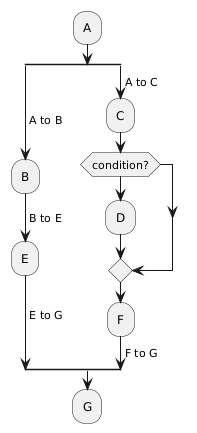

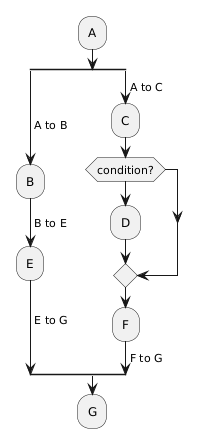

@startuml :A; split; -> A to B; :B; -> B to E; :E; -> E to G; split again; -> A to C; :C; if (condition?) then :D; endif :F; ->F to G; end split; :G; @enduml
