Defining and using sprites

A Sprite is a small graphic element that can be used in diagrams.

In PlantUML, sprites are monochrome and can have either 4, 8 or 16 gray level.

To define a sprite, you have to use a hexadecimal digit between 0 and F per pixel.

Then you can use the sprite using <$XXX> where XXX is the name of the sprite.
@startuml
sprite $foo1 {
  FFFFFFFFFFFFFFF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  F0123456789ABCF
  FFFFFFFFFFFFFFF
}
Alice -> Bob : Testing <$foo1>
@enduml

using sprite with UML diagram

Encoding Sprite

To encode sprite, you can use the command line like:

java -jar plantuml.jar -encodesprite 16z foo.png
where foo.png is the image file you want to use (it will be converted to gray automatically).

After -encodesprite, you have to specify a format: 4, 8, 16, 4z, 8z or 16z.

The number indicates the gray level and the optional z is used to enable compression in sprite definition.

Importing Sprite

You can also launch the GUI to generate a sprite from an existing image.

Click in the menubar then on File/Open Sprite Window.

After copying an image into you clipboard, several possible definitions of the corresponding sprite will be displayed : you will just have to pickup the one you want.

Examples

@startuml
sprite $printer [15x15/8z] NOtH3W0W208HxFz_kMAhj7lHWpa1XC716sz0Pq4MVPEWfBHIuxP3L6kbTcizR8tAhzaqFvXwvFfPEqm0
start
:click on <$printer> to print the page;
@enduml

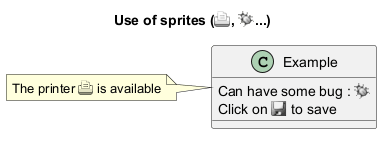

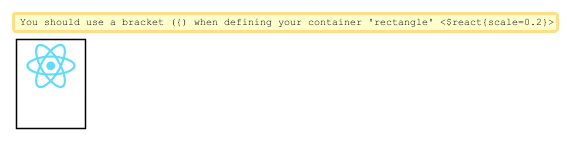

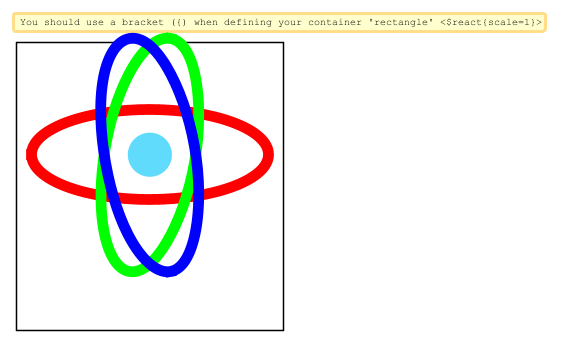

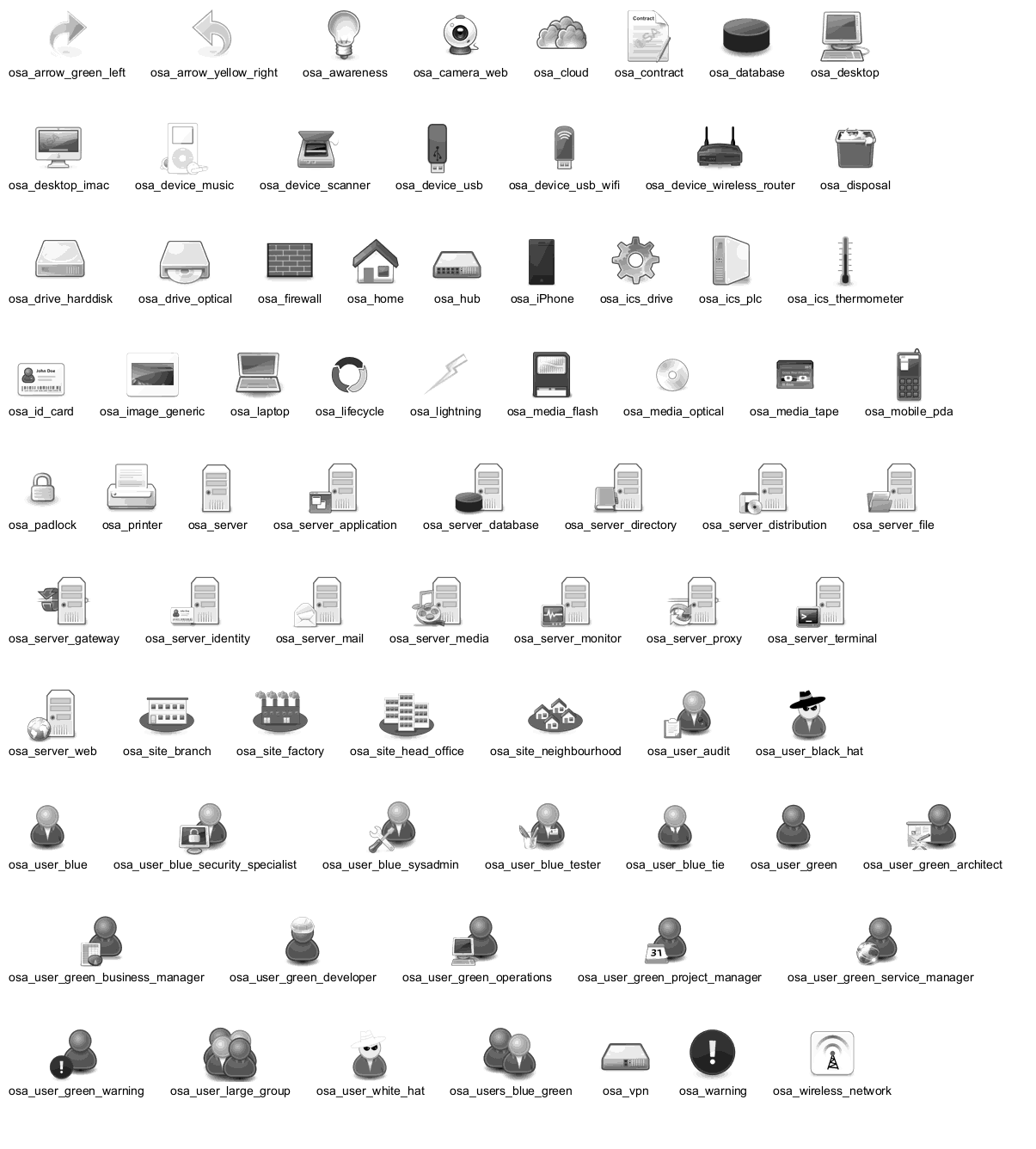

@startuml
 sprite $bug [15x15/16z] PKzR2i0m2BFMi15p__FEjQEqB1z27aeqCqixa8S4OT7C53cKpsHpaYPDJY_12MHM-BLRyywPhrrlw3qumqNThmXgd1TOterAZmOW8sgiJafogofWRwtV3nCF
 sprite $printer [15x15/8z] NOtH3W0W208HxFz_kMAhj7lHWpa1XC716sz0Pq4MVPEWfBHIuxP3L6kbTcizR8tAhzaqFvXwvFfPEqm0
 sprite $disk {
   444445566677881
   436000000009991
   43600000000ACA1
   53700000001A7A1
   53700000012B8A1
   53800000123B8A1
   63800001233C9A1
   634999AABBC99B1
   744566778899AB1
   7456AAAAA99AAB1
   8566AFC228AABB1
   8567AC8118BBBB1
   867BD4433BBBBB1
   39AAAAABBBBBBC1
}

 title Use of sprites (<$printer>, <$bug>...)

 class Example {
 Can have some bug : <$bug>
 Click on <$disk> to save
 }

 note left : The printer <$printer> is available

@enduml
