Chronology diagram

The Chronology diagram, adapted from Gantt Chart, is described in natural language, using very simple sentences (subject-verb-complement).

To activate this feature, the diagram must:
  • begin with @startchronology keyword
  • end with @endchronology keyword.

Declaring tasks or milestone

Tasks defined using square bracket.

🎉 Copied!

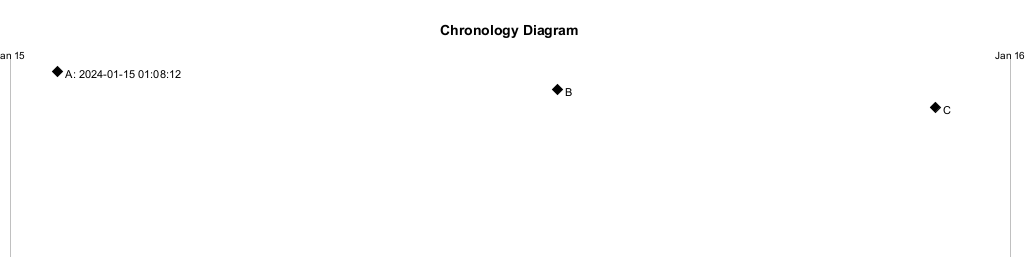

@startchronology
title Chronology Diagram
[A: 2024-01-15 01:08:12] happens on 2024-01-15 01:08:12
[B] happens on 2024-01-15 13:08:12
[C] happens on 2024-01-15 22:12:08
@endchronology
