Work Breakdown Structure (WBS)

A Work Breakdown Structure (WBS) diagram is a key project management tool that breaks down a project into smaller, more manageable components or tasks. It's essentially a hierarchical decomposition of the total scope of work to be carried out by the project team to accomplish the project objectives and create the required deliverables.

PlantUML can be particularly useful for creating WBS diagrams. Its text-based diagramming means that creating and updating a WBS is as straightforward as editing a text document, which is especially beneficial for managing changes over the project's lifecycle. This approach allows for easy integration with version control systems, ensuring that all changes are tracked and the history of the WBS evolution is maintained.

Moreover, PlantUML's compatibility with various other tools enhances its utility in collaborative environments. Teams can easily integrate their WBS diagrams into broader project documentation and management systems. The simplicity of PlantUML's syntax allows for quick adjustments, which is crucial in dynamic project environments where the scope and tasks may frequently change. Therefore, using PlantUML for WBS diagrams combines the clarity of visual breakdown with the agility and control of a text-based system, making it a valuable asset in efficient project management.

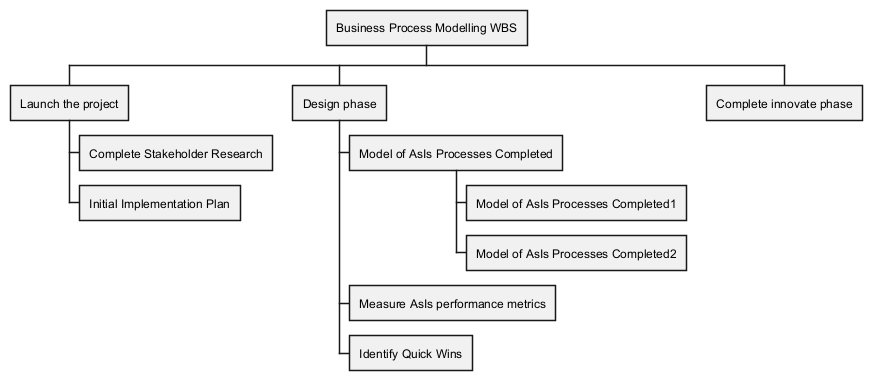

OrgMode syntax

This syntax is compatible with OrgMode

🎉 Copied!

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
**** Model of AsIs Processes Completed1
**** Model of AsIs Processes Completed2
*** Measure AsIs performance metrics
*** Identify Quick Wins
** Complete innovate phase
@endwbs

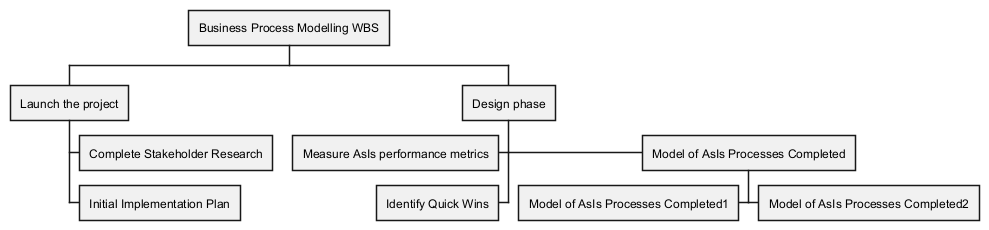

Change direction

You can change direction using < and >

🎉 Copied!

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
****< Model of AsIs Processes Completed1
****> Model of AsIs Processes Completed2
***< Measure AsIs performance metrics
***< Identify Quick Wins
@endwbs

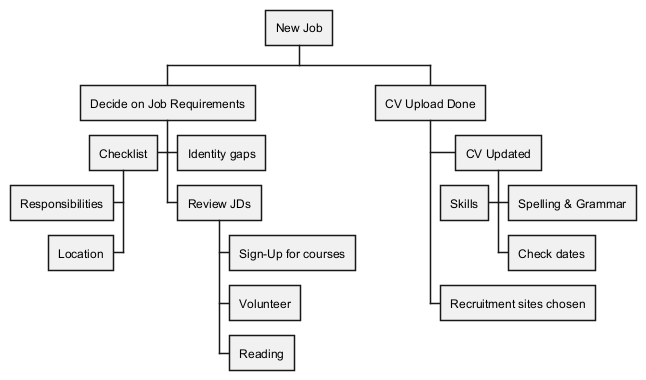

Arithmetic notation

You can use the following notation to choose diagram side.

🎉 Copied!

@startwbs
+ New Job
++ Decide on Job Requirements
+++ Identity gaps
+++ Review JDs
++++ Sign-Up for courses
++++ Volunteer
++++ Reading
++- Checklist
+++- Responsibilities
+++- Location
++ CV Upload Done
+++ CV Updated
++++ Spelling & Grammar
++++ Check dates
---- Skills
+++ Recruitment sites chosen
@endwbs

Multilines

You can use : and ; to have multilines box, as on MindMap.

🎉 Copied!

@startwbs
* <&flag> Debian
** <&globe> Ubuntu

***:Linux Mint
Open Source;

*** Kubuntu
*** ...
@endwbs

[Ref. QA-13945]

Removing box

You can use underscore _ to remove box drawing.

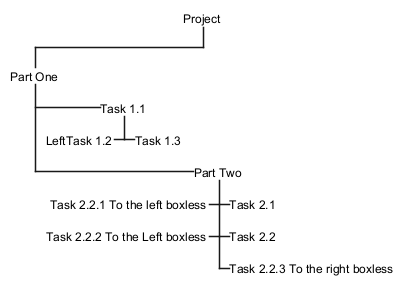

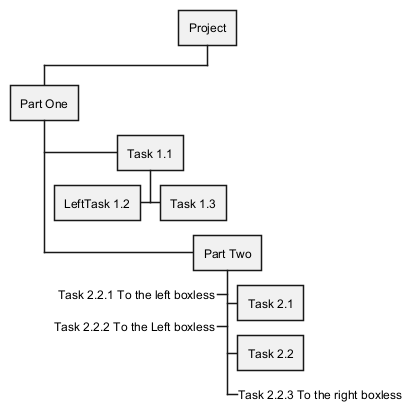

Boxless on Arithmetic notation

Several boxless node

🎉 Copied!

@startwbs
+ Project
 + Part One
  + Task 1.1
   - LeftTask 1.2
   + Task 1.3
  + Part Two
   + Task 2.1
   + Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

All boxless node

🎉 Copied!

@startwbs
+_ Project
 +_ Part One
  +_ Task 1.1
   -_ LeftTask 1.2
   +_ Task 1.3
  +_ Part Two
   +_ Task 2.1
   +_ Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

Boxless on OrgMode syntax

Several boxless node

🎉 Copied!

@startwbs
* World
** America
***_ Canada
***_ Mexico
***_ USA
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13297]

All boxless node

🎉 Copied!

@startwbs
*_ World
**_ America
***_ Canada
***_ Mexico
***_ USA
**_ Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13355]

Colors (with inline or style color)

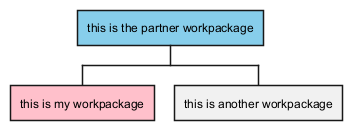

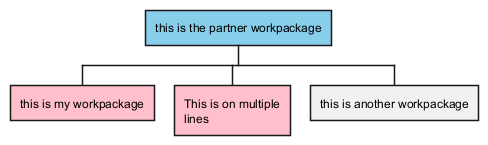

It is possible to change node color:

  • with inline color

🎉 Copied!

@startwbs
*[#SkyBlue] this is the partner workpackage
**[#pink] this is my workpackage
** this is another workpackage
@endwbs

🎉 Copied!

@startwbs
+[#SkyBlue] this is the partner workpackage
++[#pink] this is my workpackage
++ this is another workpackage
@endwbs

[Ref. QA-12374, only from v1.2020.20]

  • with style color

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  .pink {
      BackgroundColor pink
  }
  .your_style_name {
      BackgroundColor SkyBlue
  }
}
</style>
* this is the partner workpackage <<your_style_name>>
** this is my workpackage <<pink>>
** this is another workpackage
@endwbs

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  .pink {
      BackgroundColor pink
  }
  .your_style_name {
      BackgroundColor SkyBlue
  }
}
</style>
+ this is the partner workpackage <<your_style_name>>
++ this is my workpackage <<pink>>
++ this is another workpackage
@endwbs

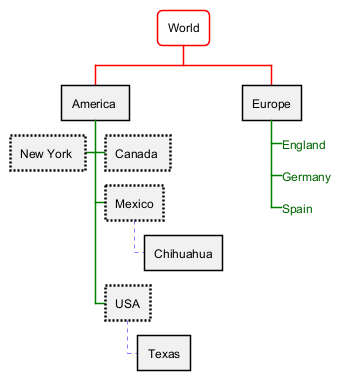

Using style

It is possible to change diagram style.

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  // all lines (meaning connector and borders, there are no other lines in WBS) are black by default
  Linecolor black
  arrow {
    // note that connector are actually "arrow" even if they don't look like as arrow
    // This is to be consistent with other UML diagrams. Not 100% sure that it's a good idea
    // So now connector are green
    LineColor green
  }
  :depth(0) {
      // will target root node
      BackgroundColor White
      RoundCorner 10
      LineColor red
      // Because we are targetting depth(0) for everything, border and connector for level 0 will be red
  }
  arrow {
    :depth(2) {
      // Targetting only connector between Mexico-Chihuahua and USA-Texas
      LineColor blue
      LineStyle 4
      LineThickness .5
    }
  }
  node {
    :depth(2) {
      LineStyle 2
      LineThickness 2.5
    }
  }
  boxless {
    // will target boxless node with '_'
    FontColor darkgreen
  }
}
</style>
* World
** America
*** Canada
*** Mexico
**** Chihuahua
*** USA
**** Texas
***< New York
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

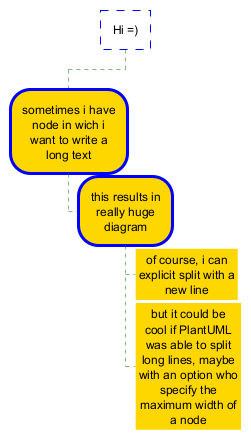

Word Wrap

Using MaximumWidth setting you can control automatic word wrap. Unit used is pixel.

🎉 Copied!

@startwbs


<style>
node {
    Padding 12
    Margin 3
    HorizontalAlignment center
    LineColor blue
    LineThickness 3.0
    BackgroundColor gold
    RoundCorner 40
    MaximumWidth 100
}

rootNode {
    LineStyle 8.0;3.0
    LineColor red
    BackgroundColor white
    LineThickness 1.0
    RoundCorner 0
    Shadowing 0.0
}

leafNode {
    LineColor gold
    RoundCorner 0
    Padding 3
}

arrow {
    LineStyle 4
    LineThickness 0.5
    LineColor green
}
</style>

* Hi =)
** sometimes i have node in wich i want to write a long text
*** this results in really huge diagram
**** of course, i can explicit split with a\nnew line
**** but it could be cool if PlantUML was able to split long lines, maybe with an option who specify the maximum width of a node

@endwbs

Add arrows between WBS elements

You can add arrows between WBS elements.

Using alias with as:

🎉 Copied!

@startwbs
<style>
.foo {
  LineColor #00FF00;
}
</style>
* Test
** A topic
*** "common" as c1
*** "common2" as c2
** "Another topic" as t2
t2 -> c1 <<foo>>
t2 ..> c2 #blue
@endwbs

Using alias in parentheses:

🎉 Copied!

@startwbs
* Test
**(b) A topic
***(c1) common
**(t2) Another topic
t2 --> c1
b -> t2 #blue
@endwbs

[Ref. QA-16251]

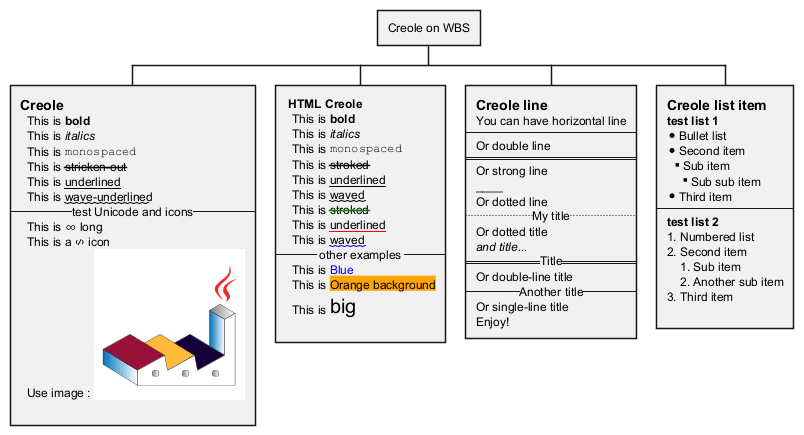

Creole on WBS diagram

You can use Creole or HTML Creole on WBS:

🎉 Copied!

@startwbs
* Creole on WBS
**:==Creole
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
--test Unicode and icons--
  This is <U+221E> long
  This is a <&code> icon
  Use image : <img:https://plantuml.com/logo3.png>
;
**: <b>HTML Creole
  This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
-- other examples --
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>
;
**:==Creole line
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Or dotted title
//and title... //
==Title==
Or double-line title
--Another title--
Or single-line title
Enjoy!;
**:==Creole list item
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
;
@endwbs
