Activity Diagram (legacy)

This is the old Activity Diagram (legacy) syntax, to see the new current version see: Activity Diagram (new).

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Simple Action

You can use (*) for the starting point and ending point of the activity diagram.

In some occasion, you may want to use (*top) to force the starting point to be at the top of the diagram.

Use --> for arrows.

🎉 Copied!

@startuml

(*) --> "First Action"
"First Action" --> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Label on arrows

By default, an arrow starts at the last used activity.

You can put a label on an arrow using brackets [ and ] just after the arrow definition.

🎉 Copied!

@startuml

(*) --> "First Action"
-->[You can put also labels] "Second Action"
--> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Changing arrow direction

You can use -> for horizontal arrows. It is possible to force arrow's direction using the following syntax:

🎉 Copied!

@startuml

(*) -up-> "First Action"
-right-> "Second Action"
--> "Third Action"
-left-> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

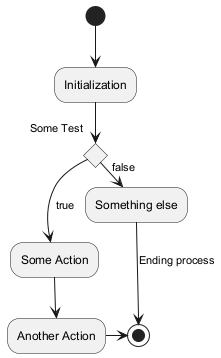

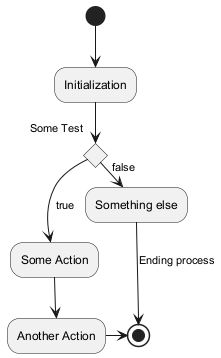

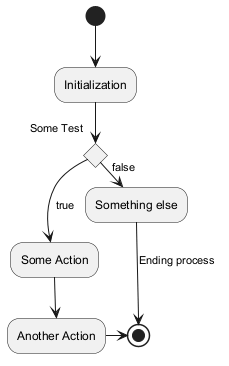

Branches

You can use if/then/else keywords to define branches.

🎉 Copied!

@startuml
(*) --> "Initialization"

if "Some Test" then
  -->[true] "Some Action"
  --> "Another Action"
  -right-> (*)
else
  ->[false] "Something else"
  -->[Ending process] (*)
endif

@enduml

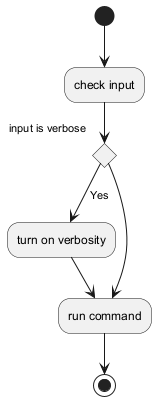

Unfortunately, you will have to sometimes repeat the same activity in the diagram text:

🎉 Copied!

@startuml
(*)  --> "check input"
If "input is verbose" then
--> [Yes] "turn on verbosity"
--> "run command"
else
--> "run command"
Endif
-->(*)
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

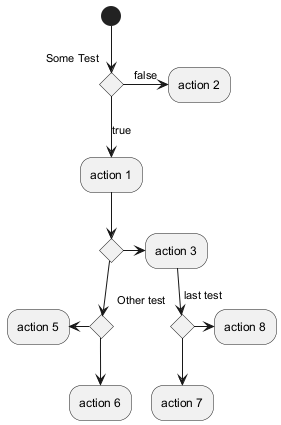

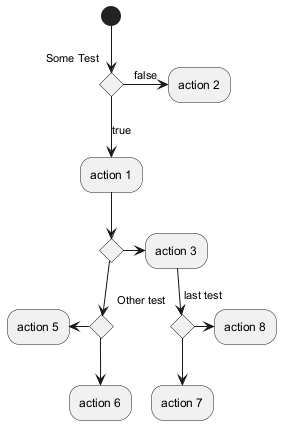

More on Branches

By default, a branch is connected to the last defined activity, but it is possible to override this and to define a link with the if keywords.

It is also possible to nest branches.

🎉 Copied!

@startuml

(*) --> if "Some Test" then

  -->[true] "action 1"

  if "" then
    -> "action 3" as a3
  else
    if "Other test" then
      -left-> "action 5"
    else
      --> "action 6"
    endif
  endif

else

  ->[false] "action 2"

endif

a3 --> if "last test" then
  --> "action 7"
else
  -> "action 8"
endif

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Synchronization

You can use === code === to display synchronization bars.

🎉 Copied!

@startuml

(*) --> ===B1===
--> "Parallel Action 1"
--> ===B2===

===B1=== --> "Parallel Action 2"
--> ===B2===

--> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Long action description

When you declare activities, you can span on several lines the description text. You can also add \n in the description.

You can also give a short code to the activity with the as keyword. This code can be used latter in the diagram description.

🎉 Copied!

@startuml
(*) -left-> "this <size:20>action</size>
is <b>very</b> <color:red>long2</color>
and defined on several lines
that contains many <i>text</i>" as A1

-up-> "Another action\n on several lines"

A1 --> "Short action <img:https://plantuml.com/sourceforge.jpg>"
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

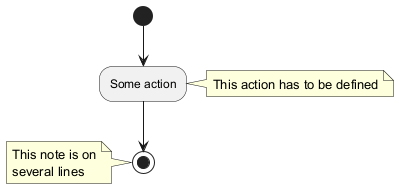

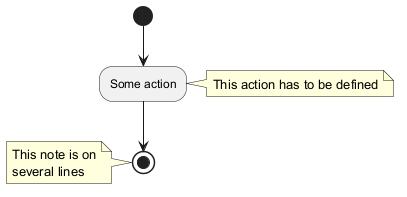

Notes

You can add notes on a activity using the commands note left, note right, note top or note bottom, just after the description of the activity you want to note.

If you want to put a note on the starting point, define the note at the very beginning of the diagram description.

You can also have a note on several lines, using the endnote keywords.

🎉 Copied!

@startuml

(*) --> "Some action"
note right: This action has to be defined
"Some action" --> (*)
note left
 This note is on
 several lines
end note

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

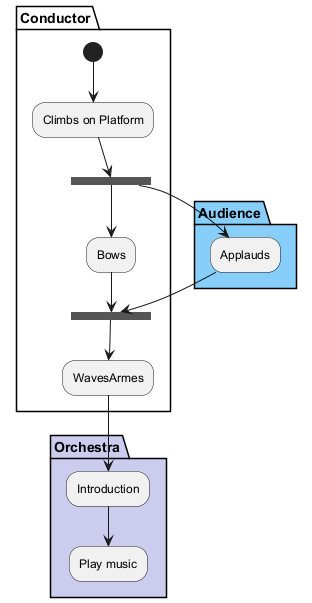

Partition

You can define a partition using the partition keyword, and optionally declare a background color for your partition (Using a html color code or name)

When you declare activities, they are automatically put in the last used partition.

You can close the partition definition using a closing bracket }.

🎉 Copied!

@startuml

partition Conductor {
  (*) --> "Climbs on Platform"
  --> === S1 ===
  --> Bows
}

partition Audience #LightSkyBlue {
  === S1 === --> Applauds
}

partition Conductor {
  Bows --> === S2 ===
  --> WavesArmes
  Applauds --> === S2 ===
}

partition Orchestra #CCCCEE {
  WavesArmes --> Introduction
  --> "Play music"
}

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

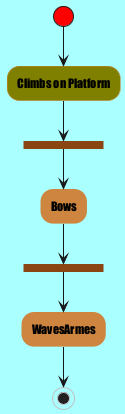

Skinparam

You can use the skinparam command to change colors and fonts for the drawing.

You can use this command : You can define specific color and fonts for stereotyped activities.

🎉 Copied!

@startuml

skinparam backgroundColor #AAFFFF
skinparam activity {
  StartColor red
  BarColor SaddleBrown
  EndColor Silver
  BackgroundColor Peru
  BackgroundColor<< Begin >> Olive
  BorderColor Peru
  FontName Impact
}

(*) --> "Climbs on Platform" << Begin >>
--> === S1 ===
--> Bows
--> === S2 ===
--> WavesArmes
--> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Octagon

You can change the shape of activities to octagon using the skinparam activityShape octagon command.

🎉 Copied!

@startuml
'Default is skinparam activityShape roundBox
skinparam activityShape octagon

(*) --> "First Action"
"First Action" --> (*)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

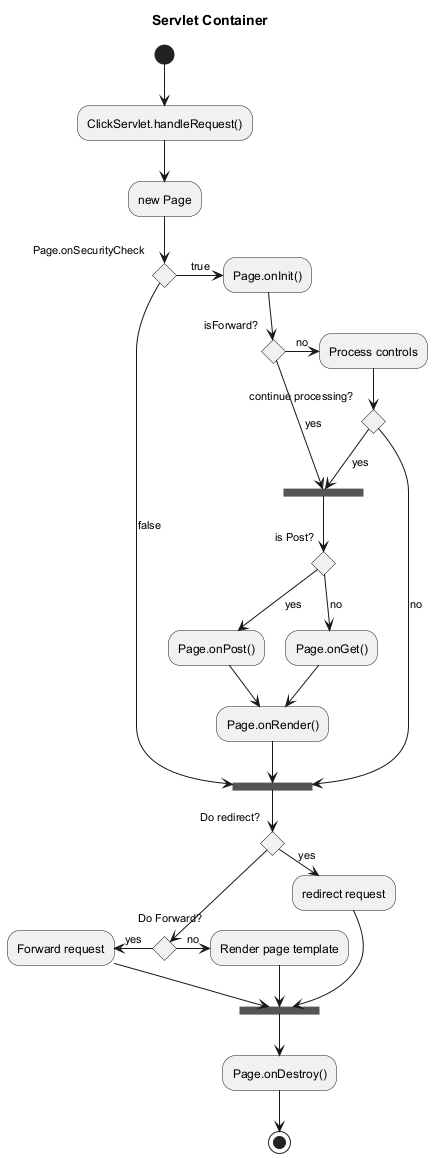

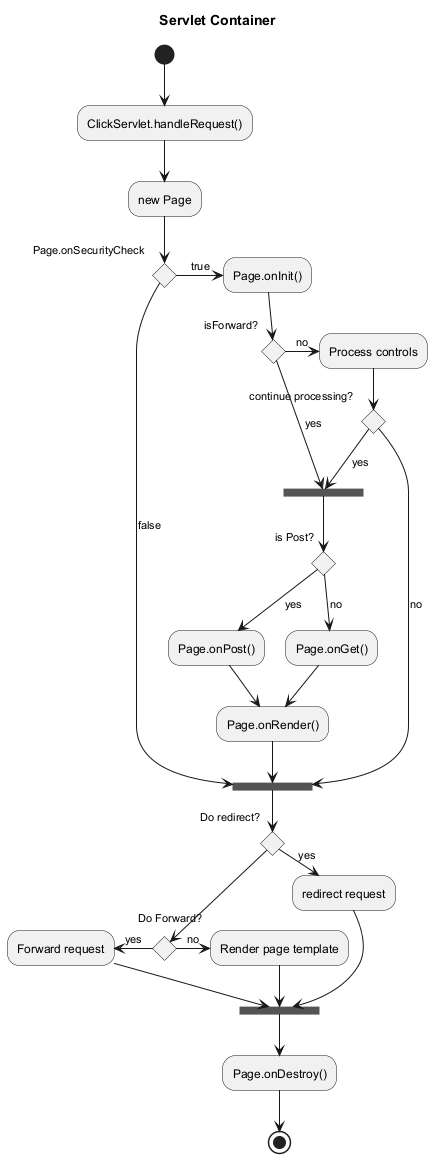

Complete example

🎉 Copied!

@startuml
title Servlet Container

(*) --> "ClickServlet.handleRequest()"
--> "new Page"

if "Page.onSecurityCheck" then
  ->[true] "Page.onInit()"

  if "isForward?" then
   ->[no] "Process controls"

   if "continue processing?" then
     -->[yes] ===RENDERING===
   else
     -->[no] ===REDIRECT_CHECK===
   endif

  else
   -->[yes] ===RENDERING===
  endif

  if "is Post?" then
    -->[yes] "Page.onPost()"
    --> "Page.onRender()" as render
    --> ===REDIRECT_CHECK===
  else
    -->[no] "Page.onGet()"
    --> render
  endif

else
  -->[false] ===REDIRECT_CHECK===
endif

if "Do redirect?" then
 ->[yes] "redirect request"
 --> ==BEFORE_DESTROY===
else
 if "Do Forward?" then
  -left->[yes] "Forward request"
  --> ==BEFORE_DESTROY===
 else
  -right->[no] "Render page template"
  --> ==BEFORE_DESTROY===
 endif
endif

--> "Page.onDestroy()"
-->(*)

@enduml
