Deployment Diagram

Ein Deployment Diagramm ist eine Art von Diagramm, das die Architektur von Systemen visualisiert und zeigt, wie Softwarekomponenten auf der Hardware eingesetzt werden. Es vermittelt ein klares Bild von der Verteilung der Komponenten auf verschiedene Knoten wie Server, Workstations und Geräte.

Mit PlantUML wird die Erstellung von Deployment-Diagrammen zum Kinderspiel. Die Plattform bietet eine einfache und intuitive Möglichkeit, diese Diagramme mit einfachem Text zu entwerfen, was schnelle Iterationen und eine einfache Versionskontrolle gewährleistet. Darüber hinaus bietet das PlantUML-Forum eine lebendige Gemeinschaft, in der Benutzer Hilfe suchen, Ideen austauschen und gemeinsam an Diagramm-Herausforderungen arbeiten können. Einer der Hauptvorteile von PlantUML ist seine Fähigkeit, sich nahtlos in verschiedene Werkzeuge und Plattformen zu integrieren, was es zu einer bevorzugten Wahl für Profis und Enthusiasten gleichermaßen macht.

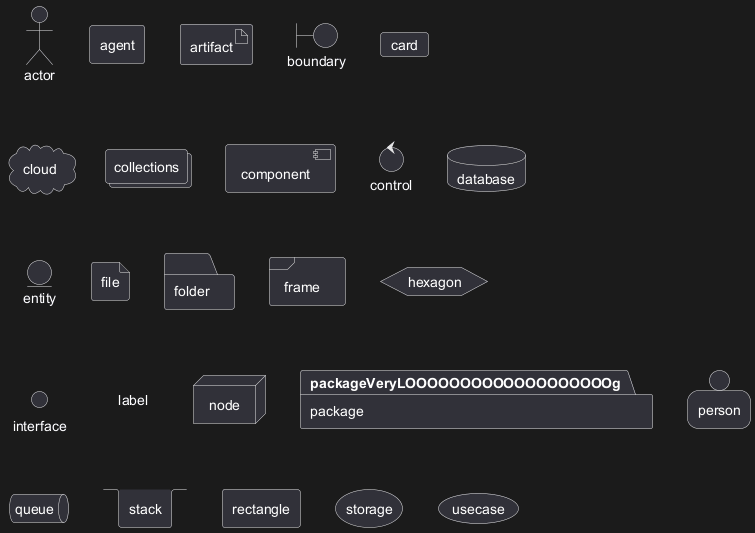

Element deklarieren

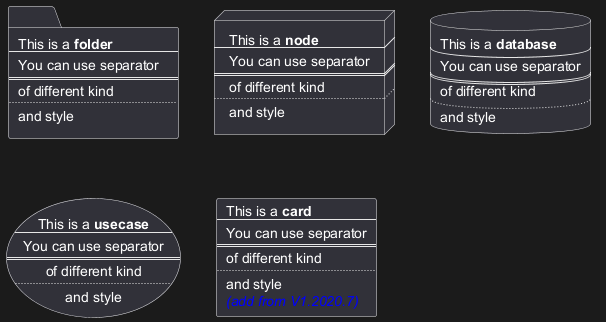

Für eine lange Beschreibung können Sie optional Text in Klammern [] eingeben.

WARNING
 This translation need to be updated.
WARNING

Declaring element (using short form)

We can declare element using some short forms.

Long form Keyword Short form Keyword Long form example Short form example Ref.

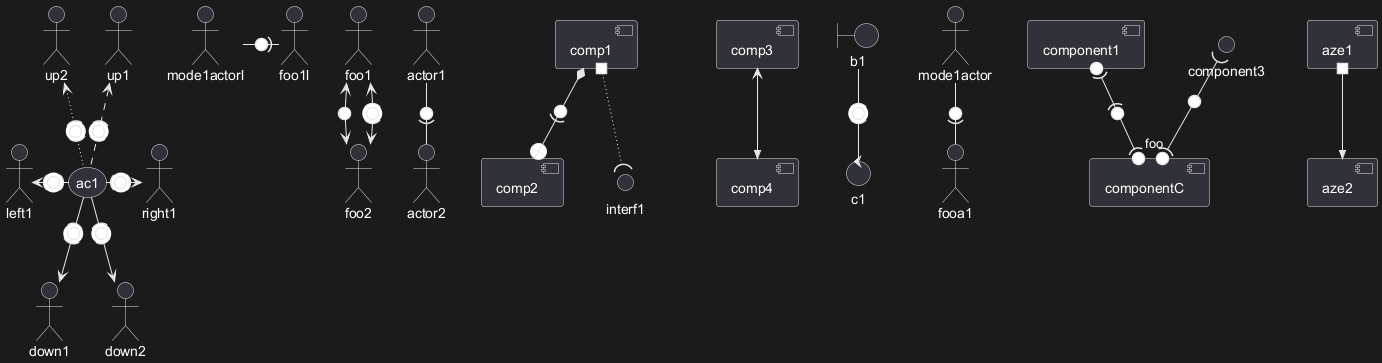

actor : a : actor actor1 :actor2: Actors
component [ c ] component component1 [component2] Components
interface () i interface interface1 () "interface2" Interfaces
usecase ( u ) usecase usecase1 (usecase2) Usecases

Actor

NB: There is an old syntax for actor with guillemet which is now deprecated and will be removed some days. Please do not use in your diagram.

Component

Interface

Usecase

Linking or arrow

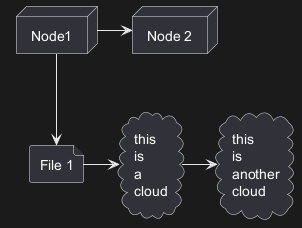

You can create simple links between elements with or without labels:

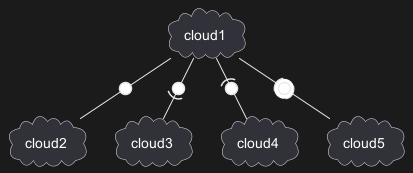

It is possible to use several types of links:

You can also have the following types:

or another example:
[Ref. QA-547 and QA-1736]

⎘ See all type on Appendix.

Bracketed arrow style

Similar as Bracketed class relations (linking or arrow) style

Line style

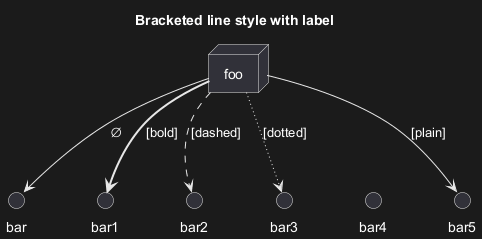

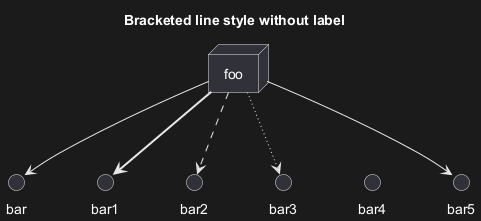

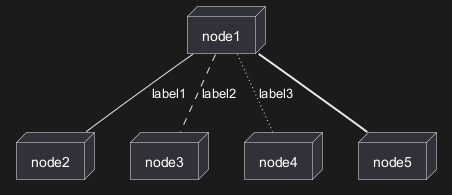

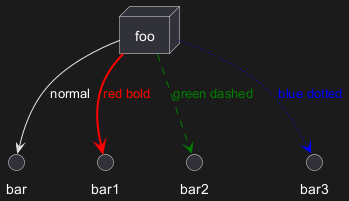

It's also possible to have explicitly bold, dashed, dotted, hidden or plain arrows:

[Adapted from QA-4181]

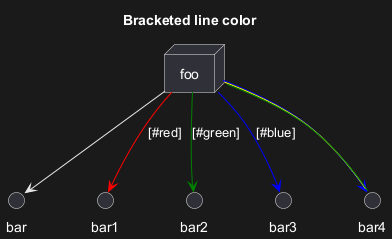

Line color

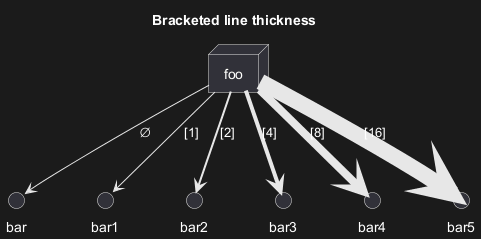

Line thickness

[Adapted from QA-4949]

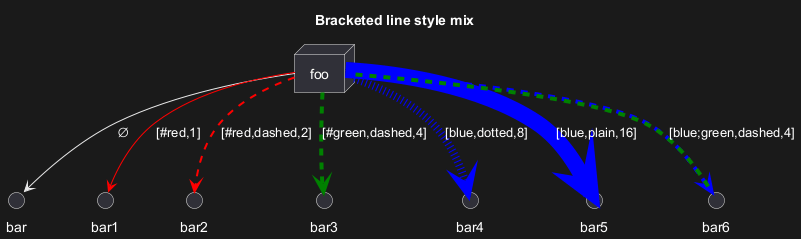

Mix

Change arrow color and style (inline style)

You can change the color or style of individual arrows using the inline following notation:

[Ref. QA-3770 and QA-3816] [See similar feature on class diagram]

Change element color and style (inline style)

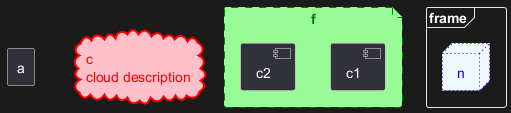

You can change the color or style of individual element using the following notation:

[Ref. QA-6852]

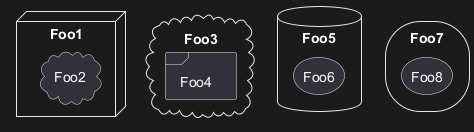

Nestable elements

Here are the nestable elements:

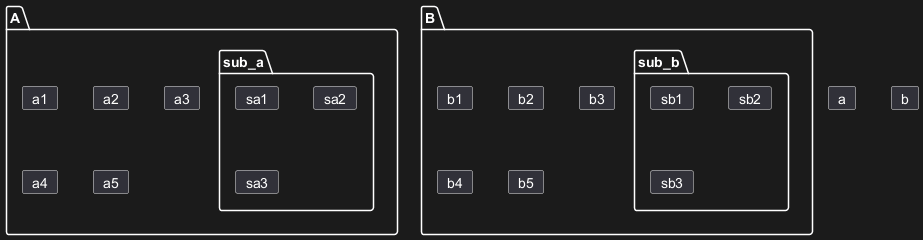

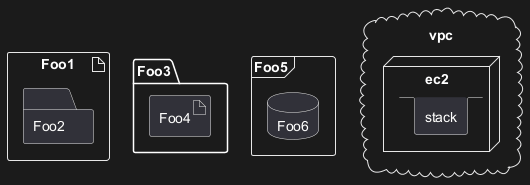

Packages and nested elements

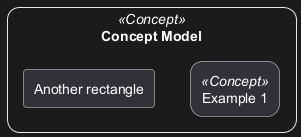

Example with one level

Other example

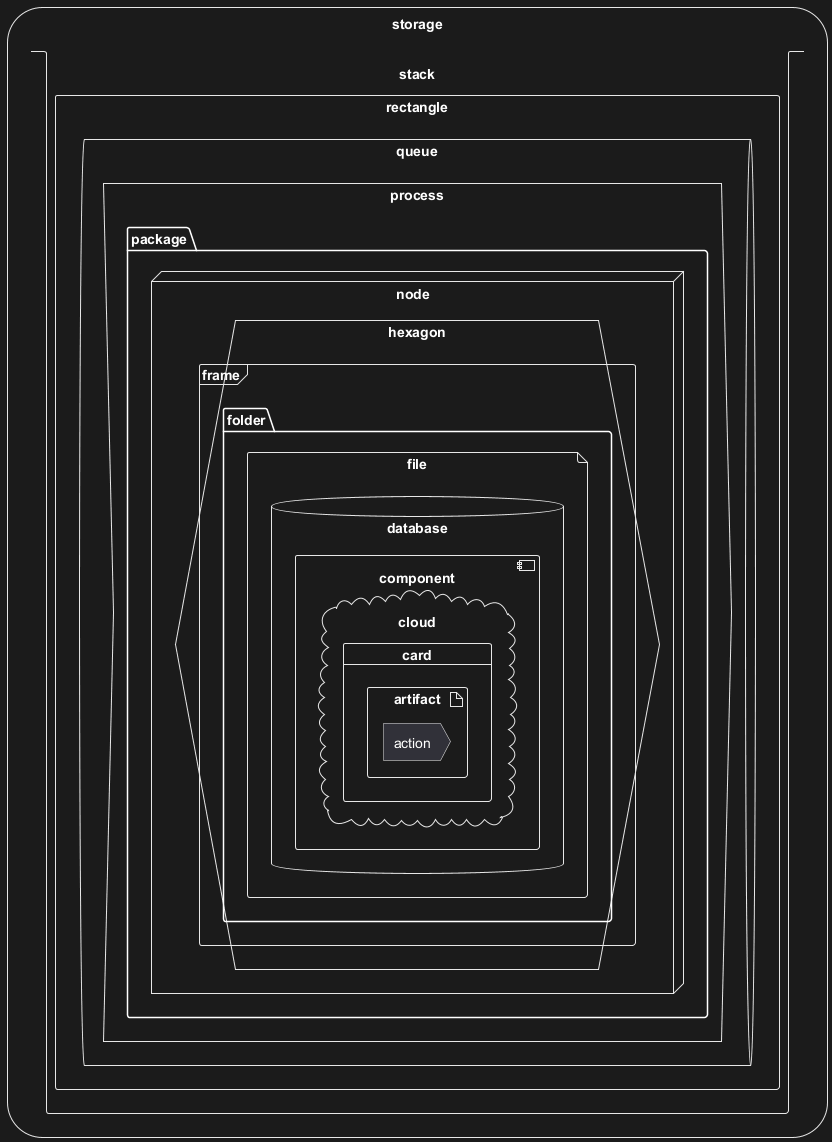

Full nesting

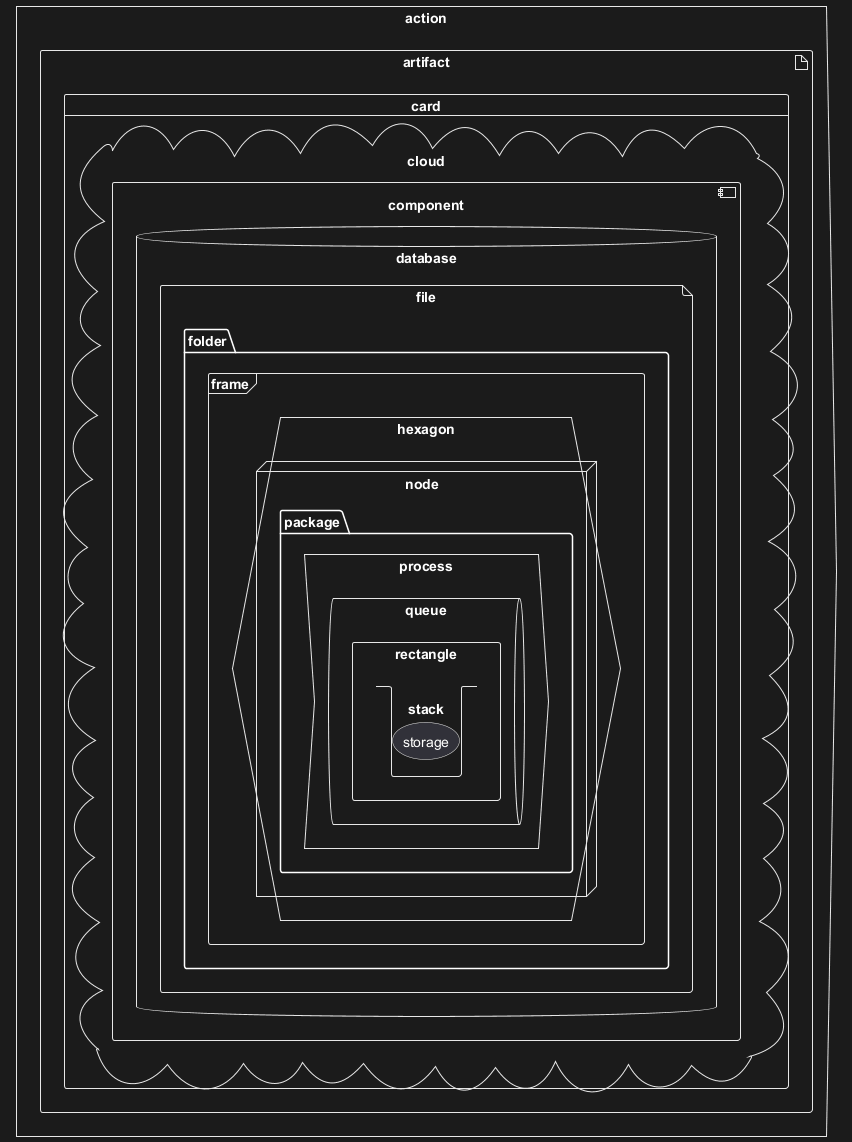

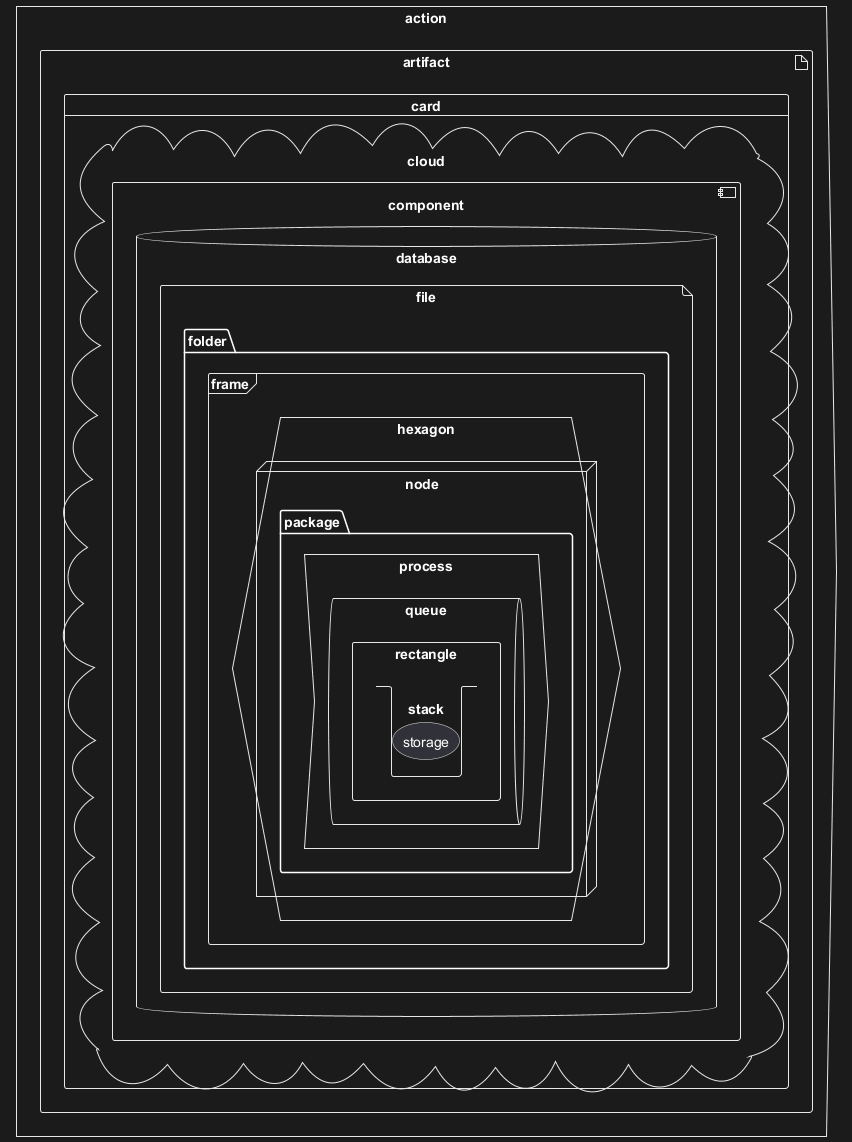

Here is all the nested elements:

Alias

Simple alias with as

Examples of long alias

[Ref. QA-12082]

Round corner

Specific SkinParameter

roundCorner

[Ref. QA-5299, QA-6915, QA-11943]

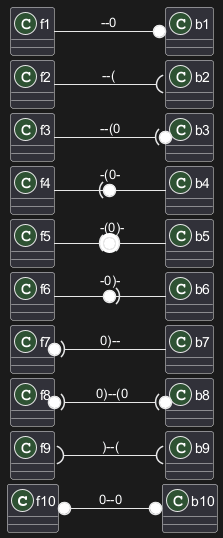

Appendix: All type of arrow line

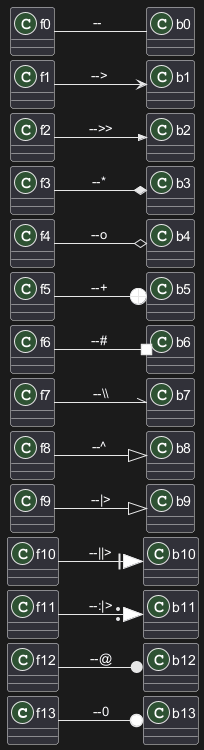

Appendix: All type of arrow head or '0' arrow

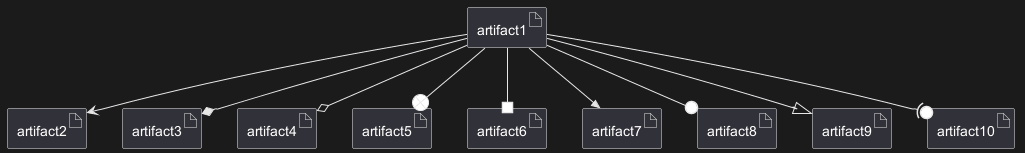

Type of arrow head

Type of '0' arrow or circle arrow

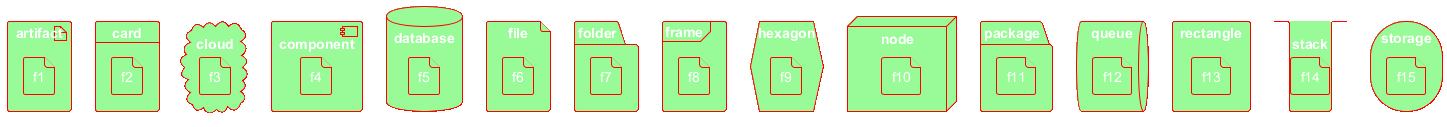

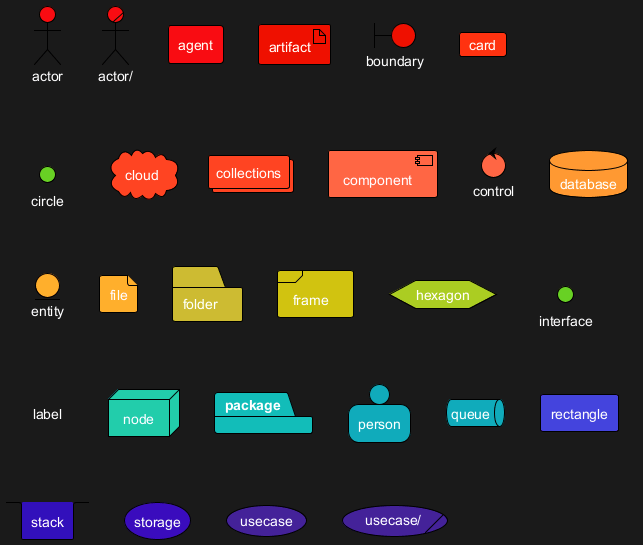

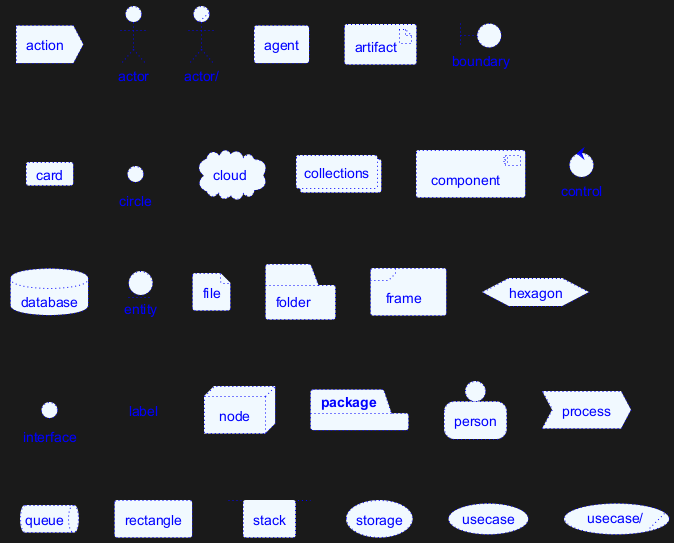

Appendix: Test of inline style on all element

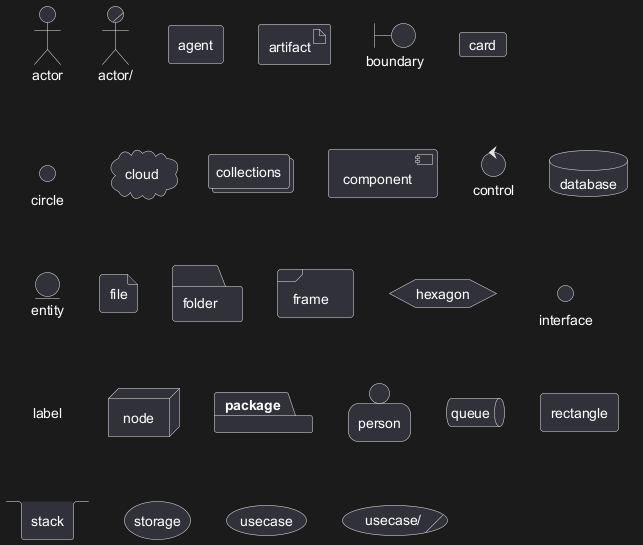

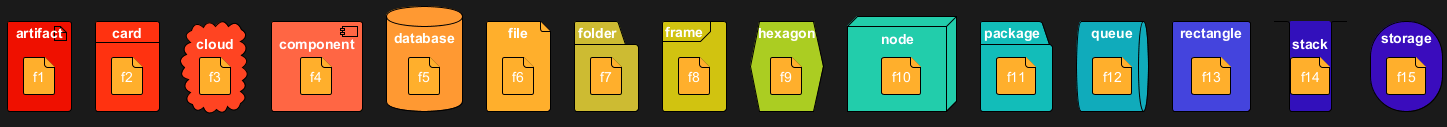

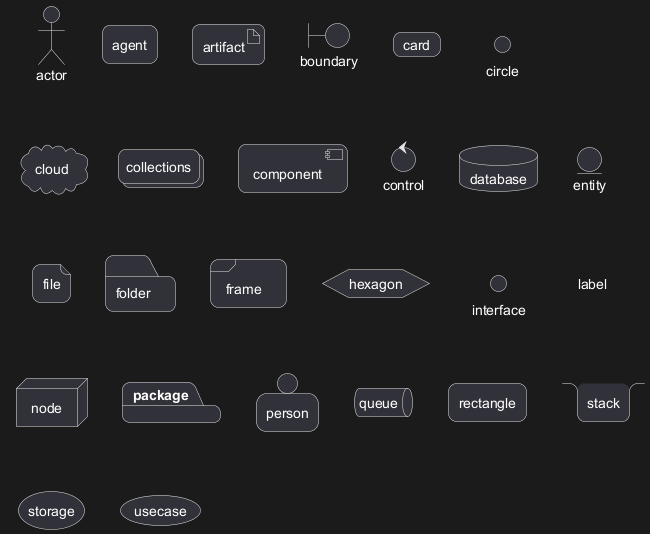

Simple element

Nested element

Without sub-element

With sub-element

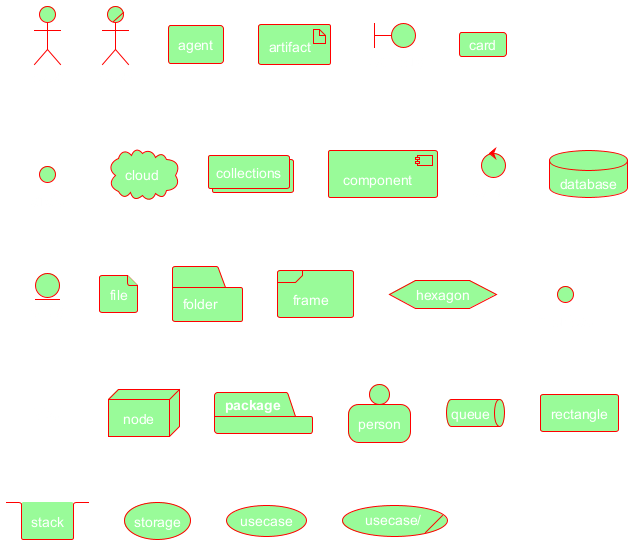

Appendix: Test of style on all element

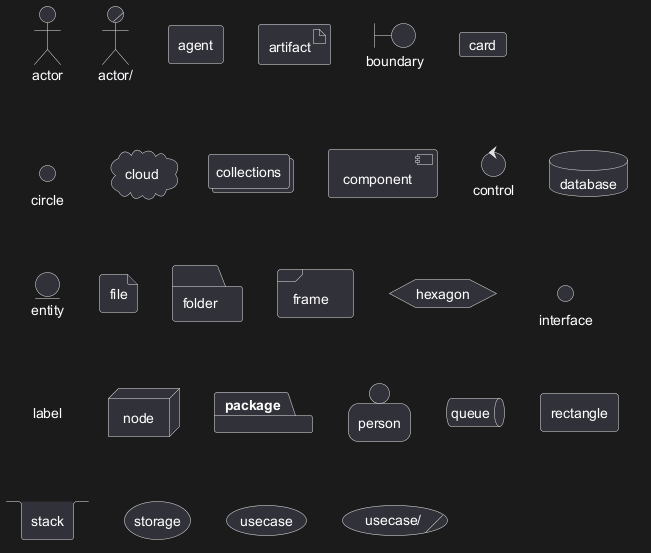

Simple element

Global style (on componentDiagram)

Style for each element

[Ref. QA-13261]

Nested element (without level)

Global style (on componentDiagram)

Style for each nested element

Nested element (with one level)

Global style (on componentDiagram)

Style for each nested element

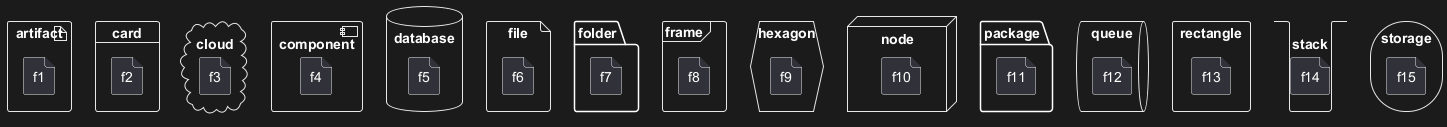

Appendix: Test of stereotype with style on all element

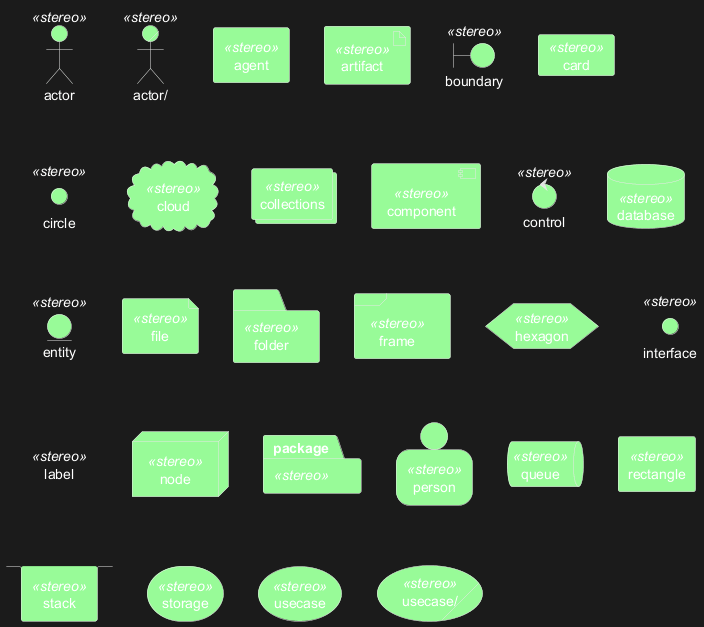

Simple element

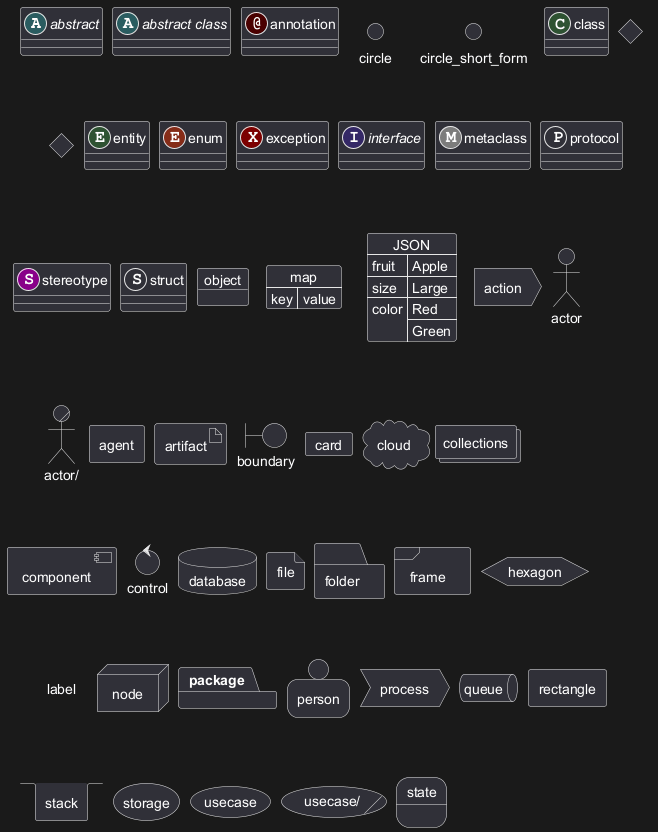

Display JSON Data on Deployment diagram

Simple example

[Ref. QA-15481]

For another example, see on JSON page.

Mixing Deployment (Usecase, Component, Deployment) element within a Class or Object diagram

In order to add a Deployment element or a State element within a Class or Object diagram, you can use the allowmixing or allow_mixing directive.

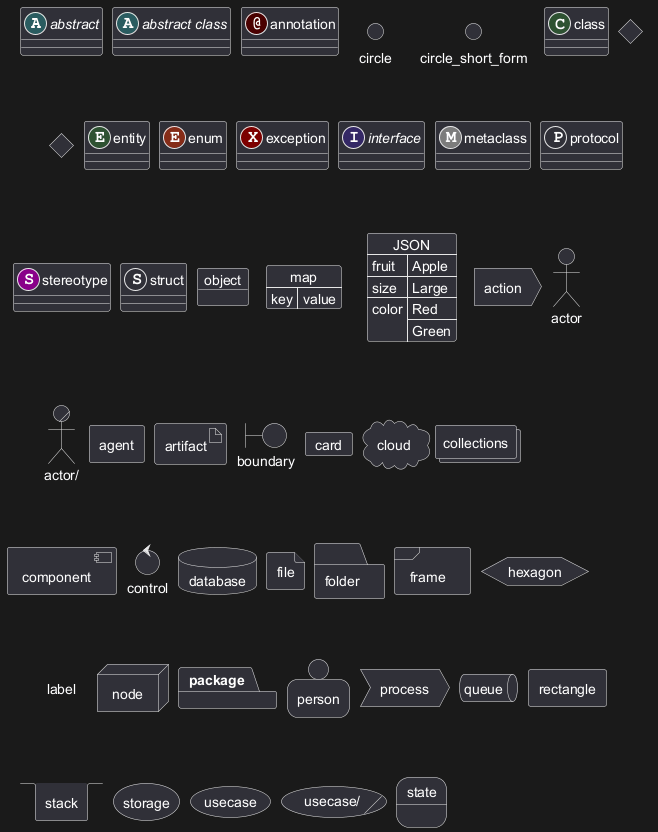

Mixing all elements

[Ref. QA-2335 and QA-5329]

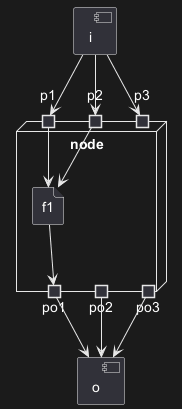

Port [port, portIn, portOut]

You can added port with port, portinand portout keywords.

Port

PortIn

PortOut

Mixing PortIn & PortOut

Change diagram orientation

You can change (whole) diagram orientation with:

Top to bottom (by default)

With Graphviz (layout engine by default)

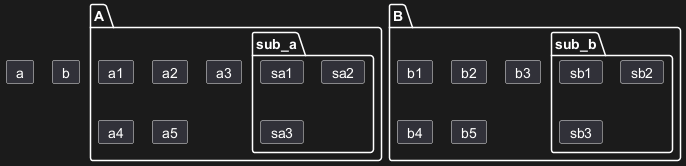

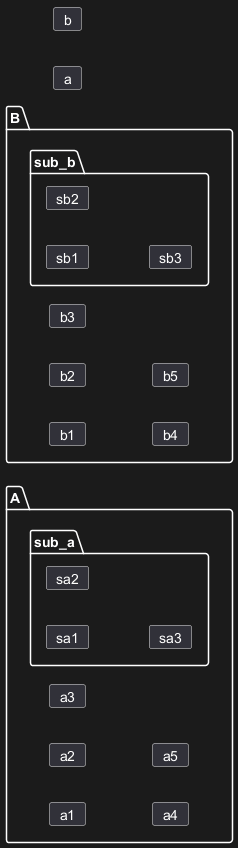

The main rule is: Nested element first, then simple element.

With Smetana (internal layout engine)

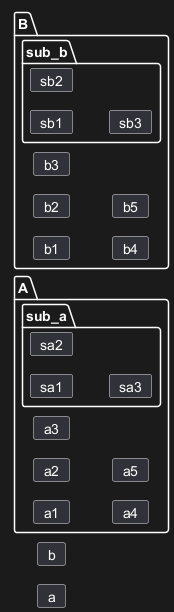

The main rule is the opposite: Simple element first, then nested element.

Left to right

With Graphviz (layout engine by default)

With Smetana (internal layout engine)
