MindMap

Ein MindMap-Diagramm ist im Zusammenhang mit PlantUML ein effektives Werkzeug für das Brainstorming, die Organisation von Ideen und die Projektplanung. MindMap-Diagramme oder Mind Maps sind visuelle Darstellungen von Informationen, bei denen sich zentrale Ideen in verwandte Themen verzweigen und ein Spinnennetz von Konzepten bilden. PlantUML erleichtert die Erstellung dieser Diagramme mit seiner einfachen, textbasierten Syntax, die eine effiziente Organisation und Visualisierung komplexer Ideen ermöglicht.

Die Verwendung von PlantUML für MindMaps ist besonders vorteilhaft aufgrund seiner Integration mit anderen Tools und Systemen. Diese Integration rationalisiert den Prozess der Einbindung von Mind Maps in größere Projektdokumentationen. Der textbasierte Ansatz von PlantUML ermöglicht auch eine einfache Modifikation und Versionskontrolle der Mind Maps, was es zu einem dynamischen Werkzeug für kollaboratives Brainstorming und Ideenentwicklung macht.

MindMaps in PlantUML können für verschiedene Zwecke verwendet werden, von der Skizzierung der Struktur eines Projekts bis zum Brainstorming von Produktmerkmalen oder Geschäftsstrategien. Das hierarchische und intuitive Layout von Mindmaps hilft bei der Identifizierung von Beziehungen zwischen verschiedenen Ideen und Konzepten, wodurch es einfacher wird, das Gesamtbild zu sehen und Bereiche zu identifizieren, die eine weitere Untersuchung erfordern. Dies macht PlantUML zu einem unschätzbaren Werkzeug für Projektmanager, Entwickler und Geschäftsanalysten, die eine Methode benötigen, um komplexe Informationen visuell zu organisieren und in einer klaren und präzisen Weise zu präsentieren.

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

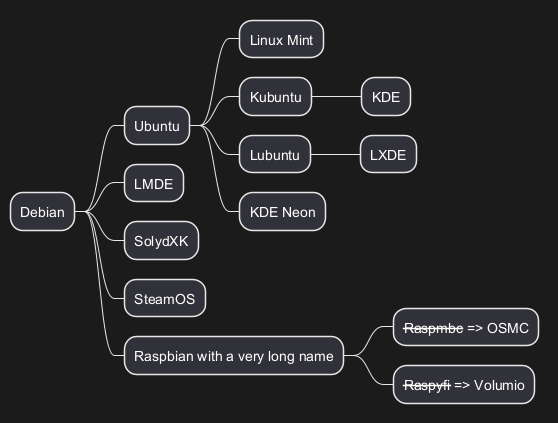

OrgMode Syntax

Diese Syntax ist mit dem OrgMode kompatibel

🎉 Copied!

@startmindmap * Debian ** Ubuntu *** Linux Mint *** Kubuntu **** KDE *** Lubuntu **** LXDE *** KDE Neon ** LMDE ** SolydXK ** SteamOS ** Raspbian with a very long name *** <s>Raspmbc</s> => OSMC *** <s>Raspyfi</s> => Volumio @endmindmap

WARNING

This translation need to be updated.

WARNING

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Markdown syntax

This syntax is compatible with Markdown.

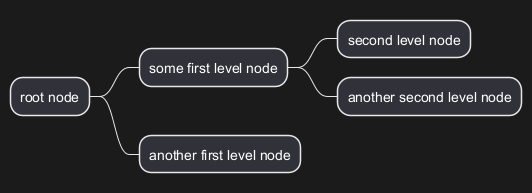

Markdown Header

You can use Markdown header:

🎉 Copied!

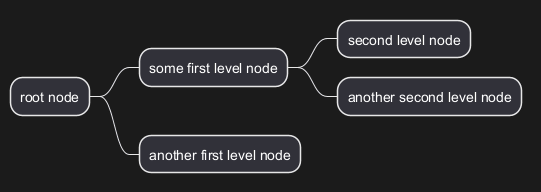

@startmindmap # root node ## some first level node ### second level node ### another second level node ## another first level node @endmindmap

Markdown indented list

You can use Markdown list or GFM list:

🎉 Copied!

@startmindmap * root node * some first level node * second level node * another second level node * another first level node @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

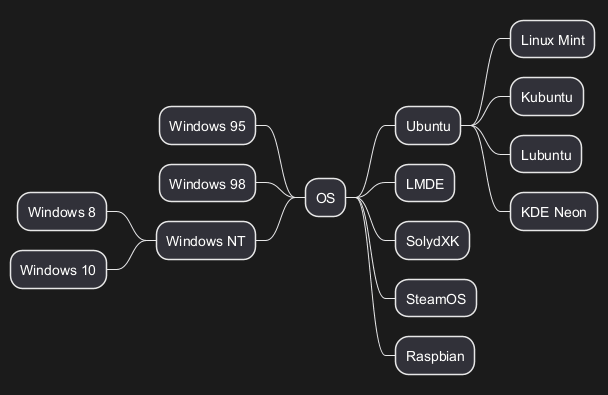

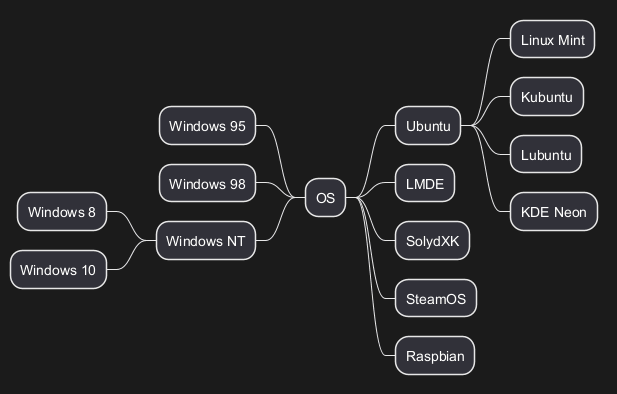

Arithmetic notation

You can use the following notation to choose diagram side.

🎉 Copied!

@startmindmap + OS ++ Ubuntu +++ Linux Mint +++ Kubuntu +++ Lubuntu +++ KDE Neon ++ LMDE ++ SolydXK ++ SteamOS ++ Raspbian -- Windows 95 -- Windows 98 -- Windows NT --- Windows 8 --- Windows 10 @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

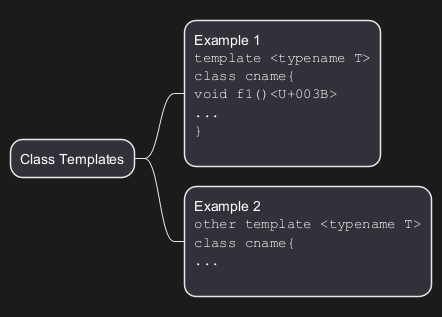

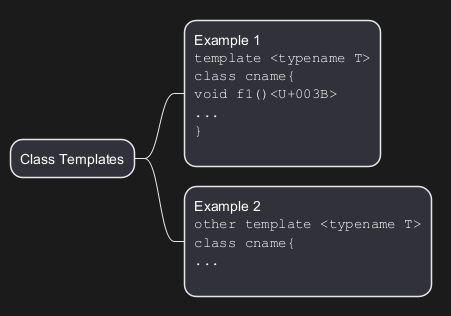

Multilines

You can use : and ; to have multilines box.

🎉 Copied!

@startmindmap * Class Templates **:Example 1 <code> template <typename T> class cname{ void f1()<U+003B> ... } </code> ; **:Example 2 <code> other template <typename T> class cname{ ... </code> ; @endmindmap

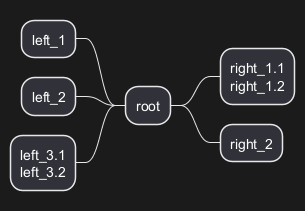

🎉 Copied!

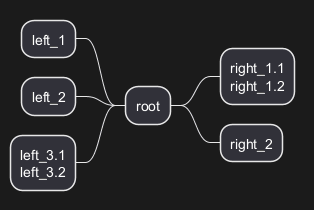

@startmindmap + root **:right_1.1 right_1.2; ++ right_2 left side -- left_1 -- left_2 **:left_3.1 left_3.2; @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Multiroot Mindmap

You can create multiroot mindmap, as:

🎉 Copied!

@startmindmap * Root 1 ** Foo ** Bar * Root 2 ** Lorem ** Ipsum @endmindmap

[Ref. QH-773]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Colors

It is possible to change node color.

With inline color

OrgMode syntax mindmap

🎉 Copied!

@startmindmap *[#Orange] Colors **[#lightgreen] Green **[#FFBBCC] Rose **[#lightblue] Blue @endmindmap

Arithmetic notation syntax mindmap

🎉 Copied!

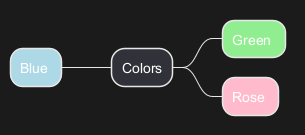

@startmindmap +[#Orange] Colors ++[#lightgreen] Green ++[#FFBBCC] Rose --[#lightblue] Blue @endmindmap

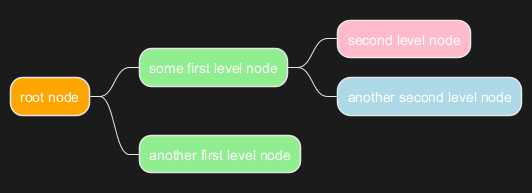

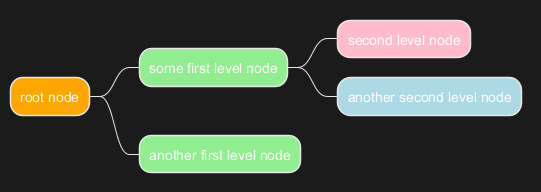

Markdown syntax mindmap

🎉 Copied!

@startmindmap *[#Orange] root node *[#lightgreen] some first level node *[#FFBBCC] second level node *[#lightblue] another second level node *[#lightgreen] another first level node @endmindmap

With style color

OrgMode syntax mindmap

🎉 Copied!

@startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> * Colors ** Green <<green>> ** Rose <<rose>> ** Blue <<your_style_name>> @endmindmap

Arithmetic notation syntax mindmap

🎉 Copied!

@startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> + Colors ++ Green <<green>> ++ Rose <<rose>> -- Blue <<your_style_name>> @endmindmap

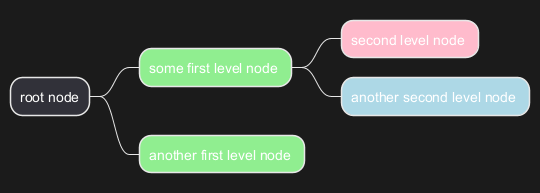

Markdown syntax mindmap

🎉 Copied!

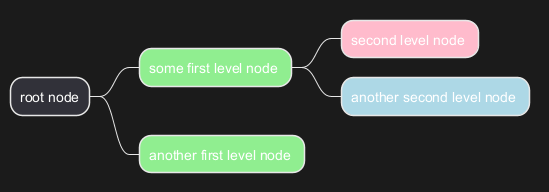

@startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> * root node * some first level node <<green>> * second level node <<rose>> * another second level node <<your_style_name>> * another first level node <<green>> @endmindmap

Apply style to a branch

🎉 Copied!

@startmindmap <style> mindmapDiagram { .myStyle * { BackgroundColor lightgreen } } </style> + root ++ b1 <<myStyle>> +++ b11 +++ b12 ++ b2 @endmindmap

[Ref. GA-920]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

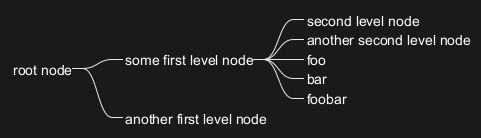

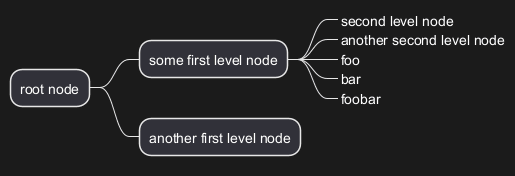

Removing box

You can remove the box drawing using an underscore.

🎉 Copied!

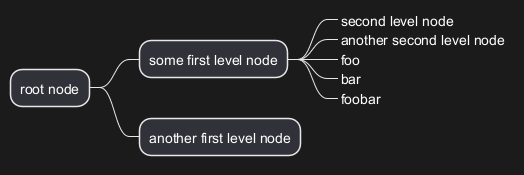

@startmindmap * root node ** some first level node ***_ second level node ***_ another second level node ***_ foo ***_ bar ***_ foobar ** another first level node @endmindmap

🎉 Copied!

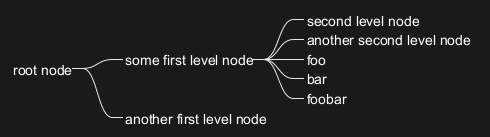

@startmindmap *_ root node **_ some first level node ***_ second level node ***_ another second level node ***_ foo ***_ bar ***_ foobar **_ another first level node @endmindmap

🎉 Copied!

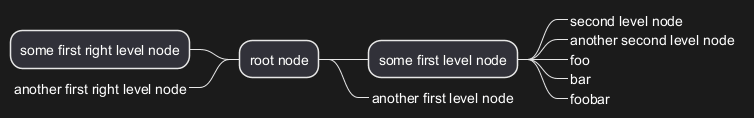

@startmindmap + root node ++ some first level node +++_ second level node +++_ another second level node +++_ foo +++_ bar +++_ foobar ++_ another first level node -- some first right level node --_ another first right level node @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

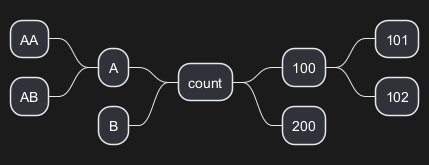

Changing diagram direction

It is possible to use both sides of the diagram.

🎉 Copied!

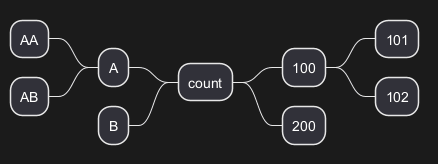

@startmindmap * count ** 100 *** 101 *** 102 ** 200 left side ** A *** AA *** AB ** B @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Change (whole) diagram orientation

You can change (whole) diagram orientation with:

left to right direction (by default)
top to bottom direction
right to left direction
bottom to top direction (not yet implemented/issue then use workaround)

Left to right direction (by default)

🎉 Copied!

@startmindmap * 1 ** 2 *** 4 *** 5 ** 3 *** 6 *** 7 @endmindmap

Top to bottom direction

🎉 Copied!

@startmindmap top to bottom direction * 1 ** 2 *** 4 *** 5 ** 3 *** 6 *** 7 @endmindmap

Right to left direction

🎉 Copied!

@startmindmap right to left direction * 1 ** 2 *** 4 *** 5 ** 3 *** 6 *** 7 @endmindmap

Bottom to top direction

🎉 Copied!

@startmindmap top to bottom direction left side * 1 ** 2 *** 4 *** 5 ** 3 *** 6 *** 7 @endmindmap

[Ref. QH-1413]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

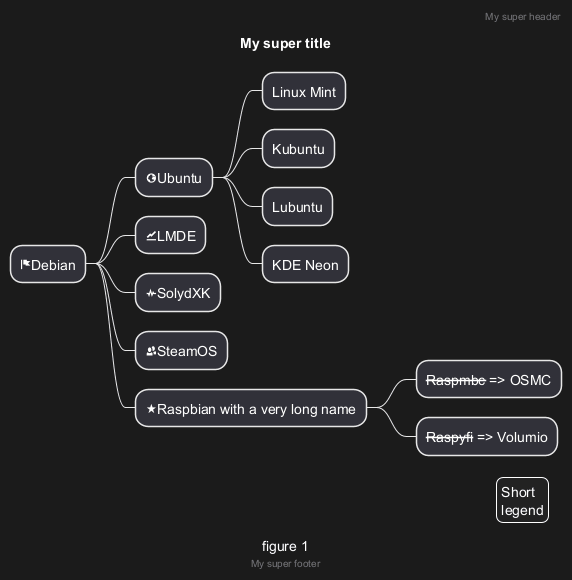

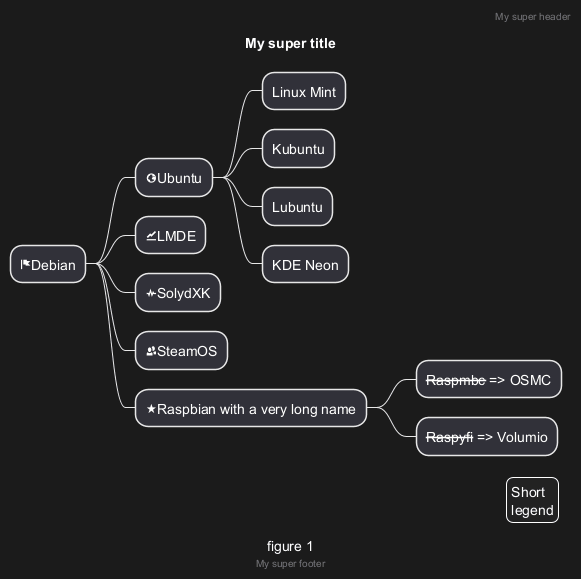

Complete example

🎉 Copied!

@startmindmap caption figure 1 title My super title * <&flag>Debian ** <&globe>Ubuntu *** Linux Mint *** Kubuntu *** Lubuntu *** KDE Neon ** <&graph>LMDE ** <&pulse>SolydXK ** <&people>SteamOS ** <&star>Raspbian with a very long name *** <s>Raspmbc</s> => OSMC *** <s>Raspyfi</s> => Volumio header My super header endheader center footer My super footer legend right Short legend endlegend @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Changing style

node, depth

🎉 Copied!

@startmindmap <style> mindmapDiagram { node { BackgroundColor lightGreen } :depth(1) { BackGroundColor white } } </style> * Linux ** NixOS ** Debian *** Ubuntu **** Linux Mint **** Kubuntu **** Lubuntu **** KDE Neon @endmindmap

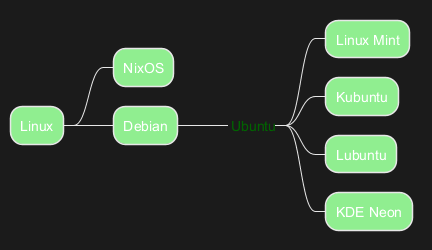

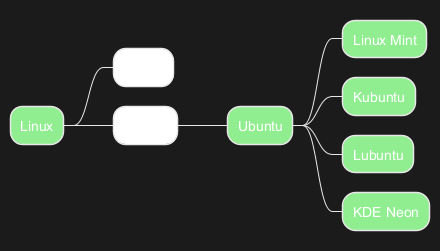

boxless

🎉 Copied!

@startmindmap <style> mindmapDiagram { node { BackgroundColor lightGreen } boxless { FontColor darkgreen } } </style> * Linux ** NixOS ** Debian ***_ Ubuntu **** Linux Mint **** Kubuntu **** Lubuntu **** KDE Neon @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

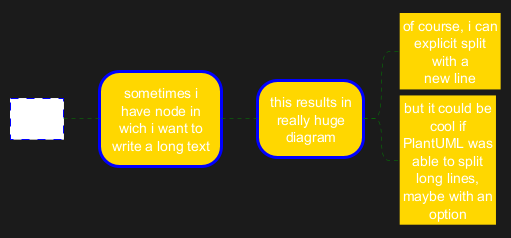

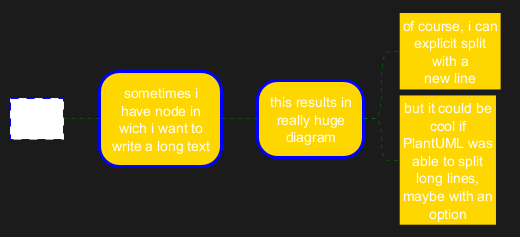

Word Wrap

Using MaximumWidth setting you can control automatic word wrap. Unit used is pixel.

🎉 Copied!

@startmindmap <style> node { Padding 12 Margin 3 HorizontalAlignment center LineColor blue LineThickness 3.0 BackgroundColor gold RoundCorner 40 MaximumWidth 100 } rootNode { LineStyle 8.0;3.0 LineColor red BackgroundColor white LineThickness 1.0 RoundCorner 0 Shadowing 0.0 } leafNode { LineColor gold RoundCorner 0 Padding 3 } arrow { LineStyle 4 LineThickness 0.5 LineColor green } </style> * Hi =) ** sometimes i have node in wich i want to write a long text *** this results in really huge diagram **** of course, i can explicit split with a\nnew line **** but it could be cool if PlantUML was able to split long lines, maybe with an option @endmindmap

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

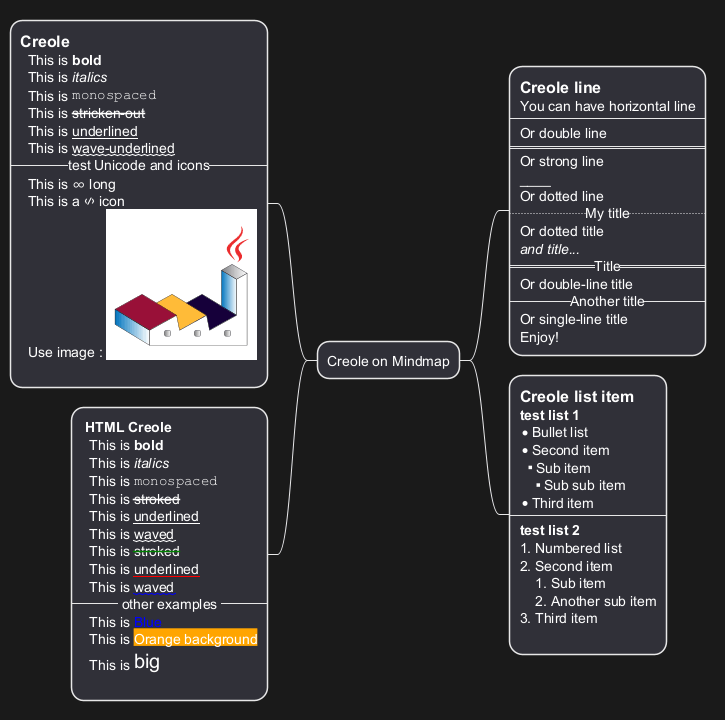

Creole on Mindmap diagram

You can use Creole or HTML Creole on Mindmap:

🎉 Copied!

@startmindmap * Creole on Mindmap left side **:==Creole This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ --test Unicode and icons-- This is <U+221E> long This is a <&code> icon Use image : <img:https://plantuml.com/logo3.png> ; **: <b>HTML Creole This is <b>bold</b> This is <i>italics</i> This is <font:monospaced>monospaced</font> This is <s>stroked</s> This is <u>underlined</u> This is <w>waved</w> This is <s:green>stroked</s> This is <u:red>underlined</u> This is <w:#0000FF>waved</w> -- other examples -- This is <color:blue>Blue</color> This is <back:orange>Orange background</back> This is <size:20>big</size> ; right side **:==Creole line You can have horizontal line ---- Or double line ==== Or strong line ____ Or dotted line ..My title.. Or dotted title //and title... // ==Title== Or double-line title --Another title-- Or single-line title Enjoy!; **:==Creole list item **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item ; @endmindmap

[Ref. QA-17838]
