The style feature is still in testing stage.
Starting with version
1.2019.9, style is enabled by default for mindmap and wbs diagrams.
For old diagrams and old PlantUML version, you have to use
skinparam useBetaStyle true to test this feature.
For new diagrams and new PlantUML version, style is now enabled by default.
There are some working examples on this page.
Currently, skinparam are used to change the rendering (fonts, colors...) of diagrams.
Although the current system is working, it has some important limitations:
What we wish:
- skinparam allow global changes for a whole diagram
- every kind of diagram (sequence, class, activity) has its own skinparam
- it is possible to use
<<stereotype>> to define specific settings for groups of elements with the same stereotype
- you can use creole syntax to individually change some setting
- there is an explosion of possible skinparams (see plantuml-skinparam for an attempt to grok them)
- some element cannot be stereotyped (for example, messages in sequence diagrams)
Note that even if the existing skinparam syntax may be deprecated, all existing legacy diagrams should still work with future versions of PlantUML.
The following properties can be set in style:
- The possibility to use individual change everywhere (so probably with creole engine which will be kept).
- The possibility to change a setting (for example default font size, color, name...) for all diagrams without to have to set a setting for Sequence, then one for Class, then one for Activity.
- At the same time, the possibility to change a setting for a specific diagrams type (only Sequence for example).
- Having a syntax close to CSS
- No more hardcoded values (size, color...) in the core PlantUML library. Those values should be store in one single
plantuml.skin file that people could read and modify.
- Keep it simple : since nobody is reading the documentation (which is often out-of-date anyway), people should understand the style system just in reading example.
- Avoid combinatorial explosion in style naming.
BorderColor LineColor : seems more generic
BorderStyle LineStyle : on real number or two real numbers separated with
- ExportedName : used for some format (SVG), not implemented
- Image : not implemented
- ImagePosition : not implemented
- MinimumWidth : not implemented
- WordWrap (to be renamed as MaximumWidth) (add carriage return if needed)
- HorizontalAlignment : left, right or center
The current model has moved to work similarly to CSS, using a model of scoping and cascading styles to either element types or user-assigned styles (via
Style can be inlined using
It is also possible to store style definition in some external file and to reference it using
Basic example of a Sequence Diagram style

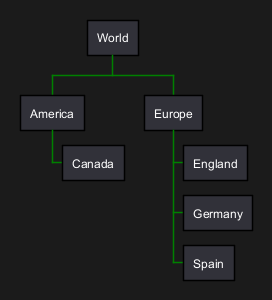

Basic example of a Work Breakdown Structure style
Let's at a different example, that of a Work Breakdown Structure:
We can extend these examples to start targeting not just element types, but specific elements.
Using user defined styles in a Sequence Diagram
NOTE: If the
<<myStyle>> is showing, it is likely a bug, resolved in newer betas.
NOTE: This section is still very experimental and may change!
As we are following the CSS model now, then it should be possible to use selectors to simplify targeting groups of elements, like those "children" (or "downstream") of a given element in diagrams like Work Breakdown or MindMaps.

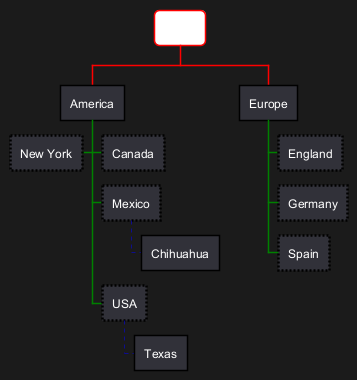

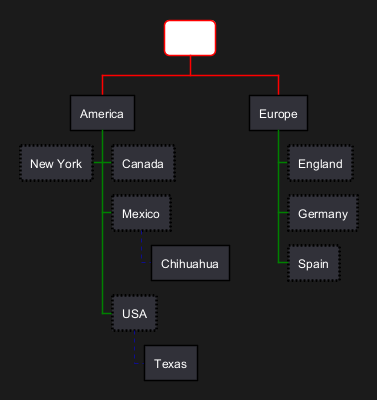

Using the depth selector in a WBS

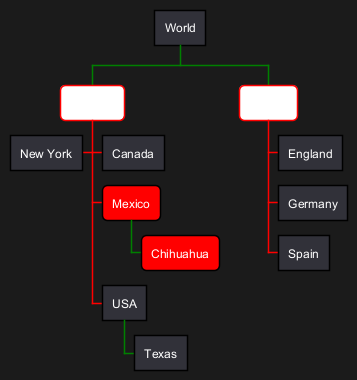

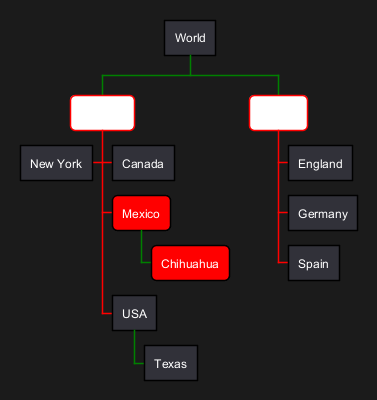

Using the "descendant" pseudo selector
Of course, sometimes you want to target all "child" (or "downstream") elements of a given element. The
* selector works as in CSS, to say: "this element, and all elements of any type that is it's child".
NOTE: This is still a work in progress, and may not work as expected.
If a file named
plantuml.skin is found in the same folder as the diagram, it will attempt to be loaded and used during diagram creation. This lays the groundwork--along with scoping styles to specific diagrams, and user defined styles--for creating truly complex and persistent styles, without including them in each of your diagrams.
NOTE: This is still a work in progress, and may not show every element in every diagram.
You can use the
-verbose) command line argument to get some debug output to help you determine what elements are in use, so you can target them.
java -jar plantuml.jar -v -tpng diagram.pu
(0.378 - 256 Mo) 238 Mo - Using style node.depth(0).root.wbsdiagram.rootnode.element
(0.546 - 256 Mo) 237 Mo - Using style depth(2).node.root.wbsdiagram.leafnode.element
(0.547 - 256 Mo) 237 Mo - Using style depth(2).node.root.*.wbsdiagram.element
(0.560 - 256 Mo) 236 Mo - Using style node.root.depth(3).wbsdiagram.leafnode.element
(0.561 - 256 Mo) 236 Mo - Using style node.root.depth(3).*.wbsdiagram.mexicostyle.element
(0.562 - 256 Mo) 236 Mo - Using style node.root.depth(3).*.wbsdiagram.element
(0.565 - 256 Mo) 236 Mo - Using style depth(2).node.root.wbsdiagram.mexicostyle.element
(0.569 - 256 Mo) 235 Mo - Using style depth(2).node.root.wbsdiagram.element
(0.571 - 256 Mo) 235 Mo - Using style node.depth(1).root.wbsdiagram.element
(0.572 - 256 Mo) 235 Mo - Using style node.depth(1).root.*.wbsdiagram.element
(1.963 - 256 Mo) 250 Mo - Using style depth(0).arrow.root.wbsdiagram.element
(1.964 - 256 Mo) 250 Mo - Using style depth(1).arrow.root.wbsdiagram.element
(1.965 - 256 Mo) 250 Mo - Using style depth(2).arrow.root.wbsdiagram.element
