Work Breakdown Structure (WBS)

Un diagrama de estructura de desglose del trabajo (WBS ) es una herramienta clave de gestión de proyectos que desglosa un proyecto en componentes o tareas más pequeños y manejables. En esencia, se trata de una descomposición jerárquica del alcance total del trabajo que debe realizar el equipo del proyecto para lograr los objetivos del proyecto y crear los entregables requeridos.

PlantUML puede resultar especialmente útil para crear diagramas de WBS. Su diagramación basada en texto significa que crear y actualizar una WBS es tan sencillo como editar un documento de texto, lo que resulta especialmente beneficioso para gestionar los cambios a lo largo del ciclo de vida del proyecto. Este enfoque permite una fácil integración con los sistemas de control de versiones, lo que garantiza el seguimiento de todos los cambios y el mantenimiento del historial de evolución de la WBS.

Además, la compatibilidad de PlantUML con otras herramientas aumenta su utilidad en entornos de colaboración. Los equipos pueden integrar fácilmente sus diagramas EDT en sistemas más amplios de documentación y gestión de proyectos. La simplicidad de la sintaxis de PlantUML permite ajustes rápidos, lo que es crucial en entornos de proyectos dinámicos en los que el alcance y las tareas pueden cambiar con frecuencia. Por tanto, el uso de PlantUML para diagramas WBS combina la claridad del desglose visual con la agilidad y el control de un sistema basado en texto, lo que lo convierte en un valioso activo para la gestión eficaz de proyectos.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

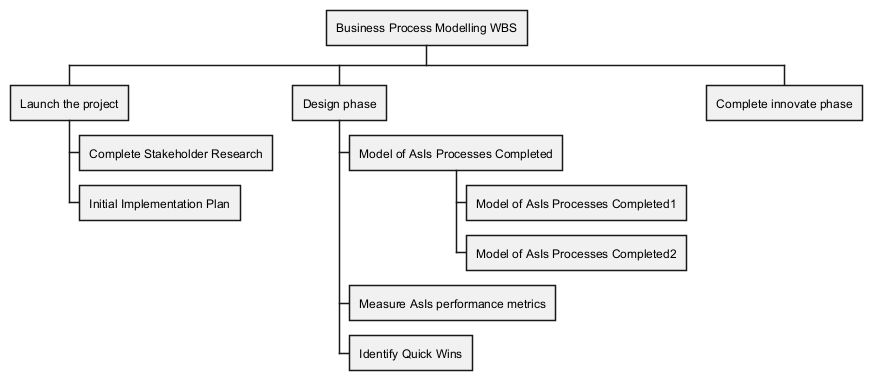

OrgMode syntax

This syntax is compatible with OrgMode

🎉 Copied!

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
**** Model of AsIs Processes Completed1
**** Model of AsIs Processes Completed2
*** Measure AsIs performance metrics
*** Identify Quick Wins
** Complete innovate phase
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

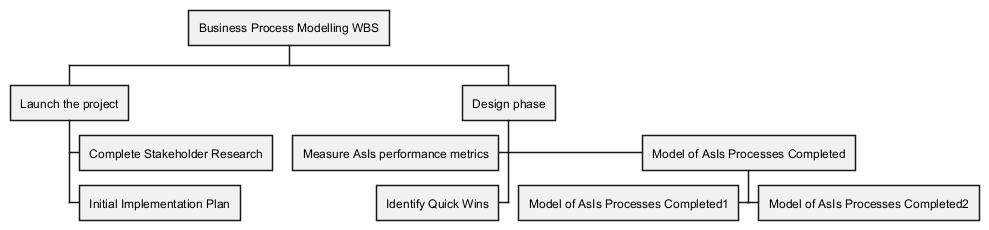

Change direction

You can change direction using < and >

🎉 Copied!

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
****< Model of AsIs Processes Completed1
****> Model of AsIs Processes Completed2
***< Measure AsIs performance metrics
***< Identify Quick Wins
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

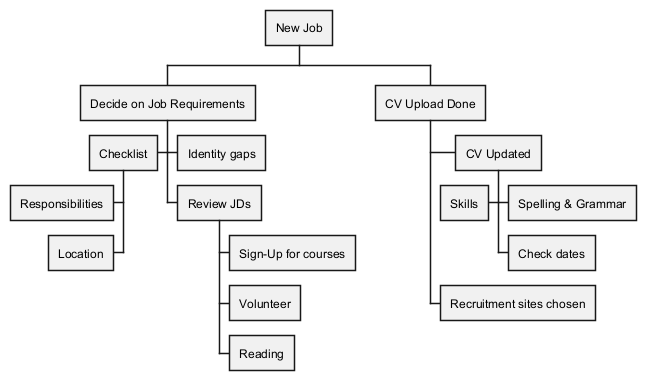

Arithmetic notation

You can use the following notation to choose diagram side.

🎉 Copied!

@startwbs
+ New Job
++ Decide on Job Requirements
+++ Identity gaps
+++ Review JDs
++++ Sign-Up for courses
++++ Volunteer
++++ Reading
++- Checklist
+++- Responsibilities
+++- Location
++ CV Upload Done
+++ CV Updated
++++ Spelling & Grammar
++++ Check dates
---- Skills
+++ Recruitment sites chosen
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Multilines

You can use : and ; to have multilines box, as on MindMap.

🎉 Copied!

@startwbs
* <&flag> Debian
** <&globe> Ubuntu

***:Linux Mint
Open Source;

*** Kubuntu
*** ...
@endwbs

[Ref. QA-13945]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Removing box

You can use underscore _ to remove box drawing.

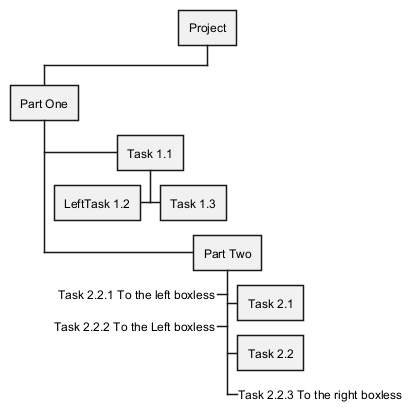

Boxless on Arithmetic notation

Several boxless node

🎉 Copied!

@startwbs
+ Project
 + Part One
  + Task 1.1
   - LeftTask 1.2
   + Task 1.3
  + Part Two
   + Task 2.1
   + Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

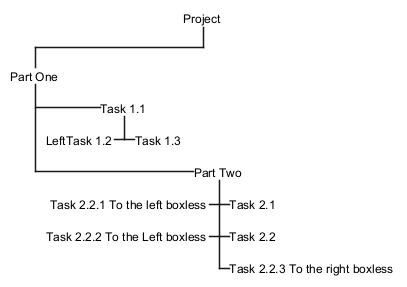

All boxless node

🎉 Copied!

@startwbs
+_ Project
 +_ Part One
  +_ Task 1.1
   -_ LeftTask 1.2
   +_ Task 1.3
  +_ Part Two
   +_ Task 2.1
   +_ Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

Boxless on OrgMode syntax

Several boxless node

🎉 Copied!

@startwbs
* World
** America
***_ Canada
***_ Mexico
***_ USA
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13297]

All boxless node

🎉 Copied!

@startwbs
*_ World
**_ America
***_ Canada
***_ Mexico
***_ USA
**_ Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13355]

Skipping a layer

Underscore without label removes a node completely

🎉 Copied!

@startwbs
* Director
** Team Lead 1
*** Engineer 1
*** Engineer 2
** Team Lead 2
*** Engineer 3
*** Engineer 4
**_
*** Engineer 5 (reporting to Director)
*** Engineer 6 (reporting to Director)
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

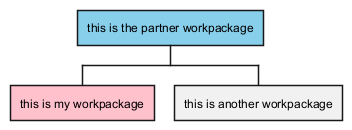

Colors (with inline or style color)

It is possible to change node color:

🎉 Copied!

@startwbs
*[#SkyBlue] this is the partner workpackage
**[#pink] this is my workpackage
** this is another workpackage
@endwbs

🎉 Copied!

@startwbs
+[#SkyBlue] this is the partner workpackage
++[#pink] this is my workpackage
++ this is another workpackage
@endwbs

[Ref. QA-12374, only from v1.2020.20]

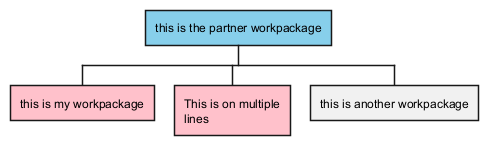

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  .pink {
      BackgroundColor pink
  }
  .your_style_name {
      BackgroundColor SkyBlue
  }
}
</style>
* this is the partner workpackage <<your_style_name>>
** this is my workpackage <<pink>>
**:This is on multiple
lines; <<pink>>
** this is another workpackage
@endwbs

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  .pink {
      BackgroundColor pink
  }
  .your_style_name {
      BackgroundColor SkyBlue
  }
}
</style>
+ this is the partner workpackage <<your_style_name>>
++ this is my workpackage <<pink>>
++:This is on multiple
lines; <<pink>>
++ this is another workpackage
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

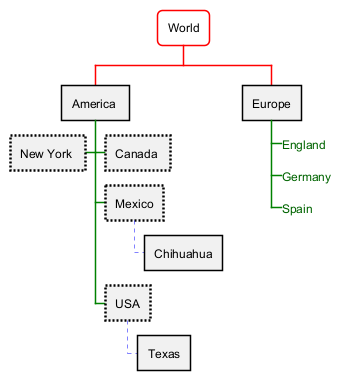

Using style

It is possible to change diagram style.

🎉 Copied!

@startwbs
<style>
wbsDiagram {
  // all lines (meaning connector and borders, there are no other lines in WBS) are black by default
  Linecolor black
  arrow {
    // note that connector are actually "arrow" even if they don't look like as arrow
    // This is to be consistent with other UML diagrams. Not 100% sure that it's a good idea
    // So now connector are green
    LineColor green
  }
  :depth(0) {
      // will target root node
      BackgroundColor White
      RoundCorner 10
      LineColor red
      // Because we are targetting depth(0) for everything, border and connector for level 0 will be red
  }
  arrow {
    :depth(2) {
      // Targetting only connector between Mexico-Chihuahua and USA-Texas
      LineColor blue
      LineStyle 4
      LineThickness .5
    }
  }
  node {
    :depth(2) {
      LineStyle 2
      LineThickness 2.5
    }
  }
  boxless {
    // will target boxless node with '_'
    FontColor darkgreen
  }
}
</style>
* World
** America
*** Canada
*** Mexico
**** Chihuahua
*** USA
**** Texas
***< New York
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

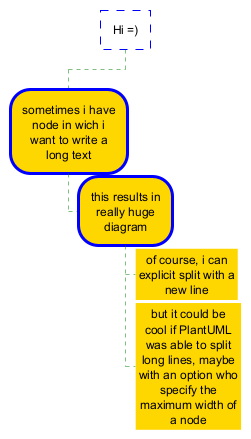

Word Wrap

Using MaximumWidth setting you can control automatic word wrap. Unit used is pixel.

🎉 Copied!

@startwbs


<style>
node {
    Padding 12
    Margin 3
    HorizontalAlignment center
    LineColor blue
    LineThickness 3.0
    BackgroundColor gold
    RoundCorner 40
    MaximumWidth 100
}

rootNode {
    LineStyle 8.0;3.0
    LineColor red
    BackgroundColor white
    LineThickness 1.0
    RoundCorner 0
    Shadowing 0.0
}

leafNode {
    LineColor gold
    RoundCorner 0
    Padding 3
}

arrow {
    LineStyle 4
    LineThickness 0.5
    LineColor green
}
</style>

* Hi =)
** sometimes i have node in wich i want to write a long text
*** this results in really huge diagram
**** of course, i can explicit split with a\nnew line
**** but it could be cool if PlantUML was able to split long lines, maybe with an option who specify the maximum width of a node

@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Add arrows between WBS elements

You can add arrows between WBS elements.

Using alias with as:

🎉 Copied!

@startwbs
<style>
.foo {
  LineColor #00FF00;
}
</style>
* Test
** A topic
*** "common" as c1
*** "common2" as c2
** "Another topic" as t2
t2 -> c1 <<foo>>
t2 ..> c2 #blue
@endwbs

Using alias in parentheses:

🎉 Copied!

@startwbs
* Test
**(b) A topic
***(c1) common
**(t2) Another topic
t2 --> c1
b -> t2 #blue
@endwbs

[Ref. QA-16251]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

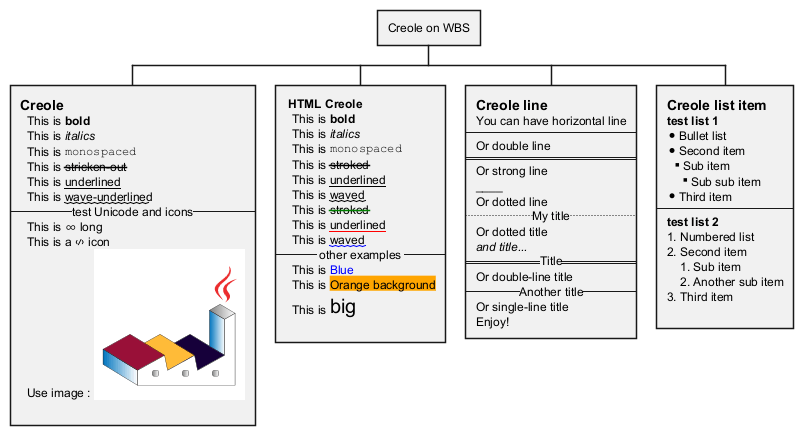

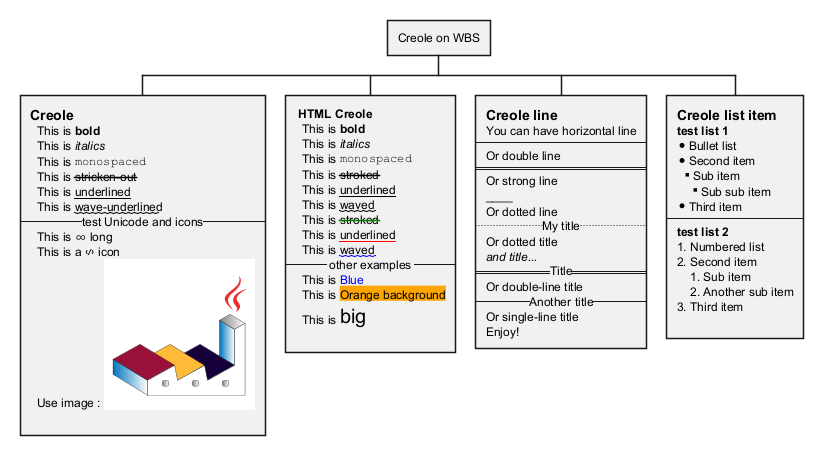

Creole on WBS diagram

You can use Creole or HTML Creole on WBS:

🎉 Copied!

@startwbs
* Creole on WBS
**:==Creole
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
--test Unicode and icons--
  This is <U+221E> long
  This is a <&code> icon
  Use image : <img:https://plantuml.com/logo3.png>
;
**: <b>HTML Creole
  This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
-- other examples --
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>
;
**:==Creole line
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Or dotted title
//and title... //
==Title==
Or double-line title
--Another title--
Or single-line title
Enjoy!;
**:==Creole list item
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
;
@endwbs
