El diagrama de Gantt es una potente herramienta para la
gestión de proyectos. Representa visualmente el
calendario de un proyecto, permitiendo a los gestores y miembros del equipo ver de un vistazo las fechas de inicio y fin de todo el proyecto. El diagrama muestra las tareas o actividades a lo largo de un eje temporal horizontal, indicando la
duración de cada tarea, su
secuencia y cómo se solapan o se ejecutan simultáneamente.
En un diagrama de Gantt, cada tarea se representa mediante una barra, cuya longitud y posición reflejan la
fecha de inicio, la
duración y la
fecha de finalización de la tarea. Este formato facilita la comprensión de
las dependencias entre tareas, cuando una tarea debe completarse antes de que otra pueda comenzar. Además, los diagramas de Gantt pueden incluir
hitos, que son acontecimientos u objetivos significativos en el calendario del proyecto, marcados como un símbolo distinto.
En el contexto de la creación de diagramas de Gantt,
PlantUML ofrece varias ventajas. Ofrece un
enfoque basado en texto para la creación de diagramas, lo que facilita el seguimiento de los cambios mediante
sistemas de control de versiones. Este enfoque es especialmente beneficioso para los equipos que ya están acostumbrados a entornos de codificación basados en texto. La sintaxis de PlantUML para diagramas de Gantt es
sencilla, lo que permite realizar modificaciones y actualizaciones rápidas en el calendario del proyecto. Además, la
integración de PlantUML con otras herramientas y su capacidad para generar diagramas dinámicamente a partir de texto lo convierten en una opción versátil para los equipos que buscan automatizar y agilizar su documentación de gestión de proyectos. El uso de PlantUML para diagramas de Gantt combina así la
claridad y eficacia de la planificación visual de proyectos con la
flexibilidad y el control de un sistema basado en texto.
El Gantt se describe en lenguaje
natural, utilizando frases muy sencillas (sujeto-verbo-complemento).
Tareas definidas mediante corchetes.
Carga de trabajo
La carga de trabajo de cada tarea se especifica mediante el verbo
requires
, indicando la cantidad de trabajo necesaria en términos de días.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
-- All example --
[Task 1 (1 day)] requires 1 day
[T2 (5 days)] requires 5 days
[T3 (1 week)] requires 1 week
[T4 (1 week and 4 days)] requires 1 week and 4 days
[T5 (2 weeks)] requires 2 weeks
@endgantt
|
Una semana suele entenderse como un lapso de siete días. Sin embargo, en contextos en los que ciertos días se designan como "cerrados" (como los fines de semana), una semana puede redefinirse en términos de días "no cerrados". Por ejemplo, si el sábado y el domingo están marcados como cerrados, entonces una semana en este contexto equivaldrá a una carga de trabajo de cinco días, correspondientes a los días laborables restantes.
Inicio
Su inicio se define utilizando el verbo
start
:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
Project starts 2020-07-01
[Prototype design] starts 2020-07-01
[Test prototype] starts 2020-07-16
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
[Prototype design] starts D+0
[Test prototype] starts D+15
@endgantt
|
[Ref. para el formulario D+nn
: QA-14494]Fin
Su final se define utilizando el verbo
end
:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
Project starts 2020-07-01
[Prototype design] ends 2020-07-15
[Test prototype] ends 2020-07-25
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
[Prototype design] ends D+14
[Test prototype] ends D+24
@endgantt
|
Inicio/Fin
Es posible definir ambos de forma absoluta, especificando fechas:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2020-07-01
[Prototype design] starts 2020-07-01
[Test prototype] starts 2020-07-16
[Prototype design] ends 2020-07-15
[Test prototype] ends 2020-07-25
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] starts D+0
[Test prototype] starts D+15
[Prototype design] ends D+14
[Test prototype] ends D+24
@endgantt
|
It is possible to combine declaration on one line with the
and
conjunction.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2020-07-01
[Prototype design] starts 2020-07-01 and ends 2020-07-15
[Test prototype] starts 2020-07-16 and requires 10 days
@endgantt
|
It is possible to add constraints between tasks.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 15 days
[Test prototype] requires 10 days
[Test prototype] starts at [Prototype design]'s end
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 10 days
[Code prototype] requires 10 days
[Write tests] requires 5 days
[Code prototype] starts at [Prototype design]'s end
[Write tests] starts at [Code prototype]'s start
@endgantt
|
It is possible to define short name for tasks with the
as
keyword.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] as [D] requires 15 days
[Test prototype] as [T] requires 10 days
[T] starts at [D]'s end
@endgantt
|
It is also possible to customize
colors with
is colored in
.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 13 days
[Test prototype] requires 4 days
[Test prototype] starts at [Prototype design]'s end
[Prototype design] is colored in Fuchsia/FireBrick
[Test prototype] is colored in GreenYellow/Green
@endgantt
|
Adding completion depending percentage
You can set the completion status of a task, by the command:
is xx% completed
is xx% complete
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[foo] requires 21 days
[foo] is 40% completed
[bar] requires 30 days and is 10% complete
@endgantt
|
Change colour of completion (by style)
[Ref. QA-8297]Change colour of undone part of Task (by style)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
<style>
ganttDiagram {
task {
BackGroundColor GreenYellow
LineColor Green
}
undone {
BackGroundColor red
}
}
</style>
[foo] lasts 21 days
[foo] is 40% completed
[bar] lasts 30 days and is 10% complete
@endgantt
|
[Ref. QA-15299] You can define Milestones using the
happen
verb.
Relative milestone (use of constraints)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Test prototype] requires 10 days
[Prototype completed] happens at [Test prototype]'s end
[Setup assembly line] requires 12 days
[Setup assembly line] starts at [Test prototype]'s end
@endgantt
|
Absolute milestone (use of fixed date)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2020-07-01
[Test prototype] requires 10 days
[Prototype completed] happens 2020-07-10
[Setup assembly line] requires 12 days
[Setup assembly line] starts at [Test prototype]'s end
@endgantt
|
Milestone of maximum end of tasks
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] requires 4 days
then [Task1.1] requires 4 days
[Task1.2] starts at [Task1]'s end and requires 7 days
[Task2] requires 5 days
then [Task2.1] requires 4 days
[MaxTaskEnd] happens at [Task1.1]'s end
[MaxTaskEnd] happens at [Task1.2]'s end
[MaxTaskEnd] happens at [Task2.1]'s end
@endgantt
|
[Ref. QA-10764]
You can add hyperlinks to tasks.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[task1] requires 10 days
[task1] links to [[http://plantuml.com]]
@endgantt
|
You can specify a starting date for the whole project. By default, the first task starts at this date.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts the 20th of september 2017
[Prototype design] as [TASK1] requires 13 days
[TASK1] is colored in Lavender/LightBlue
@endgantt
|
It is possible to add
colors to some days.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts the 2020/09/01
2020/09/07 is colored in salmon
2020/09/13 to 2020/09/16 are colored in lightblue
[Prototype design] as [TASK1] requires 22 days
[TASK1] is colored in Lavender/LightBlue
[Prototype completed] happens at [TASK1]'s end
@endgantt
|
You can change scale for very long project, with one of those parameters:
- printscale
- ganttscale
- projectscale
and one of the values:
- daily (by default)
- weekly
- monthly
- quarterly
- yearly

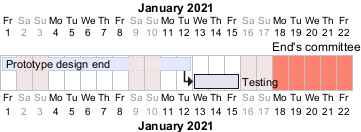

(See QA-11272, QA-9041 and QA-10948)Daily (by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Weekly
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Monthly
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale monthly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Quarterly
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale quarterly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale quarterly
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
Yearly
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale yearly
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
Date range with between
Without date range
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 8 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 3 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
With date range
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Print between 2021-01-12 and 2021-01-22
Saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 8 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 3 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
You can change zoom, with the parameter:
Zoom on weekly scale
Without zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale daily
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 8 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 3 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
With zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale daily zoom 2
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 8 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 3 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
[Ref. QA-13725]
Zoom on weekly scale
Without zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
With zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly zoom 4
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Zoom on monthly scale
Without zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale monthly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
With zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale monthly zoom 3
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Zoom on quarterly scale
Without zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale quarterly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
With zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale quarterly zoom 7
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Zoom on yearly scale
Without zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale yearly
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
With zoom
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
projectscale yearly zoom 2
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
With Weeknumbers (by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly
Project starts the 6th of July 2020
[Task1] on {Alice} requires 2 weeks
[Task2] on {Bob:50%} requires 2 weeks
then [Task3] on {Alice:25%} requires 3 days
@endgantt
|
With Calendar Date
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
printscale weekly with calendar date
Project starts the 6th of July 2020
[Task1] on {Alice} requires 2 weeks
[Task2] on {Bob:50%} requires 2 weeks
then [Task3] on {Alice:25%} requires 3 days
@endgantt
|
[Ref. QA-11630] It is possible to close some day.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
project starts the 2018/04/09
saturday are closed
sunday are closed
2018/05/01 is closed
2018/04/17 to 2018/04/19 is closed
[Prototype design] requires 14 days
[Test prototype] requires 4 days
[Test prototype] starts at [Prototype design]'s end
[Prototype design] is colored in Fuchsia/FireBrick
[Test prototype] is colored in GreenYellow/Green
@endgantt
|
Then it is possible to open some closed day.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
2020-07-07 to 2020-07-17 is closed
2020-07-13 is open
Project starts the 2020-07-01
[Prototype design] requires 10 days
Then [Test prototype] requires 10 days
@endgantt
|

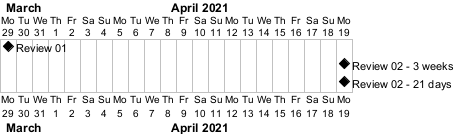

A
week is a synonym for how many non-closed days are in a week, as:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2021-03-29
[Review 01] happens at 2021-03-29
[Review 02 - 3 weeks] happens on 3 weeks after [Review 01]'s end
[Review 02 - 21 days] happens on 21 days after [Review 01]'s end
@endgantt
|

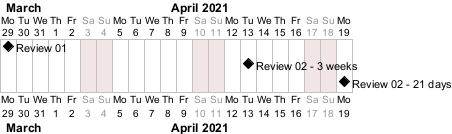

So if you specify
Saturday and
Sunday as closed, a
week will be equivalent to 5 days, as:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2021-03-29
saturday are closed
sunday are closed
[Review 01] happens at 2021-03-29
[Review 02 - 3 weeks] happens on 3 weeks after [Review 01]'s end
[Review 02 - 21 days] happens on 21 days after [Review 01]'s end
@endgantt
|
[Ref. QA-13434] It is possible to manage working days.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
saturday are closed
sunday are closed
2022-07-04 to 2022-07-15 is closed
Project starts 2022-06-27
[task1] starts at 2022-06-27 and requires 1 week
[task2] starts 2 working days after [task1]'s end and requires 3 days
@endgantt
|
[Ref. QA-16188] It's possible to use the
then
keyword to denote consecutive tasks.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 14 days
then [Test prototype] requires 4 days
then [Deploy prototype] requires 6 days
@endgantt
|
You can also use arrow
->
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 14 days
[Build prototype] requires 4 days
[Prepare test] requires 6 days
[Prototype design] -> [Build prototype]
[Prototype design] -> [Prepare test]
@endgantt
|
You can affect tasks on resources using the
on
keyword and brackets for resource name.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] on {Alice} requires 10 days
[Task2] on {Bob:50%} requires 2 days
then [Task3] on {Alice:25%} requires 1 days
@endgantt
|
Multiple resources can be assigned to a task:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] on {Alice} {Bob} requires 20 days
@endgantt
|
Resources can be marked as off on specific days:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
project starts on 2020-06-19
[Task1] on {Alice} requires 10 days
{Alice} is off on 2020-06-24 to 2020-06-26
@endgantt
|
Without any hiding (by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] on {Alice} requires 10 days
[Task2] on {Bob:50%} requires 2 days
then [Task3] on {Alice:25%} requires 1 days
then [Task4] on {Alice:25%} {Bob} requires 1 days
@endgantt
|
Hide resources names
You can hide ressources names and percentage, on tasks, using the
hide ressources names
keywords.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide ressources names
[Task1] on {Alice} requires 10 days
[Task2] on {Bob:50%} requires 2 days
then [Task3] on {Alice:25%} requires 1 days
then [Task4] on {Alice:25%} {Bob} requires 1 days
@endgantt
|
Hide resources footbox
You can also hide ressources names on bottom of the diagram using the
hide ressources footbox
keywords.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide ressources footbox
[Task1] on {Alice} requires 10 days
[Task2] on {Bob:50%} requires 2 days
then [Task3] on {Alice:25%} requires 1 days
then [Task4] on {Alice:25%} {Bob} requires 1 days
@endgantt
|
Hide the both (resources names and resources footbox)
You can also hide the both.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide ressources names
hide ressources footbox
[Task1] on {Alice} requires 10 days
[Task2] on {Bob:50%} requires 2 days
then [Task3] on {Alice:25%} requires 1 days
then [Task4] on {Alice:25%} {Bob} requires 1 days
@endgantt
|
You can use
--
to separate sets of tasks.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] requires 10 days
then [Task2] requires 4 days
-- Phase Two --
then [Task3] requires 5 days
then [Task4] requires 6 days
@endgantt
|
You can add Vertical Separators with the syntax:
Separator just [at]
.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[task1] requires 1 week
[task2] starts 20 days after [task1]'s end and requires 3 days
Separator just at [task1]'s end
Separator just 2 days after [task1]'s end
Separator just at [task2]'s start
Separator just 2 days before [task2]'s start
@endgantt
|
[Ref. QA-16247] It also possible to use the
and
conjunction.
You can also add delays in constraints.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 13 days and is colored in Lavender/LightBlue
[Test prototype] requires 9 days and is colored in Coral/Green and starts 3 days after [Prototype design]'s end
[Write tests] requires 5 days and ends at [Prototype design]'s end
[Hire tests writers] requires 6 days and ends at [Write tests]'s start
[Init and write tests report] is colored in Coral/Green
[Init and write tests report] starts 1 day before [Test prototype]'s start and ends at [Test prototype]'s end
@endgantt
|
As is mentioned on
Common Commands page:
Everything that starts with simple quote '
is a comment. You can also put comments on several lines using /'
to start and '/
to end.
(i.e.: the first character (except space character) of a comment line must be a simple quote '
) 🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
' This is a comment
[T1] requires 3 days
/' this comment
is on several lines '/
[T2] starts at [T1]'s end and requires 1 day
@endgantt
|
Without style (by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] requires 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] requires 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@endgantt
|
With style
You can use
style to change rendering of elements.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
<style>
ganttDiagram {
task {
FontName Helvetica
FontColor red
FontSize 18
FontStyle bold
BackGroundColor GreenYellow
LineColor blue
}
milestone {
FontColor blue
FontSize 25
FontStyle italic
BackGroundColor yellow
LineColor red
}
note {
FontColor DarkGreen
FontSize 10
LineColor OrangeRed
}
arrow {
FontName Helvetica
FontColor red
FontSize 18
FontStyle bold
BackGroundColor GreenYellow
LineColor blue
}
separator {
LineColor red
BackGroundColor green
FontSize 16
FontStyle bold
FontColor purple
}
}
</style>
[Task1] requires 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] requires 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@endgantt
|
[Ref. QA-10835, QA-12045, QA-11877 and PR-438]With style (full example)
[Ref. QA-13570, QA-13672]
DONE
Thanks for style for Separator and all style for Arrow (thickness...)Clean style
With style, you can also clean a Gantt diagram
(showing tasks, dependencies and relative durations only - but no actual start date and no actual scale):
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
<style>
ganttDiagram {
timeline {
LineColor transparent
FontColor transparent
}
}
</style>
hide footbox
[Test prototype] requires 7 days
[Prototype completed] happens at [Test prototype]'s end
[Setup assembly line] requires 9 days
[Setup assembly line] starts at [Test prototype]'s end
then [Setup] requires 5 days
[T2] requires 2 days and starts at [Test prototype]'s end
then [T3] requires 3 days
-- end task --
then [T4] requires 2 days
@endgantt
|
[Ref. QA-13971]
Or:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
<style>
ganttDiagram {
timeline {
LineColor transparent
FontColor transparent
}
closed {
FontColor transparent
}
}
</style>
hide footbox
project starts the 2018/04/09
saturday are closed
sunday are closed
2018/05/01 is closed
2018/04/17 to 2018/04/19 is closed
[Prototype design] requires 9 days
[Test prototype] requires 5 days
[Test prototype] starts at [Prototype design]'s end
[Prototype design] is colored in Fuchsia/FireBrick
[Test prototype] is colored in GreenYellow/Green
@endgantt
|
[Ref. QA-13464]
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[task01] requires 15 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[task01] -> [task02]
@endgantt
|
Example with overlap.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[task01] requires 15 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[task01] -> [task02]
[task03] requires 5 days
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
-- test01 --
[task01] requires 4 days
note bottom
'note left
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[task02] requires 8 days
[task01] -> [task02]
note bottom
'note left
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
-- test02 --
[task03] as [t3] requires 7 days
[t3] -> [t4]
@endgantt
|
DONE
Thanks for correction (of #386 on v1.2020.18) when overlapping 🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts 2020-09-01
[taskA] starts 2020-09-01 and requires 3 days
[taskB] starts 2020-09-10 and requires 3 days
[taskB] displays on same row as [taskA]
[task01] starts 2020-09-05 and requires 4 days
then [task02] requires 8 days
note bottom
note for task02
more notes
end note
then [task03] requires 7 days
note bottom
note for task03
more notes
end note
-- separator --
[taskC] starts 2020-09-02 and requires 5 days
[taskD] starts 2020-09-09 and requires 5 days
[taskD] displays on same row as [taskC]
[task 10] starts 2020-09-05 and requires 5 days
then [task 11] requires 5 days
note bottom
note for task11
more notes
end note
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts the 5th of december 2018
saturday are closed
sunday are closed
2018/12/29 is opened
[Prototype design] requires 17 days
[Prototype design] pauses on 2018/12/13
[Prototype design] pauses on 2018/12/14
[Prototype design] pauses on monday
[Test prototype] starts at [Prototype design]'s end and requires 2 weeks
@endgantt
|
You can change link colors:
- with this syntax:
with <color> <style> link
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[T1] requires 4 days
[T2] requires 4 days and starts 3 days after [T1]'s end with blue dotted link
[T3] requires 4 days and starts 3 days after [T2]'s end with green bold link
[T4] requires 4 days and starts 3 days after [T3]'s end with green dashed link
@endgantt
|
- or directly by using arrow style
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
<style>
ganttDiagram {
arrow {
LineColor blue
}
}
</style>
[Prototype design] requires 7 days
[Build prototype] requires 4 days
[Prepare test] requires 6 days
[Prototype design] -[#FF00FF]-> [Build prototype]
[Prototype design] -[dotted]-> [Prepare test]
Then [Run test] requires 4 days
@endgantt
|
[Ref. QA-13693] You can put Tasks or Milestones on the same line, with this syntax:
[T|M] displays on same row as [T|M]
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 13 days
[Test prototype] requires 4 days and 1 week
[Test prototype] starts 1 week and 2 days after [Prototype design]'s end
[Test prototype] displays on same row as [Prototype design]
[r1] happens on 5 days after [Prototype design]'s end
[r2] happens on 5 days after [r1]'s end
[r3] happens on 5 days after [r2]'s end
[r2] displays on same row as [r1]
[r3] displays on same row as [r1]
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts the 20th of september 2018
sunday are close
2018/09/21 to 2018/09/23 are colored in salmon
2018/09/21 to 2018/09/30 are named [Vacation in the Bahamas]
today is 30 days after start and is colored in #AAF
[Foo] happens 40 days after start
[Dummy] requires 10 days and starts 10 days after start
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
project starts on 2020-07-01
[P_start] happens 2020-07-03
[P_end] happens 2020-07-13
[Prototype design] occurs from [P_start] to [P_end]
@endgantt
|
Verbal form | Example |
[T] starts | |
[M] happens | |
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
header some header
footer some footer
title My title
[Prototype design] requires 13 days
legend
The legend
end legend
caption This is caption
@endgantt
|
(See also: Common commands) 🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Kick off] requires 1 days and is colored in blue
then [Prototype design] requires 5 days
[Test prototype] requires 4 days
[Test prototype] starts at [Prototype design]'s end
[Prototype design] is colored in Green
[Test prototype] is colored in gray
legend
Legend:
|= Color |= Task Type |
|<#gray> | Planned |
|<#Green>| In progress |
|<#blue> | Done |
end legend
@endgantt
|
[Ref. QA-19021] You can use the
hide footbox
keywords to remove the foot boxes of the gantt diagram
(as for sequence diagram).
Examples on:
- daily scale (without project start)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide footbox
title Foot Box removed
[Prototype design] requires 15 days
[Test prototype] requires 10 days
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Project starts the 20th of september 2017
[Prototype design] as [TASK1] requires 13 days
[TASK1] is colored in Lavender/LightBlue
hide footbox
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide footbox
printscale weekly
saturday are closed
sunday are closed
Project starts the 1st of january 2021
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide footbox
projectscale monthly
Project starts the 20th of september 2020
[Prototype design] as [TASK1] requires 130 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 20 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are named [End's committee]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide footbox
projectscale quarterly
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
hide footbox
projectscale yearly
Project starts the 1st of october 2020
[Prototype design] as [TASK1] requires 700 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 200 days
[TASK1]->[Testing]
2021-01-18 to 2021-03-22 are colored in salmon
@endgantt
|
You can choose the language of the Gantt calendar, with the
language <xx>
command where
<xx>
is the
ISO 639 code of the language.
English (en, by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
saturday are closed
sunday are closed
Project starts 2021-01-01
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Deutsch (de)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
language de
saturday are closed
sunday are closed
Project starts 2021-01-01
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Japanese (ja)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
language ja
saturday are closed
sunday are closed
Project starts 2021-01-01
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Chinese (zh)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
language zh
saturday are closed
sunday are closed
Project starts 2021-01-01
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
Korean (ko)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
language ko
saturday are closed
sunday are closed
Project starts 2021-01-01
[Prototype design end] as [TASK1] requires 19 days
[TASK1] is colored in Lavender/LightBlue
[Testing] requires 14 days
[TASK1]->[Testing]
2021-01-18 to 2021-01-22 are colored in salmon
@endgantt
|
You can mark some Tasks or Milestones as
deleted
instead of normally completed to distinguish tasks that may possibly have been discarded, postponed or whatever.
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Prototype design] requires 1 weeks
then [Prototype completed] requires 4 days
[End Prototype completed] happens at [Prototype completed]'s end
then [Test prototype] requires 5 days
[End Test prototype] happens at [Test prototype]'s end
[Prototype completed] is deleted
[End Prototype completed] is deleted
@endgantt
|
[Ref. QA-9129] You can start a project, a task or a milestone a number of days before or after today, using the builtin functions
%now
and
%date
:
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
title Today is %date("YYYY-MM-dd")
!$now = %now()
!$past = %date("YYYY-MM-dd", $now - 14*24*3600)
Project starts $past
today is colored in pink
[foo] requires 10 days
[bar] requires 5 days and starts %date("YYYY-MM-dd", $now + 4*24*3600)
[Tomorrow] happens %date("YYYY-MM-dd", $now + 1*24*3600)
@endgantt
|
[Ref. QA-16285]The labels are near elements (by default)
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
[Task1] requires 1 days
then [Task2_long_long_long] as [T2] requires 2 days
-- Phase Two --
then [Task3] as [T3] requires 2 days
[Task4] as [T4] requires 1 day
[Task5] as [T5] requires 2 days
[T2] -> [T4]
[T2] -> [T5]
[Task6_long_long_long] as [T6] requires 4 days
[T3] -> [T6]
[T5] -> [T6]
[End] happens 1 day after [T6]'s end
@endgantt
|
To change the label position, you can use the command
label
:
Label on first column
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Label on first column and left aligned
[Task1] requires 1 days
then [Task2_long_long_long] as [T2] requires 2 days
-- Phase Two --
then [Task3] as [T3] requires 2 days
[Task4] as [T4] requires 1 day
[Task5] as [T5] requires 2 days
[T2] -> [T4]
[T2] -> [T5]
[Task6_long_long_long] as [T6] requires 4 days
[T3] -> [T6]
[T5] -> [T6]
[End] happens 1 day after [T6]'s end
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Label on first column and right aligned
[Task1] requires 1 days
then [Task2_long_long_long] as [T2] requires 2 days
-- Phase Two --
then [Task3] as [T3] requires 2 days
[Task4] as [T4] requires 1 day
[Task5] as [T5] requires 2 days
[T2] -> [T4]
[T2] -> [T5]
[Task6_long_long_long] as [T6] requires 4 days
[T3] -> [T6]
[T5] -> [T6]
[End] happens 1 day after [T6]'s end
@endgantt
|
Label on last column
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Label on last column and left aligned
[Task1] requires 1 days
then [Task2_long_long_long] as [T2] requires 2 days
-- Phase Two --
then [Task3] as [T3] requires 2 days
[Task4] as [T4] requires 1 day
[Task5] as [T5] requires 2 days
[T2] -> [T4]
[T2] -> [T5]
[Task6_long_long_long] as [T6] requires 4 days
[T3] -> [T6]
[T5] -> [T6]
[End] happens 1 day after [T6]'s end
@endgantt
|
🎉 Copied! ![Copy to clipboard](/clipboard1.svg)
![Edit online](/edit1.svg) | @startgantt
Label on last column and right aligned
[Task1] requires 1 days
then [Task2_long_long_long] as [T2] requires 2 days
-- Phase Two --
then [Task3] as [T3] requires 2 days
[Task4] as [T4] requires 1 day
[Task5] as [T5] requires 2 days
[T2] -> [T4]
[T2] -> [T5]
[Task6_long_long_long] as [T6] requires 4 days
[T3] -> [T6]
[T5] -> [T6]
[End] happens 1 day after [T6]'s end
@endgantt
|
[Ref. QA-12433]
