PlantUML Language specification MindMap Diagram

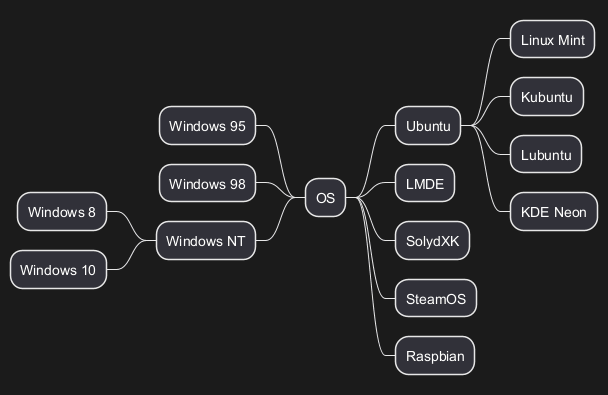

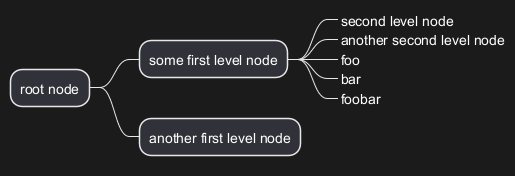

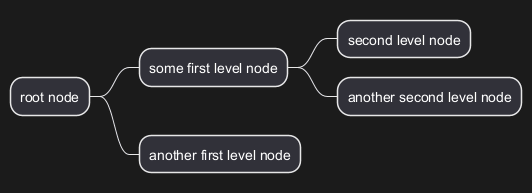

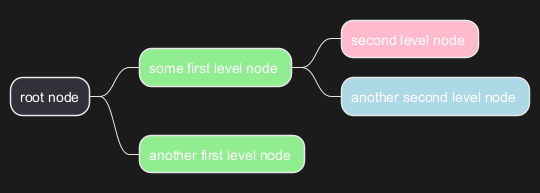

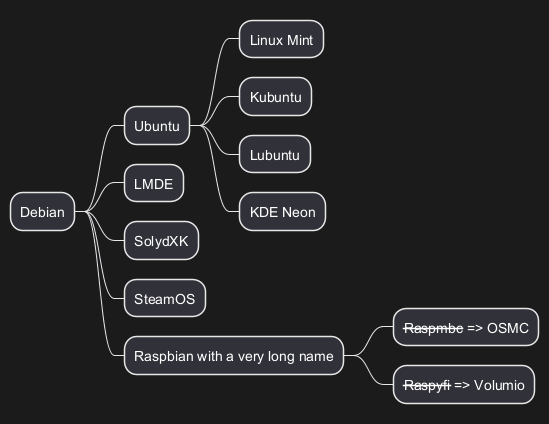

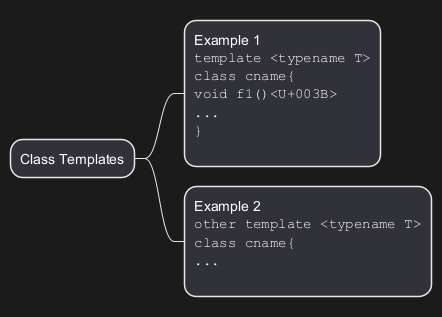

Edit in DokuwikiEdit in AsciidocEdit in Markdown MindMap Les cartes MindMap sont encore en beta : la syntaxe peut être amenée à évoluer. Edit in DokuwikiEdit in AsciidocEdit in Markdown Syntaxe OrgMode La syntaxe OrgMode est supportée. 🎉 Copied! @startmindmap * Debian ** Ubuntu *** Linux Mint *** Kubuntu *** Lubuntu *** KDE Neon ** LMDE ** SolydXK ** SteamOS ** Raspbian with a very long name *** <s>Raspmbc</s> => OSMC *** <s>Raspyfi</s> => Volumio @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Syntaxe Markdown La syntaxe Markdown est supportée. 🎉 Copied! @startmindmap * root node * some first level node * second level node * another second level node * another first level node @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Notation arithmétique [+, -] Vous pouvez utiliser la notation suivante pour orienter votre diagramme. 🎉 Copied! @startmindmap + OS ++ Ubuntu +++ Linux Mint +++ Kubuntu +++ Lubuntu +++ KDE Neon ++ LMDE ++ SolydXK ++ SteamOS ++ Raspbian -- Windows 95 -- Windows 98 -- Windows NT --- Windows 8 --- Windows 10 @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Multilignes Le contenu multiligne des boîtes commence avec : et finisse avec ;. 🎉 Copied! @startmindmap * Class Templates **:Example 1 <code> template <typename T> class cname{ void f1()<U+003B> ... } </code> ; **:Example 2 <code> other template <typename T> class cname{ ... </code> ; @endmindmap (Penser à échapper le ;, s'il apparait en fin de ligne intermédiaire dans le contenu, par exemple par son correspondant unicode <U+003B>) WARNING  This translation need to be updated.  WARNING Edit in DokuwikiEdit in AsciidocEdit in Markdown Multiroot Mindmap You can create multiroot mindmap, as: 🎉 Copied! @startmindmap * Root 1 ** Foo ** Bar * Root 2 ** Lorem ** Ipsum @endmindmap [Ref. QH-773] Edit in DokuwikiEdit in AsciidocEdit in Markdown Couleurs Il est possible de changer la couleur des nœuds. Avec couleur en ligne OrgMode syntaxe mindmap 🎉 Copied! @startmindmap *[#Orange] Colors **[#lightgreen] Green **[#FFBBCC] Rose **[#lightblue] Blue @endmindmap Syntaxe de la notation arithmétique mindmap 🎉 Copied! @startmindmap +[#Orange] Colors ++[#lightgreen] Green ++[#FFBBCC] Rose --[#lightblue] Blue @endmindmap Carte heuristique de la syntaxe Markdown 🎉 Copied! @startmindmap *[#Orange] root node *[#lightgreen] some first level node *[#FFBBCC] second level node *[#lightblue] another second level node *[#lightgreen] another first level node @endmindmap Avec couleur de style Carte mentale de syntaxe OrgMode 🎉 Copied! @startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> * Colors ** Green <<green>> ** Rose <<rose>> ** Blue <<your_style_name>> @endmindmap Cartographie de la syntaxe de la notation arithmétique 🎉 Copied! @startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> + Colors ++ Green <<green>> ++ Rose <<rose>> -- Blue <<your_style_name>> @endmindmap Carte heuristique de la syntaxe Markdown 🎉 Copied! @startmindmap <style> mindmapDiagram { .green { BackgroundColor lightgreen } .rose { BackgroundColor #FFBBCC } .your_style_name { BackgroundColor lightblue } } </style> * root node * some first level node <<green>> * second level node <<rose>> * another second level node <<your_style_name>> * another first level node <<green>> @endmindmap [Ref. GA-920] WARNING  This translation need to be updated.  WARNING Edit in DokuwikiEdit in AsciidocEdit in Markdown Masquer les bordures [_] Vous pouvez enlever les contours des boîtes en utilisant le caractère tiret bas (_), comme pour les diagrammes de type WBS. 🎉 Copied! @startmindmap * root node ** some first level node ***_ second level node ***_ another second level node ***_ foo ***_ bar ***_ foobar ** another first level node @endmindmap 🎉 Copied! @startmindmap *_ root node **_ some first level node ***_ second level node ***_ another second level node ***_ foo ***_ bar ***_ foobar **_ another first level node @endmindmap 🎉 Copied! @startmindmap + root node ++ some first level node +++_ second level node +++_ another second level node +++_ foo +++_ bar +++_ foobar ++_ another first level node -- some first right level node --_ another first right level node @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Diagramme multi-directionnel Il est possible d'utiliser les deux côtés du diagramme. 🎉 Copied! @startmindmap * count ** 100 *** 101 *** 102 ** 200 left side ** A *** AA *** AB ** B @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Exemple complet 🎉 Copied! @startmindmap caption figure 1 title My super title * <&flag>Debian ** <&globe>Ubuntu *** Linux Mint *** Kubuntu *** Lubuntu *** KDE Neon ** <&graph>LMDE ** <&pulse>SolydXK ** <&people>SteamOS ** <&star>Raspbian with a very long name *** <s>Raspmbc</s> => OSMC *** <s>Raspyfi</s> => Volumio header My super header endheader center footer My super footer legend right Short legend endlegend @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Changement de style nœud, profondeur 🎉 Copied! @startmindmap <style> mindmapDiagram { node { BackgroundColor lightGreen } :depth(1) { BackGroundColor white } } </style> * Linux ** NixOS ** Debian *** Ubuntu **** Linux Mint **** Kubuntu **** Lubuntu **** KDE Neon @endmindmap sans boîte 🎉 Copied! @startmindmap <style> mindmapDiagram { node { BackgroundColor lightGreen } boxless { FontColor darkgreen } } </style> * Linux ** NixOS ** Debian ***_ Ubuntu **** Linux Mint **** Kubuntu **** Lubuntu **** KDE Neon @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Word Wrap Le paramètre MaximumWidth permet de contrôler le retour à ligne automatique. L'unité utilisée est le pixel 🎉 Copied! @startmindmap <style> node { Padding 12 Margin 3 HorizontalAlignment center LineColor blue LineThickness 3.0 BackgroundColor gold RoundCorner 40 MaximumWidth 100 } rootNode { LineStyle 8.0;3.0 LineColor red BackgroundColor white LineThickness 1.0 RoundCorner 0 Shadowing 0.0 } leafNode { LineColor gold RoundCorner 0 Padding 3 } arrow { LineStyle 4 LineThickness 0.5 LineColor green } </style> * Hi =) ** sometimes i have node in wich i want to write a long text *** this results in really huge diagram **** of course, i can explicit split with a\nnew line **** but it could be cool if PlantUML was able to split long lines, maybe with an option @endmindmap Edit in DokuwikiEdit in AsciidocEdit in Markdown Creole on Mindmap diagram You can use Creole or HTML Creole on Mindmap: 🎉 Copied! @startmindmap * Creole on Mindmap left side **:==Creole This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ --test Unicode and icons-- This is <U+221E> long This is a <&code> icon Use image : <img:http://plantuml.com/logo3.png> ; **: <b>HTML Creole This is <b>bold</b> This is <i>italics</i> This is <font:monospaced>monospaced</font> This is <s>stroked</s> This is <u>underlined</u> This is <w>waved</w> This is <s:green>stroked</s> This is <u:red>underlined</u> This is <w:#0000FF>waved</w> -- other examples -- This is <color:blue>Blue</color> This is <back:orange>Orange background</back> This is <size:20>big</size> ; right side **:==Creole line You can have horizontal line ---- Or double line ==== Or strong line ____ Or dotted line ..My title.. Or dotted title //and title... // ==Title== Or double-line title --Another title-- Or single-line title Enjoy!; **:==Creole list item **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item ; @endmindmap [Ref. QA-17838]

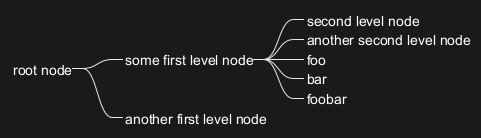

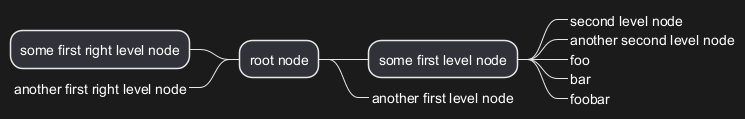

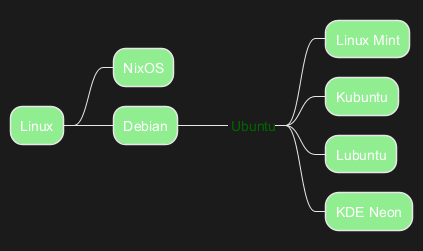

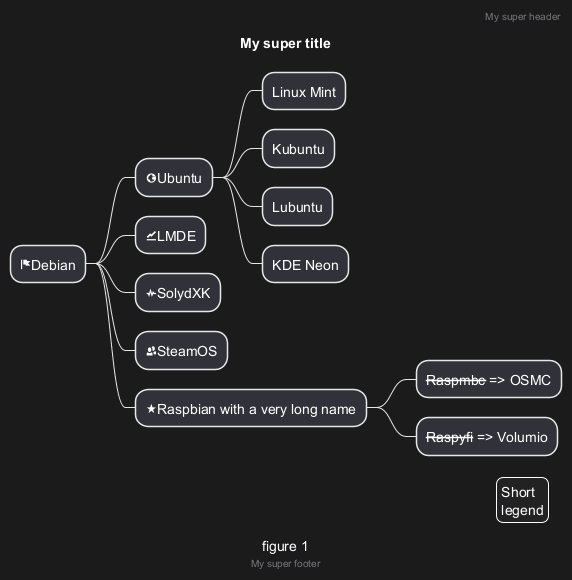

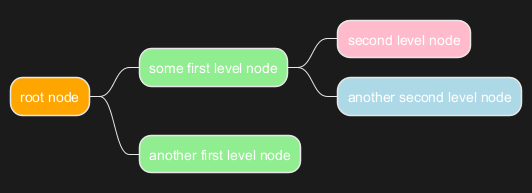

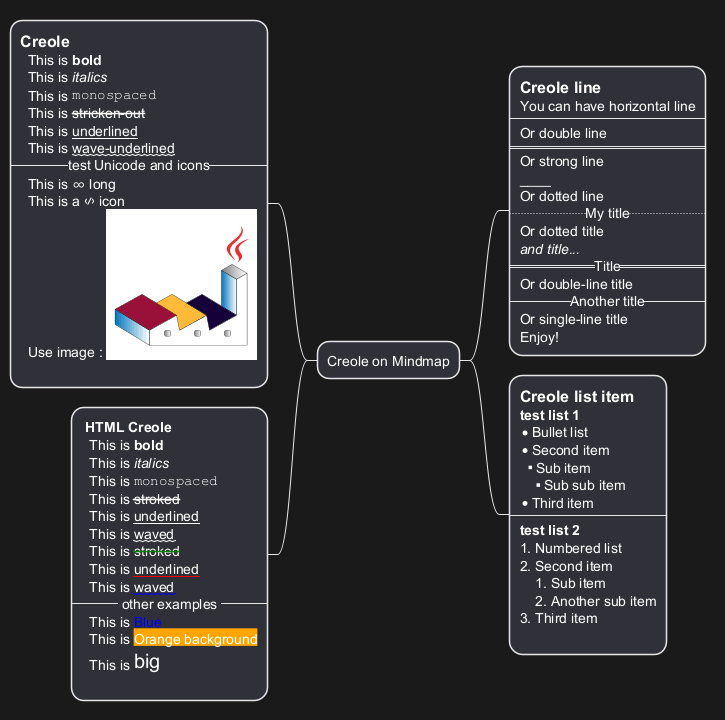

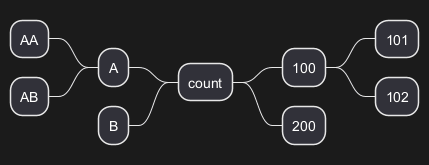

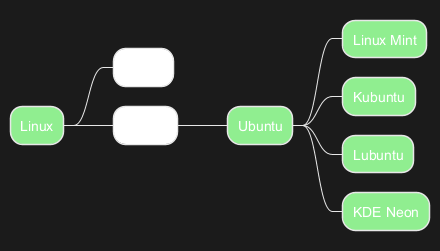

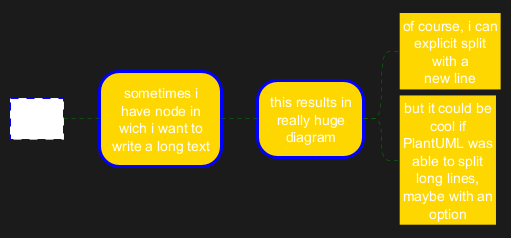

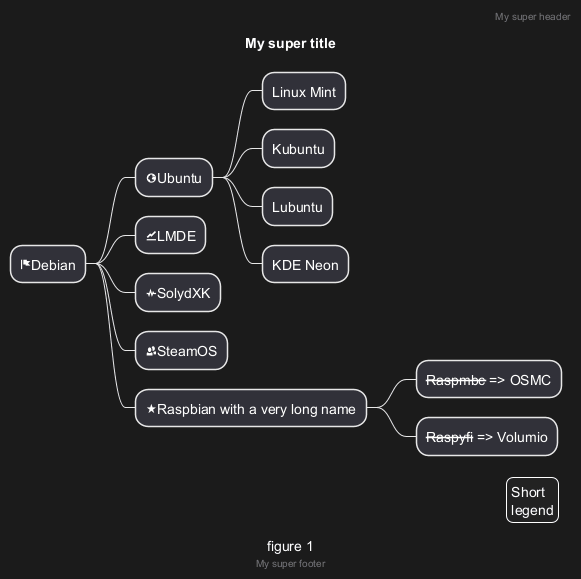

Syntaxe OrgMode Syntaxe Markdown Notation arithmétique [+, -] Multilignes Multiroot Mindmap Couleurs Masquer les bordures [\_] Diagramme multi-directionnel Exemple complet Changement de style Word Wrap Creole on Mindmap diagram
