Object Diagram

An object diagram is a graphical representation that showcases objects and their relationships at a specific moment in time. It provides a snapshot of the system's structure, capturing the static view of the instances present and their associations.

PlantUML offers a simple and intuitive way to create object diagrams using plain text. Its user-friendly syntax allows for quick diagram creation without the need for complex GUI tools. Moreover, the PlantUML forum provides a platform for users to discuss, share, and seek assistance, fostering a collaborative community. By choosing PlantUML, users benefit from both the efficiency of markdown-based diagramming and the support of an active community.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Definition of objects

You define instances of objects using the object keyword.

🎉 Copied!

@startuml object firstObject object "My Second Object" as o2 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Relations between objects

Relations between objects are defined using the following symbols :

Type	Symbol	Purpose
Extension	<|--	Specialization of a class in a hierarchy
Implementation	<|..	Realization of an interface by a class
Composition	*--	The part cannot exist without the whole
Aggregation	o--	The part can exist independently of the whole
Dependency	-->	The object uses another object
Dependency	..>	A weaker form of dependency

It is possible to replace -- by .. to have a dotted line.

Knowing those rules, it is possible to draw the following drawings.

It is possible a add a label on the relation, using : followed by the text of the label.

For cardinality, you can use double-quotes "" on each side of the relation.

🎉 Copied!

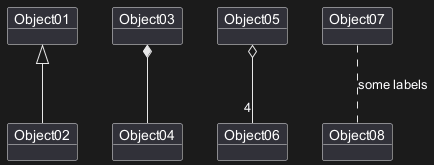

@startuml object Object01 object Object02 object Object03 object Object04 object Object05 object Object06 object Object07 object Object08 Object01 <|-- Object02 Object03 *-- Object04 Object05 o-- "4" Object06 Object07 .. Object08 : some labels @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Associations objects

🎉 Copied!

@startuml object o1 object o2 diamond dia object o3 o1 --> dia o2 --> dia dia --> o3 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Adding fields

To declare fields, you can use the symbol : followed by the field's name.

🎉 Copied!

@startuml object user user : name = "Dummy" user : id = 123 @enduml

It is also possible to group all fields between brackets {}.

🎉 Copied!

@startuml object user { name = "Dummy" id = 123 } @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Common features with class diagrams

• Hide attributes, methods...
• Defines notes
• Use packages
• Skin the output

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Map table or associative array

You can define a map table or associative array, with map keyword and => separator.

🎉 Copied!

@startuml map CapitalCity { UK => London USA => Washington Germany => Berlin } @enduml

🎉 Copied!

@startuml map "Map **Contry => CapitalCity**" as CC { UK => London USA => Washington Germany => Berlin } @enduml

🎉 Copied!

@startuml map "map: Map<Integer, String>" as users { 1 => Alice 2 => Bob 3 => Charlie } @enduml

And add link with object.

🎉 Copied!

@startuml object London map CapitalCity { UK *-> London USA => Washington Germany => Berlin } @enduml

🎉 Copied!

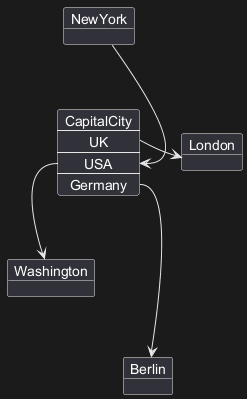

@startuml object London object Washington object Berlin object NewYork map CapitalCity { UK *-> London USA *--> Washington Germany *---> Berlin } NewYork --> CapitalCity::USA @enduml

[Ref. #307]

🎉 Copied!

@startuml package foo { object baz } package bar { map A { b *-> foo.baz c => } } A::c --> foo @enduml

[Ref. QA-12934]

🎉 Copied!

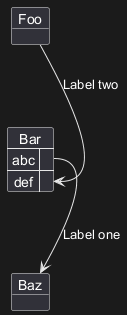

@startuml object Foo map Bar { abc=> def=> } object Baz Bar::abc --> Baz : Label one Foo --> Bar::def : Label two @enduml

[Ref. #307]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Program (or project) evaluation and review technique (PERT) with map

You can use map table in order to make Program (or project) evaluation and review technique (PERT) diagram.

🎉 Copied!

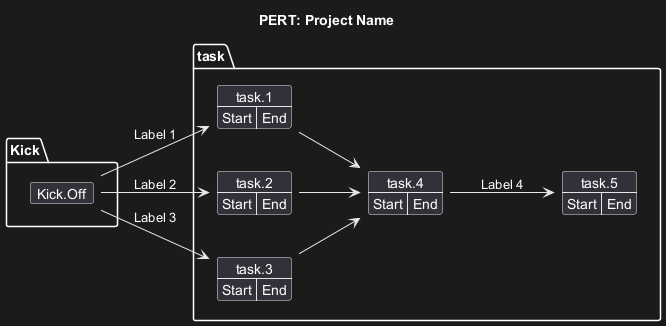

@startuml PERT left to right direction ' Horizontal lines: -->, <--, <--> ' Vertical lines: ->, <-, <-> title PERT: Project Name map Kick.Off { } map task.1 { Start => End } map task.2 { Start => End } map task.3 { Start => End } map task.4 { Start => End } map task.5 { Start => End } Kick.Off --> task.1 : Label 1 Kick.Off --> task.2 : Label 2 Kick.Off --> task.3 : Label 3 task.1 --> task.4 task.2 --> task.4 task.3 --> task.4 task.4 --> task.5 : Label 4 @enduml

[Ref. QA-12337]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Display JSON Data on Class or Object diagram

Simple example

🎉 Copied!

@startuml class Class object Object json JSON { "fruit":"Apple", "size":"Large", "color": ["Red", "Green"] } @enduml

[Ref. QA-15481]

For another example, see on JSON page.
