Use Case Diagram

A use case diagram is a visual representation used in software engineering to depict the interactions between system actors and the system itself. It captures the dynamic behavior of a system by illustrating its use cases and the roles that interact with them. These diagrams are essential in specifying the system's functional requirements and understanding how users will interact with the system. By providing a high-level view, use case diagrams help stakeholders understand the system's functionality and its potential value.

PlantUML offers a unique approach to creating use case diagrams through its text-based language. One of the primary advantages of using PlantUML is its simplicity and efficiency. Instead of manually drawing shapes and connections, users can define their diagrams using intuitive and concise textual descriptions. This not only speeds up the diagram creation process but also ensures consistency and accuracy. The ability to integrate with various documentation platforms and its wide range of supported output formats make PlantUML a versatile tool for both developers and non-developers. Lastly, being open-source, PlantUML boasts a strong community that continually contributes to its improvement and offers a wealth of resources for users at all levels.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

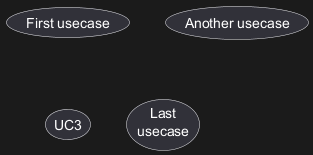

유즈케이스

유즈케이스는 (두개의 괄호는 원으로 보이기 때문에) 괄호로 싸서 표현합니다.

아니면 usecase 키워를 이용하여 정의할 수 있습니다. 그리고 as 키워드를 이용하여 별칭을 정의 할 수 있습니다. 별칭은 관계를 정의할 때 사용됩니다.

🎉 Copied!

@startuml

(First usecase)
(Another usecase) as (UC2)
usecase UC3
usecase (Last\nusecase) as UC4

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Actors

액터를 정의하는 이름은 콜론 사이에 있습니다.

Actor 키워드를 사용하여 액터를 정의할 수도 있습니다.

별칭은 as 키워드로 할당될 수 있으며, 나중에 관계를 정의할 때 액터 이름 대신 사용될 수 있습니다.

다음 예에서 액터 정의는 선택 사항임을 알 수 있습니다.

🎉 Copied!

@startuml

:First Actor:
:Another\nactor: as Man2
actor Woman3
actor :Last actor: as Person1

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Change Actor style

You can change the actor style from stick man (by default) to:
  • an awesome man with the skinparam actorStyle awesome command;
  • a hollow man with the skinparam actorStyle hollow command.

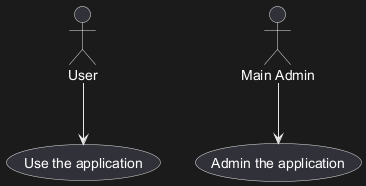

Stick man (by default)

🎉 Copied!

@startuml
:User: --> (Use)
"Main Admin" as Admin
"Use the application" as (Use)
Admin --> (Admin the application)
@enduml

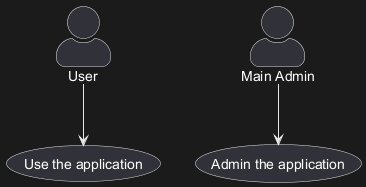

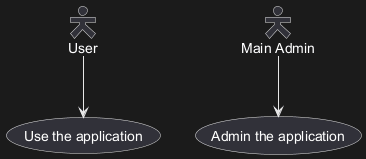

Awesome man

🎉 Copied!

@startuml
skinparam actorStyle awesome
:User: --> (Use)
"Main Admin" as Admin
"Use the application" as (Use)
Admin --> (Admin the application)
@enduml

[Ref. QA-10493]

Hollow man

🎉 Copied!

@startuml
skinparam actorStyle Hollow
:User: --> (Use)
"Main Admin" as Admin
"Use the application" as (Use)
Admin --> (Admin the application)
@enduml

[Ref. PR#396]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
유즈케이스 종류

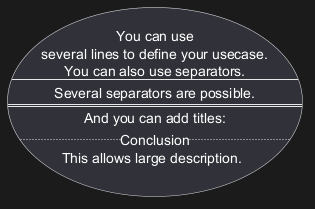

If you want to have description on several lines, you can use quotes.

You can also use the following separators: -- .. == __. And you can put titles within the separators.

🎉 Copied!

@startuml

usecase UC1 as "You can use
several lines to define your usecase.
You can also use separators.
--
Several separators are possible.
==
And you can add titles:
..Conclusion..
This allows large description."

@enduml

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown

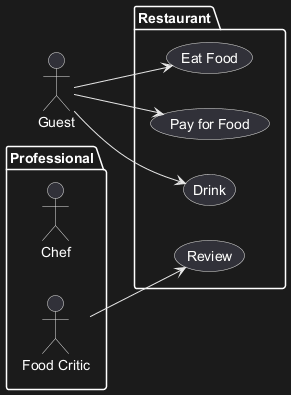

Use package

You can use packages to group actors or use cases.

🎉 Copied!

@startuml
left to right direction
actor Guest as g
package Professional {
  actor Chef as c
  actor "Food Critic" as fc
}
package Restaurant {
  usecase "Eat Food" as UC1
  usecase "Pay for Food" as UC2
  usecase "Drink" as UC3
  usecase "Review" as UC4
}
fc --> UC4
g --> UC1
g --> UC2
g --> UC3
@enduml

You can use rectangle to change the display of the package.

🎉 Copied!

@startuml
left to right direction
actor "Food Critic" as fc
rectangle Restaurant {
  usecase "Eat Food" as UC1
  usecase "Pay for Food" as UC2
  usecase "Drink" as UC3
}
fc --> UC1
fc --> UC2
fc --> UC3
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
기본 예제

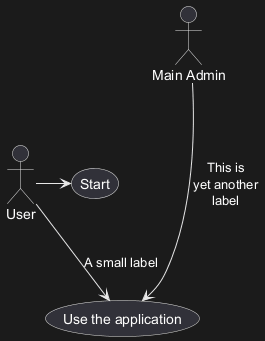

To link actors and use cases, the arrow --> is used.

The more dashes - in the arrow, the longer the arrow. You can add a label on the arrow, by adding a : character in the arrow definition.

In this example, you see that User has not been defined before, and is used as an actor.

🎉 Copied!

@startuml

User -> (Start)
User --> (Use the application) : A small label

:Main Admin: ---> (Use the application) : This is\nyet another\nlabel

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Extension

If one actor/use case extends another one, you can use the symbol <|--.

🎉 Copied!

@startuml
:Main Admin: as Admin
(Use the application) as (Use)

User <|-- Admin
(Start) <|-- (Use)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Using notes

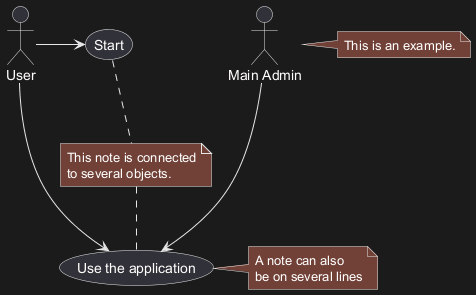

You can use the note left of , note right of , note top of , note bottom of keywords to define notes related to a single object.

A note can be also define alone with the note keywords, then linked to other objects using the .. symbol.

🎉 Copied!

@startuml
:Main Admin: as Admin
(Use the application) as (Use)

User -> (Start)
User --> (Use)

Admin ---> (Use)

note right of Admin : This is an example.

note right of (Use)
  A note can also
  be on several lines
end note

note "This note is connected\nto several objects." as N2
(Start) .. N2
N2 .. (Use)
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

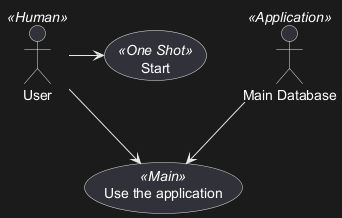

Stereotypes

You can add stereotypes while defining actors and use cases using << and >>.

🎉 Copied!

@startuml
User << Human >>
:Main Database: as MySql << Application >>
(Start) << One Shot >>
(Use the application) as (Use) << Main >>

User -> (Start)
User --> (Use)

MySql --> (Use)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
화살표 방향 변경

기본적으로, 클래스간의 링크는 대쉬2개 -- 로 표시하고 수직방향이다. 다음 처럼 대쉬1개 (혹은 점)을 넣어서 수평방향 링크를 사용할 수 있다:

🎉 Copied!

@startuml
:user: --> (Use case 1)
:user: -> (Use case 2)
@enduml

You can also change directions by reversing the link:

🎉 Copied!

@startuml
(Use case 1) <.. :user:
(Use case 2) <- :user:
@enduml

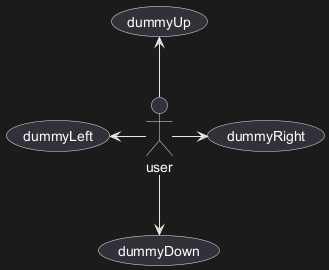

It is also possible to change arrow direction by adding left, right, up or down keywords inside the arrow:

🎉 Copied!

@startuml
:user: -left-> (dummyLeft)
:user: -right-> (dummyRight)
:user: -up-> (dummyUp)
:user: -down-> (dummyDown)
@enduml

You can shorten the arrow by using only the first character of the direction (for example, -d- instead of -down-) or the two first characters (-do-).

Please note that you should not abuse this functionality : Graphviz gives usually good results without tweaking.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Splitting diagrams

The newpage keywords to split your diagram into several pages or images.

🎉 Copied!

@startuml
:actor1: --> (Usecase1)
newpage
:actor2: --> (Usecase2)
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Left to right direction

The general default behavior when building diagram is top to bottom.

🎉 Copied!

@startuml
'default
top to bottom direction
user1 --> (Usecase 1)
user2 --> (Usecase 2)

@enduml

You may change to left to right using the left to right direction command. The result is often better with this direction.

🎉 Copied!

@startuml

left to right direction
user1 --> (Usecase 1)
user2 --> (Usecase 2)

@enduml

See also 'Change diagram orientation' on Deployment diagram page.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

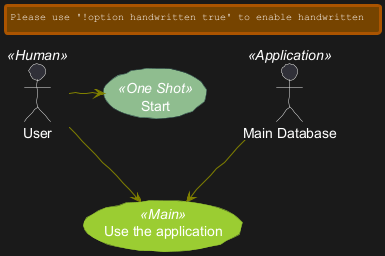

Skinparam

You can use the skinparam command to change colors and fonts for the drawing.

You can use this command :

You can define specific color and fonts for stereotyped actors and usecases.

🎉 Copied!

@startuml
skinparam handwritten true

skinparam usecase {
BackgroundColor DarkSeaGreen
BorderColor DarkSlateGray

BackgroundColor<< Main >> YellowGreen
BorderColor<< Main >> YellowGreen

ArrowColor Olive
ActorBorderColor black
ActorFontName Courier

ActorBackgroundColor<< Human >> Gold
}

User << Human >>
:Main Database: as MySql << Application >>
(Start) << One Shot >>
(Use the application) as (Use) << Main >>

User -> (Start)
User --> (Use)

MySql --> (Use)

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

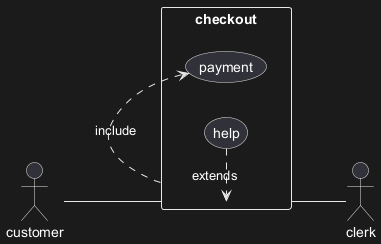

Complete example

🎉 Copied!

@startuml
left to right direction
skinparam packageStyle rectangle
actor customer
actor clerk
rectangle checkout {
  customer -- (checkout)
  (checkout) .> (payment) : include
  (help) .> (checkout) : extends
  (checkout) -- clerk
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Business Use Case

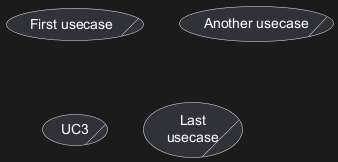

You can add / to make Business Use Case.

Business Usecase

🎉 Copied!

@startuml

(First usecase)/
(Another usecase)/ as (UC2)
usecase/ UC3
usecase/ (Last\nusecase) as UC4

@enduml

Business Actor

🎉 Copied!

@startuml

:First Actor:/
:Another\nactor:/ as Man2
actor/ Woman3
actor/ :Last actor: as Person1

@enduml

[Ref. QA-12179]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

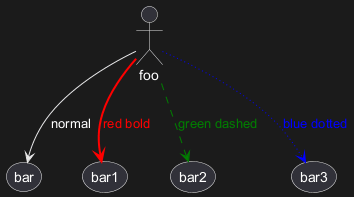

Change arrow color and style (inline style)

You can change the color or style of individual arrows using the inline following notation:

  • #color;line.[bold|dashed|dotted];text:color

🎉 Copied!

@startuml
actor foo
foo --> (bar) : normal
foo --> (bar1) #line:red;line.bold;text:red  : red bold
foo --> (bar2) #green;line.dashed;text:green : green dashed
foo --> (bar3) #blue;line.dotted;text:blue   : blue dotted
@enduml

[Ref. QA-3770 and QA-3816] [See similar feature on deployment-diagram or class diagram]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Change element color and style (inline style)

You can change the color or style of individual element using the following notation:
  • #[color|back:color];line:color;line.[bold|dashed|dotted];text:color

🎉 Copied!

@startuml
actor a
actor b #pink;line:red;line.bold;text:red
usecase c #palegreen;line:green;line.dashed;text:green
usecase d #aliceblue;line:blue;line.dotted;text:blue
@enduml

[Ref. QA-5340 and adapted from QA-6852]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Display JSON Data on Usecase diagram

Simple example

🎉 Copied!

@startuml
allowmixing

actor     Actor
usecase   Usecase

json JSON {
   "fruit":"Apple",
   "size":"Large",
   "color": ["Red", "Green"]
}
@enduml

[Ref. QA-15481]

For another example, see on JSON page.
