PlantUML Language specification Yaml Diagram

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Display YAML Data

YAML format is widely used in software.

You can use PlantUML to visualize your data.

To activate this feature, the diagram must:
  • begin with @startyaml keyword
  • end with @endyaml keyword.

🎉 Copied!

@startyaml
fruit: Apple
size: Large
color:
  - Red
  - Green
@endyaml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

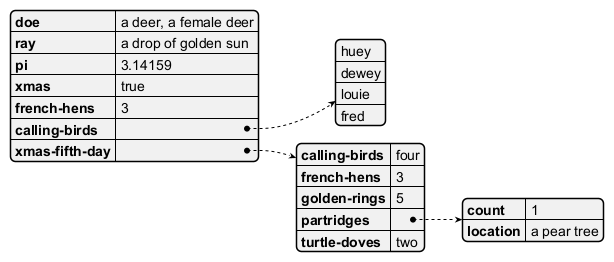

Complex example

🎉 Copied!

@startyaml
doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
	- huey
	- dewey
	- louie
	- fred
xmas-fifth-day:
	calling-birds: four
	french-hens: 3
	golden-rings: 5
	partridges:
		count: 1
		location: "a pear tree"
	turtle-doves: two
@endyaml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Specific key (with symbols or unicode)

🎉 Copied!

@startyaml
@fruit: Apple
$size: Large
&color: Red
❤: Heart
‰: Per mille
@endyaml

[Ref. QA-13376]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

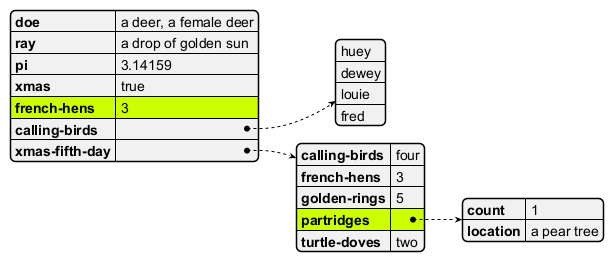

Highlight parts

Normal style

🎉 Copied!

@startyaml
#highlight "french-hens"
#highlight "xmas-fifth-day" / "partridges"

doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
	- huey
	- dewey
	- louie
	- fred
xmas-fifth-day:
	calling-birds: four
	french-hens: 3
	golden-rings: 5
	partridges:
		count: 1
		location: "a pear tree"
	turtle-doves: two
@endyaml

Customised style

🎉 Copied!

@startyaml
<style>
yamlDiagram {
    highlight {
      BackGroundColor red
      FontColor white
      FontStyle italic
    }
}
</style>
#highlight "french-hens"
#highlight "xmas-fifth-day" / "partridges"

doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
	- huey
	- dewey
	- louie
	- fred
xmas-fifth-day:
	calling-birds: four
	french-hens: 3
	golden-rings: 5
	partridges:
		count: 1
		location: "a pear tree"
	turtle-doves: two
@endyaml

[Ref. QA-13288]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

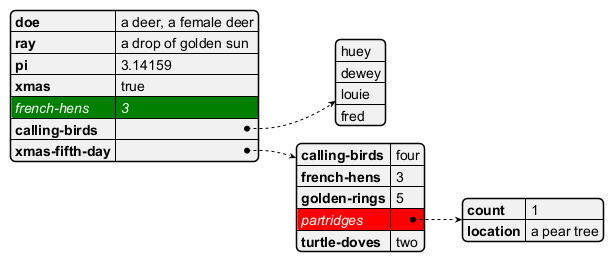

Using different styles for highlight

It is possible to have different styles for different highlights.

🎉 Copied!

@startyaml
<style>
    .h1 {
      BackGroundColor green
      FontColor white
      FontStyle italic
    }
    .h2 {
      BackGroundColor red
      FontColor white
      FontStyle italic
    }
</style>
#highlight "french-hens" <<h1>>
#highlight "xmas-fifth-day" / "partridges" <<h2>>

doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
	- huey
	- dewey
	- louie
	- fred
xmas-fifth-day:
	calling-birds: four
	french-hens: 3
	golden-rings: 5
	partridges:
		count: 1
		location: "a pear tree"
	turtle-doves: two
@endyaml

[Ref. QA-15756, GH-1393]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Using (global) style

Without style (by default)

🎉 Copied!

@startyaml
  -
    name: Mark McGwire
    hr:   65
    avg:  0.278
  -
    name: Sammy Sosa
    hr:   63
    avg:  0.288
@endyaml

With style

You can use style to change rendering of elements.

🎉 Copied!

@startyaml
<style>
yamlDiagram {
  node {
    BackGroundColor lightblue
    LineColor lightblue
    FontName Helvetica
    FontColor red
    FontSize 18
    FontStyle bold
    BackGroundColor Khaki
    RoundCorner 0
    LineThickness 2
    LineStyle 10-5
    separator {
      LineThickness 0.5
      LineColor black
      LineStyle 1-5
    }
  }
  arrow {
    BackGroundColor lightblue
    LineColor green
    LineThickness 2
    LineStyle 2-5
  }
}
</style>
  -
    name: Mark McGwire
    hr:   65
    avg:  0.278
  -
    name: Sammy Sosa
    hr:   63
    avg:  0.288
@endyaml

[Ref. QA-13123]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

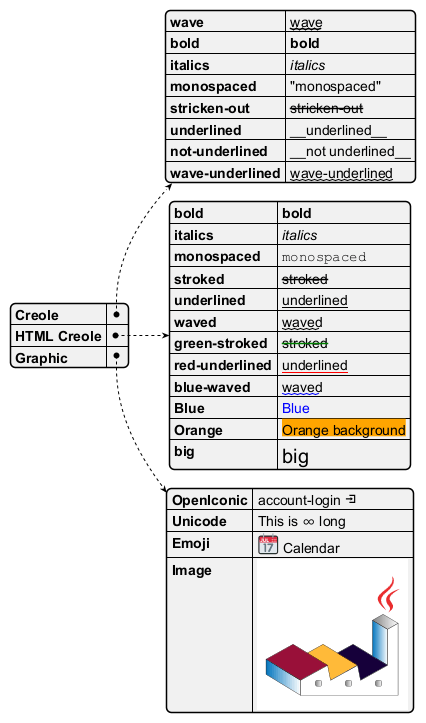

Creole on YAML

You can use Creole or HTML Creole on YAML diagram:

🎉 Copied!

@startyaml
Creole:
  wave: ~~wave~~
  bold: **bold**
  italics: //italics//
  monospaced: ""monospaced""
  stricken-out: --stricken-out--
  underlined: __underlined__
  not-underlined: ~__not underlined__
  wave-underlined: ~~wave-underlined~~
HTML Creole:
  bold: <b>bold
  italics: <i>italics
  monospaced: <font:monospaced>monospaced
  stroked: <s>stroked
  underlined: <u>underlined
  waved: <w>waved
  green-stroked: <s:green>stroked
  red-underlined: <u:red>underlined
  blue-waved: <w:#0000FF>waved
  Blue: <color:blue>Blue
  Orange: <back:orange>Orange background
  big: <size:20>big
Graphic:
  OpenIconic: account-login <&account-login>
  Unicode: This is <U+221E> long
  Emoji: <:calendar:> Calendar
  Image: <img:https://plantuml.com/logo3.png>
@endyaml
