상태 다이어그램

Using [PlantUML](https://plantuml.com/) to create state diagrams offers several advantages:
  • Text-Based Language: Quickly define and visualize the states and transitions without the hassle of manual drawing.
  • Efficiency and Consistency: Ensure streamlined diagram creation and easy version control.
  • Versatility: Integrate with various documentation platforms and support multiple output formats.
  • Open-Source & Community Support: Backed by a [strong community](https://forum.plantuml.net/) that continuously contributes to its enhancements and offers invaluable resources.
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
간단한 상태

[*]을 사용해서 시작점과 종료점을 그린다.

-->를 사용해서 화살표를 그린다.

🎉 Copied!

@startuml

[*] --> State1
State1 --> [*]
State1 : this is a string
State1 : this is another string

State1 -> State2
State2 --> [*]

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Change state rendering

You can use hide empty description to render state as simple box.

🎉 Copied!

@startuml
hide empty description
[*] --> State1
State1 --> [*]
State1 : this is a string
State1 : this is another string

State1 -> State2
State2 --> [*]
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

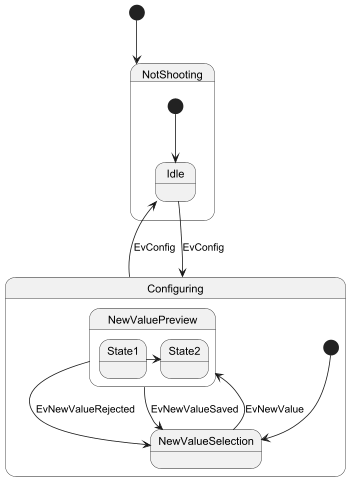

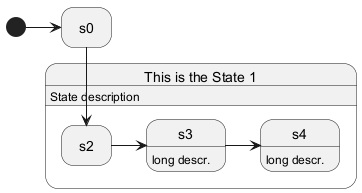

상태 수정

물론 상태는 수정될 수 있다. state 키워드와 브라켓을 정의해야 한다.

🎉 Copied!

@startuml
scale 350 width
[*] --> NotShooting

state NotShooting {
  [*] --> Idle
  Idle --> Configuring : EvConfig
  Configuring --> Idle : EvConfig
}

state Configuring {
  [*] --> NewValueSelection
  NewValueSelection --> NewValuePreview : EvNewValue
  NewValuePreview --> NewValueSelection : EvNewValueRejected
  NewValuePreview --> NewValueSelection : EvNewValueSaved

  state NewValuePreview {
     State1 -> State2
  }

}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

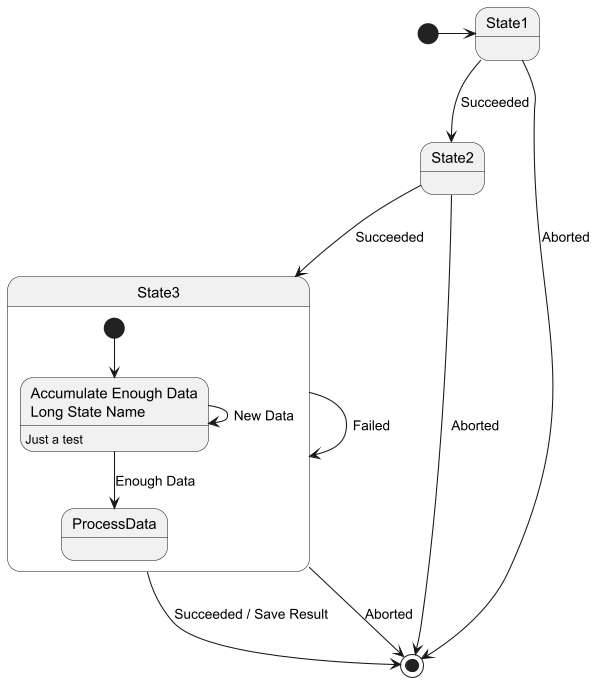

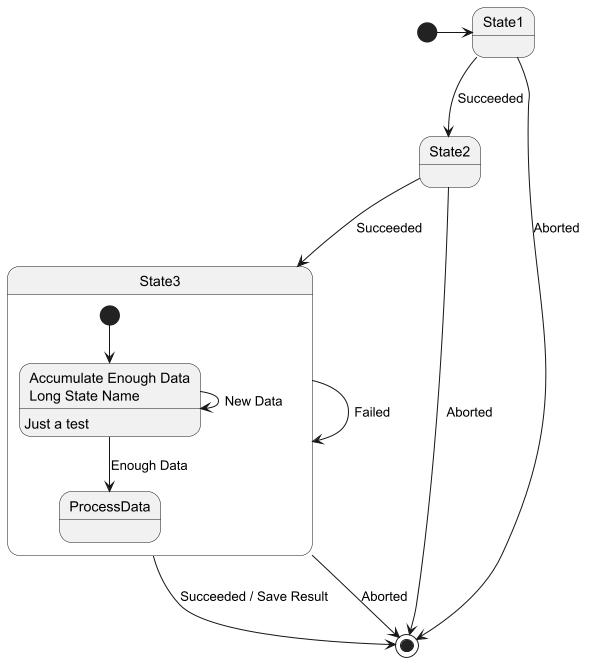

긴 이름

state 키워드를 사용하면 상태들을 길게 기술할 수 있다.

🎉 Copied!

@startuml
scale 600 width

[*] -> State1
State1 --> State2 : Succeeded
State1 --> [*] : Aborted
State2 --> State3 : Succeeded
State2 --> [*] : Aborted
state State3 {
  state "Accumulate Enough Data\nLong State Name" as long1
  long1 : Just a test
  [*] --> long1
  long1 --> long1 : New Data
  long1 --> ProcessData : Enough Data
}
State3 --> State3 : Failed
State3 --> [*] : Succeeded / Save Result
State3 --> [*] : Aborted

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

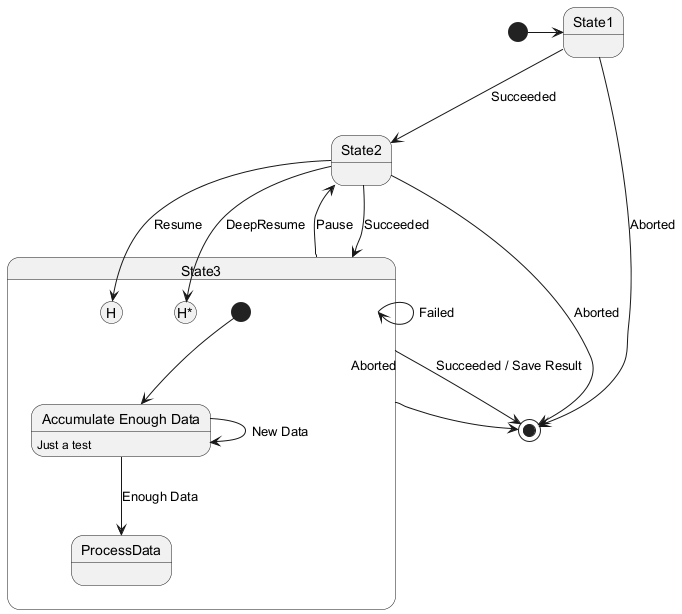

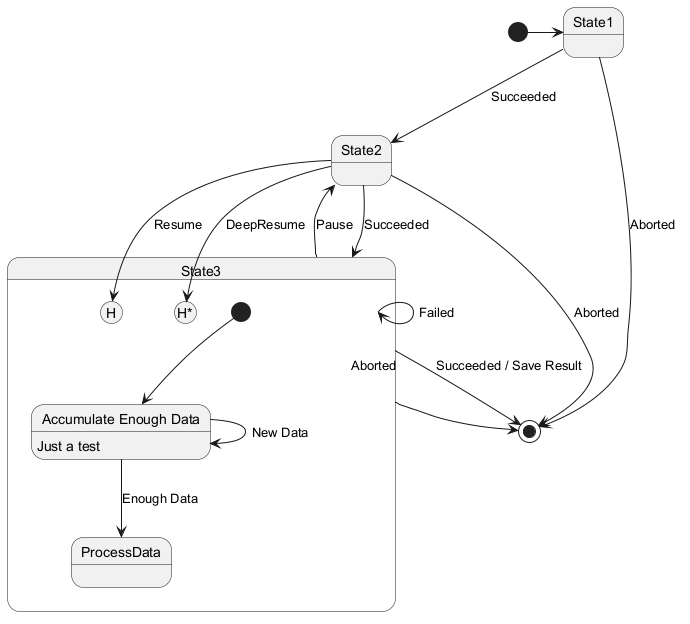

History [[H], [H*]]

You can use [H] for the history and [H*] for the deep history of a substate.

🎉 Copied!

@startuml
[*] -> State1
State1 --> State2 : Succeeded
State1 --> [*] : Aborted
State2 --> State3 : Succeeded
State2 --> [*] : Aborted
state State3 {
  state "Accumulate Enough Data" as long1
  long1 : Just a test
  [*] --> long1
  long1 --> long1 : New Data
  long1 --> ProcessData : Enough Data
  State2 --> [H]: Resume
}
State3 --> State2 : Pause
State2 --> State3[H*]: DeepResume
State3 --> State3 : Failed
State3 --> [*] : Succeeded / Save Result
State3 --> [*] : Aborted
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

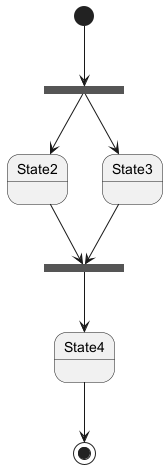

Fork [fork, join]

You can also fork and join using the <<fork>> and <<join>> stereotypes.

🎉 Copied!

@startuml

state fork_state <<fork>>
[*] --> fork_state
fork_state --> State2
fork_state --> State3

state join_state <<join>>
State2 --> join_state
State3 --> join_state
join_state --> State4
State4 --> [*]

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

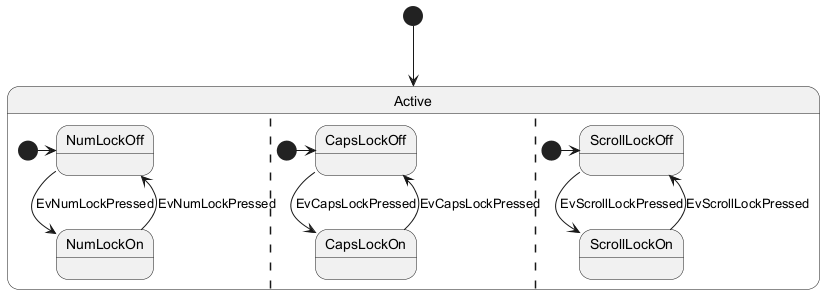

Concurrent state [--, ||]

You can define concurrent state into a composite state using either -- or || symbol as separator.

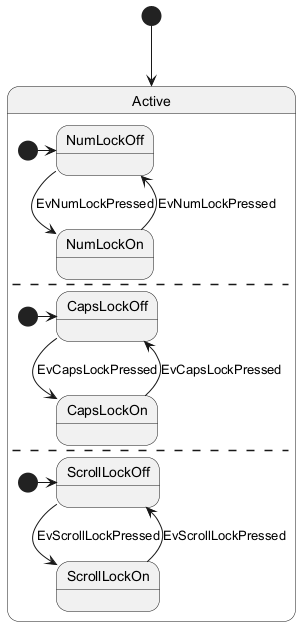

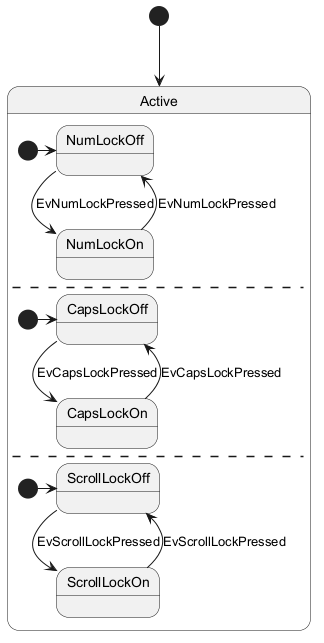

Horizontal separator --

🎉 Copied!

@startuml
[*] --> Active

state Active {
  [*] -> NumLockOff
  NumLockOff --> NumLockOn : EvNumLockPressed
  NumLockOn --> NumLockOff : EvNumLockPressed
  --
  [*] -> CapsLockOff
  CapsLockOff --> CapsLockOn : EvCapsLockPressed
  CapsLockOn --> CapsLockOff : EvCapsLockPressed
  --
  [*] -> ScrollLockOff
  ScrollLockOff --> ScrollLockOn : EvScrollLockPressed
  ScrollLockOn --> ScrollLockOff : EvScrollLockPressed
}

@enduml

Vertical separator ||

🎉 Copied!

@startuml
[*] --> Active

state Active {
  [*] -> NumLockOff
  NumLockOff --> NumLockOn : EvNumLockPressed
  NumLockOn --> NumLockOff : EvNumLockPressed
  ||
  [*] -> CapsLockOff
  CapsLockOff --> CapsLockOn : EvCapsLockPressed
  CapsLockOn --> CapsLockOff : EvCapsLockPressed
  ||
  [*] -> ScrollLockOff
  ScrollLockOff --> ScrollLockOn : EvScrollLockPressed
  ScrollLockOn --> ScrollLockOff : EvScrollLockPressed
}

@enduml

[Ref. QA-3086]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

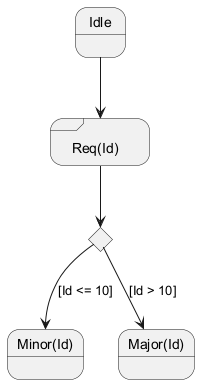

Conditional [choice]

The stereotype <<choice>> can be used to use conditional state.

🎉 Copied!

@startuml
state "Req(Id)" as ReqId <<sdlreceive>>
state "Minor(Id)" as MinorId
state "Major(Id)" as MajorId

state c <<choice>>

Idle --> ReqId
ReqId --> c
c --> MinorId : [Id <= 10]
c --> MajorId : [Id > 10]
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

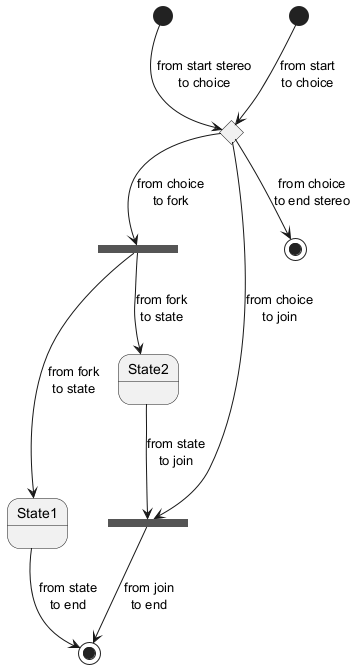

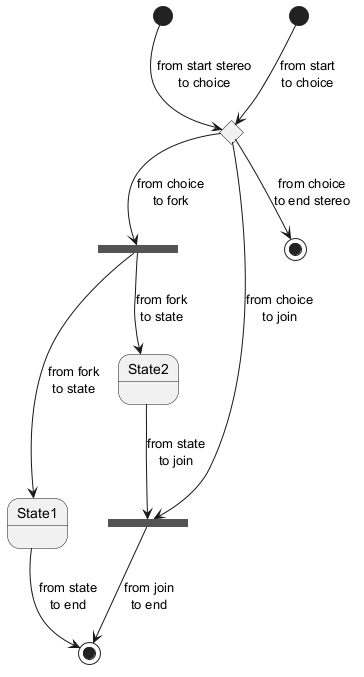

Stereotypes full example [start, choice, fork, join, end]

🎉 Copied!

@startuml
state start1  <<start>>
state choice1 <<choice>>
state fork1   <<fork>>
state join2   <<join>>
state end3    <<end>>

[*]     --> choice1 : from start\nto choice
start1  --> choice1 : from start stereo\nto choice

choice1 --> fork1   : from choice\nto fork
choice1 --> join2   : from choice\nto join
choice1 --> end3    : from choice\nto end stereo

fork1   ---> State1 : from fork\nto state
fork1   --> State2  : from fork\nto state

State2  --> join2   : from state\nto join
State1  --> [*]     : from state\nto end

join2   --> [*]     : from join\nto end
@enduml

[Ref. QA-404, QA-1159 and GH-887]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

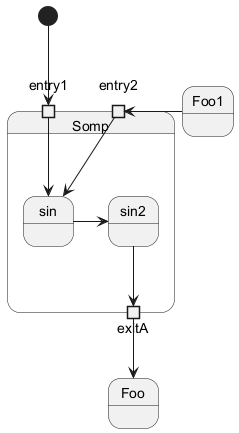

Point [entryPoint, exitPoint]

You can add point with <<entryPoint>> and <<exitPoint>> stereotypes:

🎉 Copied!

@startuml
state Somp {
  state entry1 <<entryPoint>>
  state entry2 <<entryPoint>>
  state sin
  entry1 --> sin
  entry2 -> sin
  sin -> sin2
  sin2 --> exitA <<exitPoint>>
}

[*] --> entry1
exitA --> Foo
Foo1 -> entry2
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Pin [inputPin, outputPin]

You can add pin with <<inputPin>> and <<outputPin>> stereotypes:

🎉 Copied!

@startuml
state Somp {
  state entry1 <<inputPin>>
  state entry2 <<inputPin>>
  state sin
  entry1 --> sin
  entry2 -> sin
  sin -> sin2
  sin2 --> exitA <<outputPin>>
}

[*] --> entry1
exitA --> Foo
Foo1 -> entry2
@enduml

[Ref. QA-4309]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

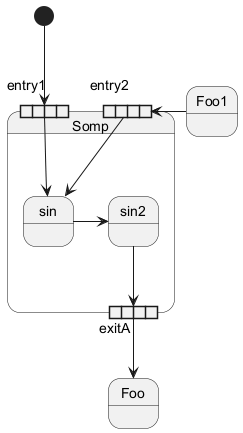

Expansion [expansionInput, expansionOutput]

You can add expansion with <<expansionInput>> and <<expansionOutput>> stereotypes:

🎉 Copied!

@startuml
state Somp {
  state entry1 <<expansionInput>>
  state entry2 <<expansionInput>>
  state sin
  entry1 --> sin
  entry2 -> sin
  sin -> sin2
  sin2 --> exitA <<expansionOutput>>
}

[*] --> entry1
exitA --> Foo
Foo1 -> entry2
@enduml

[Ref. QA-4309]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Arrow direction

You can use -> for horizontal arrows. It is possible to force arrow's direction using the following syntax:
  • -down-> or -->
  • -right-> or ->(default arrow)
  • -left->
  • -up->

🎉 Copied!

@startuml

[*] -up-> First
First -right-> Second
Second --> Third
Third -left-> Last

@enduml

You can shorten the arrow definition by using only the first character of the direction (for example, -d- instead of -down-) or the two first characters (-do-).

Please note that you should not abuse this functionality : Graphviz gives usually good results without tweaking.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

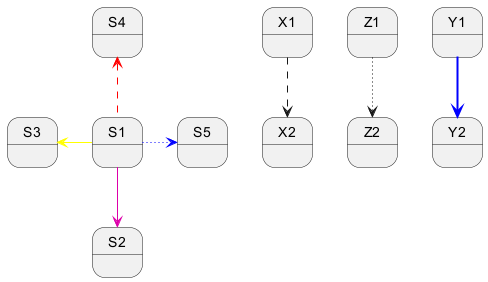

Change line color and style

You can change line color and/or line style.

🎉 Copied!

@startuml
State S1
State S2
S1 -[#DD00AA]-> S2
S1 -left[#yellow]-> S3
S1 -up[#red,dashed]-> S4
S1 -right[dotted,#blue]-> S5

X1 -[dashed]-> X2
Z1 -[dotted]-> Z2
Y1 -[#blue,bold]-> Y2
@enduml

[Ref. Incubation: Change line color in state diagrams]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

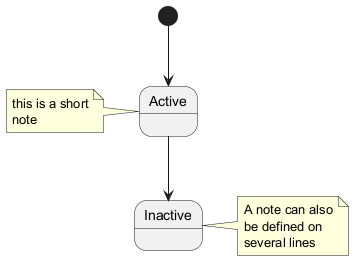

Note

You can also define notes using note left of, note right of, note top of, note bottom of keywords.

You can also define notes on several lines.

🎉 Copied!

@startuml

[*] --> Active
Active --> Inactive

note left of Active : this is a short\nnote

note right of Inactive
  A note can also
  be defined on
  several lines
end note

@enduml

You can also have floating notes.

🎉 Copied!

@startuml

state foo
note "This is a floating note" as N1

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Note on link

You can put notes on state-transition or link, with note on link keyword.

🎉 Copied!

@startuml
[*] -> State1
State1 --> State2
note on link
  this is a state-transition note
end note
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

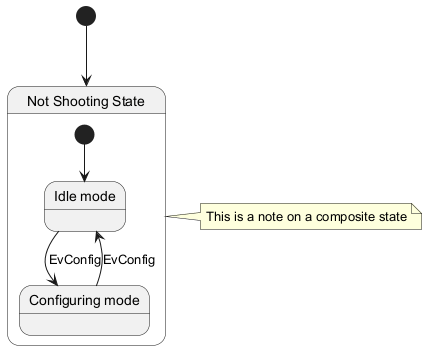

More in notes

You can put notes on composite states.

🎉 Copied!

@startuml

[*] --> NotShooting

state "Not Shooting State" as NotShooting {
  state "Idle mode" as Idle
  state "Configuring mode" as Configuring
  [*] --> Idle
  Idle --> Configuring : EvConfig
  Configuring --> Idle : EvConfig
}

note right of NotShooting : This is a note on a composite state

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

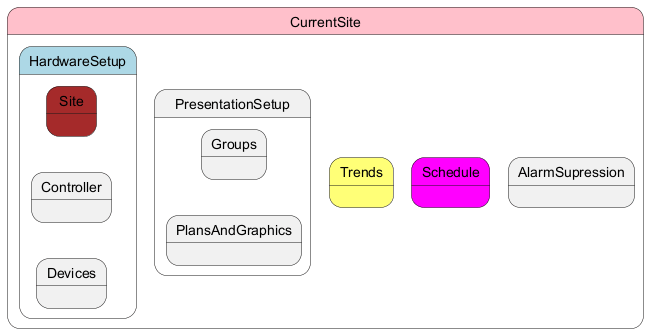

Inline color

🎉 Copied!

@startuml
state CurrentSite #pink {
    state HardwareSetup #lightblue {
       state Site #brown
        Site -[hidden]-> Controller
        Controller -[hidden]-> Devices
    }
    state PresentationSetup{
        Groups -[hidden]-> PlansAndGraphics
    }
    state Trends #FFFF77
    state Schedule #magenta
    state AlarmSupression
}
@enduml

[Ref. QA-1812]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

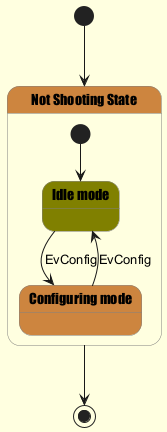

Skinparam

You can use the skinparam command to change colors and fonts for the drawing.

You can use this command : You can define specific color and fonts for stereotyped states.

🎉 Copied!

@startuml
skinparam backgroundColor LightYellow
skinparam state {
  StartColor MediumBlue
  EndColor Red
  BackgroundColor Peru
  BackgroundColor<<Warning>> Olive
  BorderColor Gray
  FontName Impact
}

[*] --> NotShooting

state "Not Shooting State" as NotShooting {
  state "Idle mode" as Idle <<Warning>>
  state "Configuring mode" as Configuring
  [*] --> Idle
  Idle --> Configuring : EvConfig
  Configuring --> Idle : EvConfig
}

NotShooting --> [*]
@enduml

Test of all specific skinparam to State Diagrams

🎉 Copied!

@startuml
skinparam State {
  AttributeFontColor blue
  AttributeFontName serif
  AttributeFontSize  9
  AttributeFontStyle italic
  BackgroundColor palegreen
  BorderColor violet
  EndColor gold
  FontColor red
  FontName Sanserif
  FontSize 15
  FontStyle bold
  StartColor silver
}

state A : a a a\na
state B : b b b\nb

[*] -> A  : start
A -> B : a2b
B -> [*] : end
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

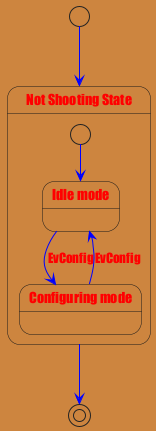

Changing style

You can change style.

🎉 Copied!

@startuml

<style>
stateDiagram {
  BackgroundColor Peru
  'LineColor Gray
  FontName Impact
  FontColor Red
  arrow {
    FontSize 13
    LineColor Blue
  }
}
</style>


[*] --> NotShooting

state "Not Shooting State" as NotShooting {
  state "Idle mode" as Idle <<Warning>>
  state "Configuring mode" as Configuring
  [*] --> Idle
  Idle --> Configuring : EvConfig
  Configuring --> Idle : EvConfig
}

NotShooting --> [*]
@enduml

🎉 Copied!

@startuml
<style>
  diamond {
    BackgroundColor #palegreen
    LineColor #green
    LineThickness 2.5
}
</style>
state state1
state state2
state choice1 <<choice>>
state end3    <<end>>

state1  --> choice1 : 1
choice1 --> state2  : 2
choice1 --> end3    : 3
@enduml

[Ref. GH-880]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

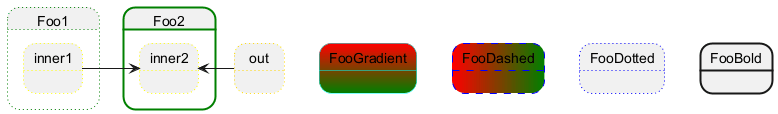

Change state color and style (inline style)

You can change the color or style of individual state using the following notation:

  • #color ##[style]color

With background color first (#color), then line style and line color (##[style]color ).

🎉 Copied!

@startuml
state FooGradient #red-green ##00FFFF
state FooDashed #red|green ##[dashed]blue {
}
state FooDotted ##[dotted]blue {
}
state FooBold ##[bold] {
}
state Foo1 ##[dotted]green {
state inner1 ##[dotted]yellow
}

state out ##[dotted]gold

state Foo2 ##[bold]green {
state inner2 ##[dotted]yellow
}
inner1 -> inner2
out -> inner2
@enduml

[Ref. QA-1487]

  • #color;line:color;line.[bold|dashed|dotted];text:color

FIXME
🚩 text:color seems not to be taken into account
FIXME

🎉 Copied!

@startuml
@startuml
state FooGradient #red-green;line:00FFFF
state FooDashed #red|green;line.dashed;line:blue {
}
state FooDotted #line.dotted;line:blue {
}
state FooBold #line.bold {
}
state Foo1 #line.dotted;line:green {
state inner1 #line.dotted;line:yellow
}

state out #line.dotted;line:gold

state Foo2 #line.bold;line:green {
state inner2 #line.dotted;line:yellow
}
inner1 -> inner2
out -> inner2
@enduml
@enduml

🎉 Copied!

@startuml
state s1 : s1 description
state s2 #pink;line:red;line.bold;text:red : s2 description
state s3 #palegreen;line:green;line.dashed;text:green : s3 description
state s4 #aliceblue;line:blue;line.dotted;text:blue   : s4 description
@enduml

[Adapted from QA-3770]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Alias

With State you can use alias, like:

🎉 Copied!

@startuml
state alias1
state "alias2"
state "long name" as alias3
state alias4 as "long name"

alias1 : ""state alias1""
alias2 : ""state "alias2"""
alias3 : ""state "long name" as alias3""
alias4 : ""state alias4 as "long name"""

alias1 -> alias2
alias2 -> alias3
alias3 -> alias4
@enduml

or:

🎉 Copied!

@startuml
state alias1 : ""state alias1""
state "alias2" : ""state "alias2"""
state "long name" as alias3 : ""state "long name" as alias3""
state alias4 as "long name" : ""state alias4 as "long name"""

alias1 -> alias2
alias2 -> alias3
alias3 -> alias4
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

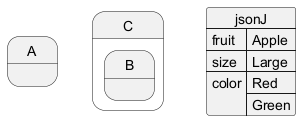

Display JSON Data on State diagram

Simple example

🎉 Copied!

@startuml
state "A" as stateA
state "C" as stateC {
 state B
}

json jsonJ {
   "fruit":"Apple",
   "size":"Large",
   "color": ["Red", "Green"]
}
@enduml

[Ref. QA-17275]

For another example, see on JSON page.

Privacy Policy      Advertise
