Creole синтаксис

Creole - это облегчённый язык разметки, используемый в различных вики.

Чтобы иметь стандартизированный способ стилизации текста, в PlantUML интегрирован легковесный движок Creole и все диаграммы в PlantUML поддерживают этот синтаксис.

Также сохраняется совместимость с синтаксисом HTML.

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

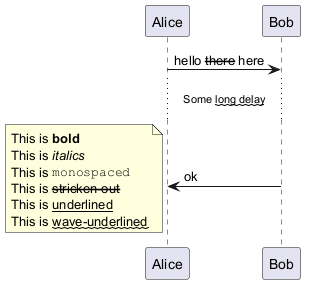

Emphasized text

🎉 Copied!

@startuml Alice -> Bob : hello --there-- here ... Some ~~long delay~~ ... Bob -> Alice : ok note left This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ end note @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Lists

You can use numbered and bulleted lists in node text, notes, etc.

FIXME

🚩 You cannot quite mix numbers and bullets in a list and its sublist.

🎉 Copied!

@startuml object demo { * Bullet list * Second item } note left * Bullet list * Second item ** Sub item end note legend # Numbered list # Second item ## Sub item ## Another sub item * Can't quite mix * Numbers and bullets # Third item end legend @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Escape character

You can use the tilde ~ to escape special creole characters.

🎉 Copied!

@startuml object demo { This is not ~___underscored__. This is not ~""monospaced"". } @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Headings

🎉 Copied!

@startuml usecase UC1 as " = Extra-large heading Some text == Large heading Other text === Medium heading Information .... ==== Small heading" @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Emoji

All emojis from Twemoji (see EmojiTwo on Github) are available using the following syntax:

🎉 Copied!

@startuml Alice -> Bob : Hello <:1f600:> return <:innocent:> Alice -> Bob : Without color: <#0:sunglasses:> Alice -> Bob : Change color: <#green:sunny:> @enduml

Unlike Unicode Special characters that depend on installed fonts, the emoji are always available. Furthermore, emoji are already colored, but you can recolor them if you like (see examples above).

One can pick emoji from the emoji cheat sheet, the Unicode full-emoji-list, or the flat list emoji.txt in the plantuml source.

You can also use the following PlantUML command to list available emoji:

@startuml
emoji <block>
@enduml

As of 13 April 2023, you can select between 1174 emoji from the following Unicode blocks:

Unicode block 26: 83 emoji
Unicode block 27: 33 emoji
Unicode block 1F3: 246 emoji
Unicode block 1F4: 255 emoji
Unicode block 1F5: 136 emoji
Unicode block 1F6: 181 emoji
Unicode block 1F9: 240 emoji

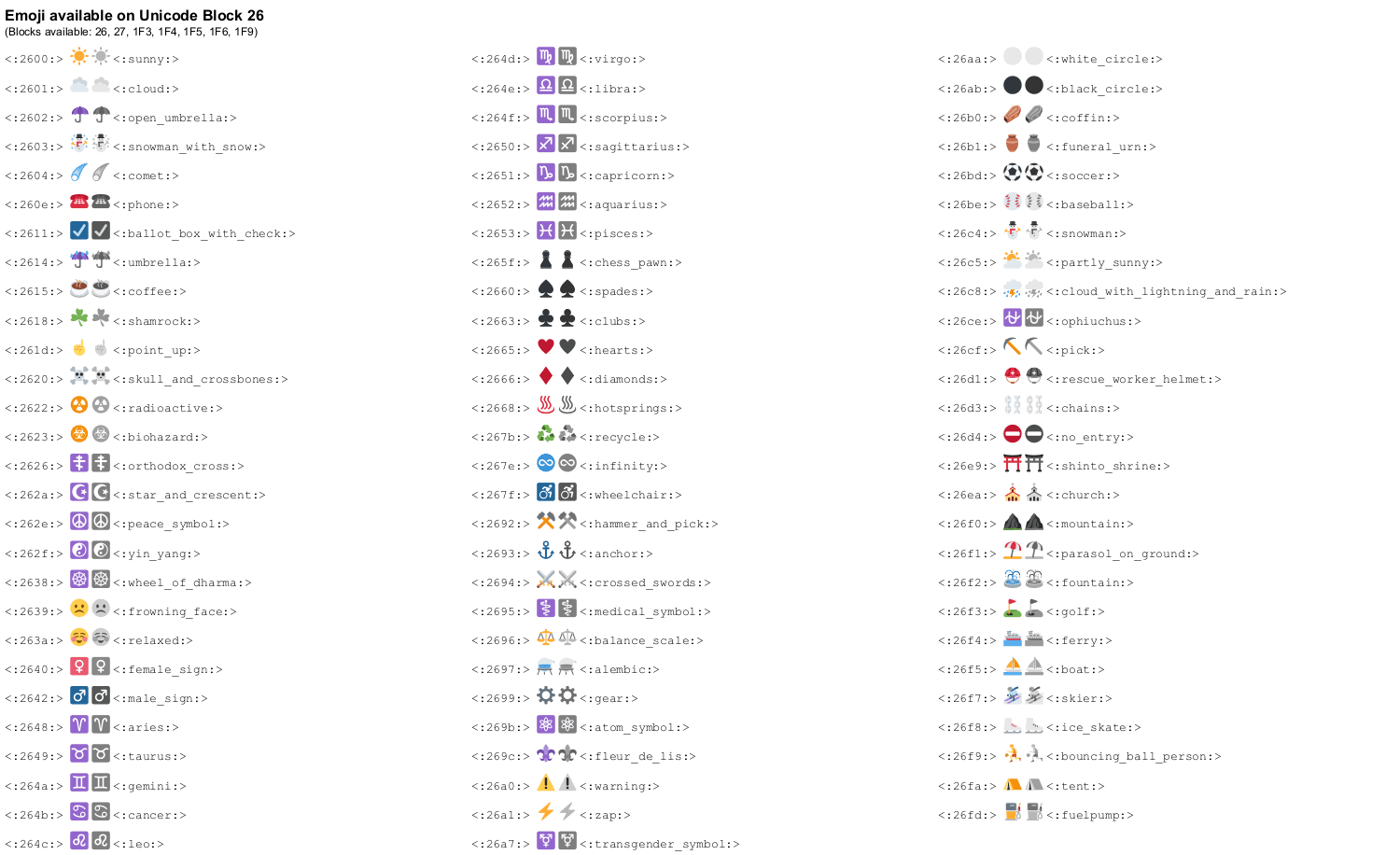

Unicode block 26

🎉 Copied!

@startuml emoji 26 @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

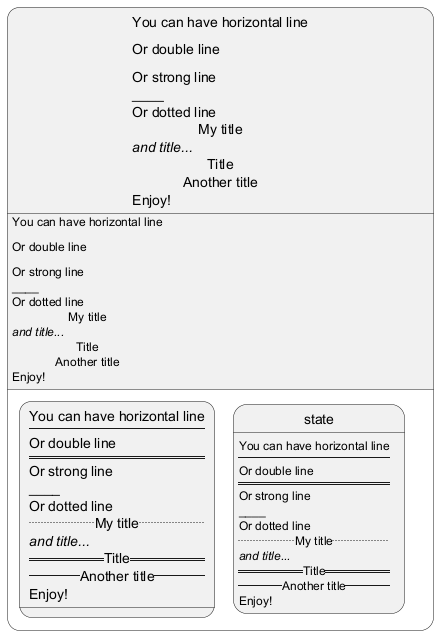

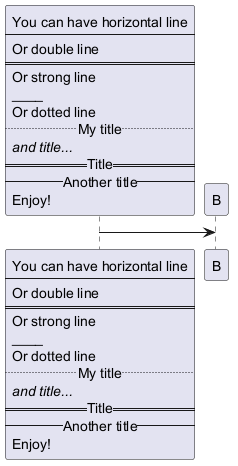

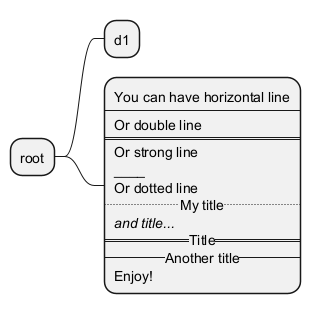

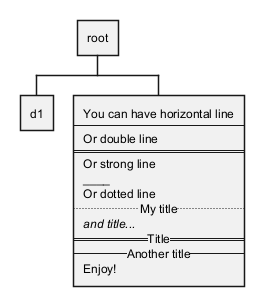

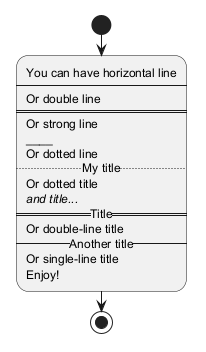

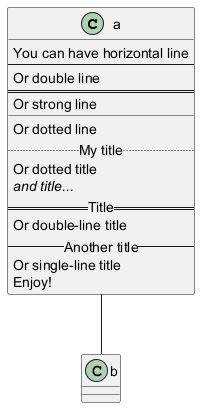

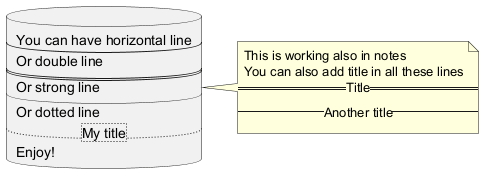

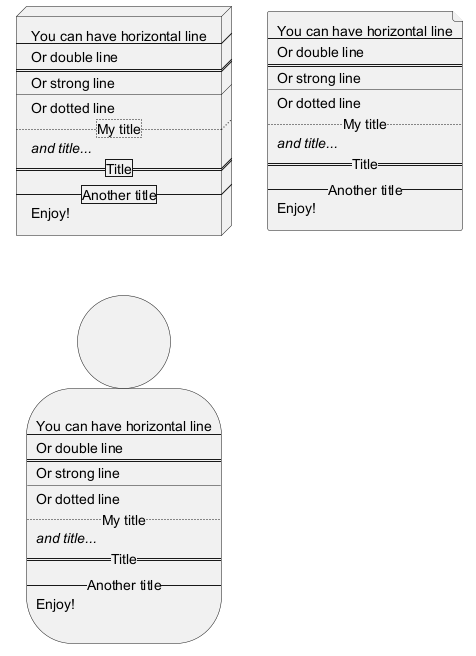

Horizontal lines

🎉 Copied!

@startuml database DB1 as " You can have horizontal line ---- Or double line ==== Or strong line ____ Or dotted line ..My title.. Enjoy! " note right This is working also in notes You can also add title in all these lines ==Title== --Another title-- end note @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Links

You can also use URL and links.

Simple links are define using two square brackets (or three square brackets for field or method on class diagram).

Example:

[[http://plantuml.com]]
[[http://plantuml.com This label is printed]]
[[http://plantuml.com{Optional tooltip} This label is printed]]

URL can also be authenticated.

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

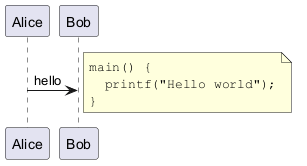

Code

You can use <code> to display some programming code in your diagram (sorry, syntax highlighting is not yet supported).

🎉 Copied!

@startuml Alice -> Bob : hello note right <code> main() { printf("Hello world"); } </code> end note @enduml

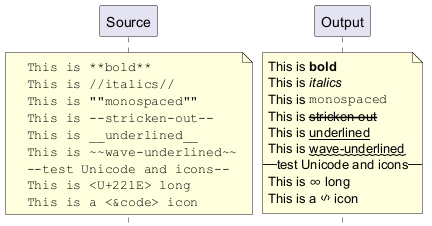

This is especially useful to illustrate some PlantUML code and the resulting rendering:

🎉 Copied!

@startuml hide footbox note over Source <code> This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ --test Unicode and icons-- This is <U+221E> long This is a <&code> icon </code> end note /note over Output This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ --test Unicode and icons-- This is <U+221E> long This is a <&code> icon end note @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Table

Create a table

It is possible to build table, with | separator.

🎉 Copied!

@startuml skinparam titleFontSize 14 title Example of simple table |= |= table |= header | | a | table | row | | b | table | row | end title [*] --> State1 @enduml

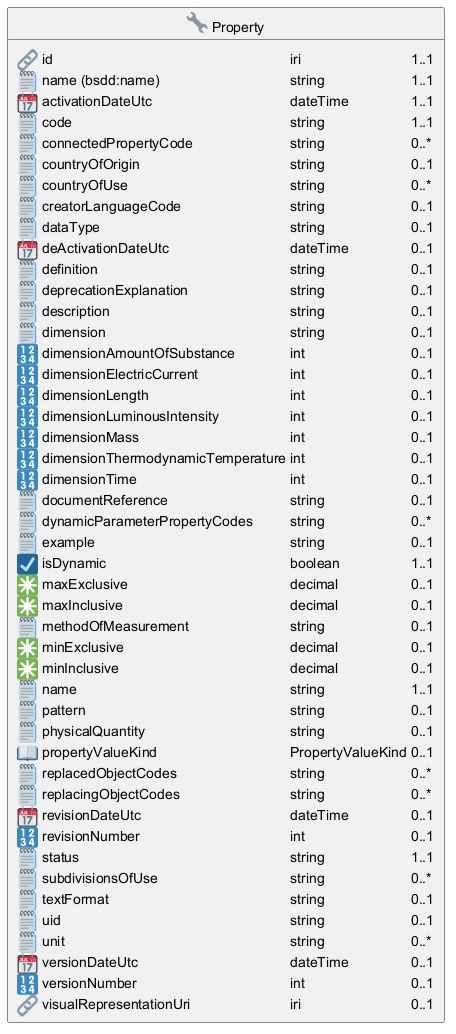

Align fields using Table

You can use a table to align "fields" of class members. The example below (taken from buildingSmart Data Dictionary shows for each member: icon, name, datatype and cardinality. Use the <#transparent,#transparent> color specification so table cells have no foreground and background color.

(The example also shows the use of icons)

🎉 Copied!

@startuml hide empty members hide circle class "<:wrench:> Property" as Property { <#transparent,#transparent>|<:link:>| id| iri| 1..1| |<:spiral_notepad:>| name (bsdd:name)| string| 1..1| |<:calendar:>| activationDateUtc| dateTime| 1..1| |<:spiral_notepad:>| code| string| 1..1| |<:spiral_notepad:>| connectedPropertyCode| string| 0..*| |<:spiral_notepad:>| countryOfOrigin| string| 0..1| |<:spiral_notepad:>| countryOfUse| string| 0..*| |<:spiral_notepad:>| creatorLanguageCode| string| 0..1| |<:spiral_notepad:>| dataType| string| 0..1| |<:calendar:>| deActivationDateUtc| dateTime| 0..1| |<:spiral_notepad:>| definition| string| 0..1| |<:spiral_notepad:>| deprecationExplanation| string| 0..1| |<:spiral_notepad:>| description| string| 0..1| |<:spiral_notepad:>| dimension| string| 0..1| |<:1234:>| dimensionAmountOfSubstance| int| 0..1| |<:1234:>| dimensionElectricCurrent| int| 0..1| |<:1234:>| dimensionLength| int| 0..1| |<:1234:>| dimensionLuminousIntensity| int| 0..1| |<:1234:>| dimensionMass| int| 0..1| |<:1234:>| dimensionThermodynamicTemperature| int| 0..1| |<:1234:>| dimensionTime| int| 0..1| |<:spiral_notepad:>| documentReference| string| 0..1| |<:spiral_notepad:>| dynamicParameterPropertyCodes| string| 0..*| |<:spiral_notepad:>| example| string| 0..1| |<:ballot_box_with_check:>| isDynamic| boolean| 1..1| |<:eight_spoked_asterisk:>| maxExclusive| decimal| 0..1| |<:eight_spoked_asterisk:>| maxInclusive| decimal| 0..1| |<:spiral_notepad:>| methodOfMeasurement| string| 0..1| |<:eight_spoked_asterisk:>| minExclusive| decimal| 0..1| |<:eight_spoked_asterisk:>| minInclusive| decimal| 0..1| |<:spiral_notepad:>| name| string| 1..1| |<:spiral_notepad:>| pattern| string| 0..1| |<:spiral_notepad:>| physicalQuantity| string| 0..1| |<:book:>| propertyValueKind| PropertyValueKind| 0..1| |<:spiral_notepad:>| replacedObjectCodes| string| 0..*| |<:spiral_notepad:>| replacingObjectCodes| string| 0..*| |<:calendar:>| revisionDateUtc| dateTime| 0..1| |<:1234:>| revisionNumber| int| 0..1| |<:spiral_notepad:>| status| string| 1..1| |<:spiral_notepad:>| subdivisionsOfUse| string| 0..*| |<:spiral_notepad:>| textFormat| string| 0..1| |<:spiral_notepad:>| uid| string| 0..1| |<:spiral_notepad:>| unit| string| 0..*| |<:calendar:>| versionDateUtc| dateTime| 0..1| |<:1234:>| versionNumber| int| 0..1| |<:link:>| visualRepresentationUri| iri| 0..1| } @enduml

You can also try to use tabs \t and skinparam tabSize n to align fields, but this doesn't work so well: [Ref. QA-3820]

Add color on rows or cells

You can specify background colors of rows and cells:

Add color on border and text

You can also specify colors of text and borders.

[Ref. QA-7184]

No border or same color as the background

You can also set the border color to the same color as the background.

🎉 Copied!

@startuml node n note right of n <#FBFB77,#FBFB77>|= Husky / Yorkie |= Foo | | SourceTree1 | foo1 | | ST2 | foo2 | end note @enduml

[Ref. QA-12448]

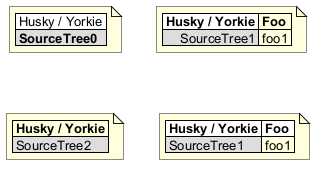

Bold header or not

= as the first char of a cell indicates whether to make it bold (usually used for headers), or not.

[Ref. QA-10923]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Tree

You can use |_ characters to build a tree.

On common commands, like title:

On Class diagram.

(Please note how we have to use an empty second compartment, else the parentheses in (Model) cause that text to be moved to a separate first compartment):

🎉 Copied!

@startuml class Foo { **Bar (Model)** |_ prop |_ **Bom (Model)** |_ prop2 |_ prop3 |_ prop3.1 |_ prop4 :( -- } @enduml

[Ref. QA-3448]

On Component or Deployment diagrams:

🎉 Copied!

@startuml [A] as A rectangle "Box B" { component B [ Level 1 |_ Level 2a |_ Level 3a |_ Level 3b |_ Level 3c |_ Level 4a |_ Level 3d |_ Level 2b |_ Level 3e ] } A -> B @enduml

[Ref. QA-11365]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

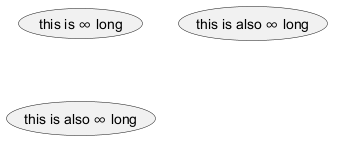

Special characters

It's possible to use any unicode character, either directly or with syntax &#nnnnnn; (decimal) or <U+XXXXX> (hex):

🎉 Copied!

@startuml usecase direct as "this is ∞ long" usecase ampHash as "this is also ∞ long" usecase angleBrackets as "this is also <U+221E> long" @enduml

Please note that not all Unicode chars appear correctly, depending on installed fonts.

You can use the listfonts command with a test string of your desired characters, to see which fonts may include them.
For characters that are emoji, it's better to use the Emoji notation that doesn't depend on installed fonts, and the emoji are colored.
The PlantUML server has the "Noto Emoji" font that has most emoji. If you want to render diagrams on your local system, you should check which fonts you have.
Unfortunately "Noto Emoji" lacks normal chars, so you need to switch fonts, eg

🎉 Copied!

@startuml rectangle "<font:Noto Emoji><U+1F3F7> label" rectangle "<font:Noto Emoji><U+1F527> wrench" rectangle "<font:Noto Emoji><U+1F6E0> hammer_and_wrench" @enduml

See Issue 72 for more details.

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Legacy HTML

You can mix Creole with the following HTML tags:

 for bold text
 or <u:#AAAAAA> or <u:[[color|colorName]]> for underline
 for italic
<s> or <s:#AAAAAA> or <s:[[color|colorName]]> for strike text
<w> or <w:#AAAAAA> or <w:[[color|colorName]]> for wave underline text
<plain> for plain text
<color:#AAAAAA> or <color:[[color|colorName]]>
<back:#AAAAAA> or <back:[[color|colorName]]> for background color
<size:nn> to change font size
<img:file> : the file must be accessible by the filesystem
<img:https://plantuml.com/logo3.png> : the URL must be available from the Internet
{scale:nn} to change image size, eg <img:file.png{scale=0.3}>

🎉 Copied!

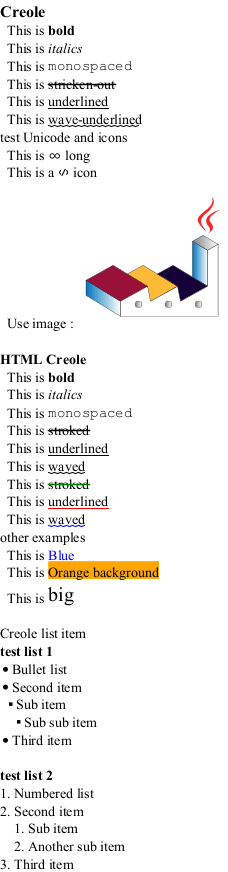

@startuml :* You can change <color:red>text color</color> * You can change <back:cadetblue>background color</back> * You can change <size:18>size</size> * You use legacy HTML tag * You use <u:red>color <s:green>in HTML</s> <w:#0000FF>tag</w> ---- * Use image : <img:https://plantuml.com/logo3.png> ; @enduml

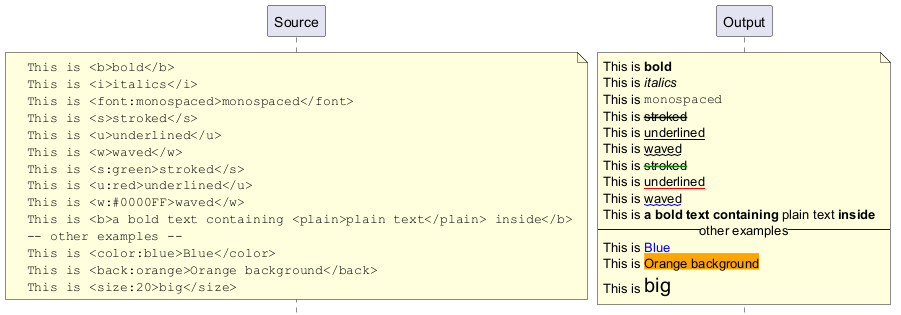

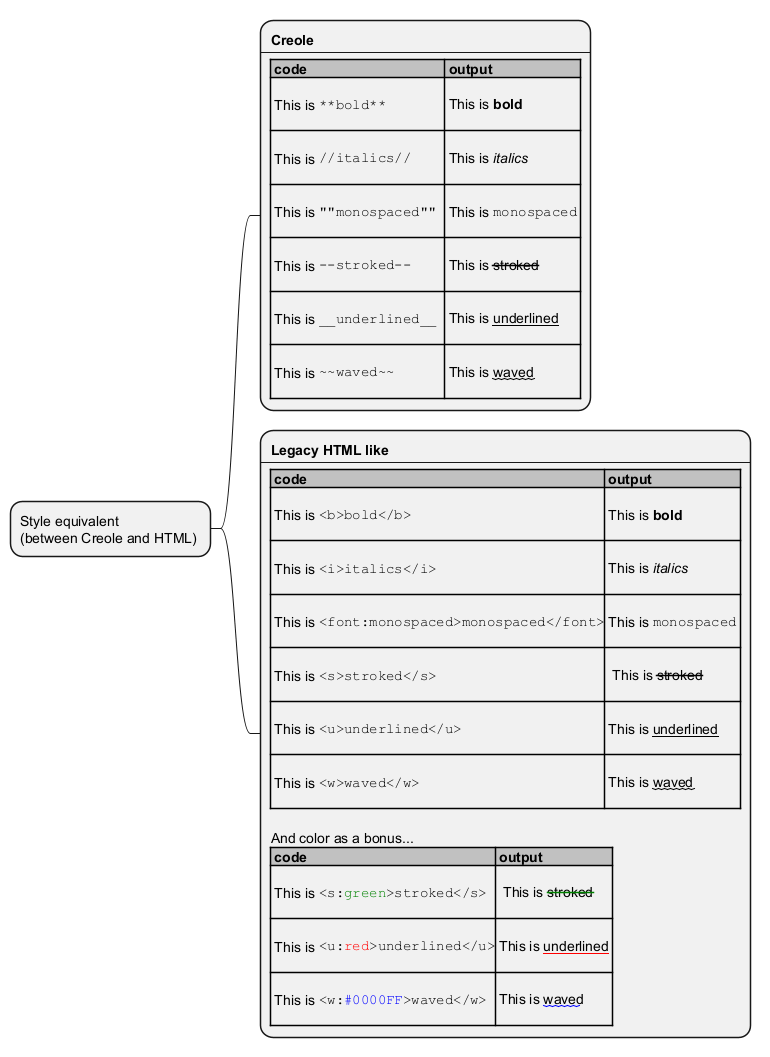

Common HTML element

🎉 Copied!

@startuml hide footbox note over Source <code> This is bold This is italics This is <font:monospaced>monospaced This is <s>stroked</s> This is underlined This is <w>waved</w> This is <s:green>stroked</s> This is <u:red>underlined This is <w:#0000FF>waved</w> This is a bold text containing <plain>plain text</plain> inside -- other examples -- This is <color:blue>Blue</color> This is <back:orange>Orange background</back> This is <size:20>big</size> </code> end note /note over Output This is bold This is italics This is <font:monospaced>monospaced This is <s>stroked</s> This is underlined This is <w>waved</w> This is <s:green>stroked</s> This is <u:red>underlined This is <w:#0000FF>waved</w> This is a bold text containing <plain>plain text</plain> inside -- other examples -- This is <color:blue>Blue</color> This is <back:orange>Orange background</back> This is <size:20>big</size> end note @enduml

[Ref. QA-5254 for plain]

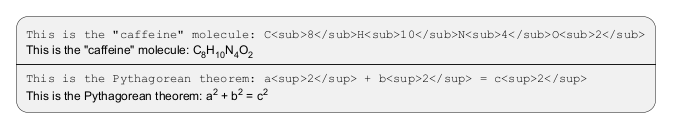

Subscript and Superscript element [sub, sup]

🎉 Copied!

@startuml :<code> This is the "caffeine" molecule: C8H10N4O2 </code> This is the "caffeine" molecule: C8H10N4O2 ---- <code> This is the Pythagorean theorem: a2 + b2 = c2 </code> This is the Pythagorean theorem: a2 + b2 = c2; @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
OpenIconic

OpenIconic is a very nice open-source icon set. Those icons are integrated in the creole parser, so you can use them out-of-the-box.

Use the following syntax: <&ICON_NAME>.

🎉 Copied!

@startuml title: <size:20><&heart>Use of OpenIconic<&heart></size> class Wifi note left Click on <&wifi> end note @enduml

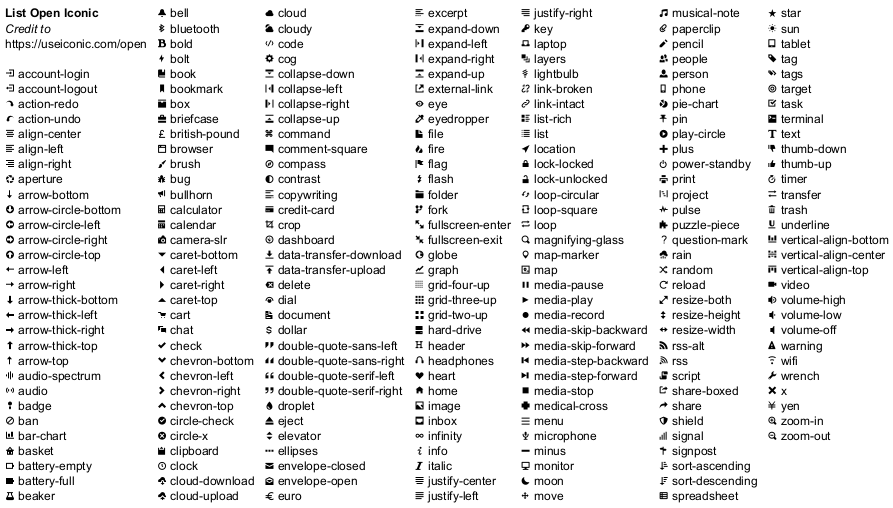

The complete list is available with the following special command:

🎉 Copied!

@startuml listopeniconic @enduml

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Appendix: Examples of "Creole List" on all diagrams

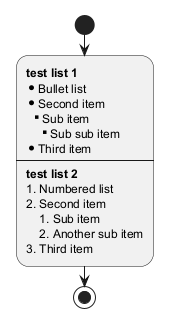

Activity

🎉 Copied!

@startuml start :**test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item; stop @enduml

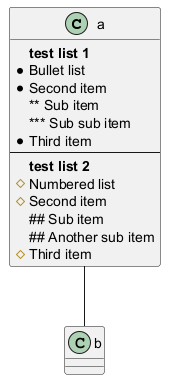

Class

FIXME

🚩

Sub item
Sub sub item

FIXME

🎉 Copied!

@startuml class a { **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item } a -- b @enduml

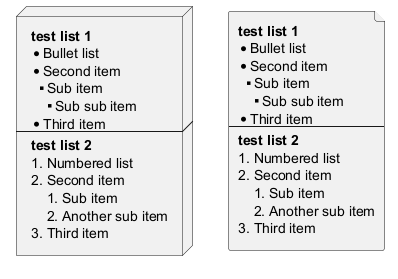

Component, Deployment, Use-Case

🎉 Copied!

@startuml node n [ **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item ] file f as " **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item " @enduml

DONE

[Corrected in V1.2020.18]

Gantt project planning

N/A

Object

FIXME

🚩

Sub item
Sub sub item

FIXME

🎉 Copied!

@startuml object user { **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item } @enduml

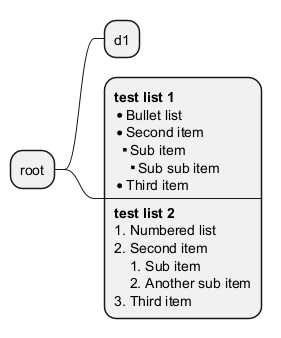

MindMap

🎉 Copied!

@startmindmap * root ** d1 **:**test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item; @endmindmap

Network (nwdiag)

🎉 Copied!

@startuml nwdiag { network Network { Server [description="**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item"]; } @enduml

Note

🎉 Copied!

@startuml note as n **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item end note @enduml

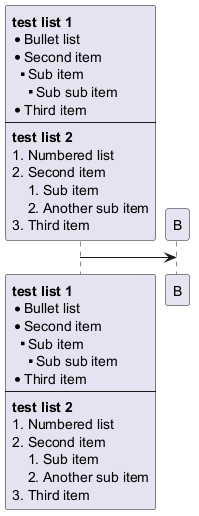

Sequence

🎉 Copied!

@startuml <style> participant {HorizontalAlignment left} </style> participant Participant [ **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item ] participant B Participant -> B @enduml

[Ref. QA-15232]

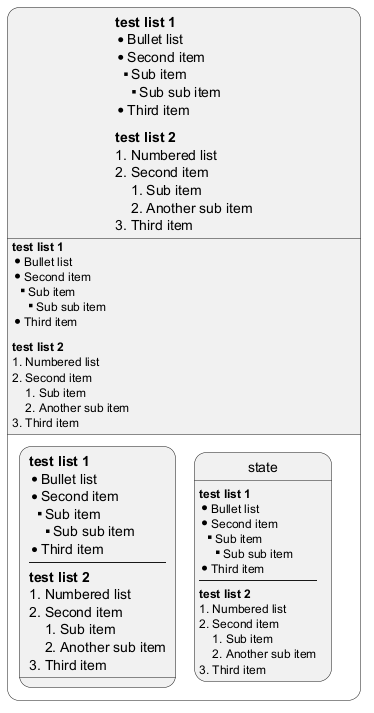

State

🎉 Copied!

@startuml <style> stateDiagram { title {HorizontalAlignment left} } </style> state "**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item" as a { a: **test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item state "**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item" as b state : **test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item } @enduml

[Ref. QA-16978]

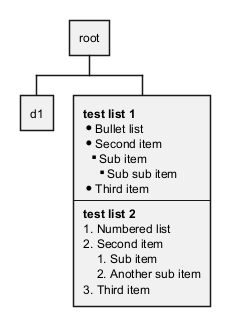

WBS

🎉 Copied!

@startwbs * root ** d1 **:**test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item; @endwbs
