Themes

Following the work from Brett Schwarz, we have integrated several themes into the main core library.

Since those themes are included into the library, it is working out of the box: you don't need to install anything on your side. You just have to use the !theme directive:

🎉 Copied!

@startuml
!theme spacelab
class Example {
  Theme spacelab
}
@enduml

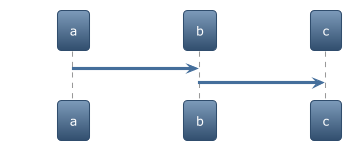

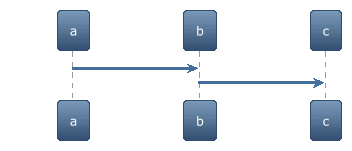

🎉 Copied!

@startuml
!theme spacelab
a -> b
b -> c
@enduml

List of available themes

Several websites are listing available themes:

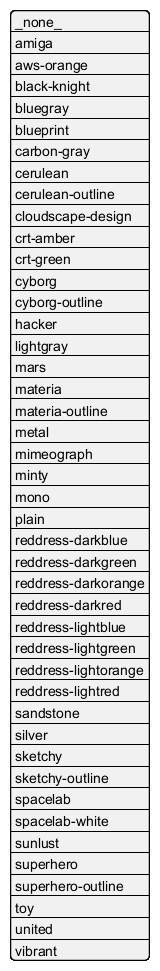

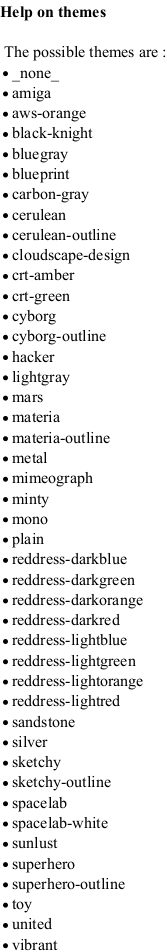

Finally, you can list all available themes from your PlantUML library:

🎉 Copied!

@startuml
help themes
@enduml

Coloring message with some procedures included on some theme

Some theme includes some procedures, to help coloring message, as:
  • $success("<msg>")
  • $failure("<msg>")
  • $warning("<msg>")

Example:

🎉 Copied!

@startuml
!theme spacelab
Bob -> Alice :  hello
Bob <- Alice :  $success("success: hello B.")
Bob -x Alice :  $failure("failure")
Bob ->> Alice : $warning("warning")
@enduml

Local themes

You can create your own theme on your local file system. You can duplicate any existing theme to create your own one.

By default, a theme file is named puml-theme-foo.puml where foo is the name of the theme.

To invoke a local theme, you have to use the following directive:

!theme foo from /path/to/themes/folder

Themes from the Internet

Other repositories can also publish themes for PlantUML.

Theme files must follow the same convention: puml-theme-foo.puml where foo is the name of the theme.

To use a theme from a remote repository, you have to use the following directive:

!theme amiga from https://raw.githubusercontent.com/plantuml/plantuml/master/themes

If you find any interesting theme, you can also propose a pull request so that we integrate this theme into the main core library.
