Handwritten diagram style

To emphasize the fact that your diagrams are still under work, you can generate handwritten diagrams.

You have to set handwritten skinparam to true to do so.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

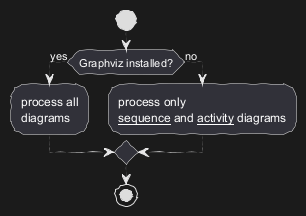

Activity

🎉 Copied!

@startuml
skinparam handwritten true
start
if (Graphviz installed?) then (yes)
  :process all\ndiagrams;
else (no)
  :process only
  __sequence__ and __activity__ diagrams;
endif
stop
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

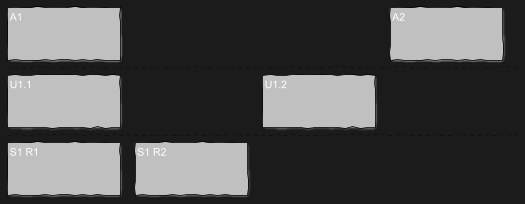

Board

🎉 Copied!

@startboard
skinparam handwritten true
scale .75
A1
+U1.1
++S1 R1
++S1 R2
+U1.2
A2
@endboard

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Class

🎉 Copied!

@startuml
skinparam handwritten true
class Object
class String extends Object
class Date extends Object
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

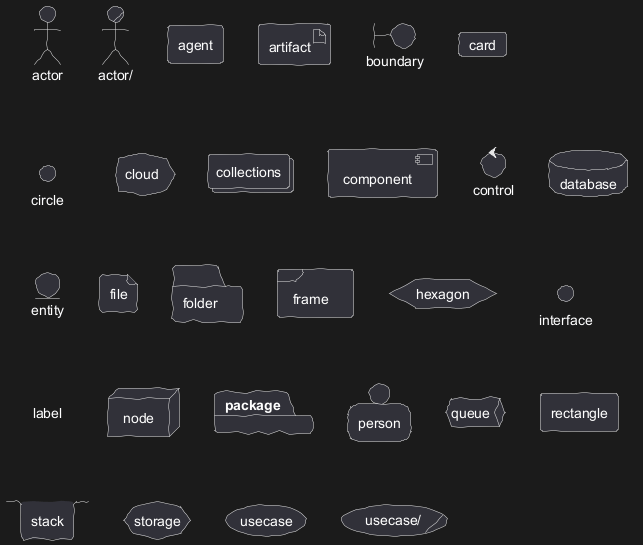

Deployment

Deployment shapes

🎉 Copied!

@startuml
skinparam handwritten true
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml

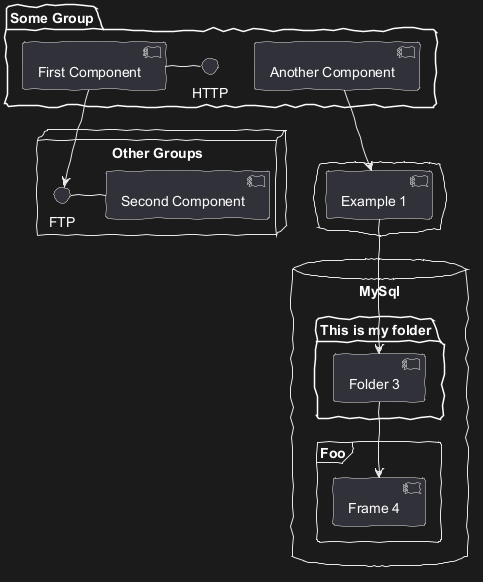

Deployment with Group

🎉 Copied!

@startuml
skinparam handwritten true
package "Some Group" {
  HTTP - [First Component]
  [Another Component]
}

node "Other Groups" {
  FTP - [Second Component]
  [First Component] --> FTP
}

cloud {
  [Example 1]
}

database "MySql" {
  folder "This is my folder" {
    [Folder 3]
  }
  frame "Foo" {
    [Frame 4]
  }
}

[Another Component] --> [Example 1]
[Example 1] --> [Folder 3]
[Folder 3] --> [Frame 4]

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
EBNF

🎉 Copied!

@startebnf
skinparam handwritten true

title Title
not_styled_ebnf = {"a", c , "a" (* Note on a *)}
| ? special ?
| "repetition", 4 * '2';
(* Global End Note *)
@endebnf

Edit in DokuwikiEdit in AsciidocEdit in Markdown

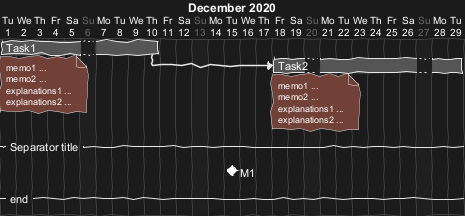

Gantt

🎉 Copied!

@startgantt
skinparam handwritten true
hide footbox
Project starts the 2020-12-01

[Task1] lasts 9 days
sunday are closed

note bottom
  memo1 ...
  memo2 ...
  explanations1 ...
  explanations2 ...
end note

[Task2] lasts 10 days
[Task2] starts 7 days after [Task1]'s end
note bottom
  memo1 ...
  memo2 ...
  explanations1 ...
  explanations2 ...
end note
-- Separator title --
[M1] happens on 5 days after [Task1]'s end

-- end --
@endgantt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
JSON

🎉 Copied!

@startjson
skinparam handwritten true
{
   "fruit":"Apple",
   "size":"Large",
   "color": ["Red", "Green"]
}
@endjson

Edit in DokuwikiEdit in AsciidocEdit in Markdown

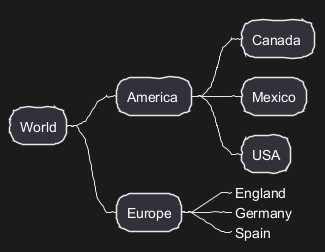

MindMap

🎉 Copied!

@startmindmap
skinparam handwritten true
* World
** America
*** Canada
*** Mexico
*** USA
** Europe
***_  England
***_  Germany
***_  Spain
@endmindmap

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Network

🎉 Copied!

@startuml
skinparam handwritten true

nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      web01 [address = "210.x.x.1"];
      web02 [address = "210.x.x.2"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01;
      db02;
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

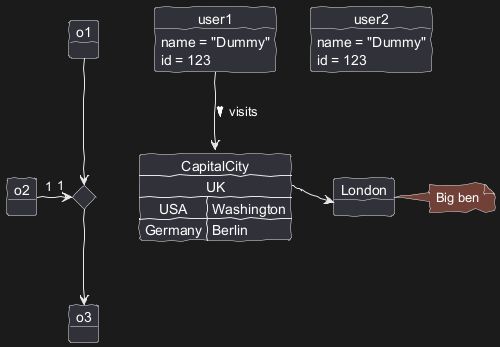

Object

🎉 Copied!

@startuml
skinparam handwritten true

object user1
user1 : name = "Dummy"
user1 : id = 123

object user2 {
  name = "Dummy"
  id = 123
}

object o1
object o2
diamond dia
object o3

o1  --> dia
o2  "1" -> "1" dia
dia --> o3

object London

map CapitalCity {
 UK *-> London
 USA => Washington
 Germany => Berlin
}

note right of London: Big ben
user1 --> CapitalCity : visits >
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Salt

🎉 Copied!

@startsalt
skinparam handwritten true
mainframe This is a **mainframe**
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Sequence

🎉 Copied!

@startuml
skinparam handwritten true
Alice -> Bob : hello
note right: Not validated yet
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

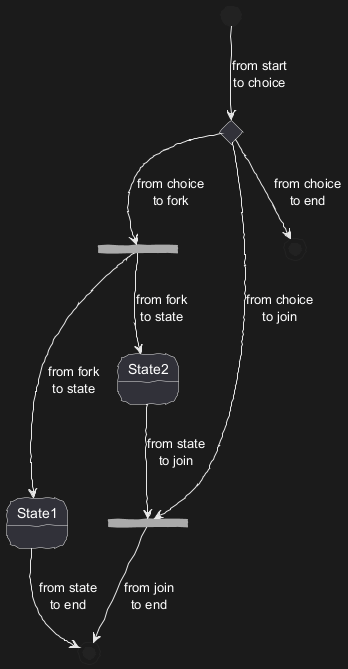

State

🎉 Copied!

@startuml
skinparam handwritten true
state choice1 <<choice>>
state fork1   <<fork>>
state join2   <<join>>
state end3    <<end>>

[*]     --> choice1 : from start\nto choice
choice1 --> fork1   : from choice\nto fork
choice1 --> join2   : from choice\nto join
choice1 --> end3    : from choice\nto end

fork1   ---> State1 : from fork\nto state
fork1   --> State2  : from fork\nto state

State2  --> join2   : from state\nto join
State1  --> [*]     : from state\nto end

join2   --> [*]     : from join\nto end
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

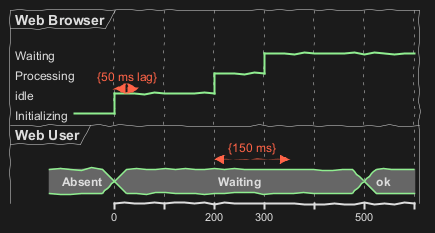

Timing

🎉 Copied!

@startuml
skinparam handwritten true
robust "Web Browser" as WB
concise "Web User" as WU

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}

@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
WBS

🎉 Copied!

@startwbs
skinparam handwritten true
* World
** America
*** Canada
*** Mexico
*** USA
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Wire

🎉 Copied!

@startwire
skinparam handwritten true
* first
* second_box [100x50]
* third
@endwire

Edit in DokuwikiEdit in AsciidocEdit in Markdown
YAML

🎉 Copied!

@startyaml
skinparam handwritten true
fruit: Apple
size: Large
color:
  - Red
  - Green
@endyaml
