PlantUML Advanced usage Handwritten diagrams

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Handwritten diagram style

To emphasize the fact that your diagrams are still under work, you can generate handwritten diagrams.

To do so, you have to set:
  • handwritten skinparam to true (for version before V1.2025.1)
  • handwritten option to true (since V1.2025.1)

Edit in DokuwikiEdit in AsciidocEdit in Markdown

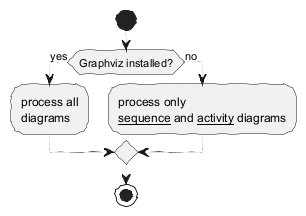

Activity

🎉 Copied!

@startuml
!option handwritten true
start
if (Graphviz installed?) then (yes)
  :process all\ndiagrams;
else (no)
  :process only
  __sequence__ and __activity__ diagrams;
endif
stop
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

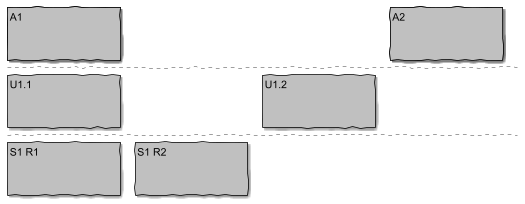

Board

🎉 Copied!

@startboard
!option handwritten true
scale .75
A1
+U1.1
++S1 R1
++S1 R2
+U1.2
A2
@endboard

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Class

🎉 Copied!

@startuml
!option handwritten true
class Object
class String extends Object
class Date extends Object
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Deployment

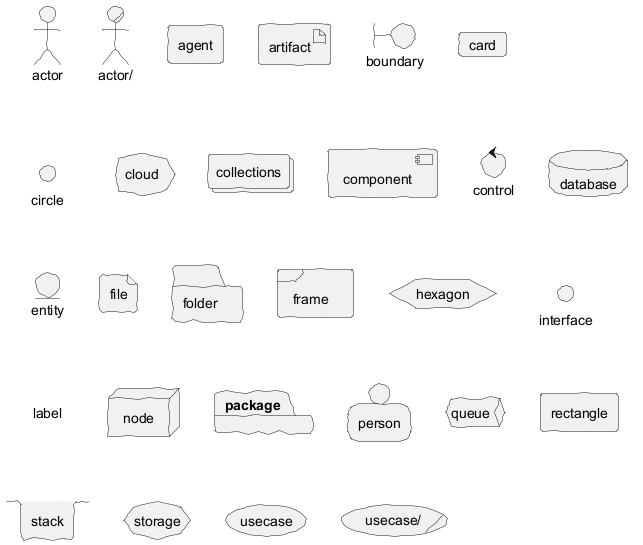

Deployment shapes

🎉 Copied!

@startuml
!option handwritten true
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml

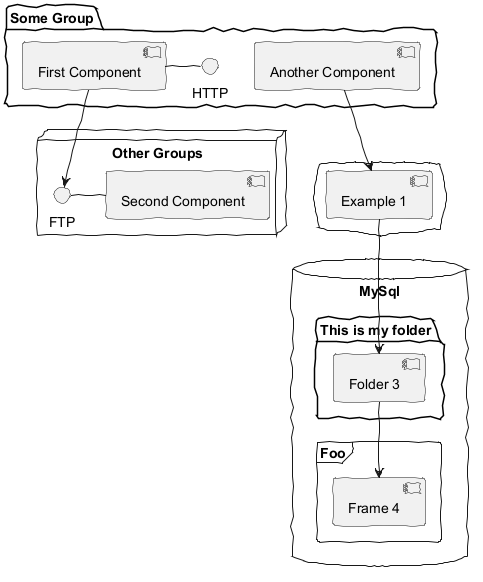

Deployment with Group

🎉 Copied!

@startuml
!option handwritten true
package "Some Group" {
  HTTP - [First Component]
  [Another Component]
}

node "Other Groups" {
  FTP - [Second Component]
  [First Component] --> FTP
}

cloud {
  [Example 1]
}

database "MySql" {
  folder "This is my folder" {
    [Folder 3]
  }
  frame "Foo" {
    [Frame 4]
  }
}

[Another Component] --> [Example 1]
[Example 1] --> [Folder 3]
[Folder 3] --> [Frame 4]

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

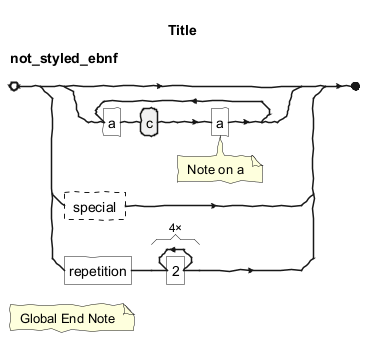

EBNF

🎉 Copied!

@startebnf
!option handwritten true

title Title
not_styled_ebnf = {"a", c , "a" (* Note on a *)}
| ? special ?
| "repetition", 4 * '2';
(* Global End Note *)
@endebnf

Edit in DokuwikiEdit in AsciidocEdit in Markdown

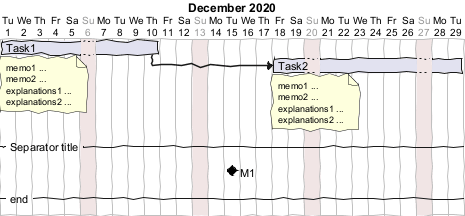

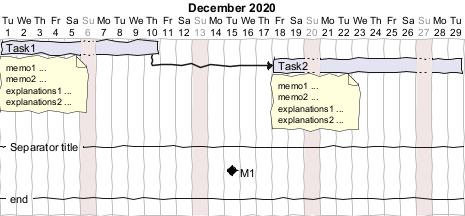

Gantt

🎉 Copied!

@startgantt
!option handwritten true
hide footbox
Project starts the 2020-12-01

[Task1] lasts 9 days
sunday are closed

note bottom
  memo1 ...
  memo2 ...
  explanations1 ...
  explanations2 ...
end note

[Task2] lasts 10 days
[Task2] starts 7 days after [Task1]'s end
note bottom
  memo1 ...
  memo2 ...
  explanations1 ...
  explanations2 ...
end note
-- Separator title --
[M1] happens on 5 days after [Task1]'s end

-- end --
@endgantt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
JSON

🎉 Copied!

@startjson
!option handwritten true
{
   "fruit":"Apple",
   "size":"Large",
   "color": ["Red", "Green"]
}
@endjson

Edit in DokuwikiEdit in AsciidocEdit in Markdown

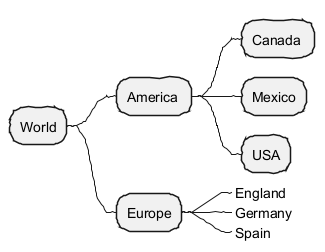

MindMap

🎉 Copied!

@startmindmap
skinparam handwritten true
* World
** America
*** Canada
*** Mexico
*** USA
** Europe
***_  England
***_  Germany
***_  Spain
@endmindmap

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Network

🎉 Copied!

@startuml
!option handwritten true

nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      web01 [address = "210.x.x.1"];
      web02 [address = "210.x.x.2"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01;
      db02;
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

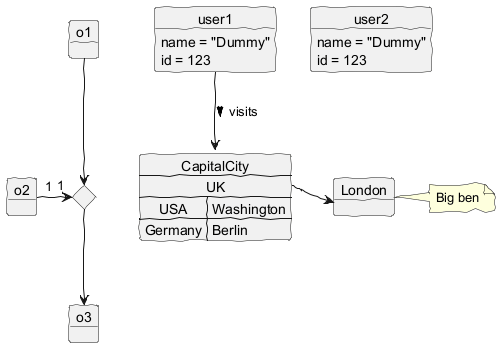

Object

🎉 Copied!

@startuml
!option handwritten true

object user1
user1 : name = "Dummy"
user1 : id = 123

object user2 {
  name = "Dummy"
  id = 123
}

object o1
object o2
diamond dia
object o3

o1  --> dia
o2  "1" -> "1" dia
dia --> o3

object London

map CapitalCity {
 UK *-> London
 USA => Washington
 Germany => Berlin
}

note right of London: Big ben
user1 --> CapitalCity : visits >
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Salt

🎉 Copied!

@startsalt
!option handwritten true
mainframe This is a **mainframe**
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Sequence

🎉 Copied!

@startuml
!option handwritten true
Alice -> Bob : hello
note right: Not validated yet
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

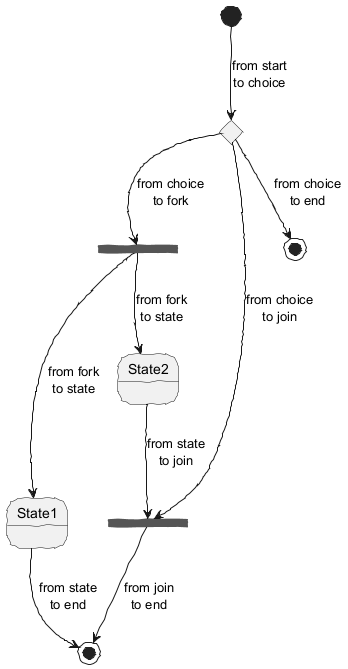

State

🎉 Copied!

@startuml
!option handwritten true
state choice1 <<choice>>
state fork1   <<fork>>
state join2   <<join>>
state end3    <<end>>

[*]     --> choice1 : from start\nto choice
choice1 --> fork1   : from choice\nto fork
choice1 --> join2   : from choice\nto join
choice1 --> end3    : from choice\nto end

fork1   ---> State1 : from fork\nto state
fork1   --> State2  : from fork\nto state

State2  --> join2   : from state\nto join
State1  --> [*]     : from state\nto end

join2   --> [*]     : from join\nto end
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

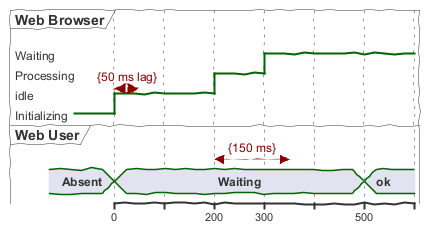

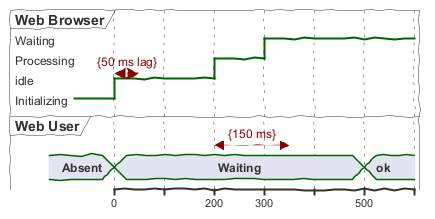

Timing

🎉 Copied!

@startuml
!option handwritten true
robust "Web Browser" as WB
concise "Web User" as WU

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}

@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
WBS

🎉 Copied!

@startwbs
!option handwritten true
* World
** America
*** Canada
*** Mexico
*** USA
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown

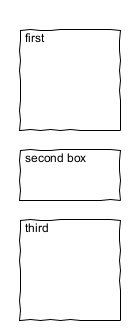

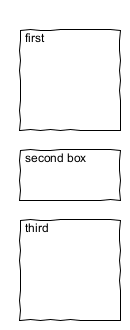

Wire

🎉 Copied!

@startwire
!option handwritten true
* first
* second_box [100x50]
* third
@endwire

Edit in DokuwikiEdit in AsciidocEdit in Markdown
YAML

🎉 Copied!

@startyaml
!option handwritten true
fruit: Apple
size: Large
color:
  - Red
  - Green
@endyaml
