Skinparam: IMPORTANT NOTICE

skinparam is now deprecated and is being phased out.

Although it is still supported for simple cases and for backward compatibility, users should migrate to CSS style, which supports more complex styling scenarios.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Skinparam command

You can change colors and font of the drawing using the skinparam command.

Example:

skinparam backgroundColor transparent

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Usage

You can use this command :

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Nested

To avoid repetition, it is possible to nest definition. So the following definition :

skinparam xxxxParam1 value1
skinparam xxxxParam2 value2
skinparam xxxxParam3 value3
skinparam xxxxParam4 value4

is strictly equivalent to:

skinparam xxxx {
    Param1 value1
    Param2 value2
    Param3 value3
    Param4 value4
}

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Black and White

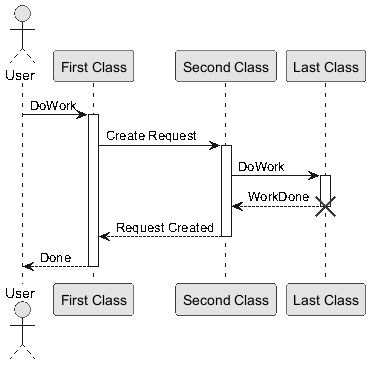

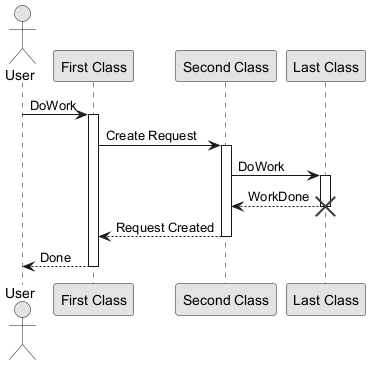

You can force the use of a black&white output using skinparam monochrome true command.

🎉 Copied!

@startuml

skinparam monochrome true

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Shadowing

You can disable the shadowing using the skinparam shadowing false command.

🎉 Copied!

@startuml

left to right direction

skinparam shadowing<<no_shadow>> false
skinparam shadowing<<with_shadow>> true

actor User
(Glowing use case) <<with_shadow>> as guc
(Flat use case) <<no_shadow>> as fuc
User -- guc
User -- fuc

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Reverse colors

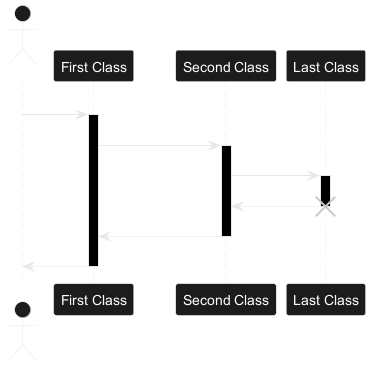

You can force the use of a black&white output using skinparam monochrome reverse command. This can be useful for black background environment.

🎉 Copied!

@startuml

skinparam monochrome reverse

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

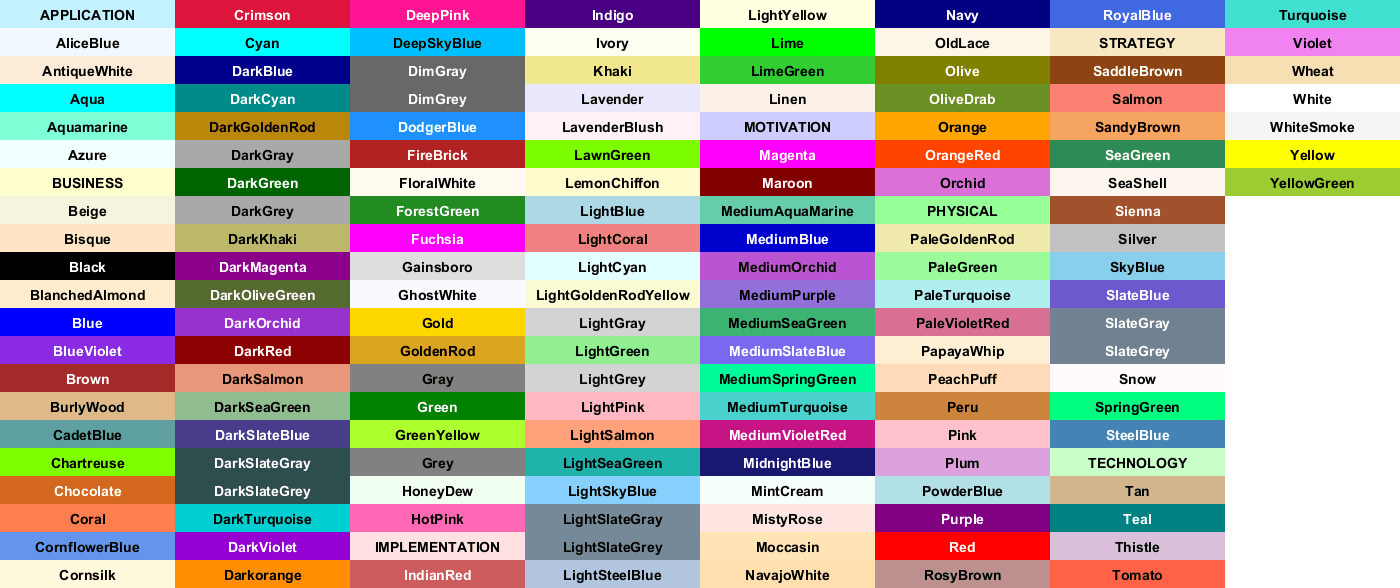

Colors

You can use either standard color name or RGB code.

🎉 Copied!

@startuml
colors
@enduml

transparent can only be used for background of the image.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Font color, name and size

You can change the font for the drawing using xxxFontColor, xxxFontSize and xxxFontName parameters.

Example:

skinparam classFontColor red
skinparam classFontSize 10
skinparam classFontName Aapex

You can also change the default font for all fonts using skinparam defaultFontName.

Example:

skinparam defaultFontName Aapex

Please note the fontname is highly system dependent, so do not over use it, if you look for portability. Helvetica and Courier should be available on all systems.

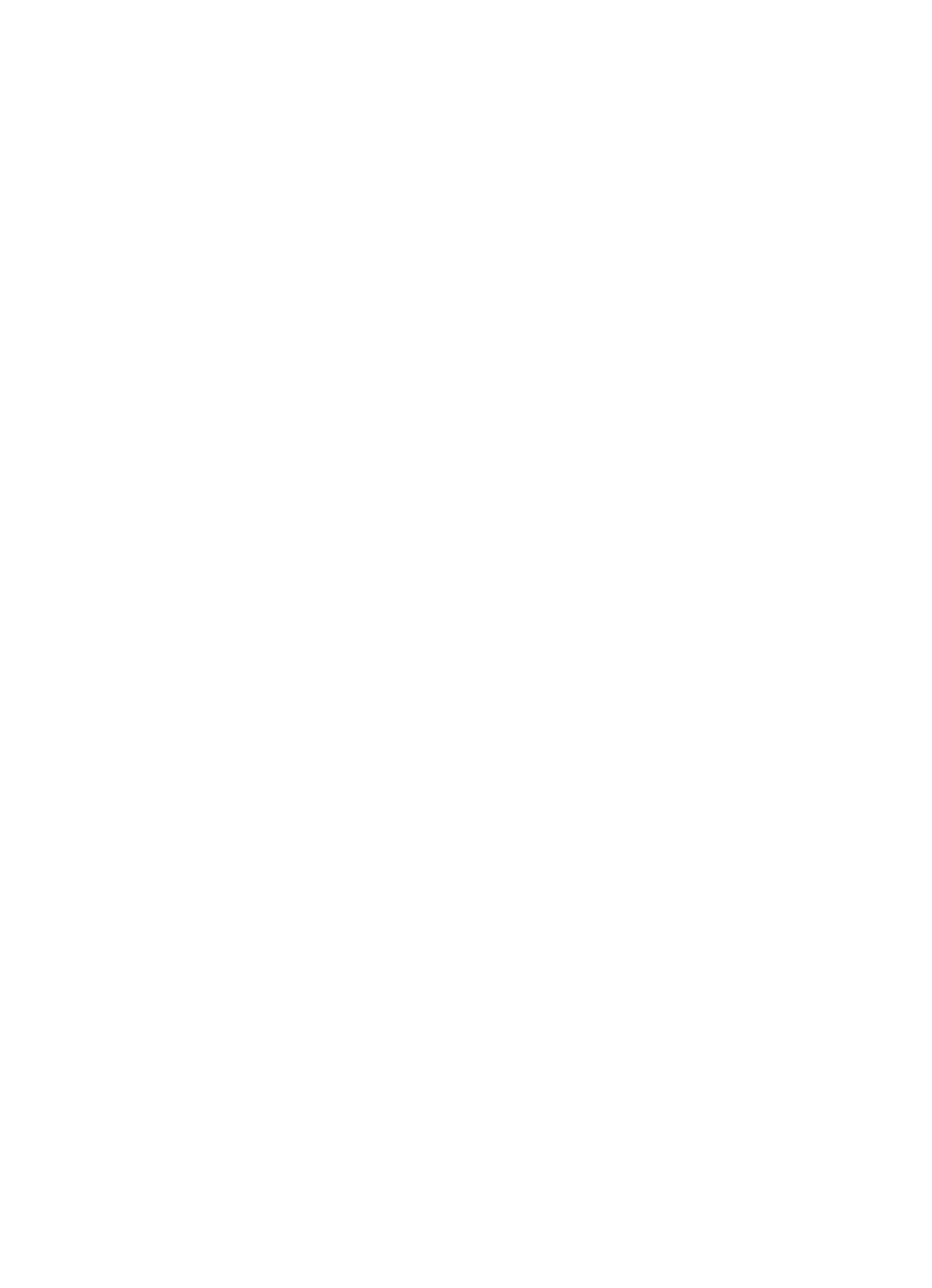

A lot of parameters are available. You can list them using the following command:

java -jar plantuml.jar -language

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Text Alignment

Text alignment can be set to left, right or center in skinparam sequenceMessageAlign. You can also use direction or reverseDirection values to align text depending on arrow direction.

Param name Default value Comment
sequenceMessageAlign left Used for messages in sequence diagrams
sequenceReferenceAlign center Used for ref over in sequence diagrams

🎉 Copied!

@startuml
skinparam sequenceMessageAlign center
Alice -> Bob : Hi
Bob -> Alice : This is very long
@enduml

🎉 Copied!

@startuml
skinparam sequenceMessageAlign right
Alice -> Bob : Hi
Bob -> Alice : This is very long
@enduml

🎉 Copied!

@startuml
skinparam sequenceMessageAlign direction
Alice -> Bob : Hi
Bob -> Alice: Hi
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Examples

🎉 Copied!

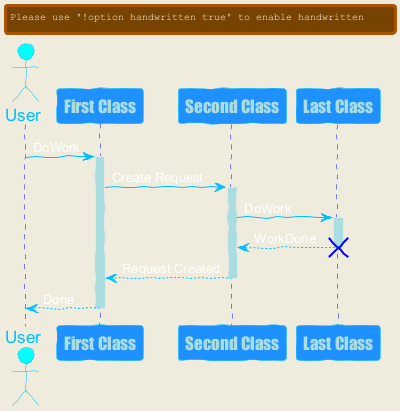

@startuml
skinparam backgroundColor #EEEBDC
skinparam handwritten true

skinparam sequence {
ArrowColor DeepSkyBlue
ActorBorderColor DeepSkyBlue
LifeLineBorderColor blue
LifeLineBackgroundColor #A9DCDF

ParticipantBorderColor DeepSkyBlue
ParticipantBackgroundColor DodgerBlue
ParticipantFontName Impact
ParticipantFontSize 17
ParticipantFontColor #A9DCDF

ActorBackgroundColor aqua
ActorFontColor DeepSkyBlue
ActorFontSize 17
ActorFontName Aapex
}

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A
@enduml

🎉 Copied!

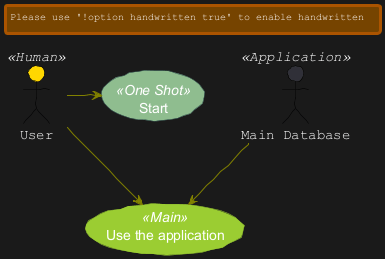

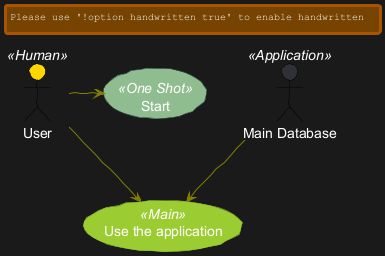

@startuml
skinparam handwritten true

skinparam actor {
BorderColor black
FontName Courier
        BackgroundColor<< Human >> Gold
}

skinparam usecase {
BackgroundColor DarkSeaGreen
BorderColor DarkSlateGray

BackgroundColor<< Main >> YellowGreen
BorderColor<< Main >> YellowGreen

ArrowColor Olive
}

User << Human >>
:Main Database: as MySql << Application >>
(Start) << One Shot >>
(Use the application) as (Use) << Main >>

User -> (Start)
User --> (Use)

MySql --> (Use)
@enduml

🎉 Copied!

@startuml
skinparam roundcorner 20
skinparam class {
BackgroundColor PaleGreen
ArrowColor SeaGreen
BorderColor SpringGreen
}
skinparam stereotypeCBackgroundColor YellowGreen

Class01 "1" *-- "many" Class02 : contains

Class03 o-- Class04 : aggregation
@enduml

🎉 Copied!

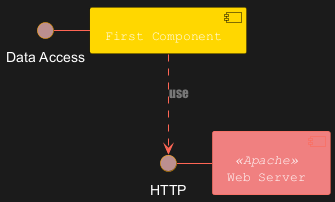

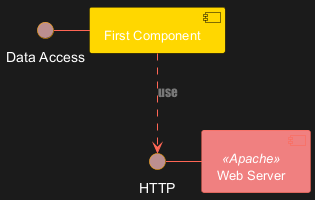

@startuml
skinparam interface {
  backgroundColor RosyBrown
  borderColor orange
}

skinparam component {
  FontSize 13
  BackgroundColor<<Apache>> LightCoral
  BorderColor<<Apache>> #FF6655
  FontName Courier
  BorderColor black
  BackgroundColor gold
  ArrowFontName Impact
  ArrowColor #FF6655
  ArrowFontColor #777777
}

() "Data Access" as DA
[Web Server] << Apache >>

DA - [First Component]
[First Component] ..> () HTTP : use
HTTP - [Web Server]
@enduml

🎉 Copied!

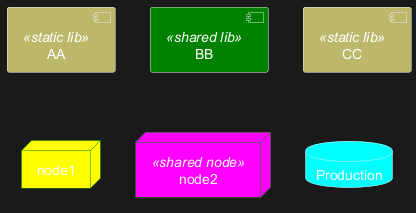

@startuml
[AA] <<static lib>>
[BB] <<shared lib>>
[CC] <<static lib>>

node node1
node node2 <<shared node>>
database Production

skinparam component {
    backgroundColor<<static lib>> DarkKhaki
    backgroundColor<<shared lib>> Green
}

skinparam node {
borderColor Green
backgroundColor Yellow
backgroundColor<<shared node>> Magenta
}
skinparam databaseBackgroundColor Aqua
@enduml
