Upgrading note (about Links and Hyperlinks)

Hyperlinks have been introduced in iterative mode so there have been some slight syntax changes with different versions. Starting with version 8058, syntax about hyperlink is now clearly defined and stable.

Unfortunately, there are some tiny changes from previous legacy syntax, so you may have to update your existing source diagrams. This is something we do not like, because we try to guarantee ascending compatibility as far as possible. But in some cases, we have to move forward.

The good news is that older legacy diagrams will still be generated by newer versions of PlantUML. The only impact is that some links may be displayed differently, so we think it is an acceptable change.

Format definition

Simple link

Simple links are define using two square brackets (or three square brackets for field or method on class diagram).

Example:
  • [[http://plantuml.com]]
  • [[]](empty link)

Link with optional label

It is possible to give an optional label that will be printed instead of the link itself. A space is used as separator after the URL itself.

Example: [[http://plantuml.com This label is printed]]

Link with optional tooltip

Finally you can also have an optional tooltip using round brackets, just after the URL and before the optional label.

Example: [[http://plantuml.com{Optional tooltip} This label is printed]]

Only tooltip

You can also have only a tooltip using round brackets.

Example: [[{A tooltip}]]

Only tooltip and label

You can also have only a tooltip using round brackets, and a label.

Example: [[{A tooltip} This label is printed]]

Links contained curly bracket

A link can contain some curly brackets.

🎉 Copied!
@startuml

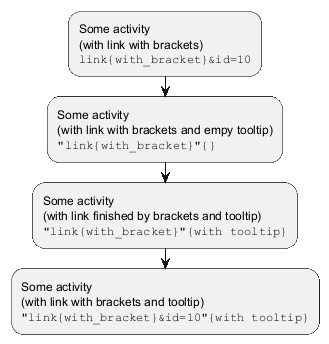

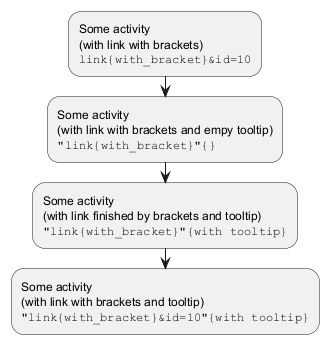

[[link{with_bracket}&id=10]]:Some activity\n(with link with brackets)\n""link{with_bracket}&id=10"";
[["link{with_bracket}"{}]]:Some activity\n(with link with brackets and empy tooltip)\n"""link{with_bracket}"{}"";
[["link{with_bracket}"{with tooltip}]]:Some activity\n(with link finished by brackets and tooltip)\n"""link{with_bracket}"{with tooltip}"";
[["link{with_bracket}&id=10"{with tooltip}]]:Some activity\n(with link with brackets and tooltip)\n"""link{with_bracket}&id=10"{with tooltip}"";
@enduml

[Ref. QA-13489]

Links in sequence diagram

The following example lists some links features:

🎉 Copied!
@startuml

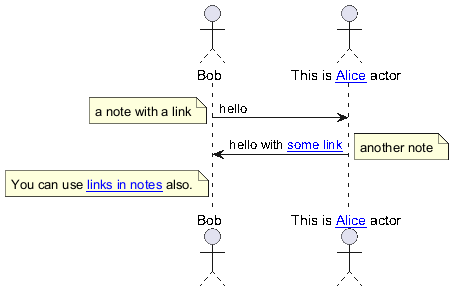

actor Bob [[http://plantuml.com/sequence]]
actor "This is [[http://plantuml.com/sequence Alice]] actor" as Alice
Bob -> Alice [[http://plantuml.com/start]] : hello
note left [[http://plantuml.com/start]]
  a note with a link
end note
Alice -> Bob : hello with [[http://plantuml.com/start{Tooltip for message} some link]]
note right [[http://plantuml.com/start]] : another note
note left of Bob
You can use [[http://plantuml.com/start links in notes]] also.
end note
@enduml

Links in class diagram

🎉 Copied!
@startuml
class Car [[http://plantuml.com/link]]
class Wheel [[http://plantuml.com/sequence]]
note left [[http://plantuml.com]]
foo
end note
Car *-- Wheel [[http://plantuml.com/class]] : has some
@enduml

There is a special syntax with 3 square brackets in class definition when you want to define a link on field or method. For example:

🎉 Copied!
@startuml
class Car {
  - Some field [[[http://plantuml.com]]]
  Some method() [[[http://plantuml.com/link]]]
}
@enduml

🎉 Copied!
@startuml
Object <|-- Foo

class Foo {
  + Object[]   [[[http://www.google.com]]]
  + methods1() [[[http://www.yahoo.com/A1{Some explainations about this method}]]]
  + methods2() [[[http://www.yahoo.com/A2]]]
}

class Foo2 {
  + methods1() [[[http://www.yahoo.com/B1]]]
  + methods2() [[[http://www.yahoo.com/B2]]]
}

class Object [[http://www.yahoo.com]]
@enduml

Links in activity diagram

On activity label

🎉 Copied!
@startuml
start
[[http://plantuml.com]]:Some activity;
:Some [[http://plantuml.com link]];
end
@enduml

On partition

🎉 Copied!
@startuml
start
partition "[[http://plantuml.com partition_name]]" {
    :read doc. on [[http://plantuml.com plantuml_website]];
    :test diagram;
}
end
@enduml

[Ref. QA-542]

Links in Network diagram (nwdiag)

🎉 Copied!
@startuml
nwdiag {
  network Network {
      Server [description="A [[http://plantuml.com link]] on nwdiag"];
  }
}
@enduml

Links in JSON/YAML diagram

JSON

🎉 Copied!
@startjson
{
"@fruit": "Apple",
"$size": "Large",
"Appli.": "A [[http://plantuml.com link]] on JSON"
}
@endjson

YAML

🎉 Copied!
@startyaml
@fruit: Apple
$size: Large
Appli.: A [[http://plantuml.com link]] on YAML
@endyaml

Links in notes

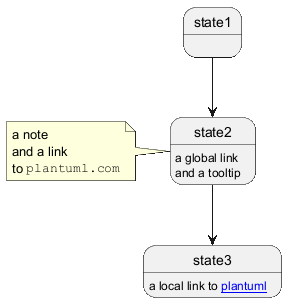

It is also possible to specify a link at the beginning of a note (the link applies to the full note), or inside a note (for a portion of the note).

🎉 Copied!
@startuml
:Foo:
note left of Foo [[http://www.google.com]]
This is a note
end note

note right of Foo
Yet another link to [[http://www.google.com]] as demo.
You can also [[http://www.yahoo.fr specify a text]] for the link.
And even [[http://www.yahoo.fr{This is a tooltip} add a tooltip]] to the link.
end note
@enduml

[Ref. Incubation: URL in diagrams]

Links with explicit URL directive

You can use the url of XXX is [[yyy]] syntax:

On sequence diagram

🎉 Copied!
@startuml
Bob -> Alice : ok
url of Bob is [[http://www.google.com]]
@enduml

On class diagram

🎉 Copied!
@startuml
skinparam topurl http://www.google.com
Dog --|> Mammal
url of Mammal is [[/search]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
Dog o-- Cat
Cat --|> Mammal
@enduml

On usecase diagram

🎉 Copied!
@startuml
actor Mamal
usecase Dog

url of Mamal is [[http://www.google.com]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
@enduml

On component or deployment diagram

🎉 Copied!
@startuml
node Mamal
component Dog

url of Mamal is [[http://www.google.com]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
@enduml

[Ref. Incubation: URL in diagrams]

Links in arrow (or Hyperlinks in link or connection)

Class diagram

🎉 Copied!
@startuml
class Car
Car *-- Wheel [[http://plantuml.com/class-diagram]] : has some
@enduml

Component or Deployment diagram

FIXME
🚩 See Wanted features QA-6397
FIXME

🎉 Copied!
@startuml
node Car

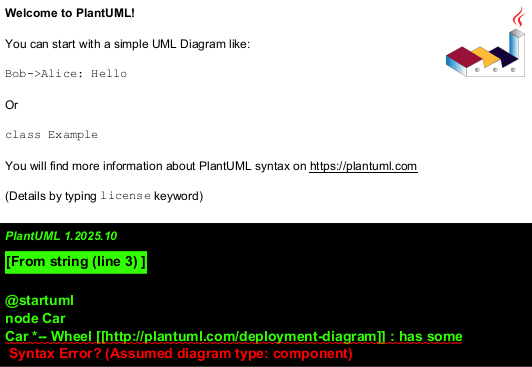

Car *-- Wheel [[http://plantuml.com/deployment-diagram]] : has some
@enduml

[Ref. QA-6397]

State diagram

FIXME
🚩 Same Issue
FIXME

🎉 Copied!
@startuml
state Car
state CarWithWheel

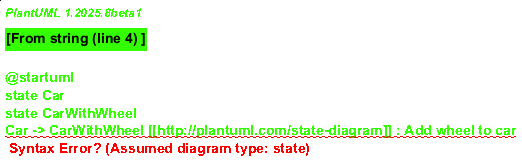

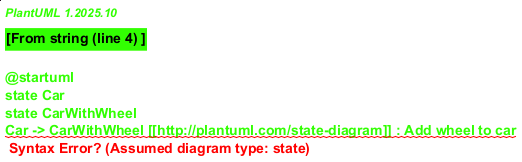

Car -> CarWithWheel [[http://plantuml.com/state-diagram]] : Add wheel to car
@enduml
