Generalisation

PlantUML now can generate diagrams other than UML. In such cases the usual @startuml does not make sense anymore. So now we allow diagrams start with @startXYZ and finish with @endXYZ, where XYZ can change with the type of diagram and can be any characters (including spaces).

This means that plugin developers are encouraged to change their code to recognize @start instead of @startuml.

DITAA diagrams are usually formatted as @startditaa...@endditaa.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Ditaa

Ditaa (DIagrams Through Ascii Art) is an Open Source project that allows to generate general diagrams from a text descriptions. The idea is close to PlantUML, and it may be useful for documentation to generate other diagrams than UML.

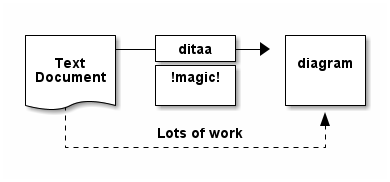

Then PlantUML allows this :

🎉 Copied!

@startditaa
+--------+   +-------+    +-------+
|        +---+ ditaa +--> |       |
|  Text  |   +-------+    |diagram|
|Document|   |!magic!|    |       |
|     {d}|   |       |    |       |
+---+----+   +-------+    +-------+
    :                         ^
    |       Lots of work      |
    +-------------------------+
@endditaa

You will find the complete documentation about ditaa on:

It is now not possible to use Ditaa with @startuml by using ditaa keyword on the very first line of your description. You must now use @startditaa and @endditaa.

⚠ On PlantUML, only PNG generation is supported.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Option supported by PlantUML

You can also use some option, after the @startditaa or ditaa keyword:

  • -E or --no-separation to remove separator
  • -S or --no-shadows to remove shadow
  • scale=<XYZ> to scale up or down the diagram

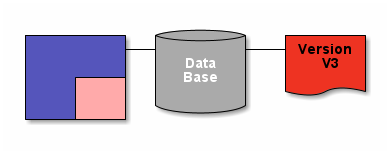

Without option

🎉 Copied!

@startditaa
+---------+  /--------\   +-------+
| cBLU    +--+cAAA    +---+Version|
|         |  |  Data  |   |   V3  |
|    +----+  |  Base  |   |cRED{d}|
|    |cPNK|  |     {s}|   +-------+
|    |    |  \---+----/
+----+----+
@endditaa

Remove separator

🎉 Copied!

@startditaa -E
+---------+  /--------\   +-------+
| cBLU    +--+cAAA    +---+Version|
|         |  |  Data  |   |   V3  |
|    +----+  |  Base  |   |cRED{d}|
|    |cPNK|  |     {s}|   +-------+
|    |    |  \---+----/
+----+----+
@endditaa

Remove shadow or scale diagram

🎉 Copied!

@startditaa (--no-shadows, scale=0.7)
+---------+  /--------\   +-------+
| cBLU    +--+cAAA    +---+Version|
|         |  |  Data  |   |   V3  |
|    +----+  |  Base  |   |cRED{d}|
|    |cPNK|  |     {s}|   +-------+
|    |    |  \---+----/
+----+----+
@endditaa

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Tags

Tag Description
{c} Choice or Decision
{d} Document - Symbol representing a document
{io} Input/Output - Symbol representing input/output
{mo} Manual operation
{o} Ellipse
{s} Storage - Symbol representing a form of storage, like a database or a hard disk.
{tr} Trapezoid

🎉 Copied!

@startditaa
+------+------+------+------+------+------+------+
| c {c}|d {d} |io{io}|mo{mo}|o{o}  |s{s}  |tr{tr}|
+------+------+------+------+------+------+------+
@endditaa

Edit in DokuwikiEdit in AsciidocEdit in Markdown
More documentation

You will find the complete documentation about ditaa on:
