PlantUML Language specification Creole

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Creole

Creole is a lightweight common markup language for various wikis. A light-weight Creole engine is integrated in PlantUML to have a standardized way to emit styled text.

All diagrams support this syntax.

Note that compatibility with HTML syntax is preserved.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

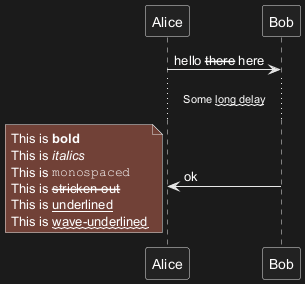

Emphasized text

🎉 Copied!

@startuml
Alice -> Bob : hello --there-- here
... Some ~~long delay~~ ...
Bob -> Alice : ok
note left
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
end note
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

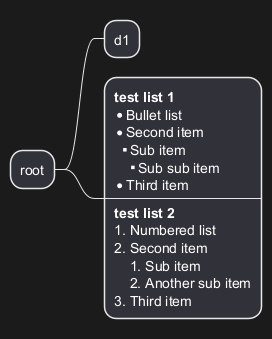

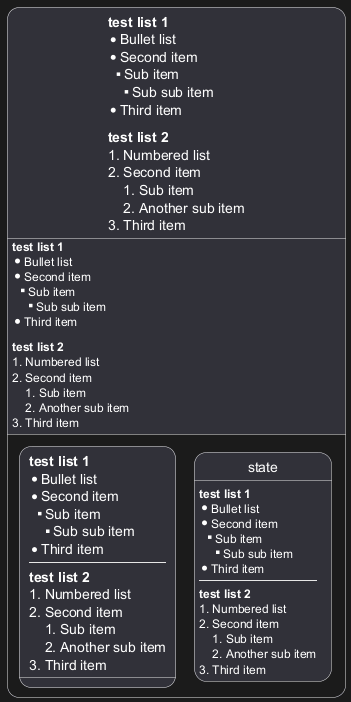

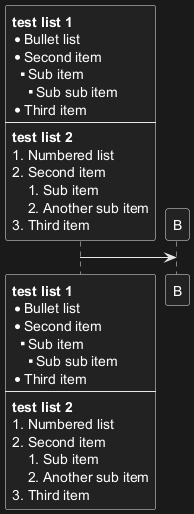

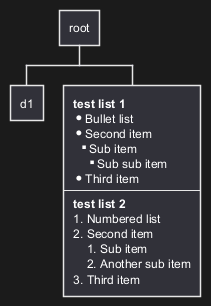

Lists

You can use numbered and bulleted lists in node text, notes, etc.

FIXME
🚩 You cannot quite mix numbers and bullets in a list and its sublist.

🎉 Copied!

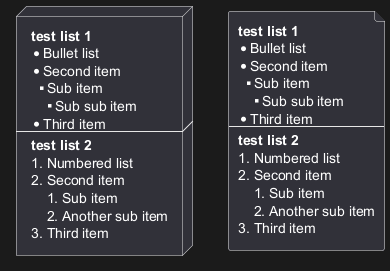

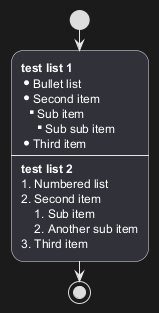

@startuml
object demo {
  * Bullet list
  * Second item
}
note left
  * Bullet list
  * Second item
  ** Sub item
end note

legend
  # Numbered list
  # Second item
  ## Sub item
  ## Another sub item
        * Can't quite mix
        * Numbers and bullets
  # Third item
end legend
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

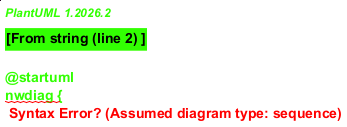

Escape character

You can use the tilde ~ to escape special creole characters.

🎉 Copied!

@startuml
object demo {
  This is not ~___underscored__.
  This is not ~""monospaced"".
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Headings

🎉 Copied!

@startuml
usecase UC1 as "
= Extra-large heading
Some text
== Large heading
Other text
=== Medium heading
Information
....
==== Small heading"
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Emoji

All emojis from Twemoji (see EmojiTwo on Github) are available using the following syntax:

🎉 Copied!

@startuml
Alice -> Bob : Hello <:1f600:>
return <:innocent:>
Alice -> Bob : Without color: <#0:sunglasses:>
Alice -> Bob : Change color: <#green:sunny:>
@enduml

Unlike Unicode Special characters that depend on installed fonts, the emoji are always available. Furthermore, emoji are already colored, but you can recolor them if you like (see examples above).

One can pick emoji from the emoji cheat sheet, the Unicode full-emoji-list, or the flat list emoji.txt in the plantuml source.

You can also use the following PlantUML command to list available emoji:

@startuml
emoji <block>
@enduml

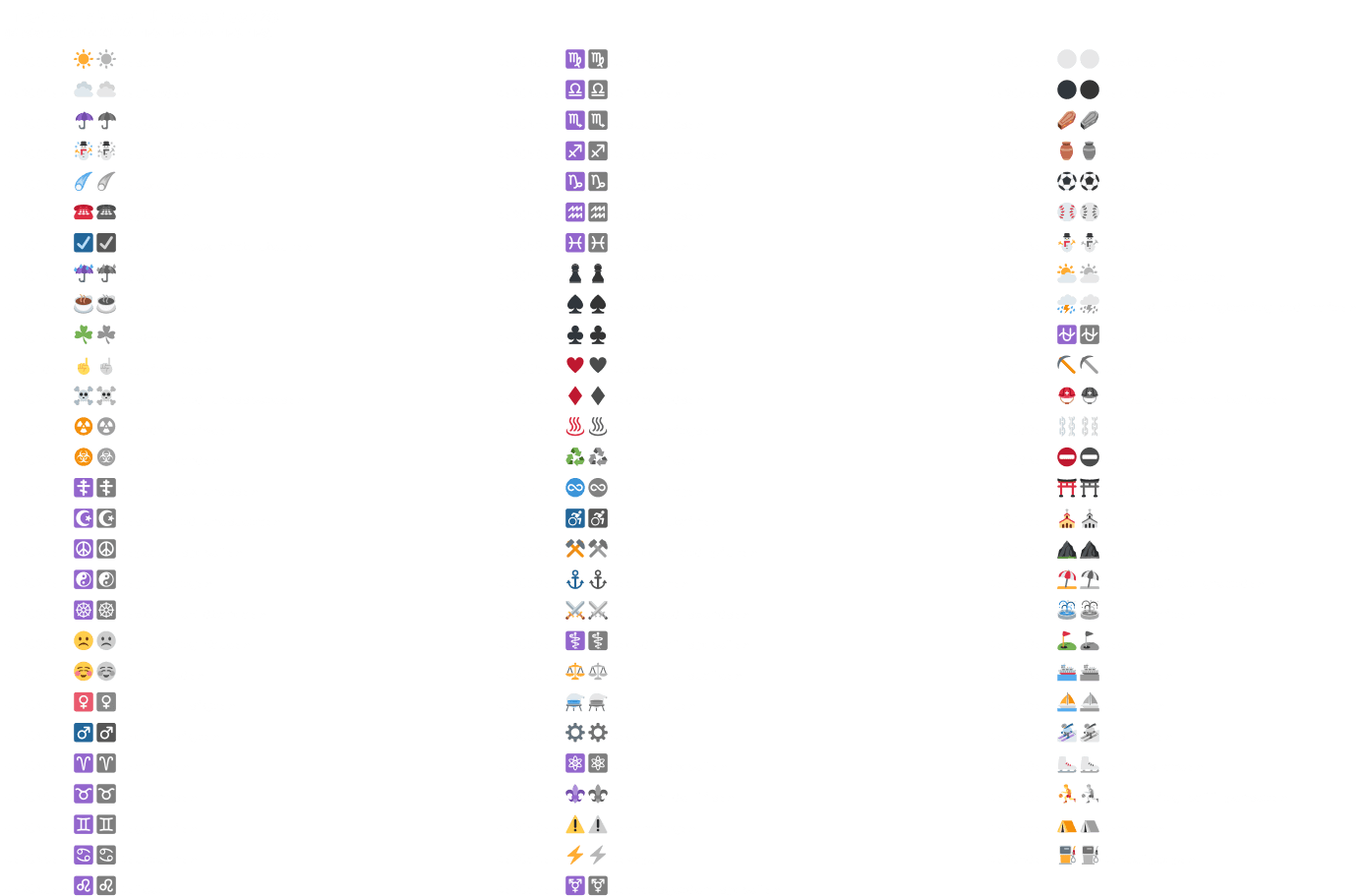

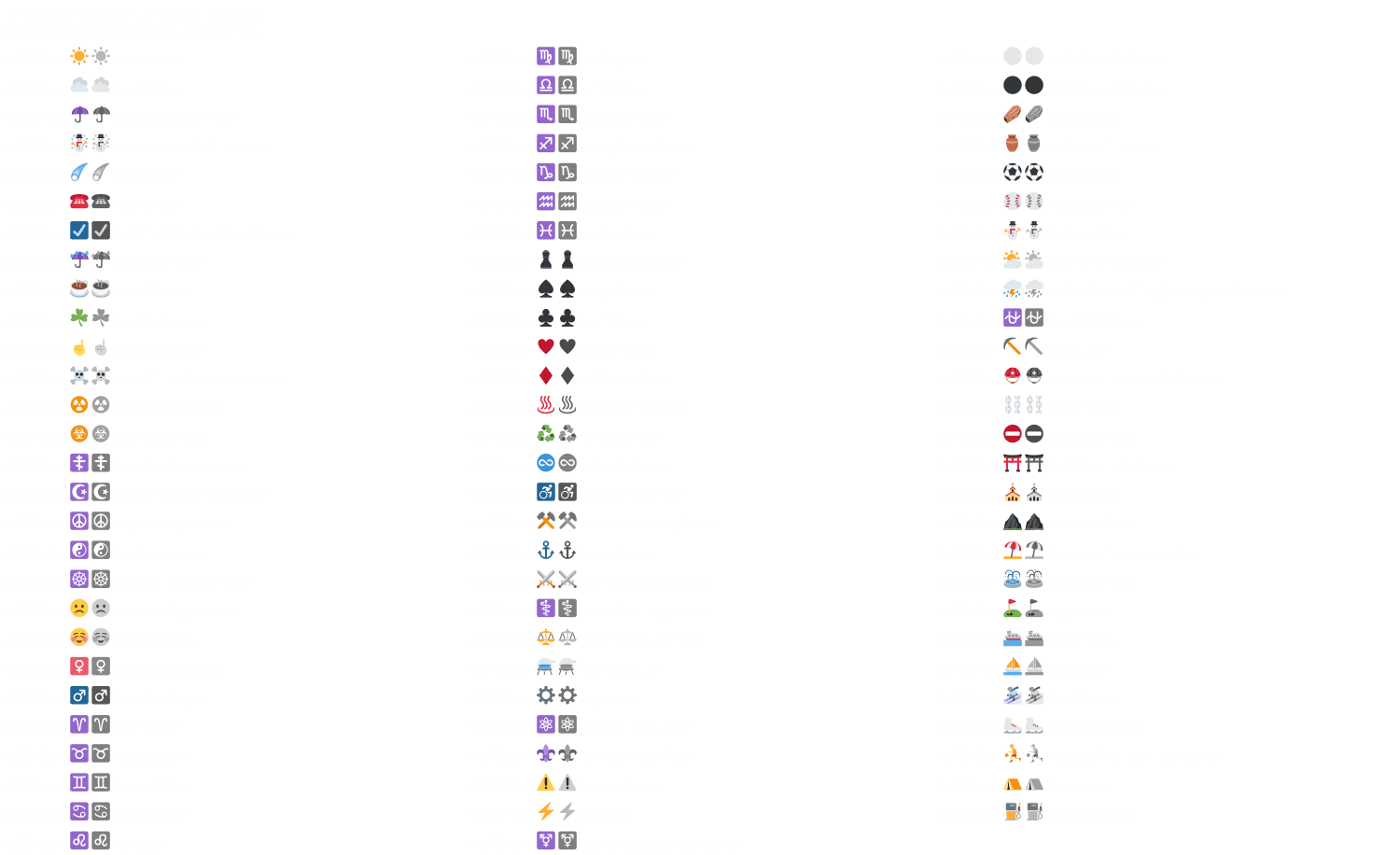

As of 13 April 2023, you can select between 1174 emoji from the following Unicode blocks:

Unicode block 26

🎉 Copied!

@startuml
emoji 26
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

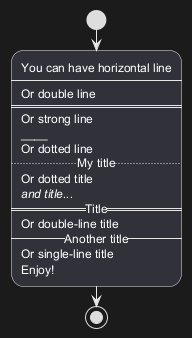

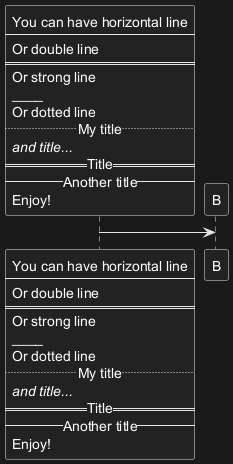

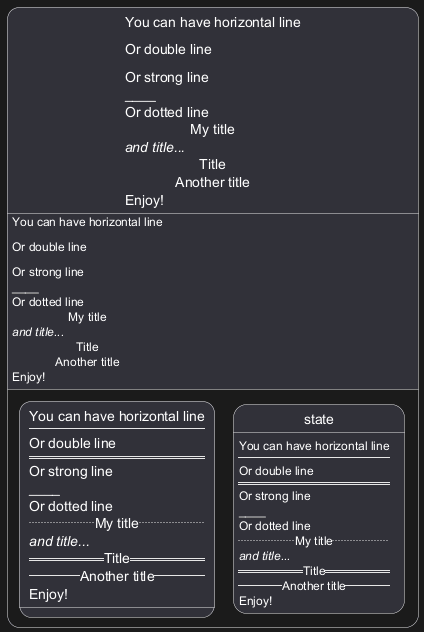

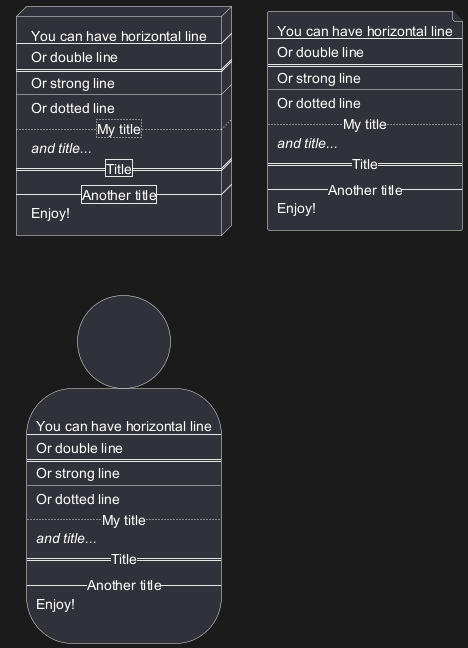

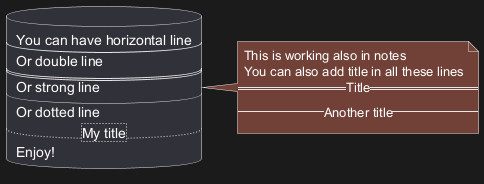

Horizontal lines

🎉 Copied!

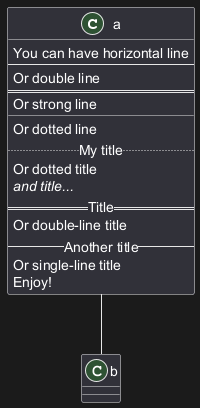

@startuml
database DB1 as "
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Enjoy!
"
note right
  This is working also in notes
  You can also add title in all these lines
  ==Title==
  --Another title--
end note

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links

You can also use URL and links.

Simple links are define using two square brackets (or three square brackets for field or method on class diagram).

Example:

URL can also be authenticated.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Code

You can use <code> to display some programming code in your diagram (sorry, syntax highlighting is not yet supported).

🎉 Copied!

@startuml
Alice -> Bob : hello
note right
<code>
main() {
  printf("Hello world");
}
</code>
end note
@enduml

This is especially useful to illustrate some PlantUML code and the resulting rendering:

🎉 Copied!

@startuml
hide footbox
note over Source
<code>
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
  --test Unicode and icons--
  This is <U+221E> long
  This is a <&code> icon
</code>
end note
/note over Output
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
  --test Unicode and icons--
  This is <U+221E> long
  This is a <&code> icon
end note
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Table

Create a table

It is possible to build table, with | separator.

🎉 Copied!

@startuml
skinparam titleFontSize 14
title
  Example of simple table
  |= |= table |= header |
  | a | table | row |
  | b | table | row |
end title
[*] --> State1
@enduml

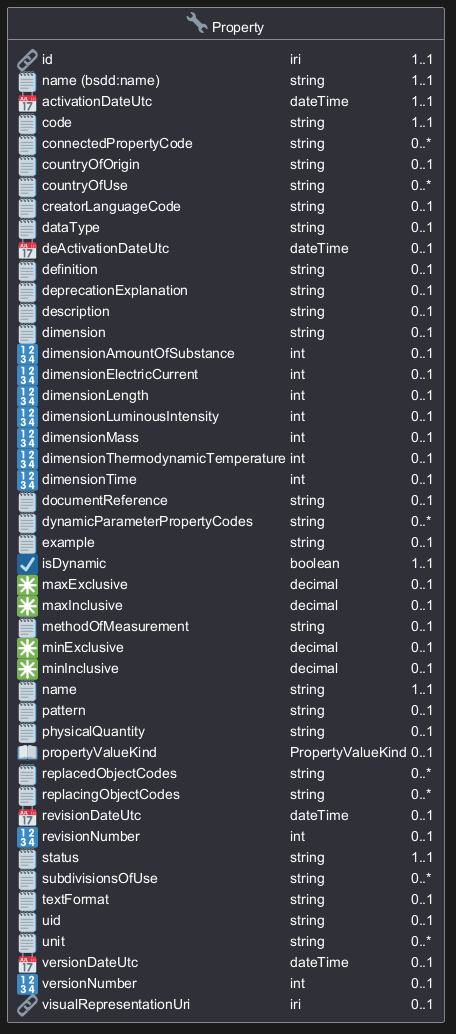

Align fields using Table

You can use a table to align "fields" of class members. The example below (taken from buildingSmart Data Dictionary shows for each member: icon, name, datatype and cardinality. Use the <#transparent,#transparent> color specification so table cells have no foreground and background color.

(The example also shows the use of icons)

🎉 Copied!

@startuml
hide empty members
hide circle

class "<:wrench:> Property" as Property {
<#transparent,#transparent>|<:link:>| id| iri| 1..1|
|<:spiral_notepad:>| name (bsdd:name)| string| 1..1|
|<:calendar:>| activationDateUtc| dateTime| 1..1|
|<:spiral_notepad:>| code| string| 1..1|
|<:spiral_notepad:>| connectedPropertyCode| string| 0..*|
|<:spiral_notepad:>| countryOfOrigin| string| 0..1|
|<:spiral_notepad:>| countryOfUse| string| 0..*|
|<:spiral_notepad:>| creatorLanguageCode| string| 0..1|
|<:spiral_notepad:>| dataType| string| 0..1|
|<:calendar:>| deActivationDateUtc| dateTime| 0..1|
|<:spiral_notepad:>| definition| string| 0..1|
|<:spiral_notepad:>| deprecationExplanation| string| 0..1|
|<:spiral_notepad:>| description| string| 0..1|
|<:spiral_notepad:>| dimension| string| 0..1|
|<:1234:>| dimensionAmountOfSubstance| int| 0..1|
|<:1234:>| dimensionElectricCurrent| int| 0..1|
|<:1234:>| dimensionLength| int| 0..1|
|<:1234:>| dimensionLuminousIntensity| int| 0..1|
|<:1234:>| dimensionMass| int| 0..1|
|<:1234:>| dimensionThermodynamicTemperature| int| 0..1|
|<:1234:>| dimensionTime| int| 0..1|
|<:spiral_notepad:>| documentReference| string| 0..1|
|<:spiral_notepad:>| dynamicParameterPropertyCodes| string| 0..*|
|<:spiral_notepad:>| example| string| 0..1|
|<:ballot_box_with_check:>| isDynamic| boolean| 1..1|
|<:eight_spoked_asterisk:>| maxExclusive| decimal| 0..1|
|<:eight_spoked_asterisk:>| maxInclusive| decimal| 0..1|
|<:spiral_notepad:>| methodOfMeasurement| string| 0..1|
|<:eight_spoked_asterisk:>| minExclusive| decimal| 0..1|
|<:eight_spoked_asterisk:>| minInclusive| decimal| 0..1|
|<:spiral_notepad:>| name| string| 1..1|
|<:spiral_notepad:>| pattern| string| 0..1|
|<:spiral_notepad:>| physicalQuantity| string| 0..1|
|<:book:>| propertyValueKind| PropertyValueKind| 0..1|
|<:spiral_notepad:>| replacedObjectCodes| string| 0..*|
|<:spiral_notepad:>| replacingObjectCodes| string| 0..*|
|<:calendar:>| revisionDateUtc| dateTime| 0..1|
|<:1234:>| revisionNumber| int| 0..1|
|<:spiral_notepad:>| status| string| 1..1|
|<:spiral_notepad:>| subdivisionsOfUse| string| 0..*|
|<:spiral_notepad:>| textFormat| string| 0..1|
|<:spiral_notepad:>| uid| string| 0..1|
|<:spiral_notepad:>| unit| string| 0..*|
|<:calendar:>| versionDateUtc| dateTime| 0..1|
|<:1234:>| versionNumber| int| 0..1|
|<:link:>| visualRepresentationUri| iri| 0..1|
}
@enduml

You can also try to use tabs \t and skinparam tabSize n to align fields, but this doesn't work so well: [Ref. QA-3820]

Add color on rows or cells

You can specify background colors of rows and cells:

🎉 Copied!

@startuml
start
:Here is the result
|= |= table |= header |
| a | table | row |
|<#FF8080> red |<#80FF80> green |<#8080FF> blue |
<#yellow>| b | table | row |;
@enduml

Add color on border and text

You can also specify colors of text and borders.

🎉 Copied!

@startuml
title
<#lightblue,#red>|=  Step  |=  Date  |=  Name  |=  Status  |=  Link  |
<#lightgreen>|  1.1  |  TBD  | plantuml news |<#Navy><color:OrangeRed><b> Unknown  | [[https://plantuml.com/news plantuml news]] |
end title
@enduml

[Ref. QA-7184]

No border or same color as the background

You can also set the border color to the same color as the background.

🎉 Copied!

@startuml
node n
note right of n
  <#FBFB77,#FBFB77>|= Husky / Yorkie |= Foo |
  | SourceTree1 | foo1 |
  | ST2 | foo2 |
end note
@enduml

[Ref. QA-12448]

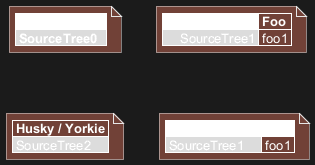

Bold header or not

= as the first char of a cell indicates whether to make it bold (usually used for headers), or not.

🎉 Copied!

@startuml
note as deepCSS0
  |<#white> Husky / Yorkie |
  |=<#gainsboro> SourceTree0 |
endnote

note as deepCSS1
  |= <#white> Husky / Yorkie |= Foo |
  |<#gainsboro><r> SourceTree1 | foo1 |
endnote

note as deepCSS2
  |= Husky / Yorkie |
  |<#gainsboro> SourceTree2 |
endnote

note as deepCSS3
  <#white>|= Husky / Yorkie |= Foo |
  |<#gainsboro> SourceTree1 | foo1 |
endnote
@enduml

[Ref. QA-10923]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Tree

You can use |_ characters to build a tree.

On common commands, like title:

🎉 Copied!

@startuml
skinparam titleFontSize 14
title
  Example of Tree
  |_ First line
  |_ **Bom (Model)**
    |_ prop1
    |_ prop2
    |_ prop3
  |_ Last line
end title
[*] --> State1
@enduml

On Class diagram.

(Please note how we have to use an empty second compartment, else the parentheses in (Model) cause that text to be moved to a separate first compartment):

🎉 Copied!

@startuml
class Foo {
**Bar (Model)**
|_ prop
|_ **Bom (Model)**
  |_ prop2
  |_ prop3
    |_ prop3.1
|_ prop4 :(
--
}
@enduml

[Ref. QA-3448]

On Component or Deployment diagrams:

🎉 Copied!

@startuml
[A] as A
rectangle "Box B" {
    component B [
        Level 1
        |_ Level 2a
          |_ Level 3a
          |_ Level 3b
          |_ Level 3c
            |_ Level 4a
          |_ Level 3d
        |_ Level 2b
          |_ Level 3e
    ]
}
A -> B
@enduml

[Ref. QA-11365]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Special characters

It's possible to use any unicode character, either directly or with syntax &#nnnnnn; (decimal) or <U+XXXXX> (hex):

🎉 Copied!

@startuml
usecase direct as "this is ∞ long"
usecase ampHash as "this is also ∞ long"
usecase angleBrackets as "this is also <U+221E> long"
@enduml

Please note that not all Unicode chars appear correctly, depending on installed fonts.

🎉 Copied!

@startuml
rectangle "<font:Noto Emoji><U+1F3F7></font> label"
rectangle "<font:Noto Emoji><U+1F527></font> wrench"
rectangle "<font:Noto Emoji><U+1F6E0></font> hammer_and_wrench"
@enduml

See Issue 72 for more details.

Edit in DokuwikiEdit in AsciidocEdit in Markdown

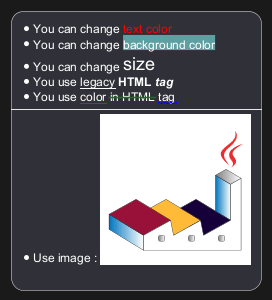

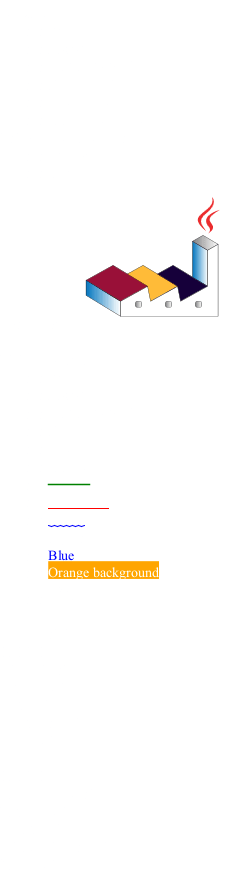

Legacy HTML

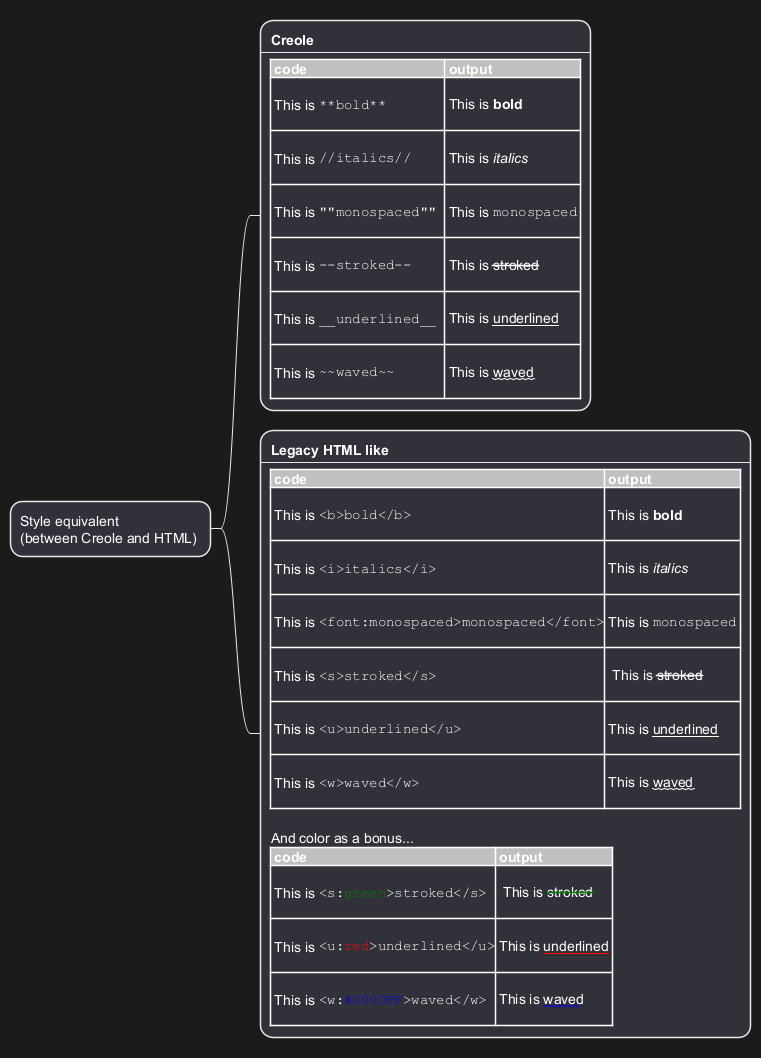

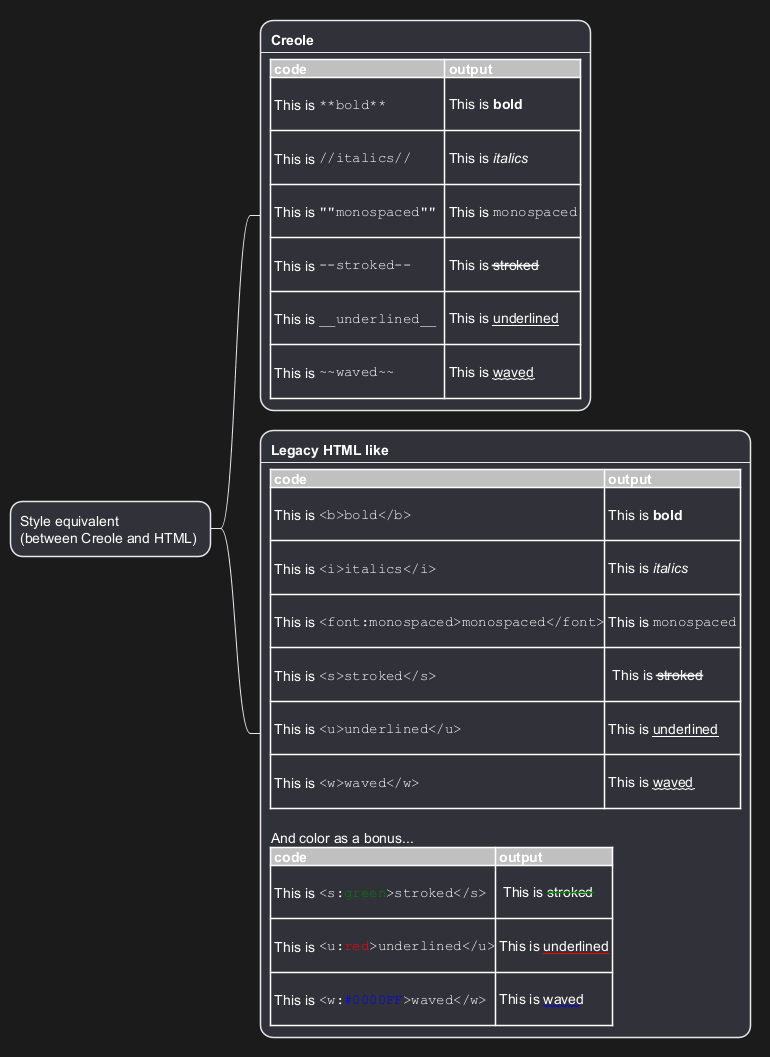

You can mix Creole with the following HTML tags:

🎉 Copied!

@startuml
:* You can change <color:red>text color</color>
* You can change <back:cadetblue>background color</back>
* You can change <size:18>size</size>
* You use <u>legacy</u> <b>HTML <i>tag</i></b>
* You use <u:red>color</u> <s:green>in HTML</s> <w:#0000FF>tag</w>
----
* Use image : <img:https://plantuml.com/logo3.png>
;
@enduml

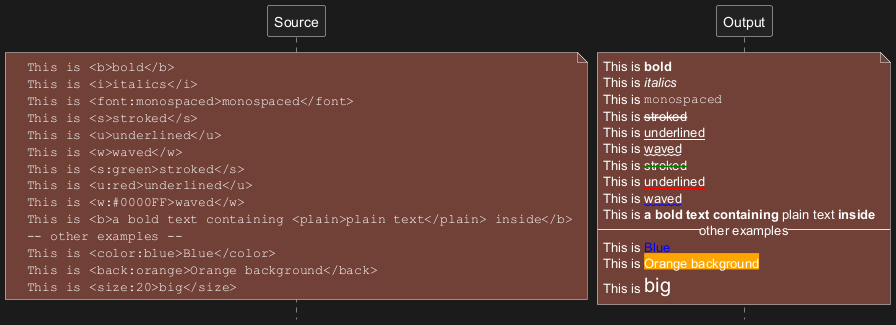

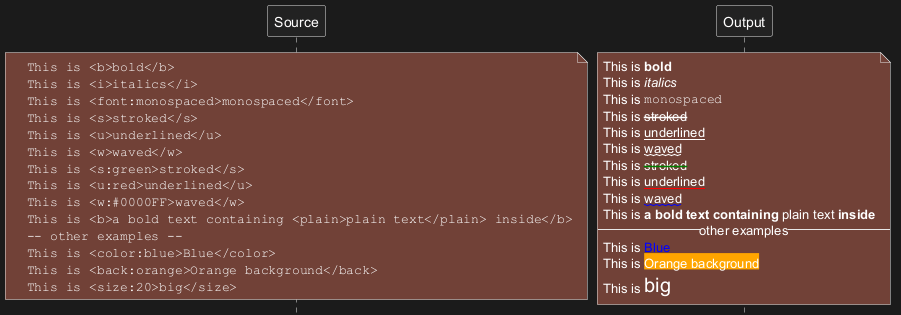

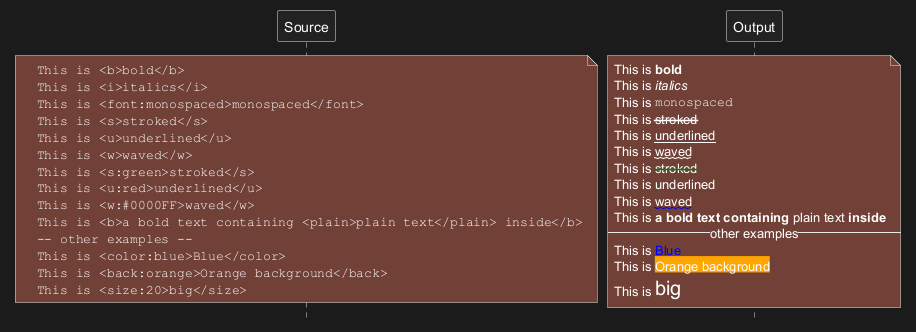

Common HTML element

🎉 Copied!

@startuml
hide footbox
note over Source
<code>
  This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
  This is <b>a bold text containing <plain>plain text</plain> inside</b>
  -- other examples --
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>
</code>
end note
/note over Output
  This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
  This is <b>a bold text containing <plain>plain text</plain> inside</b>
  -- other examples --
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>
end note
@enduml

[Ref. QA-5254 for plain]

Subscript and Superscript element [sub, sup]

🎉 Copied!

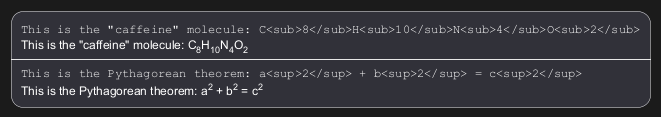

@startuml
:<code>
This is the "caffeine" molecule: C<sub>8</sub>H<sub>10</sub>N<sub>4</sub>O<sub>2</sub>
</code>
This is the "caffeine" molecule: C<sub>8</sub>H<sub>10</sub>N<sub>4</sub>O<sub>2</sub>
----
<code>
This is the Pythagorean theorem: a<sup>2</sup> + b<sup>2</sup> = c<sup>2</sup>
</code>
This is the Pythagorean theorem: a<sup>2</sup> + b<sup>2</sup> = c<sup>2</sup>;
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
OpenIconic

OpenIconic is a very nice open-source icon set. Those icons are integrated in the creole parser, so you can use them out-of-the-box.

Use the following syntax: <&ICON_NAME>.

🎉 Copied!

@startuml
title: <size:20><&heart>Use of OpenIconic<&heart></size>
class Wifi
note left
  Click on <&wifi>
end note
@enduml

The complete list is available with the following special command:

🎉 Copied!

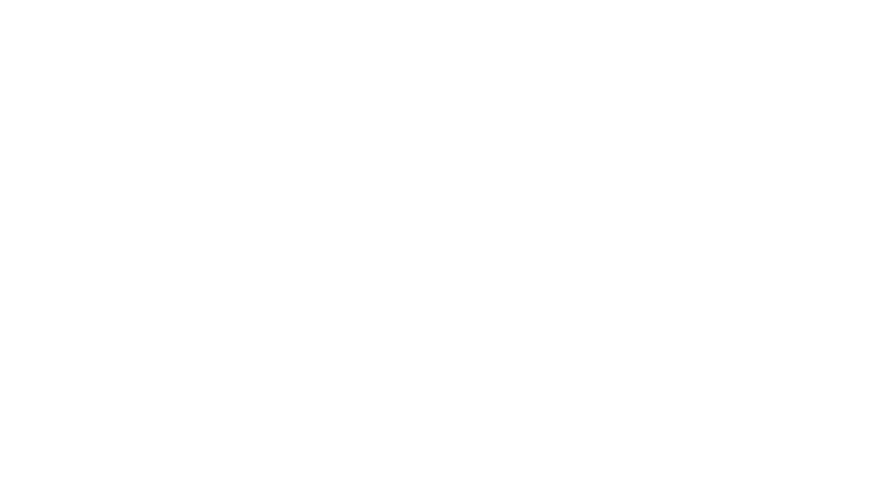

@startuml
listopeniconic
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Appendix: Examples of "Creole List" on all diagrams

Activity

🎉 Copied!

@startuml
start
:**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item;
stop
@enduml

Class

FIXME
🚩
FIXME

🎉 Copied!

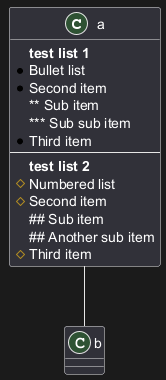

@startuml

class a {
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
}

a -- b

@enduml

Component, Deployment, Use-Case

🎉 Copied!

@startuml
node n [
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
]

file f as "
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
"
@enduml

DONE
[Corrected in V1.2020.18]

Gantt project planning

N/A

Object

FIXME
🚩
FIXME

🎉 Copied!

@startuml
object user {
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
}

@enduml

MindMap

🎉 Copied!

@startmindmap

* root
** d1
**:**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item;


@endmindmap

Network (nwdiag)

🎉 Copied!

@startnwdiag
nwdiag {
  network Network {
      Server [description="**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item"];
}
@endnwdiag

Note

🎉 Copied!

@startuml
note as n
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
end note
@enduml

Sequence

🎉 Copied!

@startuml
<style>
participant {HorizontalAlignment left}
</style>
participant Participant [
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
]

participant B

Participant -> B
@enduml

[Ref. QA-15232]

State

🎉 Copied!

@startuml
<style>
stateDiagram {
title {HorizontalAlignment left}
}
</style>
state "**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item" as a {
a: **test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item
state "**test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item" as b
state : **test list 1**\n* Bullet list\n* Second item\n** Sub item\n*** Sub sub item\n* Third item\n----\n**test list 2**\n# Numbered list\n# Second item\n## Sub item\n## Another sub item\n# Third item
}
@enduml

[Ref. QA-16978]

WBS

🎉 Copied!

@startwbs

* root
** d1
**:**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item;

@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Appendix: Examples of "Creole horizontal lines" on all diagrams

Activity

FIXME
🚩 strong line ____
FIXME

🎉 Copied!

@startuml
start
:You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Or dotted title
//and title... //
==Title==
Or double-line title
--Another title--
Or single-line title
Enjoy!;
stop
@enduml

Class

🎉 Copied!

@startuml

class a {
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Or dotted title
//and title... //
==Title==
Or double-line title
--Another title--
Or single-line title
Enjoy!
}

a -- b

@enduml

Component, Deployment, Use-Case

🎉 Copied!

@startuml
node n [
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!
]

file f as "
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!
"

person p [

You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!

]
@enduml

Gantt project planning

N/A

Object

🎉 Copied!

@startuml
object user {
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!
}

@enduml

DONE
[Corrected on V1.2020.18]

MindMap

FIXME
🚩 strong line ____
FIXME

🎉 Copied!

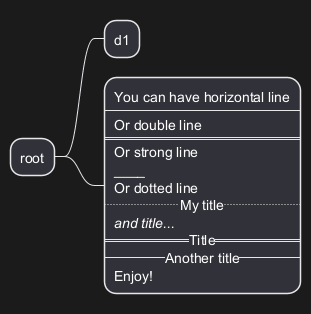

@startmindmap

* root
** d1
**:You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!;

@endmindmap

Network (nwdiag)

🎉 Copied!

@startnwdiag
nwdiag {
  network Network {
      Server [description="You can have horizontal line\n----\nOr double line\n====\nOr strong line\n____\nOr dotted line\n..My title..\n//and title... //\n==Title==\n--Another title--\nEnjoy!"];
}
@endnwdiag

Note

🎉 Copied!

@startuml
note as n
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!
end note
@enduml

Sequence

🎉 Copied!

@startuml
<style>
participant {HorizontalAlignment left}
</style>
participant Participant [
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!
]

participant B

Participant -> B
@enduml

[Ref. QA-15232]

State

🎉 Copied!

@startuml
<style>
stateDiagram {
title {HorizontalAlignment left}
}
</style>
state "You can have horizontal line\n----\nOr double line\n====\nOr strong line\n____\nOr dotted line\n..My title..\n//and title... //\n==Title==\n--Another title--\nEnjoy!" as a {
a: You can have horizontal line\n----\nOr double line\n====\nOr strong line\n____\nOr dotted line\n..My title..\n//and title... //\n==Title==\n--Another title--\nEnjoy!
state "You can have horizontal line\n----\nOr double line\n====\nOr strong line\n____\nOr dotted line\n..My title..\n//and title... //\n==Title==\n--Another title--\nEnjoy!" as b
state : You can have horizontal line\n----\nOr double line\n====\nOr strong line\n____\nOr dotted line\n..My title..\n//and title... //\n==Title==\n--Another title--\nEnjoy!
}
@enduml

[Ref. QA-16978, GH-1479]

WBS

FIXME
🚩 strong line ____
FIXME

🎉 Copied!

@startwbs

* root
** d1
**:You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
//and title... //
==Title==
--Another title--
Enjoy!;

@endwbs

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Style equivalent (between Creole and HTML)

Style Creole Legacy HTML like
bold This is **bold** This is <b>bold</b>
italics This is //italics// This is <i>italics</i>
monospaced This is ""monospaced"" This is <font:monospaced>monospaced</font>
stroked This is --stroked-- This is <s>stroked</s>
underlined This is __underlined__ This is <u>underlined</u>
waved This is ~~waved~~ This is <w>waved</w>

🎉 Copied!

@startmindmap
* Style equivalent\n(between Creole and HTML)
**:**Creole**
----
<#silver>|= code|= output|
| \n This is ""~**bold**""\n | \n This is **bold** |
| \n This is ""~//italics//""\n | \n This is //italics// |
| \n This is ""~""monospaced~"" ""\n | \n This is ""monospaced"" |
| \n This is ""~--stroked--""\n | \n This is --stroked-- |
| \n This is ""~__underlined__""\n |  \n This is __underlined__ |
| \n This is ""<U+007E><U+007E>waved<U+007E><U+007E>""\n | \n This is ~~waved~~ |;
**:<b>Legacy HTML like
----
<#silver>|= code|= output|
| \n This is ""~<b>bold</b>""\n | \n This is <b>bold</b> |
| \n This is ""~<i>italics</i>""\n | \n This is <i>italics</i> |
| \n This is ""~<font:monospaced>monospaced</font>""\n | \n This is <font:monospaced>monospaced</font> |
| \n This is ""~<s>stroked</s>""\n | \n  This is <s>stroked</s> |
| \n This is ""~<u>underlined</u>""\n | \n This is <u>underlined</u> |
| \n This is ""~<w>waved</w>""\n | \n This is <w>waved</w> |

And color as a bonus...
<#silver>|= code|= output|
| \n This is ""~<s:""<color:green>""green""</color>"">stroked</s>""\n | \n  This is <s:green>stroked</s> |
| \n This is ""~<u:""<color:red>""red""</color>"">underlined</u>""\n | \n This is <u:red>underlined</u> |
| \n This is ""~<w:""<color:#0000FF>""#0000FF""</color>"">waved</w>""\n | \n This is <w:#0000FF>waved</w> |;
@endmindmap

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Creole on Creole

You can use Creole or HTML Creole on Creole diagram:

🎉 Copied!

@startcreole
==Creole
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
test Unicode and icons
  This is <U+221E> long
  This is a <&code> icon
  Use image : <img:https://plantuml.com/logo3.png>

<b>HTML Creole
  This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
other examples
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>

Creole list item
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item

**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
@endcreole
