YAML形式は、様々なソフトウェアで使われています。
PlantUMLを使ってYAMLデータを可視化することができます。
この機能を使うには、
@startyaml キーワードで開始し、
@endyaml キーワードで終了する必要があります。
🎉 Copied!
|
@startyaml
fruit: Apple
size: Large
color: Red
@endyaml
|
WARNING This translation need to be updated. WARNING
🎉 Copied!
|

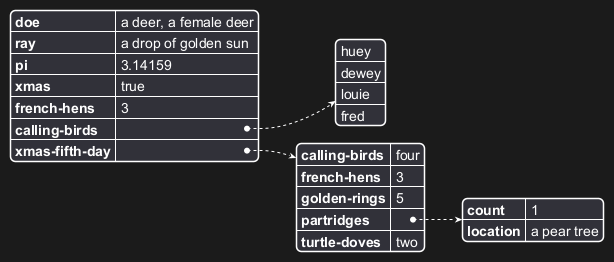

@startyaml
doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
- huey
- dewey
- louie
- fred
xmas-fifth-day:
calling-birds: four
french-hens: 3
golden-rings: 5
partridges:
count: 1
location: "a pear tree"
turtle-doves: two
@endyaml
|
🎉 Copied!
|
@startyaml
@fruit: Apple
$size: Large
&color: Red
❤: Heart
‰: Per mille
@endyaml
|
[Ref. QA-13376]

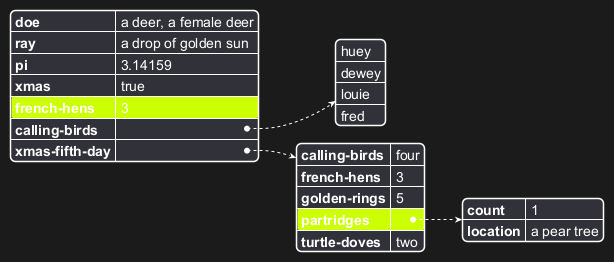

通常スタイル
🎉 Copied!
|
@startyaml
#highlight "french-hens"
#highlight "xmas-fifth-day" / "partridges"
doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
- huey
- dewey
- louie
- fred
xmas-fifth-day:
calling-birds: four
french-hens: 3
golden-rings: 5
partridges:
count: 1
location: "a pear tree"
turtle-doves: two
@endyaml
|
カスタムスタイル
🎉 Copied!
|
@startyaml
<style>
yamlDiagram {
highlight {
BackGroundColor red
FontColor white
FontStyle italic
}
}
</style>
#highlight "french-hens"
#highlight "xmas-fifth-day" / "partridges"
doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
- huey
- dewey
- louie
- fred
xmas-fifth-day:
calling-birds: four
french-hens: 3
golden-rings: 5
partridges:
count: 1
location: "a pear tree"
turtle-doves: two
@endyaml
|
[Ref. QA-13288]

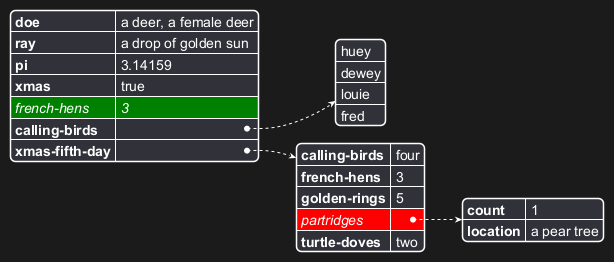

It is possible to have different styles for different highlights.
🎉 Copied!
|
@startyaml
<style>
.h1 {
BackGroundColor green
FontColor white
FontStyle italic
}
.h2 {
BackGroundColor red
FontColor white
FontStyle italic
}
</style>
#highlight "french-hens" <<h1>>
#highlight "xmas-fifth-day" / "partridges" <<h2>>
doe: "a deer, a female deer"
ray: "a drop of golden sun"
pi: 3.14159
xmas: true
french-hens: 3
calling-birds:
- huey
- dewey
- louie
- fred
xmas-fifth-day:
calling-birds: four
french-hens: 3
golden-rings: 5
partridges:
count: 1
location: "a pear tree"
turtle-doves: two
@endyaml
|
[Ref. QA-15756, GH-1393]
スタイル無し(デフォルト)
🎉 Copied!
|
@startyaml
-
name: Mark McGwire
hr: 65
avg: 0.278
-
name: Sammy Sosa
hr: 63
avg: 0.288
@endyaml
|
スタイル有り
スタイルを使って、要素の描画方法を変更することができます。
🎉 Copied!
|
@startyaml
<style>
yamlDiagram {
node {
BackGroundColor lightblue
LineColor lightblue
FontName Helvetica
FontColor red
FontSize 18
FontStyle bold
BackGroundColor Khaki
RoundCorner 0
LineThickness 2
LineStyle 10-5
separator {
LineThickness 0.5
LineColor black
LineStyle 1-5
}
}
arrow {
BackGroundColor lightblue
LineColor green
LineThickness 2
LineStyle 2-5
}
}
</style>
-
name: Mark McGwire
hr: 65
avg: 0.278
-
name: Sammy Sosa
hr: 63
avg: 0.288
@endyaml
|
[Ref. QA-13123]
|
|
