工作分解结构（WBS）

工作分解结构图（WBS）是一种重要的项目管理工具，可将项目分解为更小、更易于管理的组成部分或任务。它本质上是对项目团队为完成项目目标和创建所需交付成果而要开展的全部工作范围的分层分解。

PlantUML对于创建WBS 图表特别有用。它基于文本的图表设计意味着创建和更新 WBS 就像编辑文本文档一样简单，尤其有利于管理项目生命周期内的变更。

此外，PlantUML 与其他各种工具的兼容性也增强了它在协作环境中的实用性。团队可以轻松地将 WBS 图表集成到更广泛的项目文档和管理系统中。PlantUML 语法的简洁性允许快速调整，这在项目范围和任务经常变化的动态项目环境中至关重要。因此，使用 PlantUML 绘制 WBS 图表，既能实现可视化分解的清晰度，又能实现基于文本系统的灵活性和控制性，使其成为高效项目管理的宝贵资产。

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

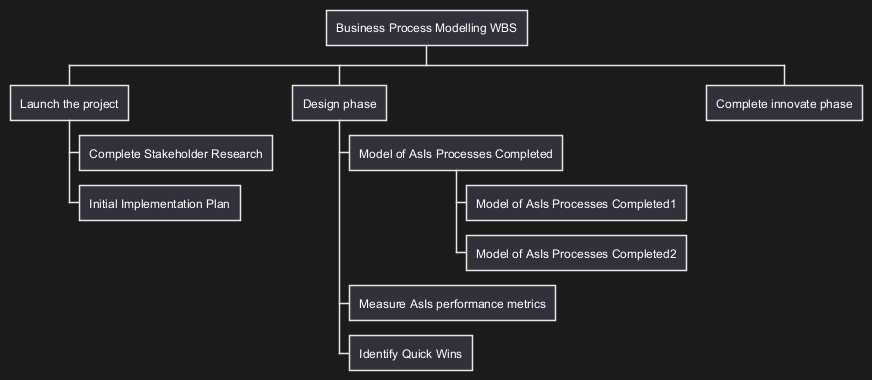

OrgMode syntax

This syntax is compatible with OrgMode

🎉 Copied!

@startwbs * Business Process Modelling WBS ** Launch the project *** Complete Stakeholder Research *** Initial Implementation Plan ** Design phase *** Model of AsIs Processes Completed **** Model of AsIs Processes Completed1 **** Model of AsIs Processes Completed2 *** Measure AsIs performance metrics *** Identify Quick Wins ** Complete innovate phase @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

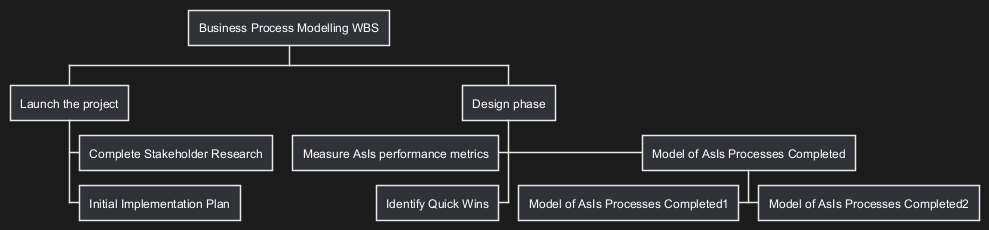

Change direction

You can change direction using < and >

🎉 Copied!

@startwbs * Business Process Modelling WBS ** Launch the project *** Complete Stakeholder Research *** Initial Implementation Plan ** Design phase *** Model of AsIs Processes Completed ****< Model of AsIs Processes Completed1 ****> Model of AsIs Processes Completed2 ***< Measure AsIs performance metrics ***< Identify Quick Wins @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

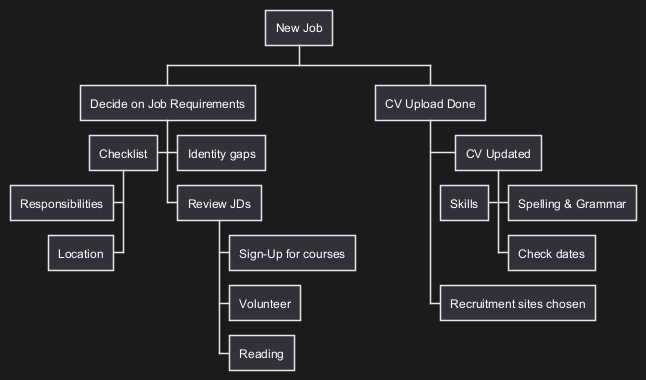

Arithmetic notation

You can use the following notation to choose diagram side.

🎉 Copied!

@startwbs + New Job ++ Decide on Job Requirements +++ Identity gaps +++ Review JDs ++++ Sign-Up for courses ++++ Volunteer ++++ Reading ++- Checklist +++- Responsibilities +++- Location ++ CV Upload Done +++ CV Updated ++++ Spelling & Grammar ++++ Check dates ---- Skills +++ Recruitment sites chosen @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Multilines

You can use : and ; to have multilines box, as on MindMap.

🎉 Copied!

@startwbs * <&flag> Debian ** <&globe> Ubuntu ***:Linux Mint Open Source; *** Kubuntu *** ... @endwbs

[Ref. QA-13945]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Removing box

You can use underscore _ to remove box drawing.

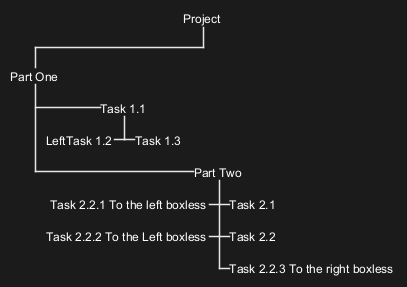

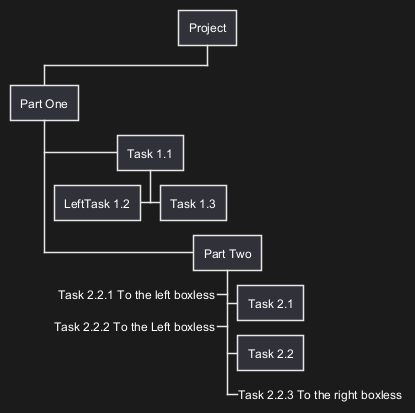

Boxless on Arithmetic notation

Several boxless node

🎉 Copied!

@startwbs + Project + Part One + Task 1.1 - LeftTask 1.2 + Task 1.3 + Part Two + Task 2.1 + Task 2.2 -_ Task 2.2.1 To the left boxless -_ Task 2.2.2 To the Left boxless +_ Task 2.2.3 To the right boxless @endwbs

All boxless node

🎉 Copied!

@startwbs +_ Project +_ Part One +_ Task 1.1 -_ LeftTask 1.2 +_ Task 1.3 +_ Part Two +_ Task 2.1 +_ Task 2.2 -_ Task 2.2.1 To the left boxless -_ Task 2.2.2 To the Left boxless +_ Task 2.2.3 To the right boxless @endwbs

Boxless on OrgMode syntax

Several boxless node

🎉 Copied!

@startwbs * World ** America ***_ Canada ***_ Mexico ***_ USA ** Europe ***_ England ***_ Germany ***_ Spain @endwbs

[Ref. QA-13297]

All boxless node

🎉 Copied!

@startwbs *_ World **_ America ***_ Canada ***_ Mexico ***_ USA **_ Europe ***_ England ***_ Germany ***_ Spain @endwbs

[Ref. QA-13355]

Skipping a layer

Underscore without label removes a node completely

🎉 Copied!

@startwbs * Director ** Team Lead 1 *** Engineer 1 *** Engineer 2 ** Team Lead 2 *** Engineer 3 *** Engineer 4 **_ *** Engineer 5 (reporting to Director) *** Engineer 6 (reporting to Director) @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Colors (with inline or style color)

It is possible to change node color:

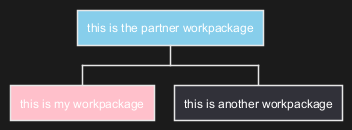

with inline color

🎉 Copied!

@startwbs *[#SkyBlue] this is the partner workpackage **[#pink] this is my workpackage ** this is another workpackage @endwbs

🎉 Copied!

@startwbs +[#SkyBlue] this is the partner workpackage ++[#pink] this is my workpackage ++ this is another workpackage @endwbs

[Ref. QA-12374, only from v1.2020.20]

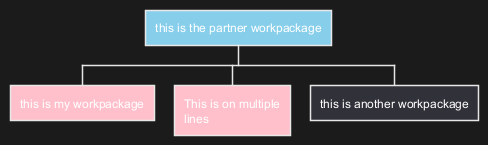

with style color

🎉 Copied!

@startwbs <style> wbsDiagram { .pink { BackgroundColor pink } .your_style_name { BackgroundColor SkyBlue } } </style> * this is the partner workpackage <<your_style_name>> ** this is my workpackage <<pink>> **:This is on multiple lines; <<pink>> ** this is another workpackage @endwbs

🎉 Copied!

@startwbs <style> wbsDiagram { .pink { BackgroundColor pink } .your_style_name { BackgroundColor SkyBlue } } </style> + this is the partner workpackage <<your_style_name>> ++ this is my workpackage <<pink>> ++:This is on multiple lines; <<pink>> ++ this is another workpackage @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

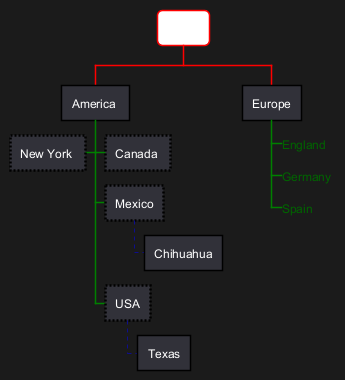

Using style

It is possible to change diagram style.

🎉 Copied!

@startwbs <style> wbsDiagram { // all lines (meaning connector and borders, there are no other lines in WBS) are black by default Linecolor black arrow { // note that connector are actually "arrow" even if they don't look like as arrow // This is to be consistent with other UML diagrams. Not 100% sure that it's a good idea // So now connector are green LineColor green } :depth(0) { // will target root node BackgroundColor White RoundCorner 10 LineColor red // Because we are targetting depth(0) for everything, border and connector for level 0 will be red } arrow { :depth(2) { // Targetting only connector between Mexico-Chihuahua and USA-Texas LineColor blue LineStyle 4 LineThickness .5 } } node { :depth(2) { LineStyle 2 LineThickness 2.5 } } boxless { // will target boxless node with '_' FontColor darkgreen } } </style> * World ** America *** Canada *** Mexico **** Chihuahua *** USA **** Texas ***< New York ** Europe ***_ England ***_ Germany ***_ Spain @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

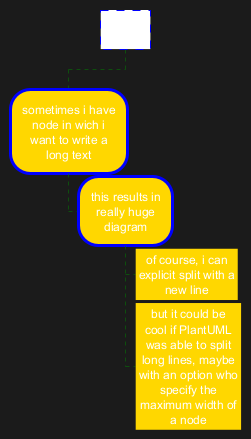

Word Wrap

Using MaximumWidth setting you can control automatic word wrap. Unit used is pixel.

🎉 Copied!

@startwbs <style> node { Padding 12 Margin 3 HorizontalAlignment center LineColor blue LineThickness 3.0 BackgroundColor gold RoundCorner 40 MaximumWidth 100 } rootNode { LineStyle 8.0;3.0 LineColor red BackgroundColor white LineThickness 1.0 RoundCorner 0 Shadowing 0.0 } leafNode { LineColor gold RoundCorner 0 Padding 3 } arrow { LineStyle 4 LineThickness 0.5 LineColor green } </style> * Hi =) ** sometimes i have node in wich i want to write a long text *** this results in really huge diagram **** of course, i can explicit split with a\nnew line **** but it could be cool if PlantUML was able to split long lines, maybe with an option who specify the maximum width of a node @endwbs

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown
Add arrows between WBS elements

You can add arrows between WBS elements.

Using alias with as:

🎉 Copied!

@startwbs <style> .foo { LineColor #00FF00; } </style> * Test ** A topic *** "common" as c1 *** "common2" as c2 ** "Another topic" as t2 t2 -> c1 <<foo>> t2 ..> c2 #blue @endwbs

Using alias in parentheses:

🎉 Copied!

@startwbs * Test **(b) A topic ***(c1) common **(t2) Another topic t2 --> c1 b -> t2 #blue @endwbs

[Ref. QA-16251]

Edit in Dokuwiki Edit in Asciidoc Edit in Markdown

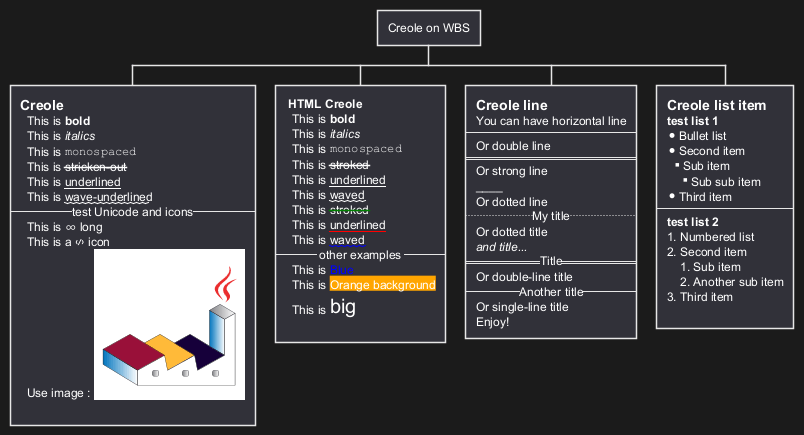

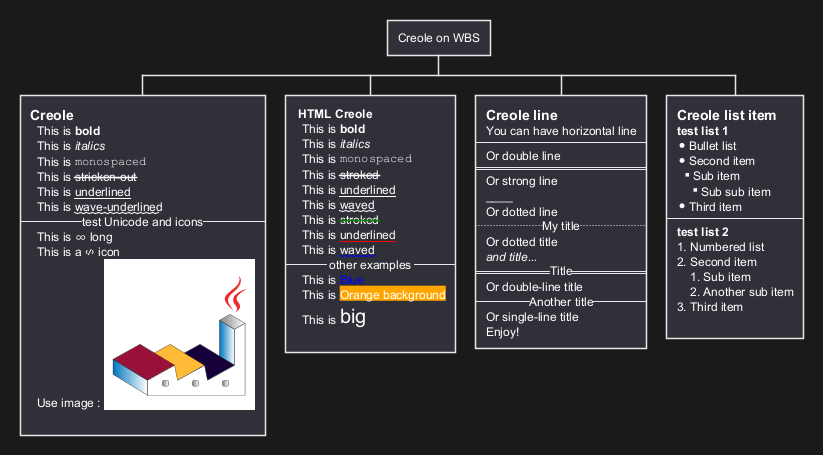

Creole on WBS diagram

You can use Creole or HTML Creole on WBS:

🎉 Copied!

@startwbs * Creole on WBS **:==Creole This is **bold** This is //italics// This is ""monospaced"" This is --stricken-out-- This is __underlined__ This is ~~wave-underlined~~ --test Unicode and icons-- This is <U+221E> long This is a <&code> icon Use image : <img:https://plantuml.com/logo3.png> ; **: <b>HTML Creole This is <b>bold</b> This is <i>italics</i> This is <font:monospaced>monospaced</font> This is <s>stroked</s> This is <u>underlined</u> This is <w>waved</w> This is <s:green>stroked</s> This is <u:red>underlined</u> This is <w:#0000FF>waved</w> -- other examples -- This is <color:blue>Blue</color> This is <back:orange>Orange background</back> This is <size:20>big</size> ; **:==Creole line You can have horizontal line ---- Or double line ==== Or strong line ____ Or dotted line ..My title.. Or dotted title //and title... // ==Title== Or double-line title --Another title-- Or single-line title Enjoy!; **:==Creole list item **test list 1** * Bullet list * Second item ** Sub item *** Sub sub item * Third item ---- **test list 2** # Numbered list # Second item ## Sub item ## Another sub item # Third item ; @endwbs
