PlantUML Language specification Hyperlink

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Format definition

Simple link

Simple links are define using two square brackets (or three square brackets for field or method on class diagram).

Example:
  • [[http://plantuml.com]]
  • [[]] (empty link)

Link with optional label

It is possible to give an optional label that will be printed instead of the link itself. A space is used as separator after the URL itself.

Example: [[http://plantuml.com This label is printed]]

Link with optional tooltip

Finally you can also have an optional tooltip using round brackets, just after the URL and before the optional label.

Example: [[http://plantuml.com{Optional tooltip} This label is printed]]

Only tooltip

You can also have only a tooltip using round brackets.

Example: [[{A tooltip}]]

Only tooltip and label

You can also have only a tooltip using round brackets, and a label.

Example: [[{A tooltip} This label is printed]]

URL authentication

With URL authentication it is possible to provide an authentication method, credentials, and a proxy config to URL endpoints.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links contained curly bracket

A link can contain some curly brackets.

🎉 Copied!

@startuml
[[link{with_bracket}&id=10]]:Some activity\n(with link with brackets)\n""link{with_bracket}&id=10"";
[["link{with_bracket}"{}]]:Some activity\n(with link with brackets and empy tooltip)\n"""link{with_bracket}"{}"";
[["link{with_bracket}"{with tooltip}]]:Some activity\n(with link finished by brackets and tooltip)\n"""link{with_bracket}"{with tooltip}"";
[["link{with_bracket}&id=10"{with tooltip}]]:Some activity\n(with link with brackets and tooltip)\n"""link{with_bracket}&id=10"{with tooltip}"";
@enduml

[Ref. QA-13489]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in sequence diagram

The following example lists some links features:

🎉 Copied!

@startuml
actor Bob [[http://plantuml.com/sequence]]
actor "This is [[http://plantuml.com/sequence Alice]] actor" as Alice
Bob -> Alice [[http://plantuml.com/start]] : hello
note left [[http://plantuml.com/start]]
  a note with a link
end note
Alice -> Bob : hello with [[http://plantuml.com/start{Tooltip for message} some link]]
note right [[http://plantuml.com/start]] : another note
note left of Bob
You can use [[http://plantuml.com/start links in notes]] also.
end note
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in class diagram

🎉 Copied!

@startuml
class Car [[http://plantuml.com/link]]
class Wheel [[http://plantuml.com/sequence]]
note left [[http://plantuml.com]]
foo
end note
Car *-- Wheel [[http://plantuml.com/class]] : has some
@enduml

There is a special syntax with 3 square brackets in class definition when you want to define a link on field or method. For example:

🎉 Copied!

@startuml
class Car {
  - Some field [[[http://plantuml.com]]]
  Some method() [[[http://plantuml.com/link]]]
}
@enduml

🎉 Copied!

@startuml
Object <|-- Foo

class Foo {
  + Object[]   [[[http://www.google.com]]]
  + methods1() [[[http://www.yahoo.com/A1{Some explainations about this method}]]]
  + methods2() [[[http://www.yahoo.com/A2]]]
}

class Foo2 {
  + methods1() [[[http://www.yahoo.com/B1]]]
  + methods2() [[[http://www.yahoo.com/B2]]]
}

class Object [[http://www.yahoo.com]]
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in activity diagram

On activity label

🎉 Copied!

@startuml
start
[[http://plantuml.com]]:Some activity;
:Some [[http://plantuml.com link]];
end
@enduml

On partition

🎉 Copied!

@startuml
start
partition "[[http://plantuml.com partition_name]]" {
    :read doc. on [[http://plantuml.com plantuml_website]];
    :test diagram;
}
end
@enduml

[Ref. QA-542]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

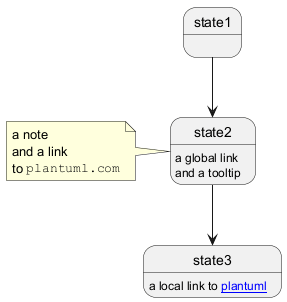

Link in State diagram

You can add link on State diagram:
  • local link on a word
  • or link on the entire state shape

🎉 Copied!

@startuml
state state1 [[http://plantuml.com/link]]
state state2 [[http://plantuml.com/state{this is a tooltip\nand a link to "plantuml/state"}]]
state2 : a global link\nand a tooltip
note left [[http://plantuml.com]]
a note
and a link
to ""plantuml.com""
end note
state3 : a local link to [[http://plantuml.com plantuml]]

state1 --> state2
state2 --> state3
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in Network diagram (nwdiag)

🎉 Copied!

@startuml
nwdiag {
  network Network {
      Server [description="A [[http://plantuml.com link]] on nwdiag"];
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in JSON/YAML diagram

JSON

🎉 Copied!

@startjson
{
"@fruit": "Apple",
"$size": "Large",
"Appli.": "A [[http://plantuml.com link]] on JSON"
}
@endjson

YAML

🎉 Copied!

@startyaml
@fruit: Apple
$size: Large
Appli.: A [[http://plantuml.com link]] on YAML
@endyaml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in notes

It is also possible to specify a link at the beginning of a note (the link applies to the full note), or inside a note (for a portion of the note).

🎉 Copied!

@startuml
:Foo:
note left of Foo [[http://www.google.com]]
This is a note
end note

note right of Foo
Yet another link to [[http://www.google.com]] as demo.
You can also [[http://www.yahoo.fr specify a text]] for the link.
And even [[http://www.yahoo.fr{This is a tooltip} add a tooltip]] to the link.
end note
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links with explicit URL directive

You can use the url of XXX is [[yyy]] syntax:

On sequence diagram

🎉 Copied!

@startuml
Bob -> Alice : ok
url of Bob is [[http://www.google.com]]
@enduml

On class diagram

🎉 Copied!

@startuml
skinparam topurl http://www.google.com
Dog --|> Mammal
url of Mammal is [[/search]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
Dog o-- Cat
Cat --|> Mammal
@enduml

On usecase diagram

🎉 Copied!

@startuml
actor Mamal
usecase Dog

url of Mamal is [[http://www.google.com]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
@enduml

On component or deployment diagram

🎉 Copied!

@startuml
node Mamal
component Dog

url of Mamal is [[http://www.google.com]]
url of Dog is [[http://www.yahoo.com{This is Dog}]]
@enduml

[Ref. Incubation: URL in diagrams]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Links in arrow (or Hyperlinks in link or connection)

Class diagram

You can use the same syntax as above in the arrow name. It makes an underlined link:

🎉 Copied!

@startuml
class Car
Car "1" *-- "*" Wheel : [[http://plantuml.com/class-diagram has some]]
@enduml

Or you can use this syntax. It doesn't underline the link, though it's still clickable:

🎉 Copied!

@startuml
class Car
Car "1" *-- "*" Wheel [[http://plantuml.com/class-diagram]] : has some
@enduml

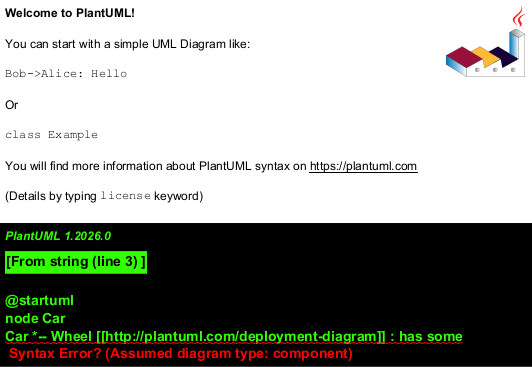

Component or Deployment diagram

FIXME
🚩 See Wanted features QA-6397
FIXME

🎉 Copied!

@startuml
node Car
Car *-- Wheel [[http://plantuml.com/deployment-diagram]] : has some
@enduml

[Ref. QA-6397]

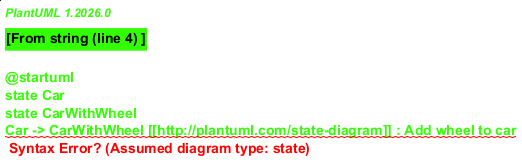

State diagram

FIXME
🚩 Same Issue
FIXME

🎉 Copied!

@startuml
state Car
state CarWithWheel
Car -> CarWithWheel [[http://plantuml.com/state-diagram]] : Add wheel to car
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Specific SkinParameter for Link

hyperlinkColor

You can change the color value of the links with the hyperlinkColor setting.

🎉 Copied!

@startuml
:hyperlinkColor setting, by default;
:[[http://plantuml.com]];
@enduml

🎉 Copied!

@startuml
skinparam hyperlinkColor red
:hyperlinkColor setting;
:[[http://plantuml.com]];
@enduml

[Ref. QA-2322]

hyperlinkUnderline

You can use hyperlinkUnderline to specify the presence and (in PNG only) thickness of hyperlink underlines.

🎉 Copied!

@startuml
skinparam hyperlinkUnderline false
:hyperlinkColor setting;
:[[http://plantuml.com]];
@enduml

🎉 Copied!

@startuml
skinparam hyperlinkUnderline 1
:hyperlinkColor setting;
:[[http://plantuml.com]];
@enduml

🎉 Copied!

@startuml
skinparam hyperlinkUnderline 5
:hyperlinkColor setting;
:[[http://plantuml.com]];
@enduml

[Ref. QA-2866, QA-15114, GH-1241, GH-1411]

topurl

You can use topurl setting, in order to define the prefix for all the links on a PlantUML diagram, as:

🎉 Copied!

@startmindmap

skinparam topurl https://plantuml.com/

* [[index PlantUML website]]
** [[sequence-diagram Sequence]]
** [[mindmap-diagram MindMap]]
** [[wbs-diagram WBS]]
** ...
@endmindmap

[Ref. QA-9016, QA-13179 ]

Other SkinParameter for Link

You can see also on:

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Using (global) style

Without style (by default)

🎉 Copied!

@startuml
title test on HyperlinkColor [[test link]]

 class test <<normal>> {
  * aaa
  + [[normal model]]
  - bb
 }

  class test_with_stereo AS "[[http://www.plantuml.com test]]" <<red>> {
  * aaa
  + [[red model]]
  - bb
 }
@enduml

With style

You can use style to change rendering of elements.

🎉 Copied!

@startuml
<style>
.red {
  HyperlinkColor #FF0000
}
</style>

title test on HyperlinkColor [[test link]]

 class test <<normal>> {
  * aaa
  + [[normal model]]
  - bb
 }

  class test_with_stereo AS "[[http://www.plantuml.com test]]" <<red>> {
  * aaa
  + [[red model]]
  - bb
 }
@enduml

[Ref. QA-8071]
