Salt (Wireframe)

Salt是 PlantUML 的一个子项目，可帮助您设计图形界面或网页。 网站线框或页面示意图或屏幕蓝图.

它在制作图形界面、示意图和蓝图方面非常有用。它有助于将概念结构与视觉设计相统一，强调功能性而非美观性。

开发人员、设计人员和用户体验专业人员使用Wireframes 将界面元素、导航系统可视化，并促进协作。Wireframes 是这一流程的核心，可用于各种学科。它们的保真度各不相同，从低细节草图到高细节表现，对于原型设计和迭代设计至关重要。这一协作过程整合了从业务分析到用户研究等不同的专业知识，确保最终设计符合业务和用户需求。

Edit in DokuwikiEdit in AsciidocEdit in Markdown
基本部件

一个窗口必须以中括号开头和结尾。 接着可以这样定义:
  • 按钮用 [ 和 ]。
  • 单选按钮用 ( 和 )。
  • 复选框用 [ 和 ]。
  • 用户文字域用 "。

🎉 Copied!

@startsalt
{
  Just plain text
  [This is my button]
  ()  Unchecked radio
  (X) Checked radio
  []  Unchecked box
  [X] Checked box
  "Enter text here   "
  ^This is a droplist^
}
@endsalt

这个工具是用来讨论简单的示例窗口。

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Text area

Here is an attempt to create a text area:

🎉 Copied!

@startsalt
{+
   This is a long
   text in a textarea
   .
   "                         "
}
@endsalt

Note:
  • the dot (.) to fill up vertical space;
  • the last line of space ("  ") to make the area wider.

[Ref. QA-14765]

Then you can add scroll bar:

🎉 Copied!

@startsalt
{SI
   This is a long
   text in a textarea
   .
   "                         "
}
@endsalt

🎉 Copied!

@startsalt
{S-
   This is a long
   text in a textarea
   .
   "                         "
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Open, close droplist

You can open a droplist, by adding values enclosed by ^, as:

🎉 Copied!

@startsalt
{
  ^This is a closed droplist^ |
  ^This is an open droplist^^ item 1^^ item 2^ |
  ^This is another open droplist^ item 1^ item 2^
}
@endsalt

[Ref. QA-4184]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
使用表格

当在输入关键词 {后，会自动建立一个表格

当输入| 说明一个单元格

例子如下

🎉 Copied!

@startsalt
{
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

在启用关键词后，你可以使用以下字符来绘制表格中的线及列 :

Symbol Result
# 显示所有垂直水平线
! 显示所有垂直线
- 显示所有水平线
+ 显示外框线

🎉 Copied!

@startsalt
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
分组框

🎉 Copied!

@startsalt
{^"我的分组框"
  用户名 | "MyName   "
  密码 | "****     "
  [取消] | [确认]
}
@endsalt

[参见 QA-5840]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

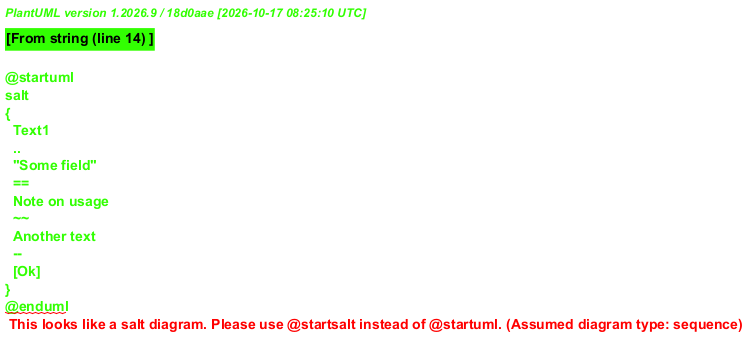

使用分隔符

你可以使用几条横线表示分隔符

🎉 Copied!

@startuml
salt
{
  Text1
  ..
  "Some field"
  ==
  Note on usage
  ~~
  Another text
  --
  [Ok]
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
树形外挂

使用树结构，你必须要 以 {T 进行起始，然后使用 + 定义层次。

🎉 Copied!

@startsalt
{
{T
 + World
 ++ America
 +++ Canada
 +++ USA
 ++++ New York
 ++++ Boston
 +++ Mexico
 ++ Europe
 +++ Italy
 +++ Germany
 ++++ Berlin
 ++ Africa
}
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Tree table [T]

You can combine trees with tables.

🎉 Copied!

@startsalt
{
{T
+Region        | Population    | Age
+ World        | 7.13 billion  | 30
++ America     | 964 million   | 30
+++ Canada     | 35 million    | 30
+++ USA        | 319 million   | 30
++++ NYC       | 8 million     | 30
++++ Boston    | 617 thousand  | 30
+++ Mexico     | 117 million   | 30
++ Europe      | 601 million   | 30
+++ Italy      | 61 million    | 30
+++ Germany    | 82 million    | 30
++++ Berlin    | 3 million     | 30
++ Africa      | 1 billion     | 30
}
}
@endsalt

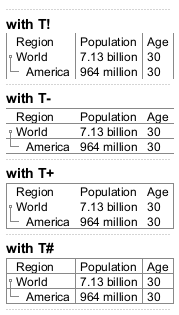

And add lines.

🎉 Copied!

@startsalt
{
..
== with T!
{T!
+Region        | Population    | Age
+ World        | 7.13 billion  | 30
++ America     | 964 million   | 30
}
..
== with T-
{T-
+Region        | Population    | Age
+ World        | 7.13 billion  | 30
++ America     | 964 million   | 30
}
..
== with T+
{T+
+Region        | Population    | Age
+ World        | 7.13 billion  | 30
++ America     | 964 million   | 30
}
..
== with T#
{T#
+Region        | Population    | Age
+ World        | 7.13 billion  | 30
++ America     | 964 million   | 30
}
..
}
@endsalt

[Ref. QA-1265]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Enclosing brackets [{, }]

You can define subelements by opening a new opening bracket.

🎉 Copied!

@startsalt
{
Name         | "                 "
Modifiers:   | { (X) public | () default | () private | () protected
                [] abstract | [] final   | [] static }
Superclass:  | { "java.lang.Object " | [Browse...] }
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
添加选项卡

你可以通过 {/ 标记增加对应的选项卡。 注意：可以使用HTML 代码来增加粗体效果。

🎉 Copied!

@startsalt
{+
{/ <b>General | Fullscreen | Behavior | Saving }
{
{ Open image in: | ^Smart Mode^ }
[X] Smooth images when zoomed
[X] Confirm image deletion
[ ] Show hidden images
}
[Close]
}
@endsalt

可以定义垂直选项卡，如下:

🎉 Copied!

@startsalt
{+
{/ <b>General
Fullscreen
Behavior
Saving } |
{
{ Open image in: | ^Smart Mode^ }
[X] Smooth images when zoomed
[X] Confirm image deletion
[ ] Show hidden images
[Close]
}
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
使用菜单

你可以使用记号{*来添加菜单。

🎉 Copied!

@startsalt
{+
{* File | Edit | Source | Refactor }
{/ General | Fullscreen | Behavior | Saving }
{
{ Open image in: | ^Smart Mode^ }
[X] Smooth images when zoomed
[X] Confirm image deletion
[ ] Show hidden images
}
[Close]
}
@endsalt

你也可以打开一个菜单：

🎉 Copied!

@startsalt
{+
{* File | Edit | Source | Refactor
 Refactor | New | Open File | - | Close | Close All }
{/ General | Fullscreen | Behavior | Saving }
{
{ Open image in: | ^Smart Mode^ }
[X] Smooth images when zoomed
[X] Confirm image deletion
[ ] Show hidden images
}
[Close]
}
@endsalt

*[Ref. [QA-4184](https://forum.plantuml.net/4184)]*

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
高级表格

对于表格有两种特殊的标记 :
  • * 单元格同时具备 span 和 left 两个属性
  • . 是空白单元格

🎉 Copied!

@startsalt
{#
. | Column 2 | Column 3
Row header 1 | value 1 | value 2
Row header 2 | A long cell | *
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Scroll Bars [S, SI, S-]

You can use {S notation for scroll bar like in following examples:

  • {S: for horizontal and vertical scrollbars

🎉 Copied!

@startsalt
{S
Message
.
.
.
.
}
@endsalt

  • {SI : for vertical scrollbar only

🎉 Copied!

@startsalt
{SI
Message
.
.
.
.
}
@endsalt

  • {S- : for horizontal scrollbar only

🎉 Copied!

@startsalt
{S-
Message
.
.
.
.
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Colors

It is possible to change text color of widget.

🎉 Copied!

@startsalt
{
  <color:Blue>Just plain text
  [This is my default button]
  [<color:green>This is my green button]
  [<color:#9a9a9a>This is my disabled button]
  []  <color:red>Unchecked box
  [X] <color:green>Checked box
  "Enter text here   "
  ^This is a droplist^
  ^<color:#9a9a9a>This is a disabled droplist^
  ^<color:red>This is a red droplist^
}
@endsalt

[Ref. QA-12177]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

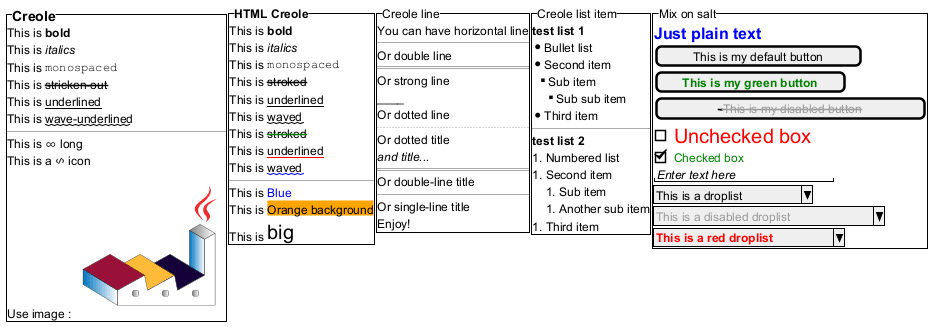

Creole on Salt

You can use Creole or HTML Creole on salt:

🎉 Copied!

@startsalt
{{^==Creole
  This is **bold**
  This is //italics//
  This is ""monospaced""
  This is --stricken-out--
  This is __underlined__
  This is ~~wave-underlined~~
  --test Unicode and icons--
  This is <U+221E> long
  This is a <&code> icon
  Use image : <img:https://plantuml.com/logo3.png>
}|
{^<b>HTML Creole
 This is <b>bold</b>
  This is <i>italics</i>
  This is <font:monospaced>monospaced</font>
  This is <s>stroked</s>
  This is <u>underlined</u>
  This is <w>waved</w>
  This is <s:green>stroked</s>
  This is <u:red>underlined</u>
  This is <w:#0000FF>waved</w>
  -- other examples --
  This is <color:blue>Blue</color>
  This is <back:orange>Orange background</back>
  This is <size:20>big</size>
}|
{^Creole line
You can have horizontal line
----
Or double line
====
Or strong line
____
Or dotted line
..My title..
Or dotted title
//and title... //
==Title==
Or double-line title
--Another title--
Or single-line title
Enjoy!
}|
{^Creole list item
**test list 1**
* Bullet list
* Second item
** Sub item
*** Sub sub item
* Third item
----
**test list 2**
# Numbered list
# Second item
## Sub item
## Another sub item
# Third item
}|
{^Mix on salt
  ==<color:Blue>Just plain text
  [This is my default button]
  [<b><color:green>This is my green button]
  [ ---<color:#9a9a9a>This is my disabled button-- ]
  []  <size:20><color:red>Unchecked box
  [X] <color:green>Checked box
  "//Enter text here//   "
  ^This is a droplist^
  ^<color:#9a9a9a>This is a disabled droplist^
  ^<b><color:red>This is a red droplist^
}}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown

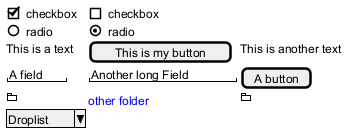

Pseudo sprite [<<, >>]

Using << and >> you can define a pseudo-sprite or sprite-like drawing and reusing it latter.

🎉 Copied!

@startsalt
 {
 [X] checkbox|[] checkbox
 () radio | (X) radio
 This is a text|[This is my button]|This is another text
 "A field"|"Another long Field"|[A button]
 <<folder
 ............
 .XXXXX......
 .X...X......
 .XXXXXXXXXX.
 .X........X.
 .X........X.
 .X........X.
 .X........X.
 .XXXXXXXXXX.
 ............
 >>|<color:blue>other folder|<<folder>>
^Droplist^
}
@endsalt

[Ref. QA-5849]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
OpenIconic

OpenIconic is an very nice open source icon set. Those icons have been integrated into the creole parser, so you can use them out-of-the-box.

You can use the following syntax: <&ICON_NAME>.

🎉 Copied!

@startsalt
{
  Login<&person> | "MyName   "
  Password<&key> | "****     "
  [Cancel <&circle-x>] | [OK <&account-login>]
}
@endsalt

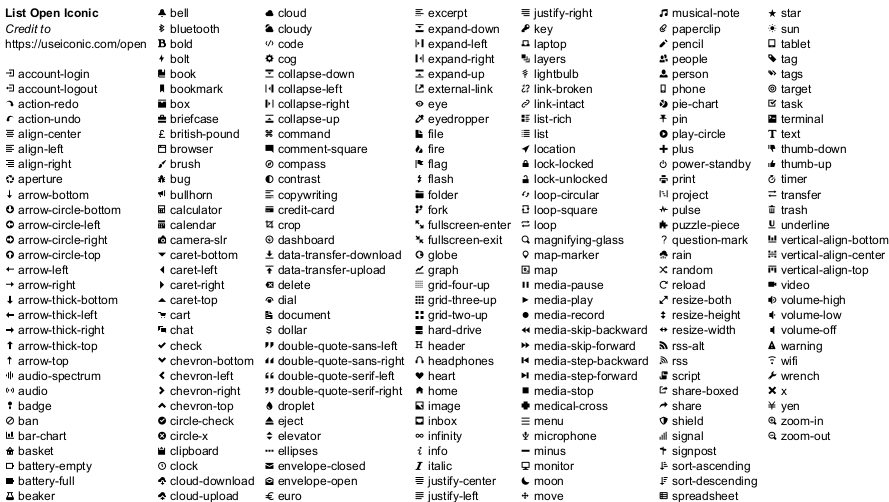

The complete list is available on OpenIconic Website, or you can use the following special diagram:

🎉 Copied!

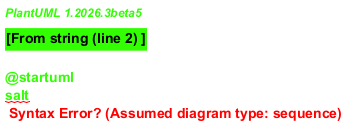

@startuml
listopeniconic
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Add title, header, footer, caption or legend

🎉 Copied!

@startsalt
title My title
header some header
footer some footer
caption This is caption
legend
The legend
end legend

{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}

@endsalt

(See also: Common commands)

Edit in DokuwikiEdit in AsciidocEdit in Markdown

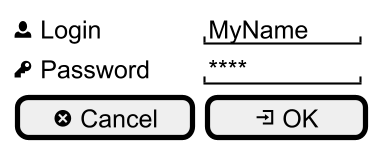

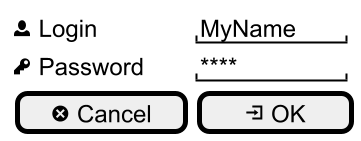

Zoom, DPI

Whitout zoom (by default)

🎉 Copied!

@startsalt
{
  <&person> Login  | "MyName   "
  <&key> Password  | "****     "
  [<&circle-x> Cancel ] | [ <&account-login> OK   ]
}
@endsalt

Scale

You can use the scale command to zoom the generated image.

You can use either a number or a fraction to define the scale factor. You can also specify either width or height (in pixel). And you can also give both width and height: the image is scaled to fit inside the specified dimension.

🎉 Copied!

@startsalt
scale 2
{
  <&person> Login  | "MyName   "
  <&key> Password  | "****     "
  [<&circle-x> Cancel ] | [ <&account-login> OK   ]
}
@endsalt

(See also: Zoom on Common commands)

DPI

You can also use the skinparam dpicommand to zoom the generated image.

🎉 Copied!

@startsalt
skinparam dpi 200
{
  <&person> Login  | "MyName   "
  <&key> Password  | "****     "
  [<&circle-x> Cancel ] | [ <&account-login> OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown

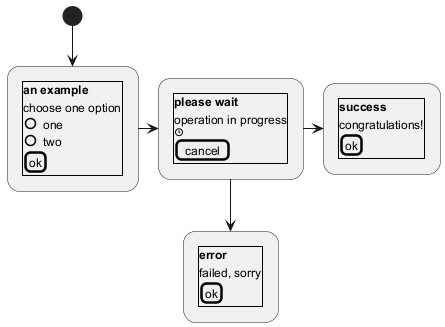

Include Salt "on activity diagram"

You can read the following explanation.

🎉 Copied!

@startuml
(*) --> "
{{
salt
{+
<b>an example
choose one option
()one
()two
[ok]
}
}}
" as choose

choose -right-> "
{{
salt
{+
<b>please wait
operation in progress
<&clock>
[cancel]
}
}}
" as wait
wait -right-> "
{{
salt
{+
<b>success
congratulations!
[ok]
}
}}
" as success

wait -down-> "
{{
salt
{+
<b>error
failed, sorry
[ok]
}
}}
"
@enduml

It can also be combined with define macro.

🎉 Copied!

@startuml
!unquoted procedure SALT($x)
"{{
salt
%invoke_procedure("_"+$x)
}}" as $x
!endprocedure

!procedure _choose()
{+
<b>an example
choose one option
()one
()two
[ok]
}
!endprocedure

!procedure _wait()
{+
<b>please wait
operation in progress
<&clock>
[cancel]
}
!endprocedure

!procedure _success()
{+
<b>success
congratulations!
[ok]
}
!endprocedure

!procedure _error()
{+
<b>error
failed, sorry
[ok]
}
!endprocedure

(*) --> SALT(choose)
-right-> SALT(wait)
wait -right-> SALT(success)
wait -down-> SALT(error)
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

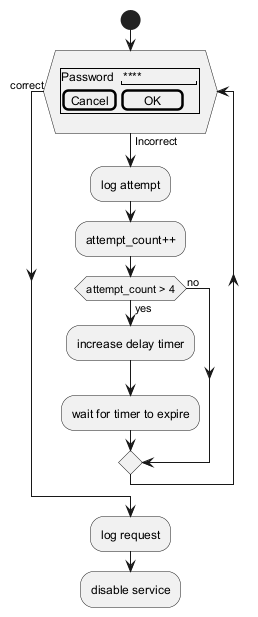

Include salt "on while condition of activity diagram"

You can include salt on while condition of activity diagram.

🎉 Copied!

@startuml
start
while (\n{{\nsalt\n{+\nPassword | "****     "\n[Cancel] | [  OK   ]}\n}}\n) is (Incorrect)
  :log attempt;
  :attempt_count++;
  if (attempt_count > 4) then (yes)
    :increase delay timer;
    :wait for timer to expire;
  else (no)
  endif
endwhile (correct)
:log request;
:disable service;
@enduml

[Ref. QA-8547]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

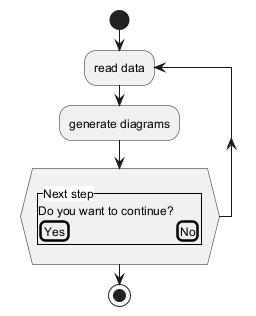

Include salt "on repeat while condition of activity diagram"

You can include salt on 'repeat while' condition of activity diagram.

🎉 Copied!

@startuml
start
repeat :read data;
  :generate diagrams;
repeat while (\n{{\nsalt\n{^"Next step"\n  Do you want to continue? \n[Yes]|[No]\n}\n}}\n)
stop
@enduml

[Ref. QA-14287]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Skinparam

You can use [only] some skinparam command to change the skin of the drawing.

Some example:

🎉 Copied!

@startsalt
skinparam Backgroundcolor palegreen
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

🎉 Copied!

@startsalt
skinparam handwritten true
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

FIXME
🚩 FYI, some other skinparam does not work with salt, as:

🎉 Copied!

@startsalt
skinparam defaultFontName monospaced
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Style

You can use [only] some style command to change the skin of the drawing.

Some example:

🎉 Copied!

@startsalt
<style>
saltDiagram {
  BackgroundColor palegreen
}
</style>
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

FIXME
🚩 FYI, some other style does not work with salt, as:

🎉 Copied!

@startsalt
<style>
saltDiagram {
  Fontname Monospaced
  FontSize 10
  FontStyle italic
  LineThickness 0.5
  LineColor red
}
</style>
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

[Ref. QA-13460]

Privacy Policy      Advertise
