时序图

UML 中的时序图是一种特定类型的交互图，可视化系统的时序约束。它侧重于事件的时间顺序，展示不同对象如何随着时间的推移相互影响。定时图在实时系统和嵌入式系统中特别有用，可用于了解对象在整个给定时间段内的行为。

[Ref. of initial request QA-5383]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
声明参与者

使用以下关键字声明参与者, 可根据需要选择显示样式。

关键词 描述
analog 模拟信号的变化是连续的，其值在给定值之间会进行线性插值。
binary 二进制信号，只有两个状态。 (binary)
clock 时钟信号 ，即从高电平到低电平反复转换的信号，需要用period设置周期。可选的参数还有脉冲时长pulse和偏移量offset
concise 简明的图形化数据表示，可表示数据的移动（非常适合表示信息）。
robust 用信号线表示的状态，便于呈现状态间的转化（可设置多种状态）。

通过 @ 标注, 和 is 动词定义状态.

🎉 Copied!

@startuml
robust "Web 浏览器" as WB
concise "Web 用户" as WU

@0
WU is 空闲
WB is 空闲

@100
WU is 等待中
WB is 处理中

@300
WB is 等待中
@enduml

🎉 Copied!

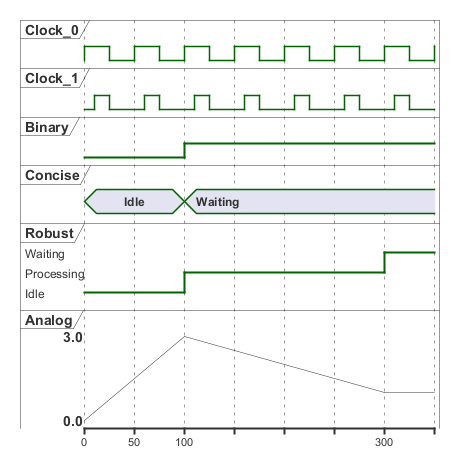

@startuml
clock   "Clock_0"   as C0 with period 50
clock   "Clock_1"   as C1 with period 50 pulse 15 offset 10
binary  "Binary"  as B
concise "Concise" as C
robust  "Robust"  as R
analog  "Analog"  as A


@0
C is Idle
R is Idle
A is 0

@100
B is high
C is Waiting
R is Processing
A is 3

@300
R is Waiting
A is 1
@enduml

[Ref. QA-14631 and QA-14647 and QA-11288]

[Ref. QA-14631, QA-14647, QA-11288 and GH-2409]
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown

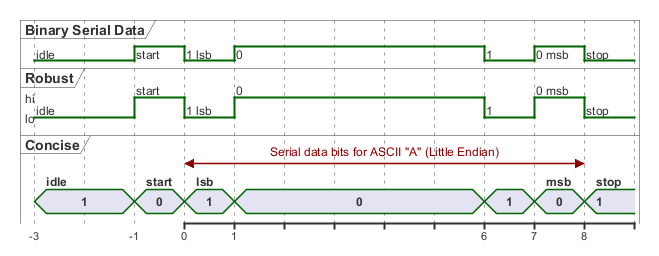

二进制及时钟信号

使用以下关键字可以绘制二进制及时钟信号：

🎉 Copied!

@startuml

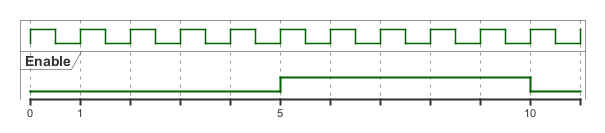

clock clk with period 1
binary "Enable" as EN

@0
EN is low

@5
EN is high

@10
EN is low
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
增加标示

使用下述的语法，增加对某一时刻信号变动的描述。

🎉 Copied!

@startuml
robust "Web 浏览器" as WB
concise "Web 用户" as WU

@0
WU is 空闲
WB is 空闲

@100
WU -> WB : URL
WU is 等待中
WB is 处理中

@300
WB is 等待中
@enduml
@enduml

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
相对时间

可以使用 @+和@- 符号表示相对时间.

🎉 Copied!

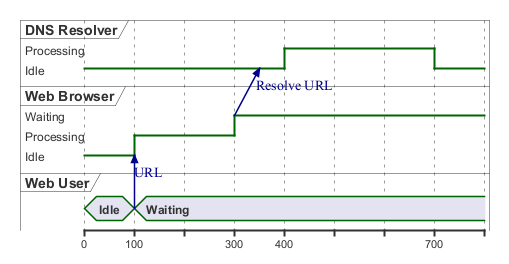

@startuml
robust "DNS Resolver" as DNS
robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle
DNS is Idle

@+100
WU -> WB : URL
WU is Waiting
WB is Processing

@+200
WB is Waiting
WB -> DNS@+50 : Resolve URL

@+100
DNS is Processing

@+300
DNS is Idle
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
锚点

，而不是在绝对时间上使用绝对时间或相对时间，你可以通过使用as 关键字和以: 开始的名称来定义一个时间作为锚点。

@XX as :<anchor point name>

🎉 Copied!

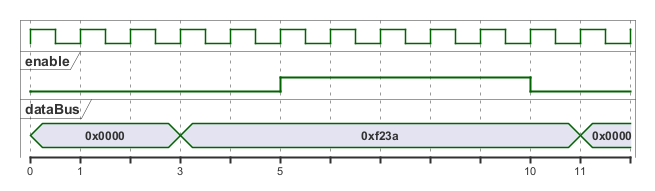

@startuml
clock clk with period 1
binary "enable" as EN
concise "dataBus" as db

@0 as :start
@5 as :en_high
@10 as :en_low
@:en_high-2 as :en_highMinus2

@:start
EN is low
db is "0x0000"

@:en_high
EN is high

@:en_low
EN is low

@:en_highMinus2
db is "0xf23a"

@:en_high+6
db is "0x0000"
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Anchor Points with decimal offset

🎉 Copied!

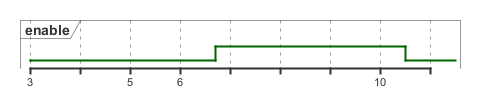

@startuml
binary "enable" as EN

@3          as :start
@5.5        as :en_high
@10         as :en_low
@:en_high-2 as :en_highMinus2

@:start
EN is low

@:en_high+1.2
EN is high

@10.5
EN is low
@enduml

[Ref. QA-17885]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
参与者

按时间顺序来描述状态变化可能会有些麻烦，不如将每个参与者的变化放在一起。

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

@WB
0 is idle
+200 is Proc.
+100 is Waiting

@WU
0 is Waiting
+500 is ok
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

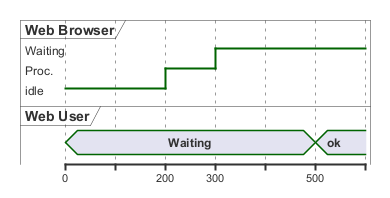

设置缩放

你还可以设置缩放比例。

🎉 Copied!

@startuml
concise "Web User" as WU
scale 100 as 50 pixels

@WU
0 is Waiting
+500 is ok
@enduml

当使用绝对时间或者日期时，1单位为1秒。

🎉 Copied!

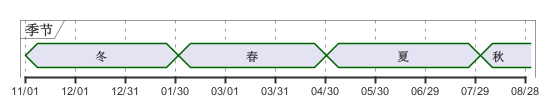

@startuml
concise "季节" as S
'这里将30天缩放到50像素
scale 2592000 as 50 pixels

@2000/11/01
S is "冬"

@2001/02/01
S is "春"

@2001/05/01
S is "夏"

@2001/08/01
S is "秋"
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
初始状态

你可以定义初始状态。

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting

@WU
0 is Waiting
+500 is ok
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
模糊状态

一个信号在某个时段可能是模糊的，有多个可能的状态区间。

模糊或者未定义鲁棒状态信号

🎉 Copied!

@startuml
robust "Signal1" as S1
robust "Signal2" as S2
S1 has 0,1,2,hello
S2 has 0,1,2
@0
S1 is 0
S2 is 0
@100
S1 is {0,1} #SlateGrey
S2 is {0,1}
@200
S1 is 1
S2 is 0
@300
S1 is hello
S2 is {0,2}
@enduml

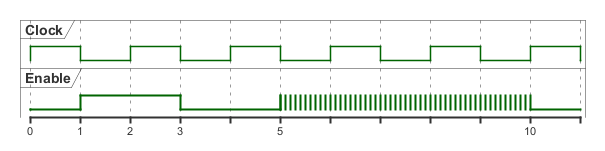

模糊或者未定义二进制信号

🎉 Copied!

@startuml
clock "Clock" as C with period 2
binary "Enable" as EN

@0
EN is low
@1
EN is high
@3
EN is low
@5
EN is {low,high}
@10
EN is low
@enduml

[ Ref. QA-11936 and QA-15933 ]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
隐藏状态

可以隐藏某个时段的状态。

🎉 Copied!

@startuml
concise "Web User" as WU

@0
WU is {-}

@100
WU is A1

@200
WU is {-}

@300
WU is {hidden}

@400
WU is A3

@500
WU is {-}
@enduml

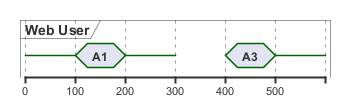

🎉 Copied!

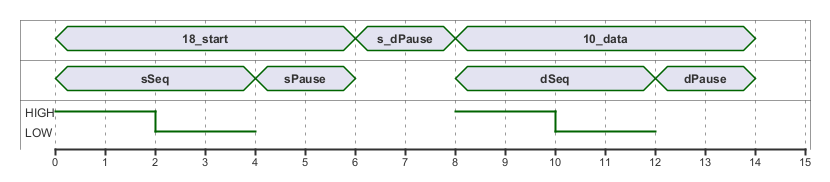

@startuml
scale 1 as 50 pixels

concise state0
concise substate1
robust bit2

bit2 has HIGH,LOW

@state0
0 is 18_start
6 is s_dPause
8 is 10_data
14 is {hidden}

@substate1
0 is sSeq
4 is sPause
6 is {hidden}
8 is dSeq
12 is dPause
14 is {hidden}

@bit2
0 is HIGH
2 is LOW
4 is {hidden}
8 is HIGH
10 is LOW
12 is {hidden}
@enduml

[Ref.QA-12222]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

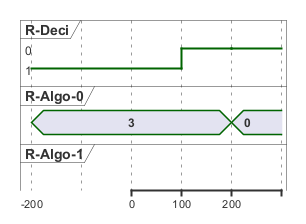

Negative time value

🎉 Copied!

@startuml
robust "R-Deci" as RD
concise "R-Algo-0" as RA0
robust "R-Algo-1" as RA1

@200
RD is 0
RA0 is 0

@-200
RD is 1
RA0 is 3

@100
RD is 0
@enduml

[Ref. QA-7698]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
隐藏时间轴

可以隐藏时间轴。

🎉 Copied!

@startuml
hide time-axis
concise "Web User" as WU

WU is Absent

@WU
0 is Waiting
+500 is ok
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
使用日期

时间轴除时间以外也可以改用日期表示。

🎉 Copied!

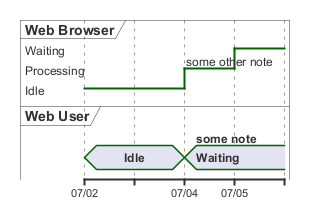

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

@2019/07/02
WU is Idle
WB is Idle

@2019/07/04
WU is Waiting : some note
WB is Processing : some other note

@2019/07/05
WB is Waiting
@enduml

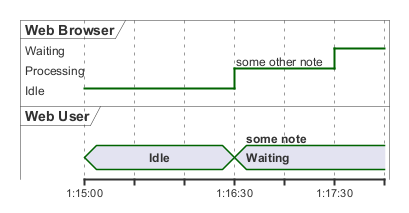

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

@1:15:00
WU is Idle
WB is Idle

@1:16:30
WU is Waiting : some note
WB is Processing : some other note

@1:17:30
WB is Waiting
@enduml

*[Ref. [QA-7019](https://forum.plantuml.net/7019/hh-mm-ss-time-format-in-timing-diagram)]*

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Change Date Format

It is also possible to change date format.

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

use date format "YY-MM-dd"

@2019/07/02
WU is Idle
WB is Idle

@2019/07/04
WU is Waiting : some note
WB is Processing : some other note

@2019/07/05
WB is Waiting
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Manage time axis labels

You can manage the time-axis labels.

Label on each tick (by default)

🎉 Copied!

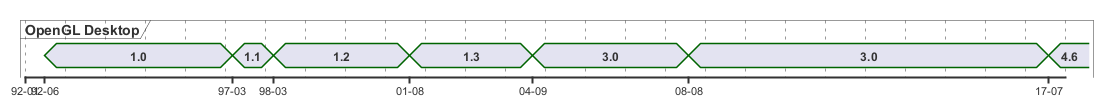

@startuml
scale 31536000 as 40 pixels
use date format "yy-MM"

concise "OpenGL Desktop" as OD

@1992/01/01
OD is {hidden}

@1992/06/30
OD is 1.0

@1997/03/04
OD is 1.1

@1998/03/16
OD is 1.2

@2001/08/14
OD is 1.3

@2004/09/07
OD is 3.0

@2008/08/01
OD is 3.0

@2017/07/31
OD is 4.6

@enduml

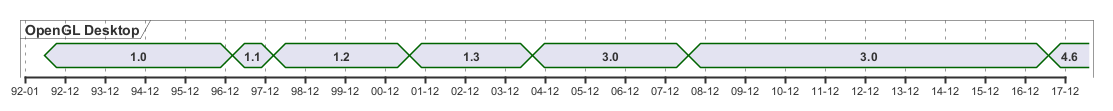

Manual label (only when the state changes)

🎉 Copied!

@startuml
scale 31536000 as 40 pixels

manual time-axis
use date format "yy-MM"

concise "OpenGL Desktop" as OD

@1992/01/01
OD is {hidden}

@1992/06/30
OD is 1.0

@1997/03/04
OD is 1.1

@1998/03/16
OD is 1.2

@2001/08/14
OD is 1.3

@2004/09/07
OD is 3.0

@2008/08/01
OD is 3.0

@2017/07/31
OD is 4.6

@enduml

[Ref. GH-1020]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

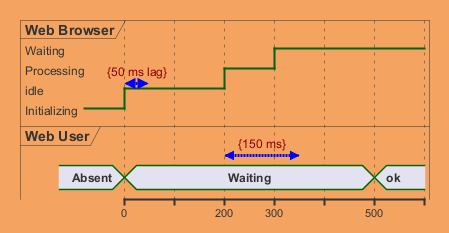

添加约束

可以在图上标示时间约束。

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

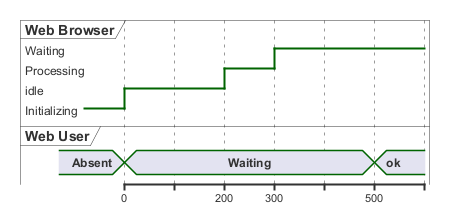

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}

@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml

= 设置高亮

你可以给图表中的某一时段设置高亮。

🎉 Copied!

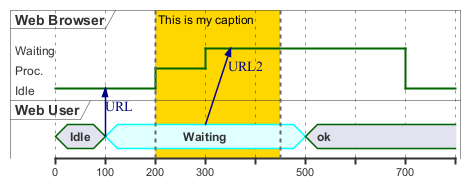

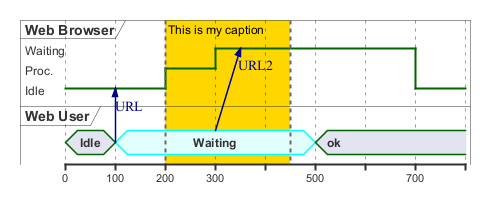

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU -> WB : URL
WU is Waiting #LightCyan;line:Aqua

@200
WB is Proc.

@300
WU -> WB@350 : URL2
WB is Waiting

@+200
WU is ok

@+200
WB is Idle

highlight 200 to 450 #Gold;line:DimGrey : This is my caption
@enduml

*[Ref. [QA-10868](https://forum.plantuml.net/10868/highlighted-periods-in-timing-diagrams)]*

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
添加注释

你可以使用 note top of 或 note bottom of 关键字在某一时刻或参与者的上方或下方添加注释 （只可以在 concise 类型的参与者中使用）。

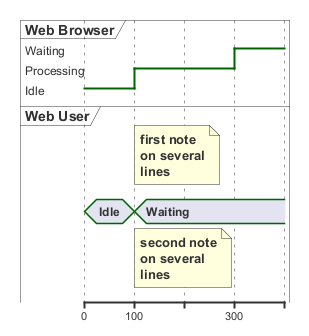

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU is Waiting
WB is Processing
note top of WU : first note\non several\nlines
note bottom of WU : second note\non several\nlines

@300
WB is Waiting
@enduml

[Ref. QA-6877]

*[Ref. [QA-6877](https:forum.plantuml.net/6877), [GH-1465](https:github.com/plantuml/plantuml/issues/1465)]*
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown

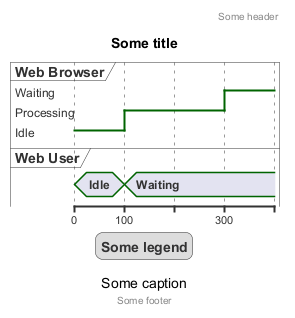

添加文本

你可以选择添加标题、页眉、页脚、图例和说明。

🎉 Copied!

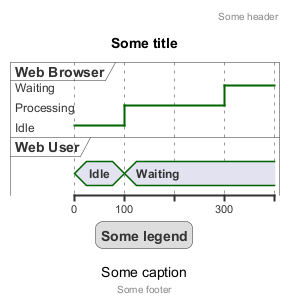

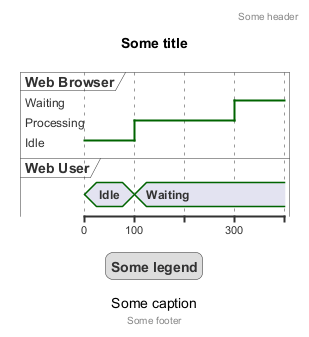

@startuml
Title Some title
header: Some header
footer: Some footer
legend
Some legend
end legend
caption Some caption

robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU is Waiting
WB is Processing

@300
WB is Waiting
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

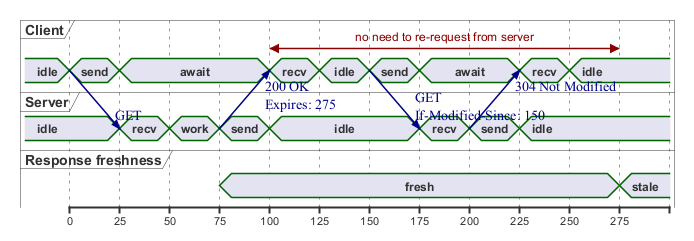

完整样例

感谢Adam Rosien提供该样例。

🎉 Copied!

@startuml
concise "Client" as Client
concise "Server" as Server
concise "Response freshness" as Cache

Server is idle
Client is idle

@Client
0 is send
Client -> Server@+25 : GET
+25 is await
+75 is recv
+25 is idle
+25 is send
Client -> Server@+25 : GET\nIf-Modified-Since: 150
+25 is await
+50 is recv
+25 is idle
@100 <-> @275 : no need to re-request from server

@Server
25 is recv
+25 is work
+25 is send
Server -> Client@+25 : 200 OK\nExpires: 275
+25 is idle
+75 is recv
+25 is send
Server -> Client@+25 : 304 Not Modified
+25 is idle

@Cache
75 is fresh
+200 is stale
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

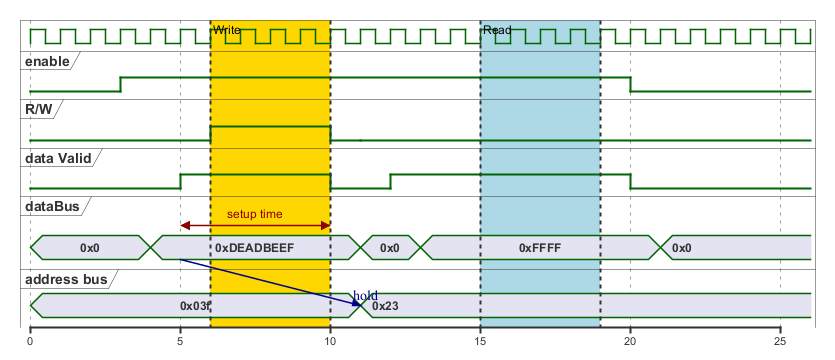

数据表示样例

🎉 Copied!

@startuml
scale 5 as 150 pixels

clock clk with period 1
binary "enable" as en
binary "R/W" as rw
binary "data Valid" as dv
concise "dataBus" as db
concise "address bus" as addr

@6 as :write_beg
@10 as :write_end

@15 as :read_beg
@19 as :read_end


@0
en is low
db is "0x0"
addr is "0x03f"
rw is low
dv is 0

@:write_beg-3
 en is high
@:write_beg-2
 db is "0xDEADBEEF"
@:write_beg-1
dv is 1
@:write_beg
rw is high


@:write_end
rw is low
dv is low
@:write_end+1
rw is low
db is "0x0"
addr is "0x23"

@12
dv is high
@13
db is "0xFFFF"

@20
en is low
dv is low
@21
db is "0x0"

highlight :write_beg to :write_end #Gold:Write
highlight :read_beg to :read_end #lightBlue:Read

db@:write_beg-1 <-> @:write_end : setup time
db@:write_beg-1 -> addr@:write_end+1 : hold
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
颜色

你可以为图表添加颜色。

🎉 Copied!

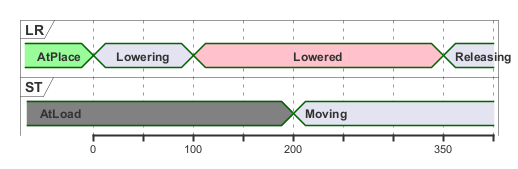

@startuml
concise "LR" as LR
concise "ST" as ST

LR is AtPlace #palegreen
ST is AtLoad #gray

@LR
0 is Lowering
100 is Lowered #pink
350 is Releasing

@ST
200 is Moving
@enduml

[Ref.QA-5776]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
使用（全局）样式

无样式（默认样式）。

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}

@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml

设置样式

你可以使用样式来改变元素的渲染。

🎉 Copied!

@startuml
<style>
timingDiagram {
  document {
    BackGroundColor SandyBrown
  }
 constraintArrow {
  LineStyle 2-1
  LineThickness 3
  LineColor Blue
 }
}
</style>
robust "Web Browser" as WB
concise "Web User" as WU

WB is Initializing
WU is Absent

@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}

@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml

[Ref.QA-14340]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
对特定行着色

可以使用 <style> 标记和模板将行属性命名

🎉 Copied!

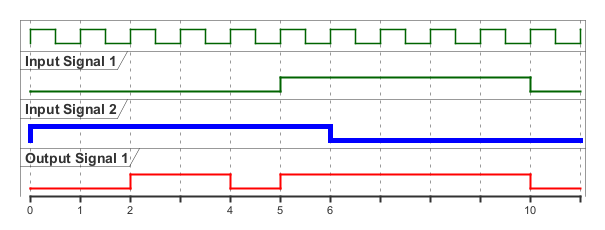

@startuml
<style>
timingDiagram {
  .red {
    LineColor red
  }
  .blue {
    LineColor blue
    LineThickness 5
  }
}
</style>

clock clk with period 1
binary "Input Signal 1"  as IS1
binary "Input Signal 2"  as IS2 <<blue>>
binary "Output Signal 1" as OS1 <<red>>

@0
IS1 is low
IS2 is high
OS1 is low
@2
OS1 is high
@4
OS1 is low
@5
IS1 is high
OS1 is high
@6
IS2 is low
@10
IS1 is low
OS1 is low
@enduml

[Ref. QA-15870]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
紧凑模式

可以使用 compact 命令进行紧凑排版

默认模式

🎉 Copied!

@startuml
robust "Web Browser" as WB
concise "Web User" as WU
robust "Web Browser2" as WB2

@0
WU is Waiting
WB is Idle
WB2 is Idle

@200
WB is Proc.

@300
WB is Waiting
WB2 is Waiting

@500
WU is ok

@700
WB is Idle
@enduml

使用 mode compact 的全局紧凑模式

🎉 Copied!

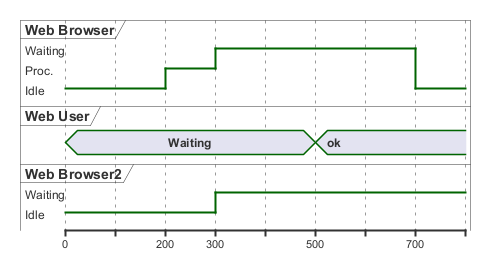

@startuml
mode compact
robust "Web Browser" as WB
concise "Web User" as WU
robust "Web Browser2" as WB2

@0
WU is Waiting
WB is Idle
WB2 is Idle

@200
WB is Proc.

@300
WB is Waiting
WB2 is Waiting

@500
WU is ok

@700
WB is Idle
@enduml

使用 compact 实现仅针对元素的局部紧凑模式

🎉 Copied!

@startuml
compact robust "Web Browser" as WB
compact concise "Web User" as WU
robust "Web Browser2" as WB2

@0
WU is Waiting
WB is Idle
WB2 is Idle

@200
WB is Proc.

@300
WB is Waiting
WB2 is Waiting

@500
WU is ok

@700
WB is Idle
@enduml

[Ref. QA-11130]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Scaling analog signal

You can scale analog signal.

Without scaling: 0-max (by default)

🎉 Copied!

@startuml
title Between 0-max (by default)
analog "Analog" as A

@0
A is 350

@100
A is 450

@300
A is 350
@enduml

With scaling: min-max

🎉 Copied!

@startuml
title Between min-max
analog "Analog" between 350 and 450 as A

@0
A is 350

@100
A is 450

@300
A is 350
@enduml

[Ref. QA-17161]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Customise analog signal

Without any customisation (by default)

🎉 Copied!

@startuml
analog "Vcore" as VDD
analog "VCC" as VCC

@0
VDD is 0
VCC is 3
@2
VDD is 0
@3
VDD is 6
VCC is 6
VDD@1 -> VCC@2 : "test"
@enduml

With customisation (on scale, ticks and height)

🎉 Copied!

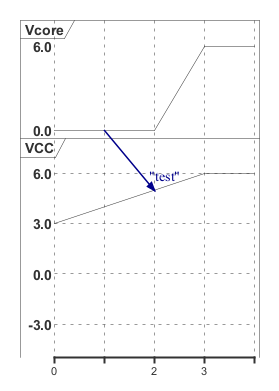

@startuml
analog "Vcore" as VDD
analog "VCC" between -4.5 and 6.5 as VCC
VCC ticks num on multiple 3
VCC is 200 pixels height

@0
VDD is 0
VCC is 3
@2
VDD is 0
@3
VDD is 6
VCC is 6
VDD@1 -> VCC@2 : "test"
@enduml

[Ref. QA-11288]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Order state of robust signal

Without order (by default)

🎉 Copied!

@startuml

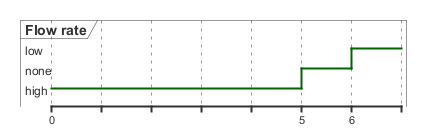

robust "Flow rate" as rate

@0
rate is high

@5
rate is none

@6
rate is low
@enduml

With order

🎉 Copied!

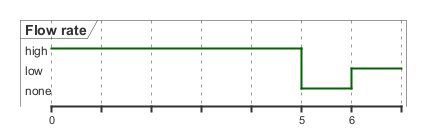

@startuml
robust "Flow rate" as rate
rate has high,low,none

@0
rate is high

@5
rate is none

@6
rate is low
@enduml

With order and label

🎉 Copied!

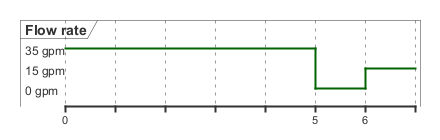

@startuml
robust "Flow rate" as rate
rate has "35 gpm" as high
rate has "15 gpm" as low
rate has "0 gpm" as none

@0
rate is high

@5
rate is none

@6
rate is low
@enduml

[Ref. QA-6651]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Defining a timing diagram

By Clock (@clk)

🎉 Copied!

@startuml
clock "clk" as clk with period 50
concise "Signal1" as S1
robust "Signal2" as S2
binary "Signal3" as S3

@clk*0
S1 is 0
S2 is 0

@clk*1
S1 is 1
S3 is high

@clk*2
S3 is down

@clk*3
S1 is 1
S2 is 1
S3 is 1

@clk*4
S3 is down
@enduml

By Signal (@S)

🎉 Copied!

@startuml

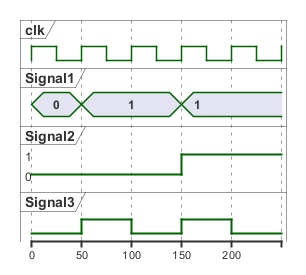

clock "clk" as clk with period 50
concise "Signal1" as S1
robust "Signal2" as S2
binary "Signal3" as S3

@S1
0 is 0
50 is 1
150 is 1

@S2
0 is 0
150 is 1

@S3
50  is 1
100 is low
150 is high
200 is 0
@enduml

By Time (@time)

🎉 Copied!

@startuml
clock "clk" as clk with period 50
concise "Signal1" as S1
robust "Signal2" as S2
binary "Signal3" as S3

@0
S1 is 0
S2 is 0

@50
S1 is 1
S3 is 1

@100
S3 is low

@150
S1 is 1
S2 is 1
S3 is high

@200
S3 is 0
@enduml

[Ref. QA-9053]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Annotate signal with comment

🎉 Copied!

@startuml
binary "Binary Serial Data" as D
robust "Robust" as R
concise "Concise" as C

@-3
D is low: idle
R is lo: idle
C is 1: idle
@-1
D is high: start
R is hi: start
C is 0: start

@0
D is low: 1 lsb
R is lo: 1 lsb
C is 1: lsb

@1
D is high: 0
R is hi: 0
C is 0

@6
D is low: 1
R is lo: 1
C is 1

@7
D is high: 0 msb
R is hi: 0 msb
C is 0: msb

@8
D is low: stop
R is lo: stop
C is 1: stop

@0 <-> @8 : Serial data bits for ASCII "A" (Little Endian)
@enduml

[Ref. QA-15762, and QH-888]
