使用 nwdiag 的网络图

网络图是计算机或电信网络的直观表示。它说明了网络组件（包括服务器、路由器、交换机、集线器和设备）的排列和互连。网络图是网络工程师和管理员了解、设置和排除网络故障的宝贵工具。

nwdiag 由Takeshi Komiya 开发，为快速绘制 网络图提供了一个精简的平台。我们对 Takeshi 开发的这一创新工具表示感谢！

由于其直观的语法，nwdiag已无缝集成到PlantUML 中。这里展示的示例受到了Takeshi 所记录示例的启发。

Edit in DokuwikiEdit in AsciidocEdit in Markdown
简单图示

定义一个网络

🎉 Copied!

@startuml
nwdiag {
  network dmz {
      address = "210.x.x.x/24"
  }
}
@enduml

定义网络中的一些元素或服务器

🎉 Copied!

@startuml
nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      web01 [address = "210.x.x.1"];
      web02 [address = "210.x.x.2"];
  }
}
@enduml

完整的例子

🎉 Copied!

@startuml
nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      web01 [address = "210.x.x.1"];
      web02 [address = "210.x.x.2"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01;
      db02;
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
定义多个地址

🎉 Copied!

@startuml
nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      // set multiple addresses (using comma)
      web01 [address = "210.x.x.1, 210.x.x.20"];
      web02 [address = "210.x.x.2"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01;
      db02;
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
群节点

在网络定义中定义组

🎉 Copied!

@startuml
nwdiag {
  network Sample_front {
    address = "192.168.10.0/24";

    // define group
    group web {
      web01 [address = ".1"];
      web02 [address = ".2"];
    }
  }
  network Sample_back {
    address = "192.168.20.0/24";
    web01 [address = ".1"];
    web02 [address = ".2"];
    db01 [address = ".101"];
    db02 [address = ".102"];

    // define network using defined nodes
    group db {
      db01;
      db02;
    }
  }
}
@enduml

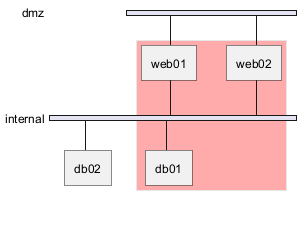

在网络定义之外定义组

🎉 Copied!

@startuml
nwdiag {
  // define group outside of network definitions
  group {
    color = "#FFAAAA";

    web01;
    web02;
    db01;
  }

  network dmz {
    web01;
    web02;
  }
  network internal {
    web01;
    web02;
    db01;
    db02;
  }
}
@enduml

在同一个网络上定义不同的一些组

一个定义了两个组的例子

🎉 Copied!

@startuml
nwdiag {
  group {
    color = "#FFaaaa";
    web01;
    db01;
  }
  group {
    color = "#aaaaFF";
    web02;
    db02;
  }
  network dmz {
      address = "210.x.x.x/24"

      web01 [address = "210.x.x.1"];
      web02 [address = "210.x.x.2"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01 ;
      db02 ;
  }
}
@enduml

[Ref. QA-12663]

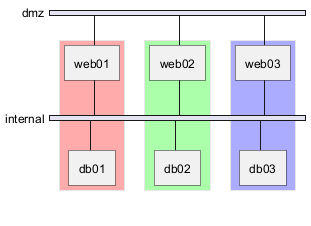

定义了三个组的例子

🎉 Copied!

@startuml
nwdiag {
  group {
    color = "#FFaaaa";
    web01;
    db01;
  }
  group {
    color = "#aaFFaa";
    web02;
    db02;
  }
  group {
    color = "#aaaaFF";
    web03;
    db03;
  }

  network dmz {
      web01;
      web02;
      web03;
  }
  network internal {
      web01;
      db01 ;
      web02;
      db02 ;
      web03;
      db03;
  }
}
@enduml

[Ref. QA-13138]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
拓展语法 (适用于组或者网络)

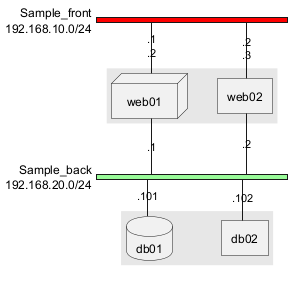

网络

用于网络或者网络的组成部分，你可以添加或者修改:

🎉 Copied!

@startuml
nwdiag {
  network Sample_front {
    address = "192.168.10.0/24"
    color = "red"

    // define group
    group web {
      web01 [address = ".1, .2", shape = "node"]
      web02 [address = ".2, .3"]
    }
  }
  network Sample_back {
    address = "192.168.20.0/24"
    color = "palegreen"
    web01 [address = ".1"]
    web02 [address = ".2"]
    db01 [address = ".101", shape = database ]
    db02 [address = ".102"]

    // define network using defined nodes
    group db {
      db01;
      db02;
    }
  }
}
@enduml

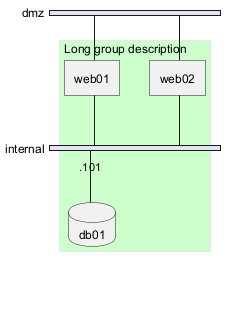

组

对于组，你可以添加或修改:

🎉 Copied!

@startuml
nwdiag {
  group {
    color = "#CCFFCC";
    description = "Long group description";

    web01;
    web02;
    db01;
  }

  network dmz {
    web01;
    web02;
  }
  network internal {
    web01;
    web02;
    db01 [address = ".101", shape = database];
  }
}
@enduml

[Ref. QA-12056]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

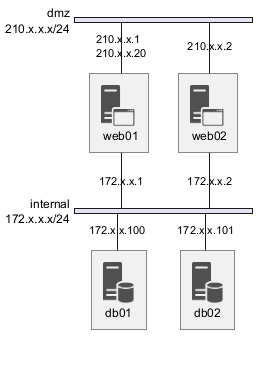

Using Sprites

You can use all sprites (icons) from the Standard Library or any other library.

Use the notation <$sprite> to use a sprite, \n to make a new line, or any other Creole syntax.

🎉 Copied!

@startuml
!include <office/Servers/application_server>
!include <office/Servers/database_server>

nwdiag {
  network dmz {
      address = "210.x.x.x/24"

      // set multiple addresses (using comma)
      web01 [address = "210.x.x.1, 210.x.x.20",  description = "<$application_server>\n web01"]
      web02 [address = "210.x.x.2",  description = "<$application_server>\n web02"];
  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01 [address = "172.x.x.100",  description = "<$database_server>\n db01"];
      db02 [address = "172.x.x.101",  description = "<$database_server>\n db02"];
  }
}
@enduml

[Ref. QA-11862]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

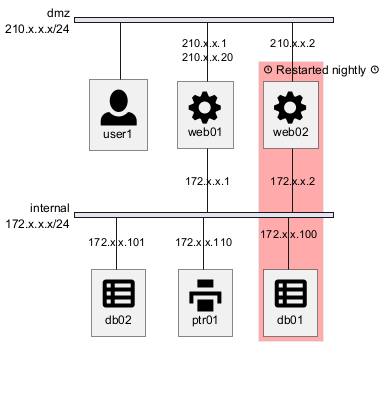

Using OpenIconic

You can also use the icons from OpenIconic in network or node descriptions.

Use the notation <&icon> to make an icon, <&icon*n> to multiply the size by a factor n, and \n to make a newline:

🎉 Copied!

@startuml

nwdiag {
  group nightly {
    color = "#FFAAAA";
    description = "<&clock> Restarted nightly <&clock>";
    web02;
    db01;
  }
  network dmz {
      address = "210.x.x.x/24"

      user [description = "<&person*4.5>\n user1"];
      // set multiple addresses (using comma)
      web01 [address = "210.x.x.1, 210.x.x.20",  description = "<&cog*4>\nweb01"]
      web02 [address = "210.x.x.2",  description = "<&cog*4>\nweb02"];

  }
  network internal {
      address = "172.x.x.x/24";

      web01 [address = "172.x.x.1"];
      web02 [address = "172.x.x.2"];
      db01 [address = "172.x.x.100",  description = "<&spreadsheet*4>\n db01"];
      db02 [address = "172.x.x.101",  description = "<&spreadsheet*4>\n db02"];
      ptr  [address = "172.x.x.110",  description = "<&print*4>\n ptr01"];
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

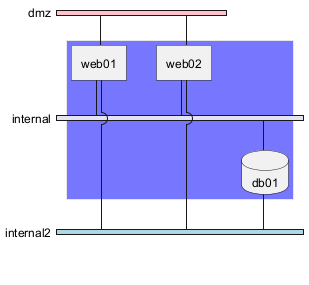

Same nodes on more than two networks

You can use same nodes on different networks (more than two networks); nwdiag use in this case 'jump line' over networks.

🎉 Copied!

@startuml
nwdiag {
  // define group at outside network definitions
  group {
    color = "#7777FF";

    web01;
    web02;
    db01;
  }

  network dmz {
    color = "pink"

    web01;
    web02;
  }

  network internal {
    web01;
    web02;
    db01 [shape = database ];
  }

  network internal2 {
    color = "LightBlue";

    web01;
    web02;
    db01;
  }

}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

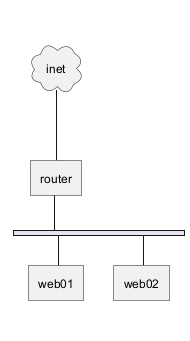

Peer networks

Peer networks are simple connections between two nodes, for which we don't use a horizontal "busbar" network

🎉 Copied!

@startuml
nwdiag {
  inet [shape = cloud];
  inet -- router;

  network {
    router;
    web01;
    web02;
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Peer networks and group

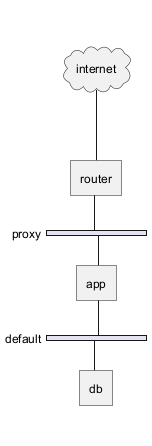

Without group

🎉 Copied!

@startuml
nwdiag {
    internet [ shape = cloud];
    internet -- router;

    network proxy {
        router;
        app;
    }
    network default {
    	app;
        db;
    }
}
@enduml

Group on first

🎉 Copied!

@startuml
nwdiag {
    internet [ shape = cloud];
    internet -- router;

    group {
      color = "pink";
      app;
      db;
    }

    network proxy {
        router;
        app;
    }

    network default {
    	app;
        db;
    }
}
@enduml

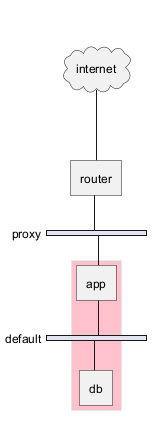

Group on second

🎉 Copied!

@startuml
nwdiag {
    internet [ shape = cloud];
    internet -- router;

    network proxy {
        router;
        app;
    }

    group {
      color = "pink";
      app;
      db;
    }

    network default {
    	app;
        db;
    }
}
@enduml

Group on third

🎉 Copied!

@startuml
nwdiag {
    internet [ shape = cloud];
    internet -- router;

    network proxy {
        router;
        app;
    }
    network default {
    	app;
        db;
    }
    group {
      color = "pink";
      app;
      db;
    }
}
@enduml

[Ref. Issue#408 and QA-12655]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Add title, caption, header, footer or legend on network diagram

🎉 Copied!

@startuml

header some header

footer some footer

title My title

nwdiag {
  network inet {
      web01 [shape = cloud]
  }
}

legend
The legend
end legend

caption This is caption
@enduml

[Ref. QA-11303 and Common commands]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
With or without shadow

With shadow (by default)

🎉 Copied!

@startuml
nwdiag {
  network nw {
    server;
    internet;
  }
  internet [shape = cloud];
}
@enduml

Without shadow

🎉 Copied!

@startuml
<style>
root {
 shadowing 0
}
</style>
nwdiag {
  network nw {
    server;
    internet;
  }
  internet [shape = cloud];
}
@enduml

[Ref. QA-14516]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Change width of the networks

You can change the width of the networks, especially in order to have the same full width for only some or all networks.

Here are some examples, with all the possibilities.

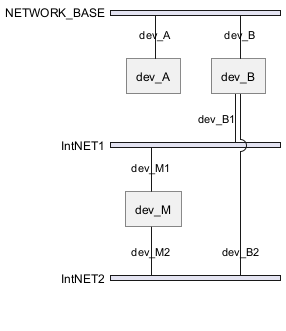

First example

  • without

🎉 Copied!

@startuml
nwdiag {
  network NETWORK_BASE {
   dev_A [address = "dev_A" ]
   dev_B [address = "dev_B" ]
  }
  network IntNET1 {
   dev_B [address = "dev_B1" ]
   dev_M [address = "dev_M1" ]
  }
  network IntNET2 {
   dev_B [address = "dev_B2" ]
   dev_M [address = "dev_M2" ]
 }
}
@enduml

  • only the first

🎉 Copied!

@startuml
nwdiag {
  network NETWORK_BASE {
   width = full
   dev_A [address = "dev_A" ]
   dev_B [address = "dev_B" ]
  }
  network IntNET1 {
   dev_B [address = "dev_B1" ]
   dev_M [address = "dev_M1" ]
  }
  network IntNET2 {
   dev_B [address = "dev_B2" ]
   dev_M [address = "dev_M2" ]
 }
}
@enduml

  • the first and the second

🎉 Copied!

@startuml
nwdiag {
  network NETWORK_BASE {
   width = full
   dev_A [address = "dev_A" ]
   dev_B [address = "dev_B" ]
  }
  network IntNET1 {
   width = full
   dev_B [address = "dev_B1" ]
   dev_M [address = "dev_M1" ]
  }
  network IntNET2 {
   dev_B [address = "dev_B2" ]
   dev_M [address = "dev_M2" ]
 }
}
@enduml

  • all the network (with same full width)

🎉 Copied!

@startuml
nwdiag {
  network NETWORK_BASE {
   width = full
   dev_A [address = "dev_A" ]
   dev_B [address = "dev_B" ]
  }
  network IntNET1 {
   width = full
   dev_B [address = "dev_B1" ]
   dev_M [address = "dev_M1" ]
  }
  network IntNET2 {
   width = full
   dev_B [address = "dev_B2" ]
   dev_M [address = "dev_M2" ]
 }
}
@enduml

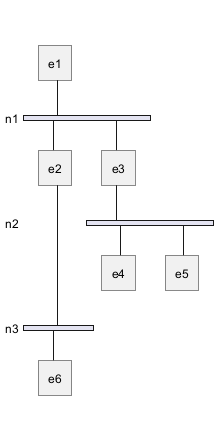

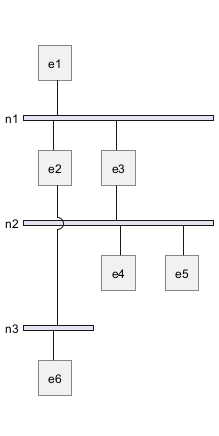

Second example

  • without

🎉 Copied!

@startuml
nwdiag {
  e1
  network n1 {
    e1
    e2
    e3
  }

  network n2 {
    e3
    e4
    e5
  }

  network n3 {
    e2
    e6
  }
}
@enduml

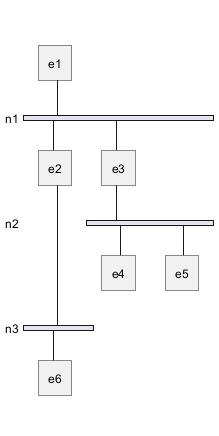

  • only the first

🎉 Copied!

@startuml
nwdiag {
  e1
  network n1 {
    width = full
    e1
    e2
    e3
  }

  network n2 {
    e3
    e4
    e5
  }

  network n3 {
    e2
    e6
  }
}
@enduml

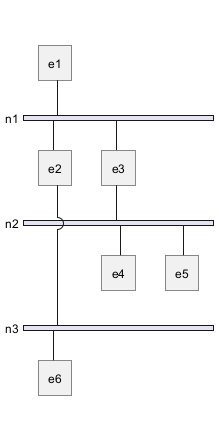

  • the first and the second

🎉 Copied!

@startuml
nwdiag {
  e1
  network n1 {
    width = full
    e1
    e2
    e3
  }

  network n2 {
    width = full
    e3
    e4
    e5
  }

  network n3 {
    e2
    e6
  }
}
@enduml

  • all the network (with same full width)

🎉 Copied!

@startuml
nwdiag {
  e1
  network n1 {
    width = full
    e1
    e2
    e3
  }

  network n2 {
    width = full
    e3
    e4
    e5
  }

  network n3 {
    width = full
    e2
    e6
  }
}
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

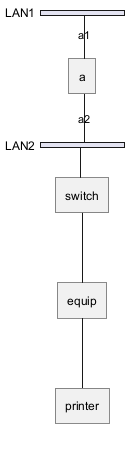

Other internal networks

You can define other internal networks (TCP/IP, USB, SERIAL,...).

  • Without address or type

🎉 Copied!

@startuml
nwdiag {
  network LAN1 {
     a [address = "a1"];
  }
  network LAN2 {
     a [address = "a2"];
     switch;
  }
  switch -- equip;
  equip -- printer;
}
@enduml

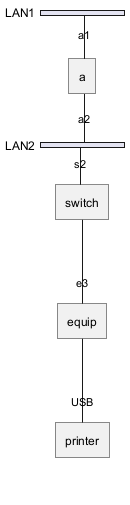

  • With address or type

🎉 Copied!

@startuml
nwdiag {
  network LAN1 {
     a [address = "a1"];
  }
  network LAN2 {
     a [address = "a2"];
     switch [address = "s2"];
  }
  switch -- equip;
  equip [address = "e3"];
  equip -- printer;
  printer [address = "USB"];
}
@enduml

[Ref. QA-12824]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

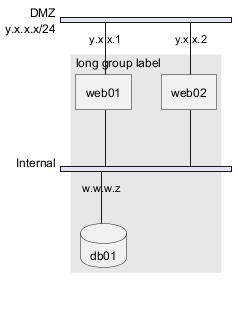

Using (global) style

Without style (by default)

🎉 Copied!

@startuml
nwdiag {
  network DMZ {
      address = "y.x.x.x/24"
      web01 [address = "y.x.x.1"];
      web02 [address = "y.x.x.2"];
  }

   network Internal {
    web01;
    web02;
    db01 [address = "w.w.w.z", shape = database];
  }

    group {
    description = "long group label";
    web01;
    web02;
    db01;
  }
}
@enduml

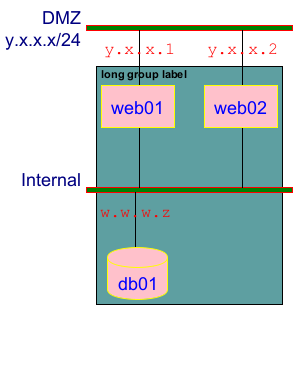

With style

You can use style to change rendering of elements.

🎉 Copied!

@startuml
<style>
nwdiagDiagram {
  network {
    BackGroundColor green
    LineColor red
    LineThickness 1.0
    FontSize 18
    FontColor navy
  }
  server {
    BackGroundColor pink
    LineColor yellow
    LineThickness 1.0
    ' FontXXX only for description or label
    FontSize 18
    FontColor #blue
  }
  arrow {
    ' FontXXX only for address
    FontSize 17
    FontColor #red
    FontName Monospaced
    LineColor black
  }
  group {
    BackGroundColor cadetblue
    LineColor black
    LineThickness 2.0
    FontSize 11
    FontStyle bold
    Margin 5
    Padding 5
  }
}
</style>
nwdiag {
  network DMZ {
      address = "y.x.x.x/24"
      web01 [address = "y.x.x.1"];
      web02 [address = "y.x.x.2"];
  }

   network Internal {
    web01;
    web02;
    db01 [address = "w.w.w.z", shape = database];
  }

    group {
    description = "long group label";
    web01;
    web02;
    db01;
  }
}
@enduml

[Ref. QA-14479]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

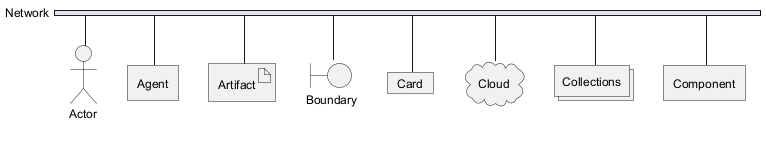

Appendix: Test of all shapes on Network diagram (nwdiag)

🎉 Copied!

@startuml
nwdiag {
  network Network {
    Actor       [shape = actor]
    Agent       [shape = agent]
    Artifact    [shape = artifact]
    Boundary    [shape = boundary]
    Card        [shape = card]
    Cloud       [shape = cloud]
    Collections [shape = collections]
    Component   [shape = component]
  }
}
@enduml

🎉 Copied!

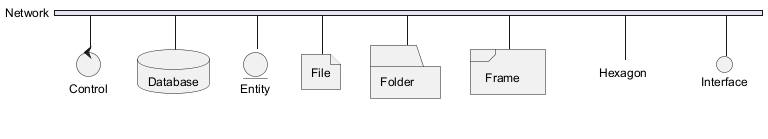

@startuml
nwdiag {
  network Network {
    Control     [shape = control]
    Database    [shape = database]
    Entity      [shape = entity]
    File        [shape = file]
    Folder      [shape = folder]
    Frame       [shape = frame]
    Hexagon     [shape = hexagon]
    Interface   [shape = interface]
  }
}
@enduml

🎉 Copied!

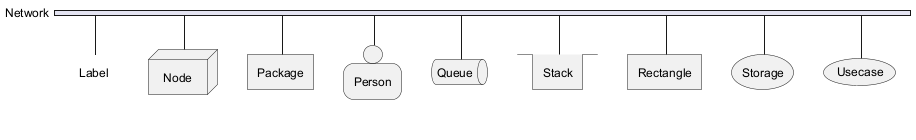

@startuml
nwdiag {
  network Network {
    Label       [shape = label]
    Node        [shape = node]
    Package     [shape = package]
    Person      [shape = person]
    Queue       [shape = queue]
    Stack       [shape = stack]
    Rectangle   [shape = rectangle]
    Storage     [shape = storage]
    Usecase     [shape = usecase]
  }
}
@enduml

FIXME
  1. Overlap of label for folder
  2. Hexagon shape is missing

🎉 Copied!

@startuml
nwdiag {
network Network {
Folder [shape = folder]
Hexagon [shape = hexagon]
}
}
@enduml

🎉 Copied!

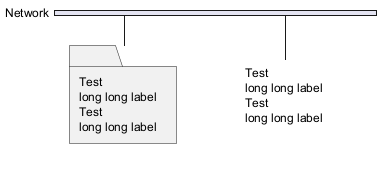

@startuml
nwdiag {
network Network {
Folder [shape = folder, description = "Test, long long label\nTest, long long label"]
Hexagon [shape = hexagon, description = "Test, long long label\nTest, long long label"]
}
}
@enduml

FIXME

Privacy Policy      Advertise
