Skinparam 命令

你可以使用skinparam命令来改变绘图的颜色和字体。

原文: You can change colors and font of the drawing using the skinparam command.

示例:

skinparam backgroundColor transparent

Edit in DokuwikiEdit in AsciidocEdit in Markdown
使用

你可以（以以下方式）使用本命令：

You can use this command : * In the diagram definition, like any other commands, * In an included file, * In a configuration file, provided in the command line or the ANT task.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
内嵌

为了避免重复(xxxx的部分），允许内嵌（相关的）定义。

因此，如下的定义：

To avoid repetition, it is possible to nest definition. So the following definition :

skinparam xxxxParam1 value1
skinparam xxxxParam2 value2
skinparam xxxxParam3 value3
skinparam xxxxParam4 value4

严格等价于:
is strictly equivalent to:

skinparam xxxx {
    Param1 value1
    Param2 value2
    Param3 value3
    Param4 value4
}

Edit in DokuwikiEdit in AsciidocEdit in Markdown
黑白 (Black and White)

你可以强制使用 黑白 输出格式，通过 skinparam monochrome true 命令。
You can force the use of a black&white output using skinparam monochrome true command.

🎉 Copied!

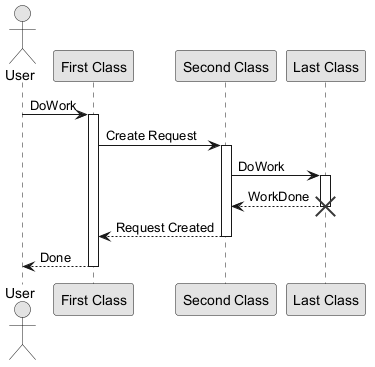

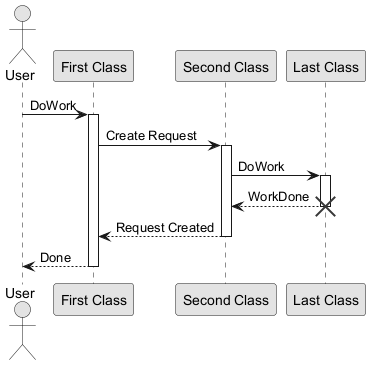

@startuml

skinparam monochrome true

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Shadowing

You can disable the shadowing using the skinparam shadowing false command.

🎉 Copied!

@startuml

left to right direction

skinparam shadowing<<no_shadow>> false
skinparam shadowing<<with_shadow>> true

actor User
(Glowing use case) <<with_shadow>> as guc
(Flat use case) <<no_shadow>> as fuc
User -- guc
User -- fuc

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
颜色翻转 (Reverse colors)

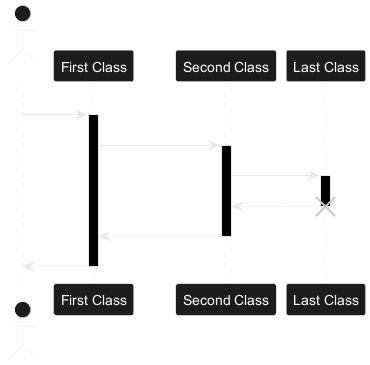

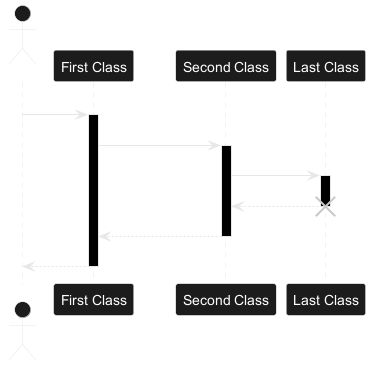

可以通过 skinparam monochrome reverse 命令，强制使用 黑和白 的输出， 在黑色背景的环境下，尤其适用。

You can force the use of a black&white output using skinparam monochrome reverse command. This can be useful for black background environment.

🎉 Copied!

@startuml

skinparam monochrome reverse

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
颜色 (Colors)

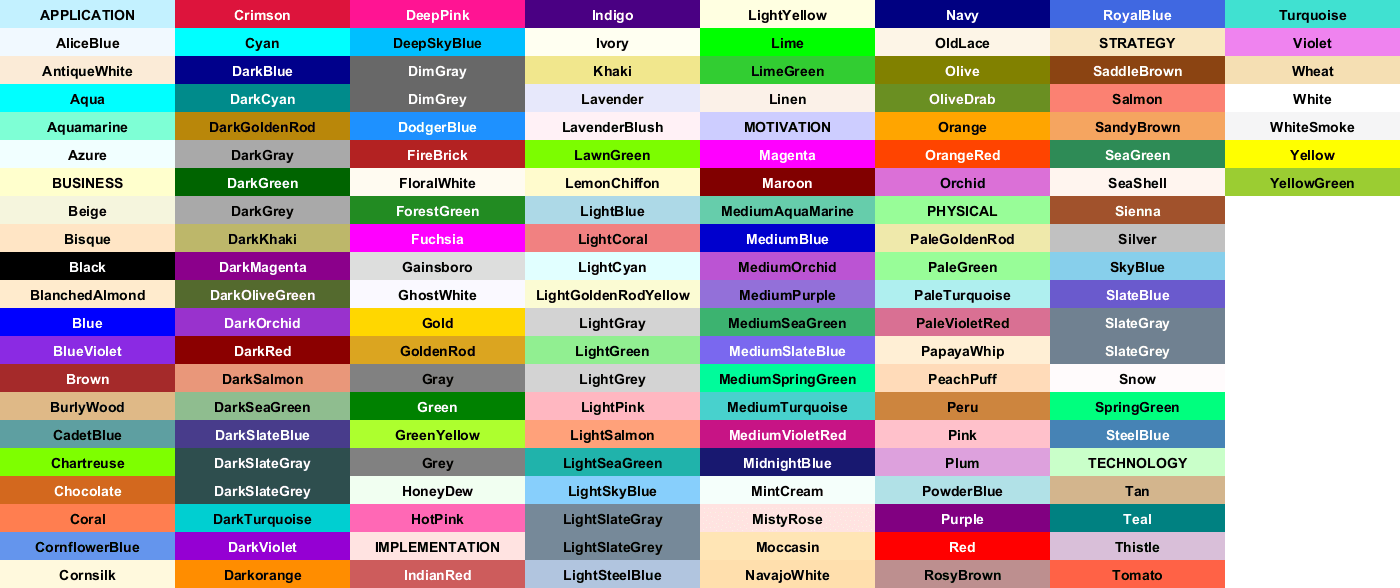

你可以使用 标准颜色名称 或者 RGB码

You can use either standard color name or RGB code.

🎉 Copied!

@startuml
colors
@enduml

transparent 只能用于图片背景

transparent can only be used for background of the image.

Edit in DokuwikiEdit in AsciidocEdit in Markdown
字体颜色、名称、大小 (Font color, name and size)

可以通过使用 xxxFontColor, xxxFontSize , xxxFontName 三个参数， 来修改绘图中的字体(颜色、大小、名称）。

You can change the font for the drawing using xxxFontColor, xxxFontSize and xxxFontName parameters.

示例:

skinparam classFontColor red
skinparam classFontSize 10
skinparam classFontName Aapex

也可以使用 skinparam defaultFontName 命令, 来修改默认的字体。

You can also change the default font for all fonts using skinparam defaultFontName.

Example:

skinparam defaultFontName Aapex

请注意：字体名称高度依赖于操作系统，因此不要过度使用它， 当你考虑到可移植性时。 Helvetica and Courier 应该是全平台可用。

Please note the fontname is highly system dependent, so do not over use it, if you look for portability. Helvetica and Courier should be available on all system.

还有更多的参数可用，你可以通过下面的命令打印它们：

java -jar plantuml.jar -language

A lot of parameters are available. You can list them using the following command: java -jar plantuml.jar -language

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
文本对齐 (Text Alignment)

通过left, right or center, 可以设置文本对齐.

也可以 sequenceMessageAlign 指令 赋值为 direction 或 reverseDirection 以便让文本对齐与箭头方向一致。

Text alignment can be set up to left, right or center. You can also use direction or reverseDirection values for sequenceMessageAlign which align text depending on arrow direction.

Param name Default value Comment
sequenceMessageAlign left 用于时序图中的 消息 (message)
sequenceReferenceAlign center 在时序图中用于 ref over

🎉 Copied!

@startuml
skinparam sequenceMessageAlign center
Alice -> Bob : Hi
Alice -> Bob : This is very long
@enduml

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Examples

🎉 Copied!

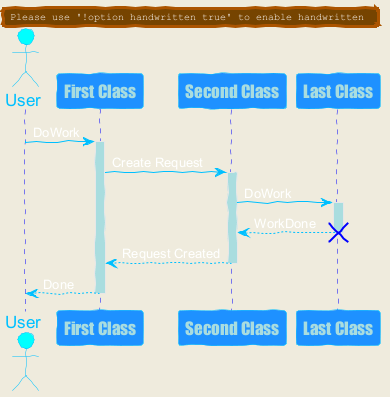

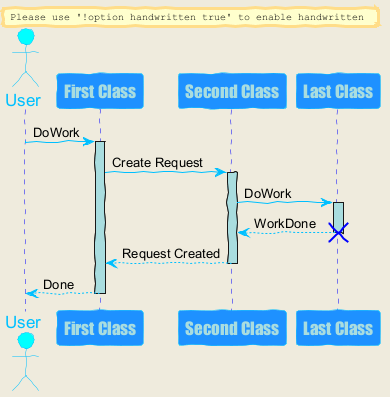

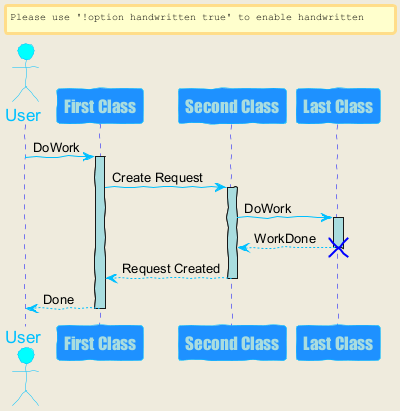

@startuml
skinparam backgroundColor #EEEBDC
skinparam handwritten true

skinparam sequence {
ArrowColor DeepSkyBlue
ActorBorderColor DeepSkyBlue
LifeLineBorderColor blue
LifeLineBackgroundColor #A9DCDF

ParticipantBorderColor DeepSkyBlue
ParticipantBackgroundColor DodgerBlue
ParticipantFontName Impact
ParticipantFontSize 17
ParticipantFontColor #A9DCDF

ActorBackgroundColor aqua
ActorFontColor DeepSkyBlue
ActorFontSize 17
ActorFontName Aapex
}

actor User
participant "First Class" as A
participant "Second Class" as B
participant "Last Class" as C

User -> A: DoWork
activate A

A -> B: Create Request
activate B

B -> C: DoWork
activate C
C --> B: WorkDone
destroy C

B --> A: Request Created
deactivate B

A --> User: Done
deactivate A
@enduml

🎉 Copied!

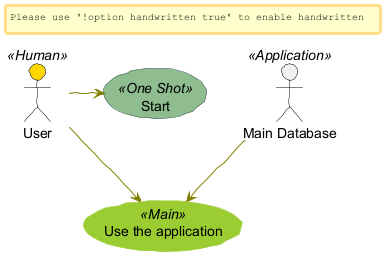

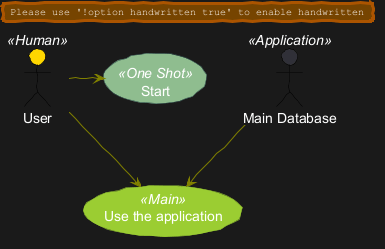

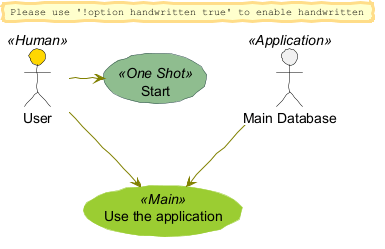

@startuml
skinparam handwritten true

skinparam actor {
BorderColor black
FontName Courier
        BackgroundColor<< Human >> Gold
}

skinparam usecase {
BackgroundColor DarkSeaGreen
BorderColor DarkSlateGray

BackgroundColor<< Main >> YellowGreen
BorderColor<< Main >> YellowGreen

ArrowColor Olive
}

User << Human >>
:Main Database: as MySql << Application >>
(Start) << One Shot >>
(Use the application) as (Use) << Main >>

User -> (Start)
User --> (Use)

MySql --> (Use)
@enduml

🎉 Copied!

@startuml
skinparam roundcorner 20
skinparam class {
BackgroundColor PaleGreen
ArrowColor SeaGreen
BorderColor SpringGreen
}
skinparam stereotypeCBackgroundColor YellowGreen

Class01 "1" *-- "many" Class02 : contains

Class03 o-- Class04 : aggregation
@enduml

🎉 Copied!

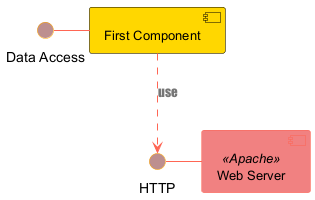

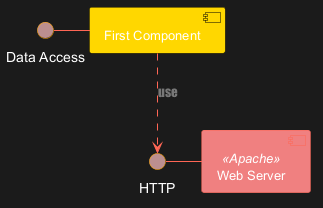

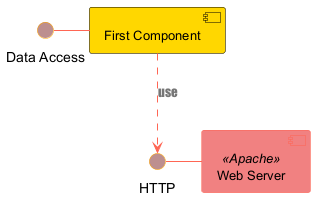

@startuml
skinparam interface {
  backgroundColor RosyBrown
  borderColor orange
}

skinparam component {
  FontSize 13
  BackgroundColor<<Apache>> LightCoral
  BorderColor<<Apache>> #FF6655
  FontName Courier
  BorderColor black
  BackgroundColor gold
  ArrowFontName Impact
  ArrowColor #FF6655
  ArrowFontColor #777777
}

() "Data Access" as DA
[Web Server] << Apache >>

DA - [First Component]
[First Component] ..> () HTTP : use
HTTP - [Web Server]
@enduml

🎉 Copied!

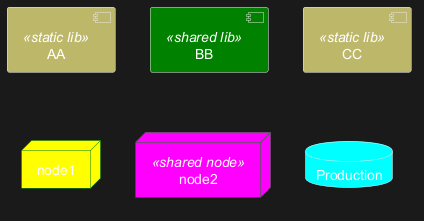

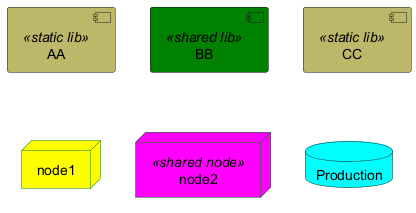

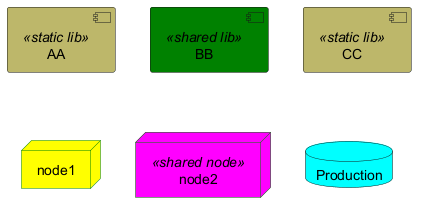

@startuml
[AA] <<static lib>>
[BB] <<shared lib>>
[CC] <<static lib>>

node node1
node node2 <<shared node>>
database Production

skinparam component {
    backgroundColor<<static lib>> DarkKhaki
    backgroundColor<<shared lib>> Green
}

skinparam node {
borderColor Green
backgroundColor Yellow
backgroundColor<<shared node>> Magenta
}
skinparam databaseBackgroundColor Aqua
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
所有skinparam的参数列表 (List of all skinparam parameters)

本文档并不总能保持最新，你可以使用下面命令查看完成的参数列表

Since the documentation is not always up to date, you can have the complete list of parameters using this command:

java -jar plantuml.jar -language

或者可以使用命令，产生一幅有所有skinparam参数的图:
Or you can generate a "diagram" with a list of all the skinparam parameters using:

结果如下:
That will give you the following result:

🎉 Copied!

@startuml
help skinparams
@enduml

你也可以在 https://plantuml-documentation.readthedocs.io/en/latest/formatting/all-skin-params.html 查看 ’‘skinparam’‘ 的参数. You can also view each skinparam parameters with its results displayed at the page [`All Skin Parameters`](https:plantuml-documentation.readthedocs.io/en/latest/formatting/all-skin-params.html) of [`Ashley's PlantUML Doc`](https:plantuml-documentation.readthedocs.io/en/latest/index.html#): * [https:plantuml-documentation.readthedocs.io/en/latest/formatting/all-skin-params.html](https:plantuml-documentation.readthedocs.io/en/latest/formatting/all-skin-params.html).
