When we've started PlantUML in 2009, the very first UML diagram type that we have addressed at that time was Sequence Diagrams
At the beginning, capabilities were very limited. The layout engine used for Sequence Diagrams was pretty simple, but this was enough to do basic diagrams.
Then more and more people begin to use PlantUML and ask for new features. We add those features (group, activation, note, encompass...) by adding some code in the existing layout engine, but we did not change its roots.
So you know the story : the code is getting more and more complex. It begins to be difficult to maintain. The initial simplicity is gone, because some initial architecture decisions were not good regarding the new capabilities.
Moreover, some features (especially for parallel message, see pending wanted features
) are almost impossible to implements with the current "Puma" architecture.
This is the bad news. The good news is that we are willing to overcome those issues.
So we've read many things about design patterns to define a better software archicture. And we need some courage too!
So a new layout engine has been added to PlantUML. The codename of this architecture is "Teoz", and it has been integrated as alpha version in PlantUML version 8019.
By default, the old "Puma" layout engine is still used, but you can turn on Teoz engine using some
Many things are not working with this first version. We are not even sure that the proposed syntax (use of
) is a good idea.
So we need feedback from the community: please use the Q&A forum, putting a Teoz tag in your questions
We would like to have a complete overview of what users wants to do, to be sure to design some Teoz engine able to handle all new features.
Thanks for your feedback!

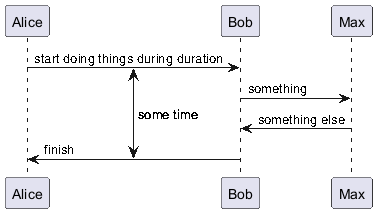

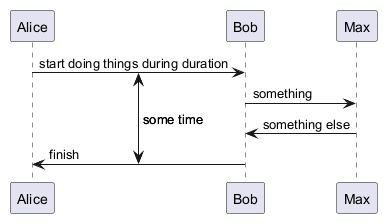

it is possible to add anchors to the diagram and use the anchors to specify duration time.
You can use the
option to specify the pragma:
java -jar plantuml.jar -Pteoz=true
it is possible to have nested boxes for sequence: [Ref. QA-4957, GH-172]
