PlantUML Language specification AsciiMath



Edit in DokuwikiEdit in AsciidocEdit in Markdown

数学

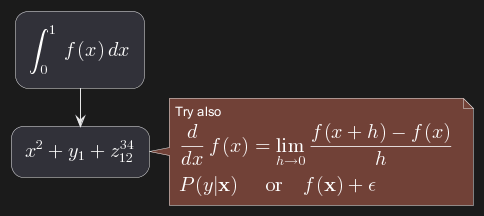

@startuml :<math>int_0^1f(x)dx</math>; :<math>x^2+y_1+z_12^34</math>; note right Try also <math>d/dxf(x)=lim_(h->0)(f(x+h)-f(x))/h</math> <math>P(y|bb"x") or f(bb"x")+epsilon</math> end note @enduml

@startuml :<latex>\int_0^1f(x)dx</latex>; :<latex>x^2+y_1+z_{12}^{34}</latex>; note right Try also <latex>\dfrac{d}{dx}f(x)=\lim\limits_{h \to 0}\dfrac{f(x+h)-f(x)}{h}</latex> <latex>P(y|\mathbf{x}) \mbox{ or } f(\mathbf{x})+\epsilon</latex> end note @enduml

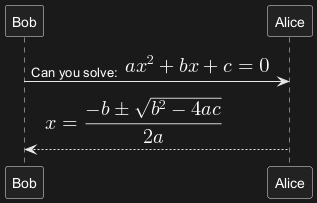

@startuml Bob -> Alice : Can you solve: <math>ax^2+bx+c=0</math> Alice --> Bob: <math>x = (-b+-sqrt(b^2-4ac))/(2a)</math> @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

独立图

@startmath f(t)=(a_0)/2 + sum_(n=1)^ooa_ncos((npit)/L)+sum_(n=1)^oo b_n\ sin((npit)/L) @endmath

@startlatex \sum_{i=0}^{n-1} (a_i + b_i^2) @endlatex

Edit in DokuwikiEdit in AsciidocEdit in Markdown

这是如何工作的 ?

• AsciiMath 转换 AsciiMath 符号为 LaTeX 表达式。
• JLatexMath 来显示LaTex 数学公式。 JLaTeXMath 是最好的显示LaTeX代码的 Java 类库。
