Entity Relationship Diagram

Based on the Information Engineering notation.

This is an extension to the existing Class Diagram. This extension adds:

  • Additional relations for the Information Engineering notation.
  • An entity alias that maps to the class diagram class.
  • An additional visibility modifier * to identify mandatory attributes.

Otherwise, the syntax for drawing diagrams is the same as for class diagrams. All other features of class diagrams are also supported.

Information Engineering Relations

Type Symbol
Zero or One |o--
Exactly One ||--
Zero or Many }o--
One or Many }|--

Examples:

🎉 Copied!
@startuml
Entity01 }|..|| Entity02
Entity03 }o..o| Entity04
Entity05 ||--o{ Entity06
Entity07 |o--|| Entity08
@enduml

实体

🎉 Copied!
@startuml
entity Entity01 {
  * identifying_attribute
  --
  * mandatory_attribute
  optional_attribute
}
@enduml

同样,这也是正常的类图语法(除了使用entity ,而不是class )。 你可以在类图中做的任何事情都可以在这里完成。

* 可见性修饰符可以用来识别强制属性。 在修饰符之后可以使用空格,以避免与克里奥尔语的黑体字冲突。

🎉 Copied!
@startuml
entity Entity01 {
   optional attribute
   **optional bold attribute**
   * **mandatory bold attribute**
}
@enduml

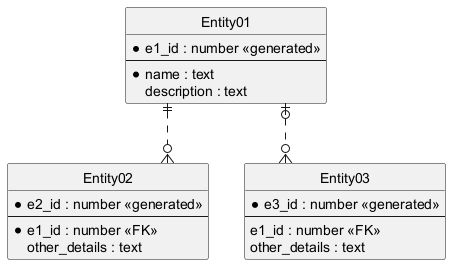

完整的例子

🎉 Copied!
@startuml

' hide the spot
hide circle

' avoid problems with angled crows feet
skinparam linetype ortho

entity "Entity01" as e01 {
  *e1_id : number <<generated>>
  --
  *name : text
  description : text
}

entity "Entity02" as e02 {
  *e2_id : number <<generated>>
  --
  *e1_id : number <<FK>>
  other_details : text
}

entity "Entity03" as e03 {
  *e3_id : number <<generated>>
  --
  e1_id : number <<FK>>
  other_details : text
}

e01 ||..o{ e02
e01 |o..o{ e03

@enduml

目前,当鱼尾纹与实体成一定角度绘制时,鱼尾纹看起来不是很好。 这可以通过使用linetype ortho skinparam来避免。
