JSON前処理

PlantUMLには、いくつかのJSON前処理機能が搭載されており、すべてのダイアグラムで利用できます。

これは、既存の前処理機能を拡張します。

🛈 JSONデータを表示する方法を探している場合は、「JSONデータを表示する」を確認してください。

Edit in DokuwikiEdit in AsciidocEdit in Markdown
変数定義

既存の型(StringとInteger)に加えて、JSON型の変数を定義できます。

例:

!$foo = { "name": "John", "age" : 30 }

これは、次のような構造に対応します:

🎉 Copied!

@startjson
{
"$foo": { "name": "John", "age" : 30 }
}
@endjson

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
データへのアクセス

変数を定義すると、そのメンバにアクセスすることができます:

🎉 Copied!

@startuml
!$foo = { "name": "John", "age" : 30 }
Alice -> Bob : Do you know **$foo.name** ?
@enduml

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
複雑な構造

複数行にわたる、複雑なJSONオブジェクトや配列を定義することもできます。

$fooを定義します:

🎉 Copied!

@startjson
{
"$foo":{ "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}
}
@endjson

次のように、値にアクセスできます:
  • $foo.employees[0].name
  • $foo.employees[0].salary

🎉 Copied!

@startuml
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}
start
:The salary of <u>$foo.employees[0].name</u> is <u>$foo.employees[0].salary</u>;
@enduml

もしくは、中間変数を使用して、
  • !$attribute_1="name"
  • !$attribute_2="salary"
値にアクセスできます:
  • $foo.employees[0][$attribute_1]
  • $foo.employees[0][$attribute_2]

🎉 Copied!

@startuml
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}

!$attribute_1="name"
!$attribute_2="salary"

start
:The salary of <u>$foo.employees[0][$attribute_1]</u> is <u>$foo.employees[0][$attribute_2]</u>;
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
データのロード

標準関数を使用して、URLまたはローカルファイルからJSONオブジェクトをロードできます:

!$foo = %load_json("http://foo.net/users/list.json")
!$foo2 = %load_json("myDir/localFile.json")

1.2021.15 以降で利用可能

Edit in DokuwikiEdit in AsciidocEdit in Markdown
繰り返し [foreach]

配列を定義すると、それに対してループ処理を行うことができます。

🎉 Copied!

@startmindmap
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}

* The salary of
!foreach $emp in $foo.employees
  ** **$emp.name**
  *** is
  **** **$emp.salary**
!endfor
@endmindmap

[SW] Some remarks
  • for or better foreach ? -> foreach
  • It would be nice to also have "break" and "continue"
  • It would be nice to also have the for or while loop with a standard variable

[SW] Some remarks
  • for or better foreach ? -> foreach
  • It would be nice to also have "break" and "continue"
  • It would be nice to also have the for or while loop with a standard variable
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Full Example

From a example worked in a forum question, with this JSON structure:

🎉 Copied!

@startjson
{
"data":
  {
  "participants": [
    {"name": "XYZ", "as": "xyz"},
    {"name": "RST", "as": "rst"},
    {"name": "UVW", "as": "uvw"}]
  }
}
@endjson

🎉 Copied!

@startuml
!unquoted function DRAW($x) return %set_variable_value($x, 1)

!procedure addComponent($part, $component, $as)
    !if %variable_exists($part)
        participant "$component" as $as
    !endif
!end procedure

!procedure addBox2($part, $box, $colour, $data)
    !if %variable_exists($part)
        box "$box" #$colour
            !foreach $item in $data.participants
                addComponent($part, $item.name, $item.as)
            !endfor
        end box
    !endif
!end procedure

DRAW(PART25)

!ifdef PART25
title  TESTING  (Boxes & Participants)  //Part25//
!endif

!$data={
  "participants": [
    {"name": "XYZ", "as": "xyz"},
    {"name": "RST", "as": "rst"},
    {"name": "UVW", "as": "uvw"}]
}

addBox2("PART25", "New Box", "white", $data)
@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

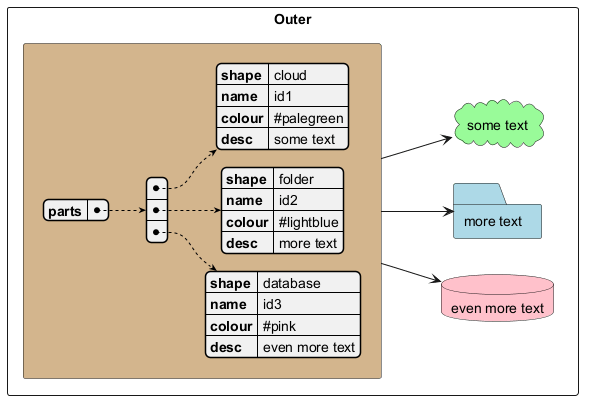

Self-descriptive example

Here is a self-descriptive example:

🎉 Copied!

@startuml
left to right direction

!$data={"parts":[
{"shape": "cloud",    "name": "id1", "colour": "#palegreen", "desc": "some text"},
{"shape": "folder",   "name": "id2", "colour": "#lightblue", "desc": "more text"},
{"shape": "database", "name": "id3", "colour": "#pink",      "desc": "even more text"}
]}

rectangle Outer {
rectangle Inner #tan as "
{{json
$data
}}
"
together {
!foreach $part in $data.parts
  $part.shape $part.colour $part.name as "$part.desc"
  Inner --> $part.name
!endfor
}
}
@enduml

[Adapted from QA-12917]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%get_json_keys builtin function

You can use %get_json_keys to get all the keys of one level on a JSON structure.

🎉 Copied!

@startuml
!$myjson = {
"root" : [{
    "fruits": [
        {"name": "apple", "colorId": "1"},
        {"name": "pear", "colorId": "2"},
        {"name": "pineapple", "colorId": "3"}
    ]
},
{
    "colors": [
        {"id": "1", "name": "red"},
        {"id": "2", "name": "green"},
        {"id": "3", "name": "yellow"}
    ]
}]
}

!foreach $key in %get_json_keys($myjson.root)
     rectangle $key
!endfor
@enduml

🎉 Copied!

@startwbs
!$json_object = {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278
}

* json_object
 * keys of json_object
!foreach $key in %get_json_keys($json_object)
  * $key
!endfor
@endwbs

[Ref. QA-15360, QA-15423]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%get_json_type builtin function

You can use %get_json_type to get the type of an element of a JSON structure (returns a string).

🎉 Copied!

@startuml
!$json_object = {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278,
  "letters": ["a", "b", "c"]
}

label l [
=json_object:
{{json
$json_object
}}

|= $variable          |= <U+0025>get_json_type($var)         |
| json_object         | %get_json_type($json_object)         |
| json_object.name    | %get_json_type($json_object.name)    |
| json_object.hr      | %get_json_type($json_object.hr)      |
| json_object.letters | %get_json_type($json_object.letters) |

Test on type:
!if %get_json_type($json_object.letters)=="array"
  json_object.letters is an **%get_json_type($json_object.letters)**
!endif
]
@enduml

[Ref. QA-15360]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%json_key_exists builtin function

You can use %json_key_exists to know if a key exists on a JSON structure (returns a boolean).

🎉 Copied!

@startuml
!$json_object= {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278
}

label l [
|= key  |= <U+0025>json_key_exists(json_object, key)   |
| "hr"  | %json_key_exists($json_object, "hr") |
| "foo" | %json_key_exists($json_object, "foo")|
| null  | %json_key_exists($json_object, null) |
]
@enduml

[Ref. QA-15423]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%size builtin function

You can use %size to know the size of different elements on a JSON structure.

For each type here are the return value:
Type Return value
JSON Object the number of pairs it contains
JSON Array the number of values it contains
string value the number of characters it contains
numeric value zero
true/false/null zero

🎉 Copied!

@startuml
!$json_object= {
  "name"   : "Mark McGwire",
  "hr"     : 65,
  "avg"    : 0.278,
  "letters": ["a", "b", "c"]
}

label l [
|= $variable          |= <U+0025>get_json_type($var)         |= <U+0025>size($var)         |
| json_object         | %get_json_type($json_object)         | %size($json_object)         |
| json_object.name    | %get_json_type($json_object.name)    | %size($json_object.name)    |
| json_object.hr      | %get_json_type($json_object.hr)      | %size($json_object.hr)      |
| json_object.letters | %get_json_type($json_object.letters) | %size($json_object.letters) |
]
@enduml

[Ref. QA-14901]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%json_add builtin function

You can use %json_add to add element on an existing JSON structure (returns the final JSON structure).

🎉 Copied!

@startjson
!$a = {"age" : 30}
%json_add($a, name, Bob)
@endjson

🎉 Copied!

@startjson
!$a = {"age" : 30, "name":"Bob"}
%json_add($a, name, Sally)
@endjson

🎉 Copied!

@startjson
!$a = {"age" : 30, "name":"Bob"}
!$b = [1, 2, {"a":0, "b":1}]
%json_add($a, tab, $b)
@endjson

[Ref. PR-1742 and PR-1757]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%json_remove builtin function

You can use %json_remove to remove element on an existing JSON structure (returns the final JSON structure).

🎉 Copied!

@startjson
!$a = [1, 2, 3]
%json_remove($a, 1)
@endjson

🎉 Copied!

@startjson
!$a = {"age" : 30, "name":"Bob"}
%json_remove($a, age)
@endjson

[Ref. PR-1742]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%json_set builtin function

You can use %json_set to set element on an existing JSON structure (returns the final JSON structure).

🎉 Copied!

@startjson
!$a = {"age" : 30, "name":"Bob"}
%json_set($a, name, Sally)
@endjson

[Ref. PR-1761]

🎉 Copied!

@startjson
!$a = {"partlen": "2", "color": {"A":"red", "B":"blue"}}
!$b = {"color":{"A":"black"}}
%json_set($a, $b)
@endjson

[Ref. PR-1782]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%json_merge builtin function

You can use %json_merge to merge JSON structures (returns the final JSON structure).

🎉 Copied!

@startjson
!$a = {"age" : 30, "name":"Bob"}
!$b = {"glasses": true}
%json_merge($a, $b)
@endjson

[Ref. PR-1763]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
%str2json builtin function

You can use %str2json to transform a string value to a JSON structure.

Here are some example:

🎉 Copied!

@startuml
label l [
<#ccc>|= String_value |= <U+0025>get_json_type(<U+0025>str2json(String_value)) |
| [1, 2, 3]           | %get_json_type(%str2json('[1, 2, 3]'))                 |
| {"a":1, "b":2}      | %get_json_type(%str2json('{"a":1, "b":2}'))            |
| true                | %get_json_type(%str2json('true'))                      |
| null                | %get_json_type(%str2json('null'))                      |
| it's a string       | %get_json_type(%str2json("it's a string"))             |
| 42                  | %get_json_type(%str2json('42'))                        |
]
@enduml

🎉 Copied!

@startuml
label l [
<#ccc>|= String_value |= <U+0025>get_json_type(<U+0025>str2json(String_value)) |
!foreach $item in ["[1, 2, 3]", "{\"a\":1, \"b\":2}", "true", "null", "it's a string", "42"]
| $item | %get_json_type(%str2json($item)) |
!endfor
]
@enduml

🚩 Known issue: Unfortunately, be careful with quote management.

Some issues occur when a single quote is contained in a string when the entire string is surrounded by single quote.

[Ref. PR-1742]
