PlantUML Language specification Timing Diagram



Edit in DokuwikiEdit in AsciidocEdit in Markdown

タイミング図

Edit in DokuwikiEdit in AsciidocEdit in Markdown

要素、ライフラインの定義

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @0 WU is アイドル WB is アイドル @100 WU is 待機 WB is 処理中 @300 WB is 待機 @enduml

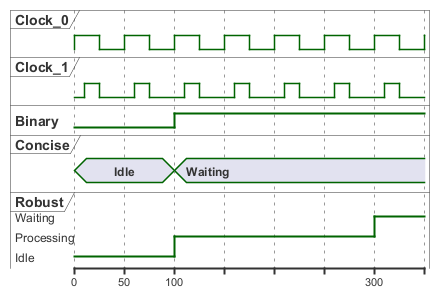

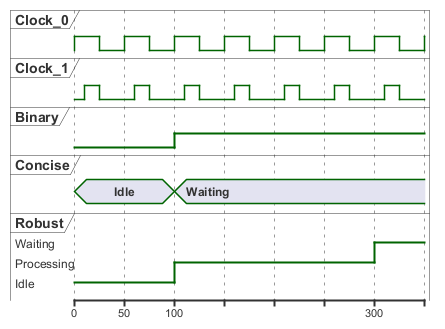

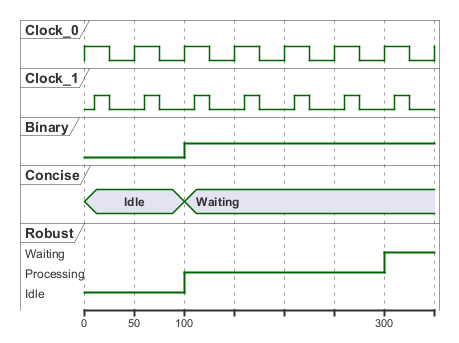

@startuml clock "Clock_0" as C0 with period 50 clock "Clock_1" as C1 with period 50 pulse 15 offset 10 binary "Binary" as B concise "Concise" as C robust "Robust" as R @0 C is Idle R is Idle @100 B is high C is Waiting R is Processing @300 R is Waiting @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

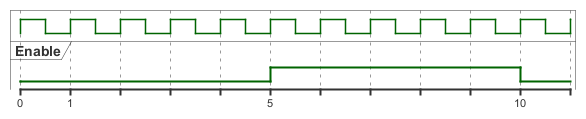

バイナリとクロック

• binary
• clock

@startuml clock clk with period 1 binary "Enable" as EN @0 EN is low @5 EN is high @10 EN is low @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

メッセージ（相互作用）

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @0 WU is アイドル WB is アイドル @100 WU -> WB : URL WU is 待機 WB is 処理中 @300 WB is 待機 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

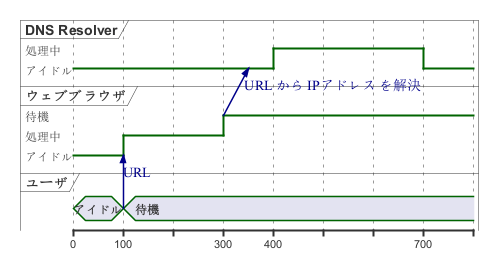

相対時間での指定

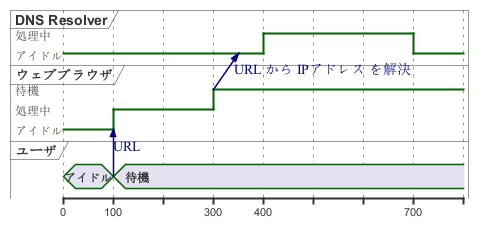

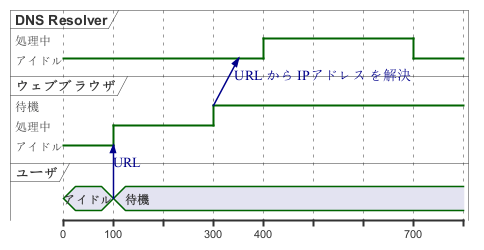

@startuml robust "DNS Resolver" as DNS robust "ウェブブラウザ" as WB concise "ユーザ" as WU @0 WU is アイドル WB is アイドル DNS is アイドル @+100 WU -> WB : URL WU is 待機 WB is 処理中 @+200 WB is 待機 WB -> DNS@+50 : URL から IPアドレス を解決 @+100 DNS is 処理中 @+300 DNS is アイドル @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

アンカーポイント

@XX as :<anchor point name>

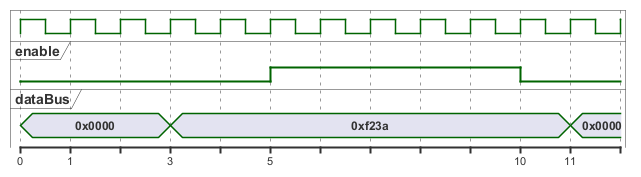

@startuml clock clk with period 1 binary "enable" as EN concise "dataBus" as db @0 as :start @5 as :en_high @10 as :en_low @:en_high-2 as :en_highMinus2 @:start EN is low db is "0x0000" @:en_high EN is high @:en_low EN is low @:en_highMinus2 db is "0xf23a" @:en_high+6 db is "0x0000" @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Anchor Points with decimal offset

@startuml binary "enable" as EN @3 as :start @5.5 as :en_high @10 as :en_low @:en_high-2 as :en_highMinus2 @:start EN is low @:en_high+1.2 EN is high @10.5 EN is low @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

インスタンス指向

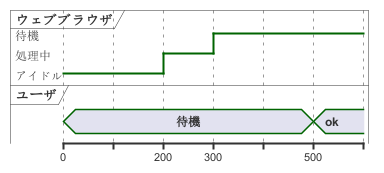

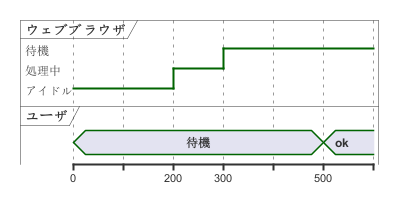

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @WB 0 is アイドル +200 is 処理中 +100 is 待機 @WU 0 is 待機 +500 is ok @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

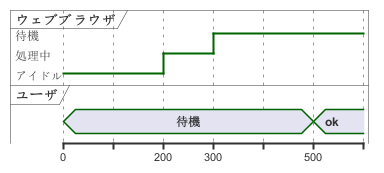

スケールの設定

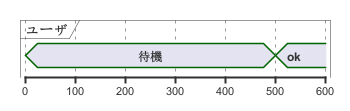

@startuml concise "ユーザ" as WU scale 100 as 50 pixels @WU 0 is 待機 +500 is ok @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

初期状態

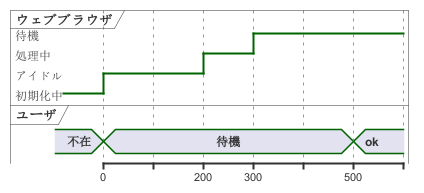

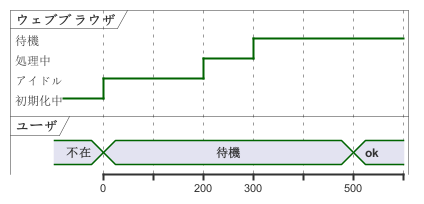

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU WB is 初期化中 WU is 不在 @WB 0 is アイドル +200 is 処理中 +100 is 待機 @WU 0 is 待機 +500 is ok @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

複雑な状態

@startuml robust "Signal1" as S1 robust "Signal2" as S2 S1 has 0,1,2,hello S2 has 0,1,2 @0 S1 is 0 S2 is 0 @100 S1 is {0,1} #SlateGrey S2 is {0,1} @200 S1 is 1 S2 is 0 @300 S1 is hello S2 is {0,2} @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

状態の非表示

@startuml concise "Web User" as WU @0 WU is {-} @100 WU is A1 @200 WU is {-} @300 WU is {hidden} @400 WU is A3 @500 WU is {-} @enduml

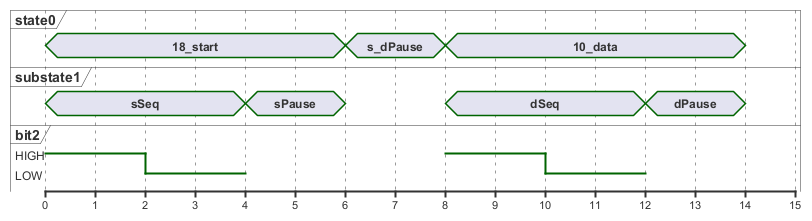

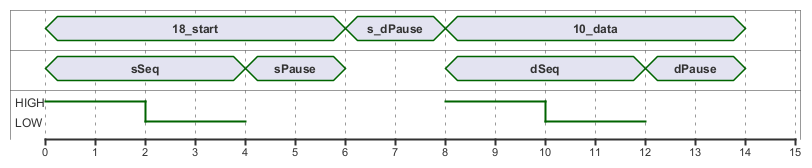

@startuml scale 1 as 50 pixels concise state0 concise substate1 robust bit2 bit2 has HIGH,LOW @state0 0 is 18_start 6 is s_dPause 8 is 10_data 14 is {hidden} @substate1 0 is sSeq 4 is sPause 6 is {hidden} 8 is dSeq 12 is dPause 14 is {hidden} @bit2 0 is HIGH 2 is LOW 4 is {hidden} 8 is HIGH 10 is LOW 12 is {hidden} @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Negative time value

@startuml robust "R-Deci" as RD concise "R-Algo-0" as RA0 robust "R-Algo-1" as RA1 @200 RD is 0 RA0 is 0 @-200 RD is 1 RA0 is 3 @100 RD is 0 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

時間軸を非表示にする

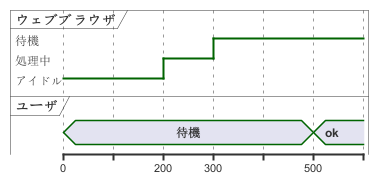

@startuml hide time-axis concise "ユーザ" as WU WU is 不在 @WU 0 is 待機 +500 is ok @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

時刻と日付の使用

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @2019/07/02 WU is アイドル WB is アイドル @2019/07/04 WU is 待機 : some note WB is 処理中 : some other note @2019/07/05 WB is 待機 @enduml

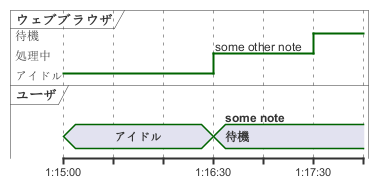

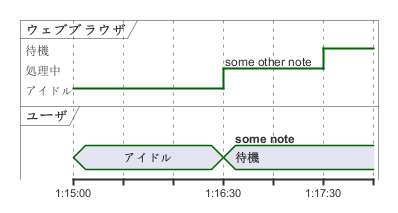

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @1:15:00 WU is アイドル WB is アイドル @1:16:30 WU is 待機 : some note WB is 処理中 : some other note @1:17:30 WB is 待機 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Change Date Format

@startuml robust "Web Browser" as WB concise "Web User" as WU use date format "YY-MM-dd" @2019/07/02 WU is Idle WB is Idle @2019/07/04 WU is Waiting : some note WB is Processing : some other note @2019/07/05 WB is Waiting @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Manage time axis labels

Label on each tick (by default)

@startuml scale 31536000 as 40 pixels use date format "yy-MM" concise "OpenGL Desktop" as OD @1992/01/01 OD is {hidden} @1992/06/30 OD is 1.0 @1997/03/04 OD is 1.1 @1998/03/16 OD is 1.2 @2001/08/14 OD is 1.3 @2004/09/07 OD is 3.0 @2008/08/01 OD is 3.0 @2017/07/31 OD is 4.6 @enduml

Manual label (only when the state changes)

@startuml scale 31536000 as 40 pixels manual time-axis use date format "yy-MM" concise "OpenGL Desktop" as OD @1992/01/01 OD is {hidden} @1992/06/30 OD is 1.0 @1997/03/04 OD is 1.1 @1998/03/16 OD is 1.2 @2001/08/14 OD is 1.3 @2004/09/07 OD is 3.0 @2008/08/01 OD is 3.0 @2017/07/31 OD is 4.6 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

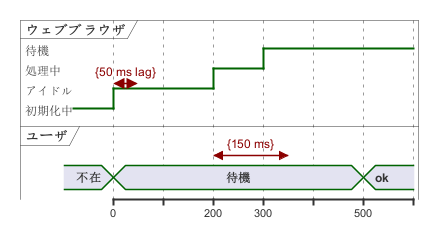

時間定規（time constraint）の追加

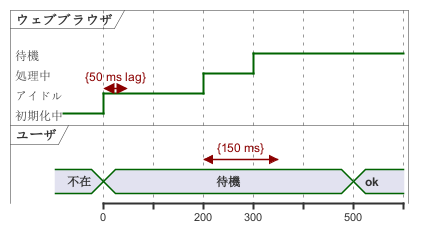

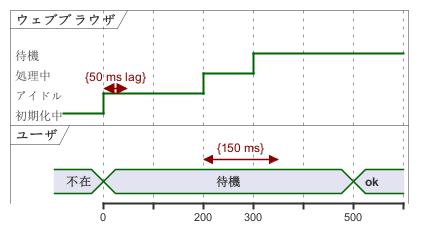

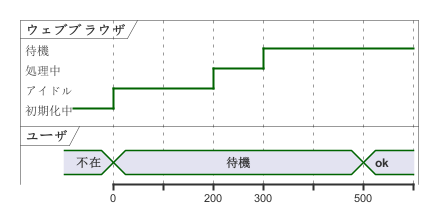

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU WB is 初期化中 WU is 不在 @WB 0 is アイドル +200 is 処理中 +100 is 待機 WB@0 <-> @50 : {50 ms lag} @WU 0 is 待機 +500 is ok @200 <-> @+150 : {150 ms} @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

期間のハイライト

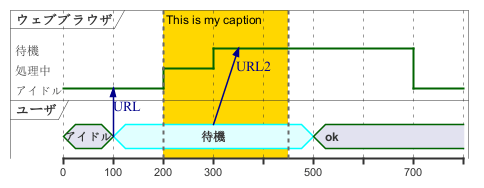

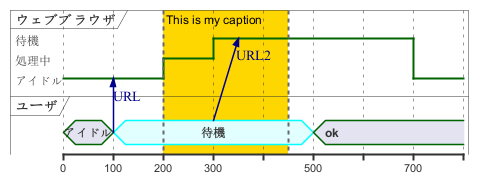

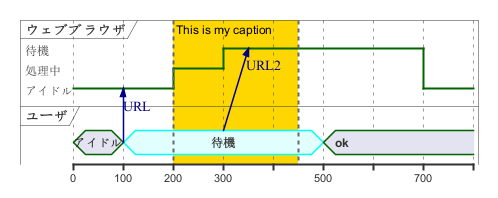

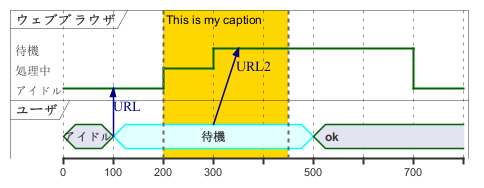

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU @0 WU is アイドル WB is アイドル @100 WU -> WB : URL WU is 待機 #LightCyan;line:Aqua @200 WB is 処理中 @300 WU -> WB@350 : URL2 WB is 待機 @+200 WU is ok @+200 WB is アイドル highlight 200 to 450 #Gold;line:DimGrey : This is my caption @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

ノートの使用

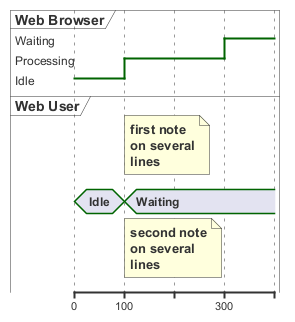

@startuml robust "Web Browser" as WB concise "Web User" as WU @0 WU is Idle WB is Idle @100 WU is Waiting WB is Processing note top of WU : first note\non several\nlines note bottom of WU : second note\non several\nlines @300 WB is Waiting @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

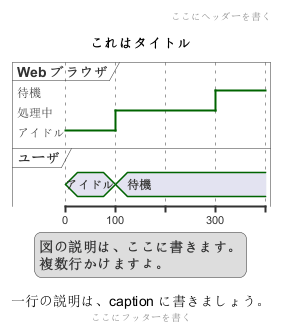

タイトルなどを追加する

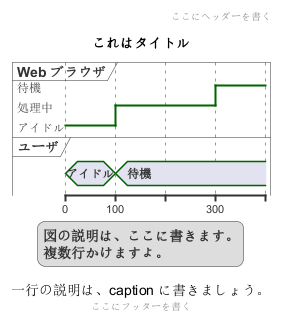

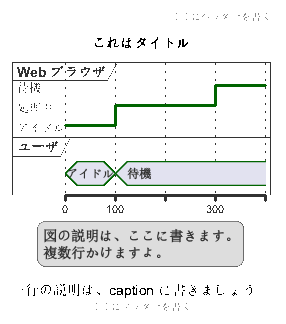

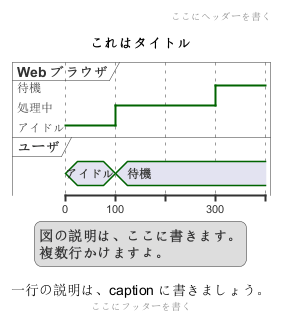

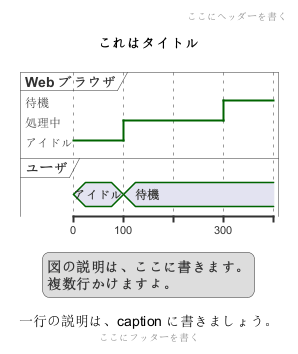

@startuml Title これはタイトル header: ここにヘッダーを書く footer: ここにフッターを書く legend 図の説明は、ここに書きます。 複数行かけますよ。 end legend caption 一行の説明は、caption に書きましょう。 robust "Web ブラウザ" as WB concise "ユーザ" as WU @0 WU is アイドル WB is アイドル @100 WU is 待機 WB is 処理中 @300 WB is 待機 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

複雑な例

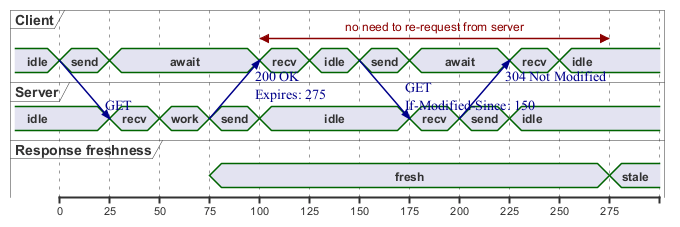

@startuml concise "Client" as Client concise "Server" as Server concise "Response freshness" as Cache Server is idle Client is idle @Client 0 is send Client -> Server@+25 : GET +25 is await +75 is recv +25 is idle +25 is send Client -> Server@+25 : GET\nIf-Modified-Since: 150 +25 is await +50 is recv +25 is idle @100 <-> @275 : no need to re-request from server @Server 25 is recv +25 is work +25 is send Server -> Client@+25 : 200 OK\nExpires: 275 +25 is idle +75 is recv +25 is send Server -> Client@+25 : 304 Not Modified +25 is idle @Cache 75 is fresh +200 is stale @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

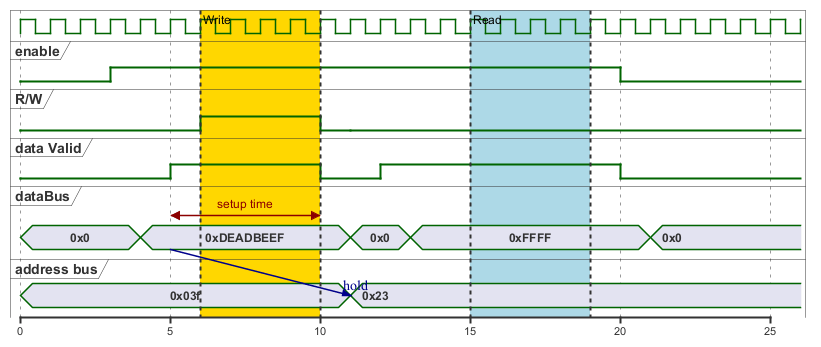

デジタル信号の例

@startuml scale 5 as 150 pixels clock clk with period 1 binary "enable" as en binary "R/W" as rw binary "data Valid" as dv concise "dataBus" as db concise "address bus" as addr @6 as :write_beg @10 as :write_end @15 as :read_beg @19 as :read_end @0 en is low db is "0x0" addr is "0x03f" rw is low dv is 0 @:write_beg-3 en is high @:write_beg-2 db is "0xDEADBEEF" @:write_beg-1 dv is 1 @:write_beg rw is high @:write_end rw is low dv is low @:write_end+1 rw is low db is "0x0" addr is "0x23" @12 dv is high @13 db is "0xFFFF" @20 en is low dv is low @21 db is "0x0" highlight :write_beg to :write_end #Gold:Write highlight :read_beg to :read_end #lightBlue:Read db@:write_beg-1 <-> @:write_end : setup time db@:write_beg-1 -> addr@:write_end+1 : hold @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

色の追加

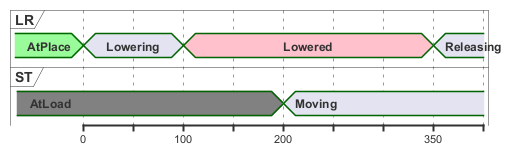

@startuml concise "LR" as LR concise "ST" as ST LR is AtPlace #palegreen ST is AtLoad #gray @LR 0 is Lowering 100 is Lowered #pink 350 is Releasing @ST 200 is Moving @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

グローバルスタイルの使用

スタイル無し（デフォルト）

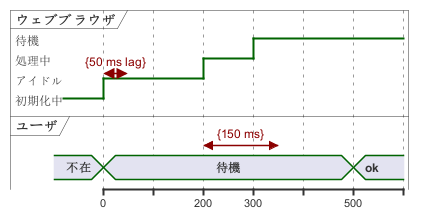

@startuml robust "ウェブブラウザ" as WB concise "ユーザ" as WU WB is 初期化中 WU is 不在 @WB 0 is アイドル +200 is 処理中 +100 is 待機 WB@0 <-> @50 : {50 ms lag} @WU 0 is 待機 +500 is ok @200 <-> @+150 : {150 ms} @enduml

スタイル有り

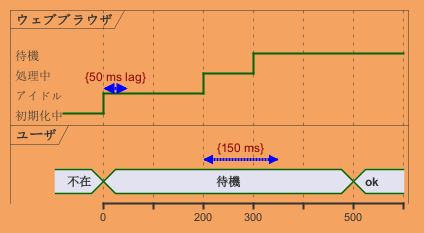

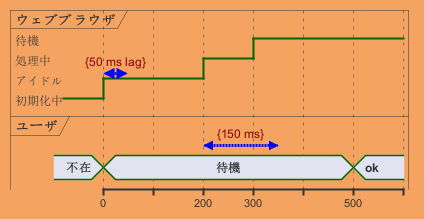

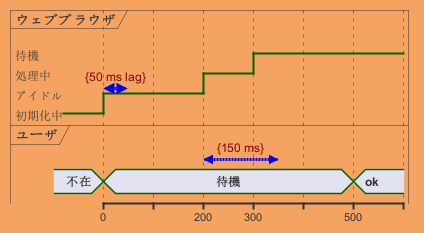

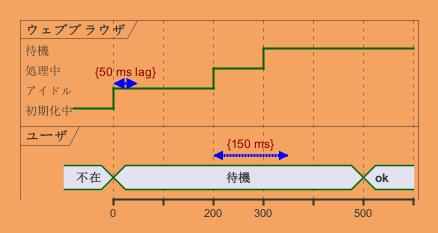

@startuml <style> timingDiagram { document { BackGroundColor SandyBrown } constraintArrow { LineStyle 2-1 LineThickness 3 LineColor Blue } } </style> robust "ウェブブラウザ" as WB concise "ユーザ" as WU WB is 初期化中 WU is 不在 @WB 0 is アイドル +200 is 処理中 +100 is 待機 WB@0 <-> @50 : {50 ms lag} @WU 0 is 待機 +500 is ok @200 <-> @+150 : {150 ms} @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Applying Colors to specific lines

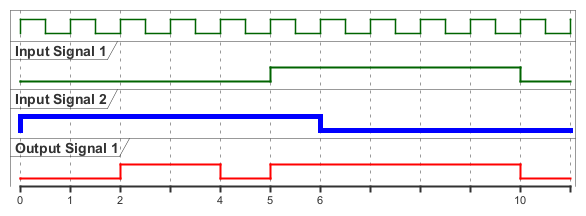

@startuml <style> timingDiagram { .red { LineColor red } .blue { LineColor blue LineThickness 5 } } </style> clock clk with period 1 binary "Input Signal 1" as IS1 binary "Input Signal 2" as IS2 <<blue>> binary "Output Signal 1" as OS1 <<red>> @0 IS1 is low IS2 is high OS1 is low @2 OS1 is high @4 OS1 is low @5 IS1 is high OS1 is high @6 IS2 is low @10 IS1 is low OS1 is low @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Compact mode

By default

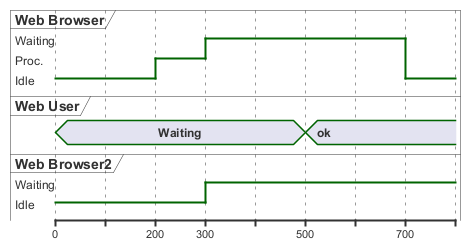

@startuml robust "Web Browser" as WB concise "Web User" as WU robust "Web Browser2" as WB2 @0 WU is Waiting WB is Idle WB2 is Idle @200 WB is Proc. @300 WB is Waiting WB2 is Waiting @500 WU is ok @700 WB is Idle @enduml

Global mode with mode compact

@startuml mode compact robust "Web Browser" as WB concise "Web User" as WU robust "Web Browser2" as WB2 @0 WU is Waiting WB is Idle WB2 is Idle @200 WB is Proc. @300 WB is Waiting WB2 is Waiting @500 WU is ok @700 WB is Idle @enduml

Local mode with only compact on element

@startuml compact robust "Web Browser" as WB compact concise "Web User" as WU robust "Web Browser2" as WB2 @0 WU is Waiting WB is Idle WB2 is Idle @200 WB is Proc. @300 WB is Waiting WB2 is Waiting @500 WU is ok @700 WB is Idle @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Scaling analog signal

Without scaling: 0-max (by default)

@startuml title Between 0-max (by default) analog "Analog" as A @0 A is 350 @100 A is 450 @300 A is 350 @enduml

With scaling: min-max

@startuml title Between min-max analog "Analog" between 350 and 450 as A @0 A is 350 @100 A is 450 @300 A is 350 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Customise analog signal

Without any customisation (by default)

@startuml analog "Vcore" as VDD analog "VCC" as VCC @0 VDD is 0 VCC is 3 @2 VDD is 0 @3 VDD is 6 VCC is 6 VDD@1 -> VCC@2 : "test" @enduml

With customisation (on scale, ticks and height)

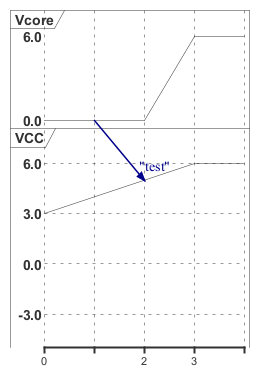

@startuml analog "Vcore" as VDD analog "VCC" between -4.5 and 6.5 as VCC VCC ticks num on multiple 3 VCC is 200 pixels height @0 VDD is 0 VCC is 3 @2 VDD is 0 @3 VDD is 6 VCC is 6 VDD@1 -> VCC@2 : "test" @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

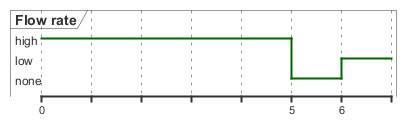

Order state of robust signal

Without order (by default)

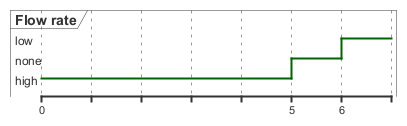

@startuml robust "Flow rate" as rate @0 rate is high @5 rate is none @6 rate is low @enduml

With order

@startuml robust "Flow rate" as rate rate has high,low,none @0 rate is high @5 rate is none @6 rate is low @enduml

With order and label

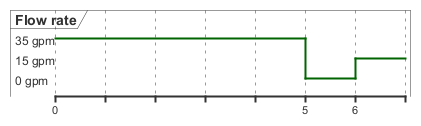

@startuml robust "Flow rate" as rate rate has "35 gpm" as high rate has "15 gpm" as low rate has "0 gpm" as none @0 rate is high @5 rate is none @6 rate is low @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Defining a timing diagram

By Clock (@clk)

@startuml clock "clk" as clk with period 50 concise "Signal1" as S1 robust "Signal2" as S2 binary "Signal3" as S3 @clk*0 S1 is 0 S2 is 0 @clk*1 S1 is 1 S3 is high @clk*2 S3 is down @clk*3 S1 is 1 S2 is 1 S3 is 1 @clk*4 S3 is down @enduml

By Signal (@S)

@startuml clock "clk" as clk with period 50 concise "Signal1" as S1 robust "Signal2" as S2 binary "Signal3" as S3 @S1 0 is 0 50 is 1 150 is 1 @S2 0 is 0 150 is 1 @S3 50 is 1 100 is low 150 is high 200 is 0 @enduml

By Time (@time)

@startuml clock "clk" as clk with period 50 concise "Signal1" as S1 robust "Signal2" as S2 binary "Signal3" as S3 @0 S1 is 0 S2 is 0 @50 S1 is 1 S3 is 1 @100 S3 is low @150 S1 is 1 S2 is 1 S3 is high @200 S3 is 0 @enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown

Annotate signal with comment

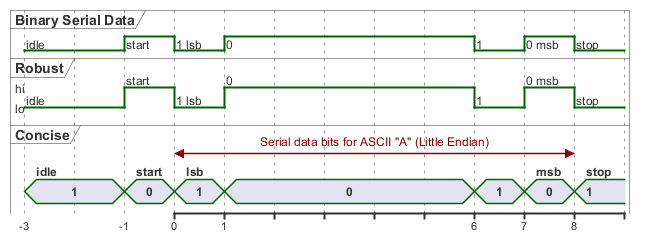

@startuml binary "Binary Serial Data" as D robust "Robust" as R concise "Concise" as C @-3 D is low: idle R is lo: idle C is 1: idle @-1 D is high: start R is hi: start C is 0: start @0 D is low: 1 lsb R is lo: 1 lsb C is 1: lsb @1 D is high: 0 R is hi: 0 C is 0 @6 D is low: 1 R is lo: 1 C is 1 @7 D is high: 0 msb R is hi: 0 msb C is 0: msb @8 D is low: stop R is lo: stop C is 1: stop @0 <-> @8 : Serial data bits for ASCII "A" (Little Endian) @enduml
