通用命令

Explore these commands to create diagrams that are both functional and aesthetically pleasing, tailoring each element to your exact specifications.
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
注释

简单的注释

所有以simple quote ' 开始的都是一个 的注释。

@startuml
'Line comments use a single apostrophe
@enduml

</zh3> * 块状注释<zh3>

块状注释使用C风格的注释，除了用一撇一捺代替', 然后你也可以把注释放在几行上，用/' 开始，'/ 结束。

@startuml
/'
many lines comments
here
'/
@enduml

[Ref.QA-1353]

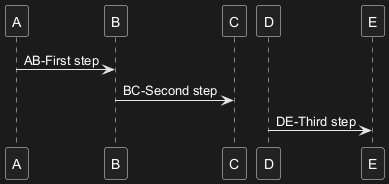

然后你也可以在同一行中放置块状注释，如。

🎉 Copied!

@startuml
/' case 1 '/   A -> B : AB-First step
               B -> C : BC-Second step
/' case 2 '/   D -> E : DE-Third step
@enduml

[参考资料：QA-3906和QA-3910] 。

[Ref. GH-214]
WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
缩放

You can use the scale command to zoom the generated image.

You can use either a number or a fraction to define the scale factor. You can also specify either width or height (in pixel). And you can also give both width and height : the image is scaled to fit inside the specified dimension.

  • scale 1.5
  • scale 2/3
  • scale 200 width
  • scale 200 height
  • scale 200*100
  • scale max 300*200
  • scale max 1024 width
  • scale max 800 height

🎉 Copied!

@startuml
scale 180*90
Bob->Alice : hello
@enduml

WARNING
 This translation need to be updated.
WARNING

Edit in DokuwikiEdit in AsciidocEdit in Markdown
标题

使用 title 关键字添加标题。 你可以在标题描述中使用 \n 添加新行。

Some skinparam settings are available to put borders on the title.

🎉 Copied!

@startuml
skinparam titleBorderRoundCorner 15
skinparam titleBorderThickness 2
skinparam titleBorderColor red
skinparam titleBackgroundColor Aqua-CadetBlue

title Simple communication\nexample

Alice -> Bob: Authentication Request
Bob --> Alice: Authentication Response

@enduml

You can use creole formatting in the title.

You can also define title on several lines using title and end title keywords.

🎉 Copied!

@startuml

title
 <u>Simple</u> communication example
 on <i>several</i> lines and using <back:cadetblue>creole tags</back>
end title

Alice -> Bob: Authentication Request
Bob -> Alice: Authentication Response

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
图片标题

使用 caption 关键字在图像下放置一个标题.

🎉 Copied!

@startuml

caption figure 1
Alice -> Bob: Hello

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
页眉和页脚

你可以使用 header 和 footer命令在生成的图中增加页眉和页脚。

你可以选择指定center, left 或 right关键字使页眉或页脚实现居中、左对齐和右对齐。

和标题一样，页眉或页脚内容可以在多行中定义，而且同样可以在页眉或页脚中输入一些HTML代码。

🎉 Copied!

@startuml
Alice -> Bob: Authentication Request

header
<font color=red>Warning:</font>
Do not use in production.
endheader

center footer Generated for demonstration

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
图例说明

legend 和 end legend 作为关键词，用于配置一个图例(legend). 支持可选地使用left,right,center为这个图例指定对齐方式.

🎉 Copied!

@startuml

Alice -> Bob : Hello
legend right
  Short
  legend
endlegend

@enduml

🎉 Copied!

@startuml

Alice -> Bob : Hello
legend left
  Short
  legend
endlegend

@enduml

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Appendix: Examples on all diagram

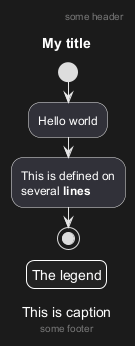

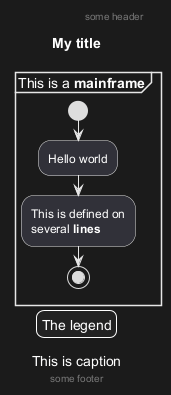

Activity

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

start
:Hello world;
:This is defined on
several **lines**;
stop

@enduml

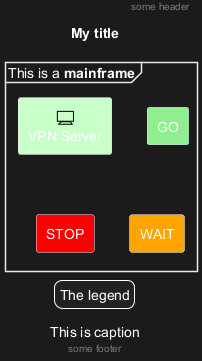

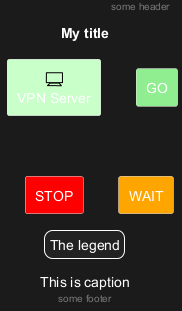

Archimate

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

archimate #Technology "VPN Server" as vpnServerA <<technology-device>>

rectangle GO #lightgreen
rectangle STOP #red
rectangle WAIT #orange

@enduml

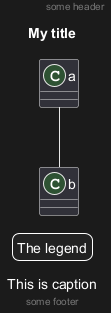

Class

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a -- b

@enduml

Component, Deployment, Use-Case

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

node n
(u) -> [c]

@enduml

Gantt project planning

🎉 Copied!

@startgantt
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend


[t] lasts 5 days

@endgantt

DONE
[(Header, footer) corrected on V1.2020.18]

Object

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

object user {
  name = "Dummy"
  id = 123
}

@enduml

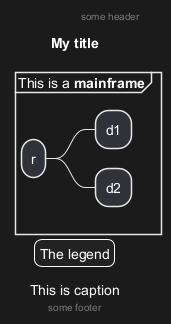

MindMap

🎉 Copied!

@startmindmap
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endmindmap

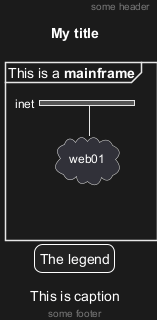

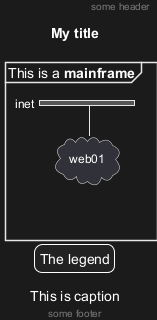

Network (nwdiag)

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

nwdiag {
  network inet {
      web01 [shape = cloud]
  }
}

@enduml

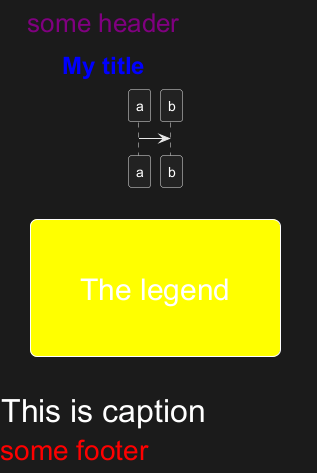

Sequence

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a->b
@enduml

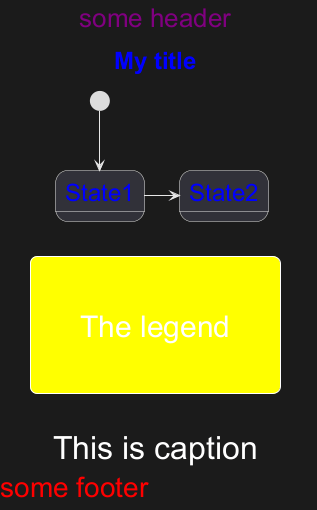

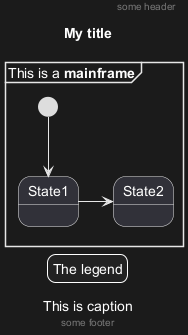

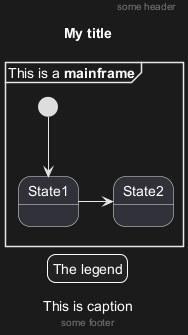

State

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

[*] --> State1
State1 -> State2

@enduml

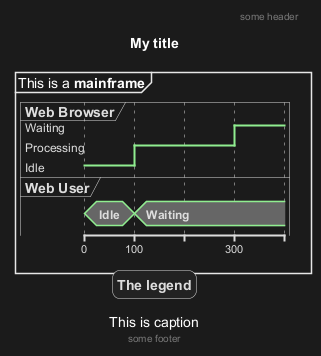

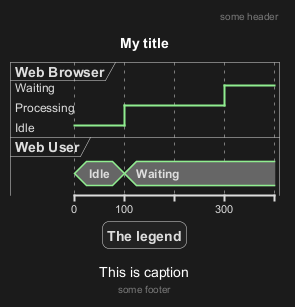

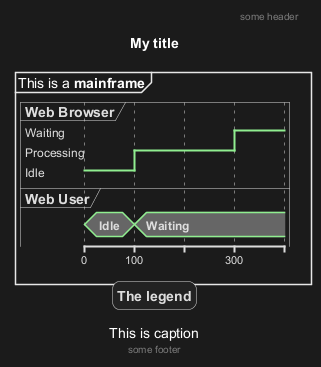

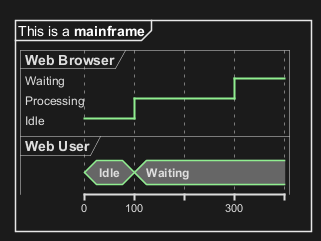

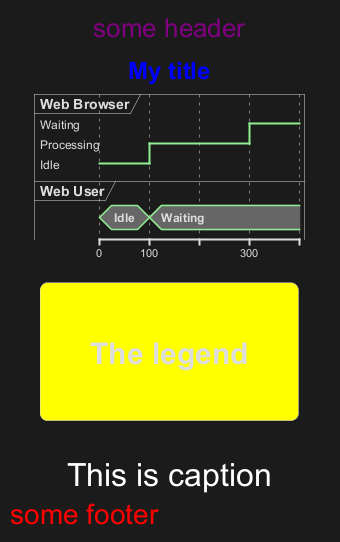

Timing

🎉 Copied!

@startuml
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU is Waiting
WB is Processing

@300
WB is Waiting

@enduml

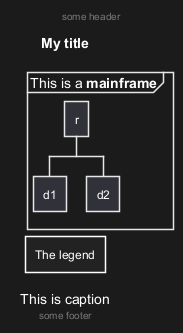

Work Breakdown Structure (WBS)

🎉 Copied!

@startwbs
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endwbs

DONE
[Corrected on V1.2020.17]

Wireframe (SALT)

🎉 Copied!

@startsalt
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

DONE
[Corrected on V1.2020.18]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Appendix: Examples on all diagram with style

DONE

FYI:
  • all is only good for Sequence diagram
  • title, caption and legend are good for all diagrams except for salt diagram
FIXME
🚩
  • Now (test on 1.2020.18-19) header, footer are not good for all other diagrams except only for Sequence diagram.
To be fix; Thanks

FIXME

Here are tests of title, header, footer, caption or legend on all the diagram with the debug style:

<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>

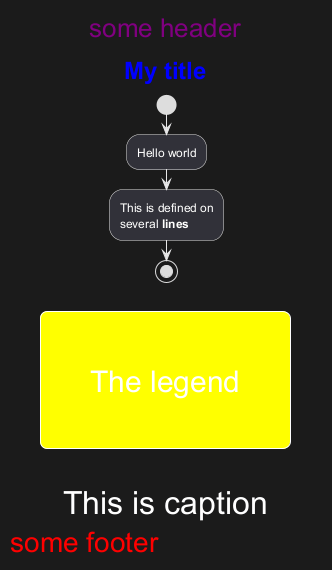

Activity

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

start
:Hello world;
:This is defined on
several **lines**;
stop

@enduml

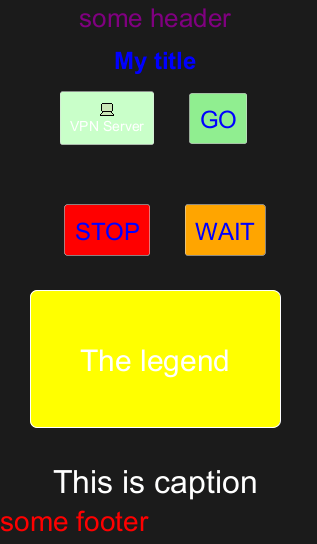

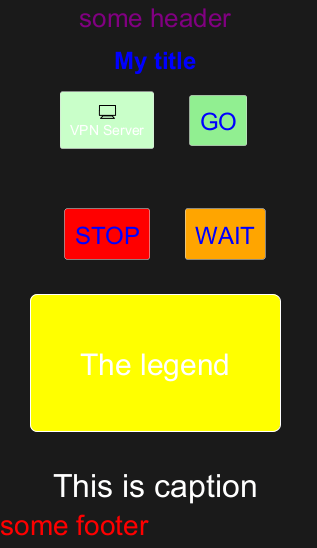

Archimate

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

archimate #Technology "VPN Server" as vpnServerA <<technology-device>>

rectangle GO #lightgreen
rectangle STOP #red
rectangle WAIT #orange

@enduml

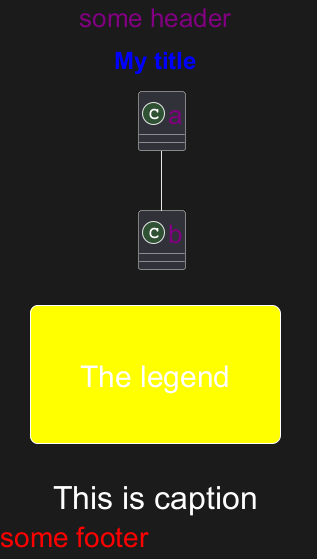

Class

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a -- b

@enduml

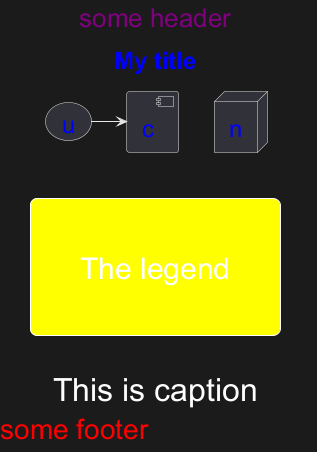

Component, Deployment, Use-Case

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

node n
(u) -> [c]

@enduml

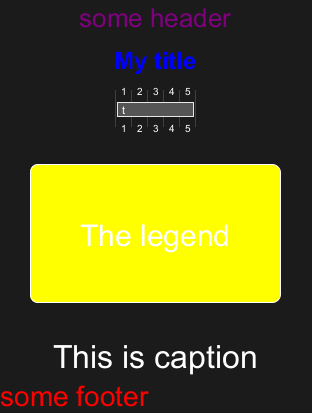

Gantt project planning

🎉 Copied!

@startgantt
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend


[t] lasts 5 days

@endgantt

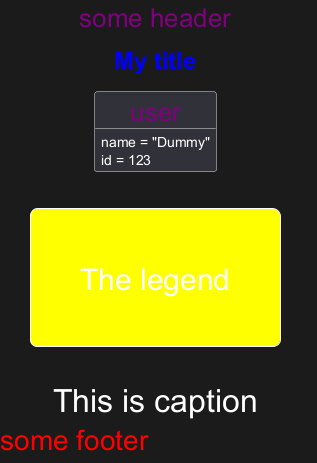

Object

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

object user {
  name = "Dummy"
  id = 123
}

@enduml

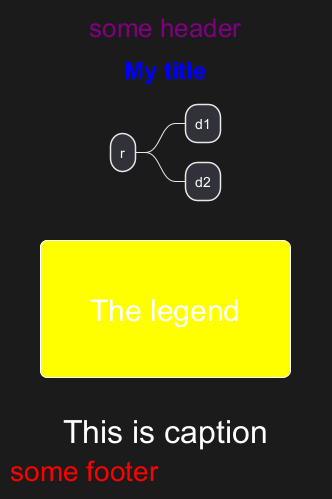

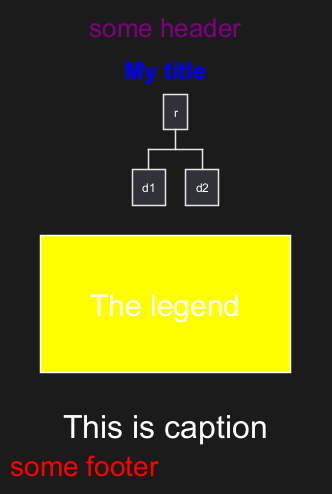

MindMap

🎉 Copied!

@startmindmap
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endmindmap

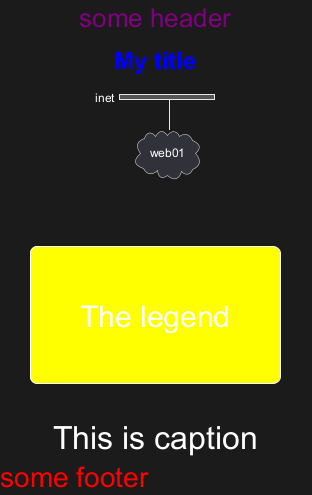

Network (nwdiag)

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

nwdiag {
  network inet {
      web01 [shape = cloud]
  }
}

@enduml

Sequence

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a->b
@enduml

State

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

[*] --> State1
State1 -> State2

@enduml

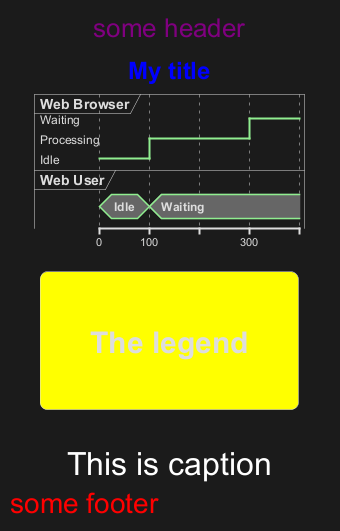

Timing

🎉 Copied!

@startuml
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU is Waiting
WB is Processing

@300
WB is Waiting

@enduml

Work Breakdown Structure (WBS)

🎉 Copied!

@startwbs
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endwbs

Wireframe (SALT)

FIXME
Fix all (title, caption, legend, header, footer) for salt.
FIXME

🎉 Copied!

@startsalt
<style>
title {
  HorizontalAlignment right
  FontSize 24
  FontColor blue
}

header {
  HorizontalAlignment center
  FontSize 26
  FontColor purple
}

footer {
  HorizontalAlignment left
  FontSize 28
  FontColor red
}

legend {
  FontSize 30
  BackGroundColor yellow
  Margin 30
  Padding 50
}

caption {
  FontSize 32
}
</style>
@startsalt
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Mainframe

🎉 Copied!

@startuml
mainframe This is a **mainframe**
Alice->Bob : Hello
@enduml

[Ref. QA-4019 and Issue#148]

Edit in DokuwikiEdit in AsciidocEdit in Markdown
附录。所有图表上的主机实例

活动

🎉 Copied!

@startuml
mainframe This is a **mainframe**

start
:Hello world;
:This is defined on
several **lines**;
stop
@enduml

架构

🎉 Copied!

@startuml
mainframe This is a **mainframe**

archimate #Technology "VPN Server" as vpnServerA <<technology-device>>
rectangle GO #lightgreen
rectangle STOP #red
rectangle WAIT #orange
@enduml

FIXME
栏目 在顶部和左侧进行了裁剪 FIXME

类别

🎉 Copied!

@startuml
mainframe This is a **mainframe**

a -- b
@enduml

FIXME
纪事 在顶部和左侧进行了裁剪 FIXME

组件、部署、用例

🎉 Copied!

@startuml
mainframe This is a **mainframe**

node n
(u) -> [c]
@enduml

FIXME
丨 顶部和左侧的裁剪 FIXME### 丨

甘特项目计划

🎉 Copied!

@startgantt
mainframe This is a **mainframe**

[t] lasts 5 days
@endgantt

FIXME
Ì 在顶部和左侧进行了裁剪 FIXME

对象

🎉 Copied!

@startuml
mainframe This is a **mainframe**

object user {
  name = "Dummy"
  id = 123
}
@enduml

FIXME
丨 顶部被裁剪！ FIXME

心智图谱

🎉 Copied!

@startmindmap
mainframe This is a **mainframe**

* r
** d1
** d2
@endmindmap

网络 (nwdiag)

🎉 Copied!

@startuml
mainframe This is a **mainframe**

nwdiag {
  network inet {
      web01 [shape = cloud]
  }
}
@enduml

FIXME
锦标赛 顶部被裁剪！ FIXME

序列

🎉 Copied!

@startuml
mainframe This is a **mainframe**

a->b
@enduml

状况

🎉 Copied!

@startuml
mainframe This is a **mainframe**

[*] --> State1
State1 -> State2
@enduml

FIXME
锦标赛 顶部和左侧被裁剪 FIXME

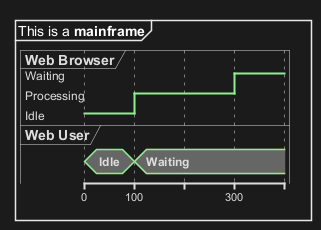

时间安排

🎉 Copied!

@startuml
mainframe This is a **mainframe**

robust "Web Browser" as WB
concise "Web User" as WU
@0
WU is Idle
WB is Idle
@100
WU is Waiting
WB is Processing
@300
WB is Waiting
@enduml

工作分解结构(WBS)

🎉 Copied!

@startwbs
mainframe This is a **mainframe**
* r
** d1
** d2
@endwbs

线框 (SALT)

🎉 Copied!

@startsalt
mainframe This is a **mainframe**
{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Edit in DokuwikiEdit in AsciidocEdit in Markdown
Appendix: Examples of title, header, footer, caption, legend and mainframe on all diagram

Activity

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

start
:Hello world;
:This is defined on
several **lines**;
stop

@enduml

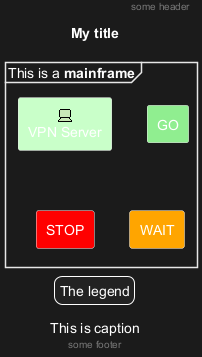

Archimate

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

archimate #Technology "VPN Server" as vpnServerA <<technology-device>>

rectangle GO #lightgreen
rectangle STOP #red
rectangle WAIT #orange

@enduml

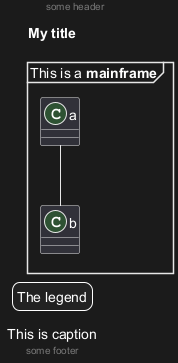

Class

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a -- b

@enduml

Component, Deployment, Use-Case

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

node n
(u) -> [c]

@enduml

Gantt project planning

🎉 Copied!

@startgantt
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend


[t] lasts 5 days

@endgantt

Object

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

object user {
  name = "Dummy"
  id = 123
}

@enduml

MindMap

🎉 Copied!

@startmindmap
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endmindmap

Network (nwdiag)

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

nwdiag {
  network inet {
      web01 [shape = cloud]
  }
}

@enduml

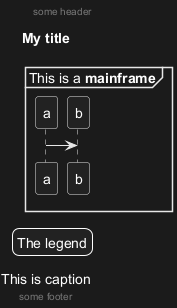

Sequence

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

a->b
@enduml

State

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

[*] --> State1
State1 -> State2

@enduml

Timing

🎉 Copied!

@startuml
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

robust "Web Browser" as WB
concise "Web User" as WU

@0
WU is Idle
WB is Idle

@100
WU is Waiting
WB is Processing

@300
WB is Waiting

@enduml

Work Breakdown Structure (WBS)

🎉 Copied!

@startwbs
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

* r
** d1
** d2

@endwbs

Wireframe (SALT)

🎉 Copied!

@startsalt
mainframe This is a **mainframe**
header some header

footer some footer

title My title

caption This is caption

legend
The legend
end legend

{+
  Login    | "MyName   "
  Password | "****     "
  [Cancel] | [  OK   ]
}
@endsalt

Privacy Policy      Advertise
