Entity Relationship Diagrams (Chen's notation)

This page is for Chen's Entity Relationship notation, which is commonly used in teaching. See also Information Engineering diagrams.

Entity Relationship (ER) diagrams are used to model databases at a conceptual level by describing entities, their attributes, and the relationships between them. In addition to basic relationships, PlantUML also supports subclasses and union types. This extended notation is sometimes referred to as Enhanced Entity Relationship (EER) or Extended Entity Relationship notation.

[Ref. GH-945 and GH-1718]

Edit in DokuwikiEdit in AsciidocEdit in Markdown

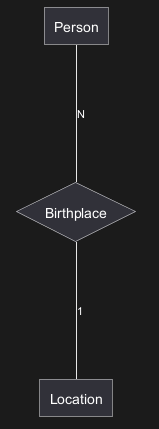

最小示例

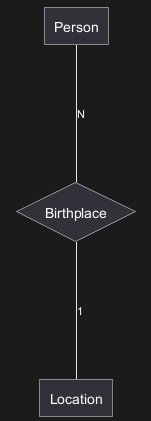

垂直（默认）

🎉 Copied!

@startchen

entity Person {
}
entity Location {
}
relationship Birthplace {
}

Person -N- Birthplace
Birthplace -1- Location

@endchen

横向

🎉 Copied!

@startchen
left to right direction

entity Person {
}
entity Location {
}
relationship Birthplace {
}

Person -N- Birthplace
Birthplace -1- Location

@endchen

[参考文献PR-1740］

Edit in DokuwikiEdit in AsciidocEdit in Markdown

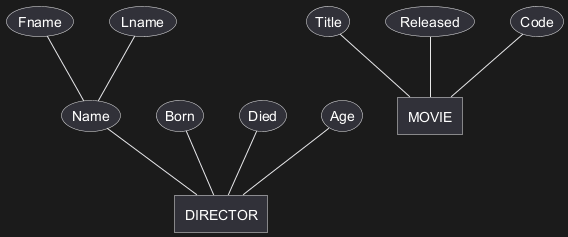

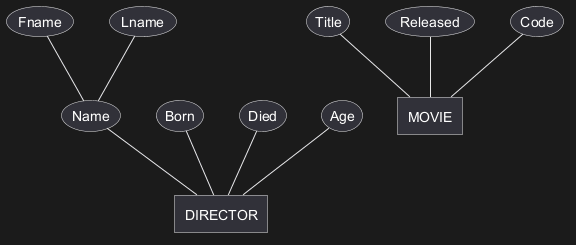

Entities and attributes

Entities correspond to the "things" in your model. These can have attributes that describe them and those attributes can be composite (having nested attributes).

🎉 Copied!

@startchen

entity DIRECTOR {
  Name {
    Fname
    Lname
  }
  Born
  Died
  Age
}

entity MOVIE {
  Title
  Released
  Code
}

@endchen

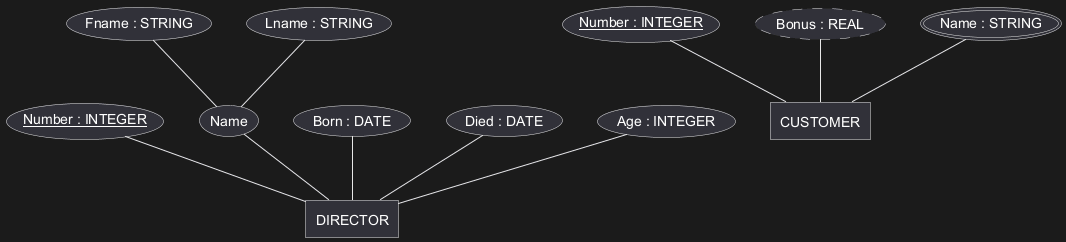

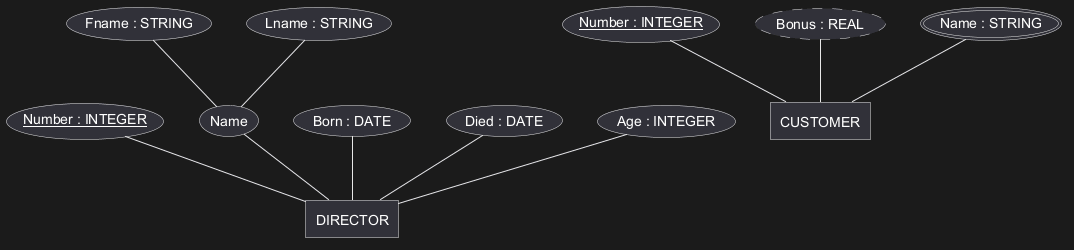

Attributes can be keys, meaning that their value is unique among entities of a given type, or they can be derived, meaning that their value is computed based on other attributes. Attributes may also be multi-valued, or have their domain (set of allowed values) defined.

🎉 Copied!

@startchen

entity DIRECTOR {
  Number : INTEGER <<key>>
  Name {
    Fname : STRING
    Lname : STRING
  }
  Born : DATE
  Died : DATE
  Age : INTEGER
}

entity CUSTOMER {
  Number : INTEGER <<key>>
  Bonus : REAL <<derived>>
  Name : STRING <<multi>>
}

@endchen

Edit in DokuwikiEdit in AsciidocEdit in Markdown

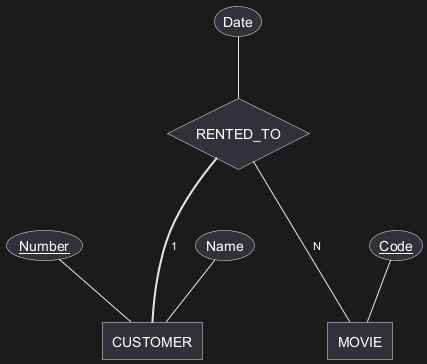

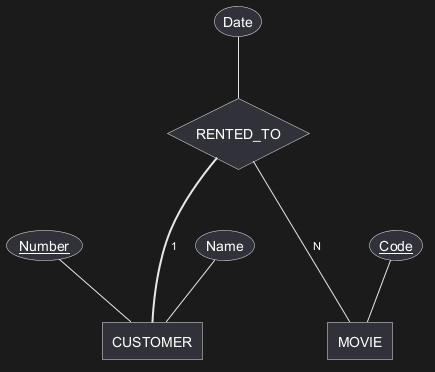

关系

关系描述实体之间的相互关系。这些关系可以是一对一、一对多或多对多。它们可以是完全参与（强制），也可以是部分参与（可选）。全部参与用双线或粗线表示。关系也可以有属性。

🎉 Copied!

@startchen

entity CUSTOMER {
  Number <<key>>
  Name
}

entity MOVIE {
  Code <<key>>
}

relationship RENTED_TO {
  Date
}

RENTED_TO =1= CUSTOMER
RENTED_TO -N- MOVIE

@endchen

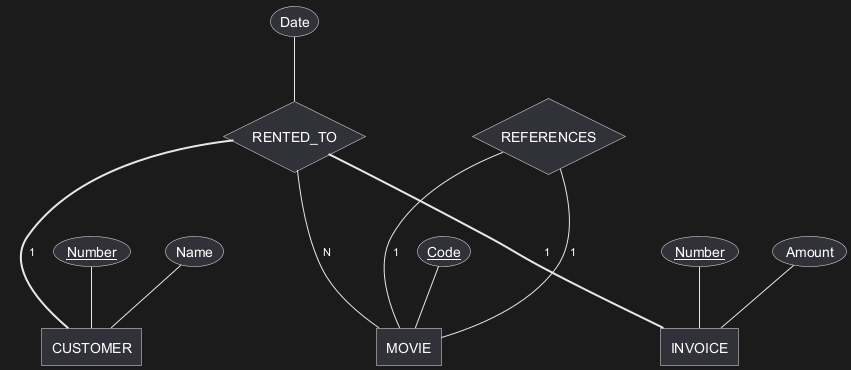

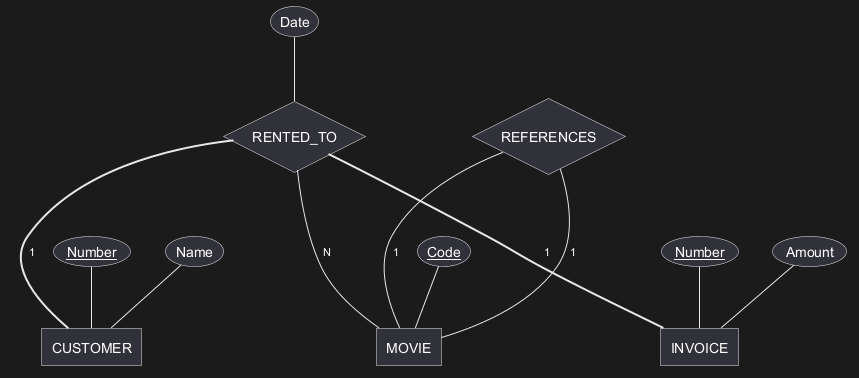

关系不限于两个实体。

🎉 Copied!

@startchen

entity CUSTOMER {
  Number <<key>>
  Name
}

entity MOVIE {
  Code <<key>>
}

entity INVOICE {
  Number <<key>>
  Amount
}

relationship RENTED_TO {
  Date
}

RENTED_TO =1= CUSTOMER
RENTED_TO -N- MOVIE
RENTED_TO =1= INVOICE

relationship REFERENCES {
}

REFERENCES -1- MOVIE
REFERENCES -1- MOVIE

@endchen

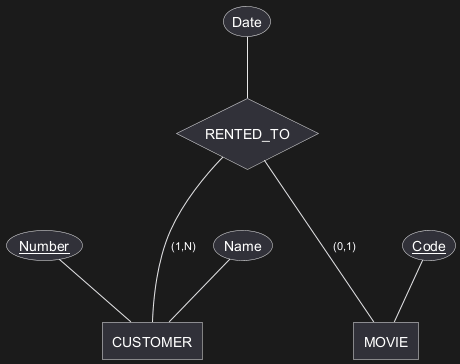

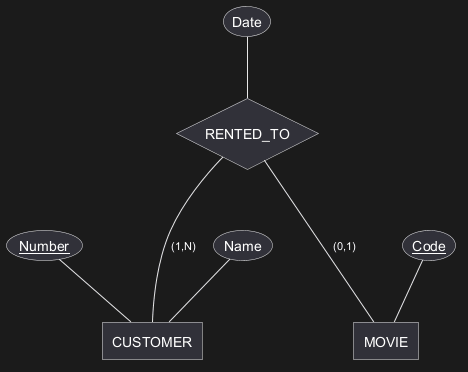

结构约束

关系的卡入度也可以用范围来表示。

🎉 Copied!

@startchen

entity CUSTOMER {
  Number <<key>>
  Name
}

entity MOVIE {
  Code <<key>>
}

relationship RENTED_TO {
  Date
}

RENTED_TO -(1,N)- CUSTOMER
RENTED_TO -(0,1)- MOVIE

@endchen

Edit in DokuwikiEdit in AsciidocEdit in Markdown

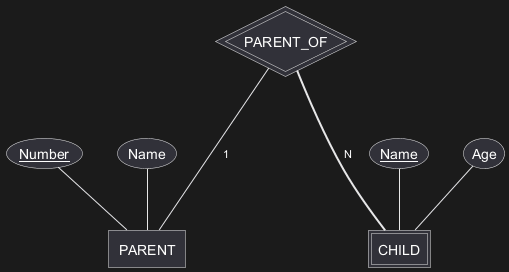

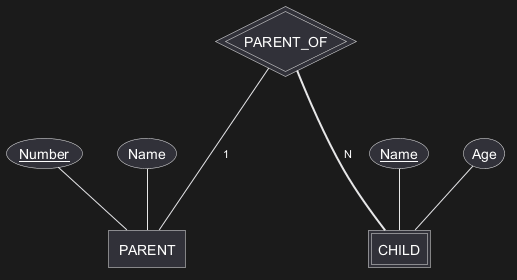

Identifying relationships

A weak entity does not have a key attribute that uniquely identifies each instance of that entity. Instead, it is identified by the combination of a partial key on the weak entity itself and the key of another entity, which it is related to via an identifying relationship. A weak entity must have total participation in its identifying relationship.

🎉 Copied!

@startchen

entity PARENT {
  Number <<key>>
  Name
}

entity CHILD <<weak>> {
  Name <<key>>
  Age
}

relationship PARENT_OF <<identifying>> {
}

PARENT_OF -1- PARENT
PARENT_OF =N= CHILD

@endchen

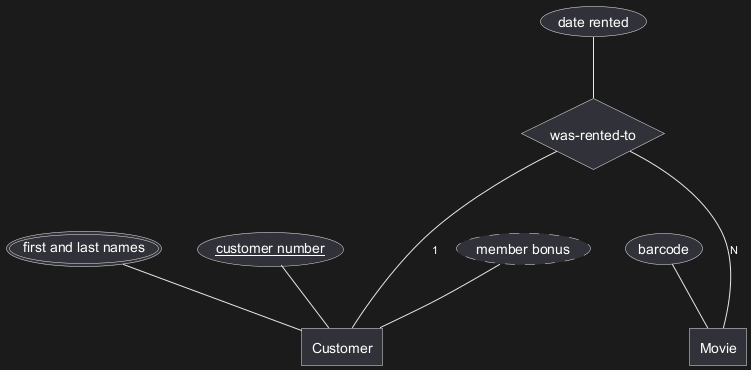

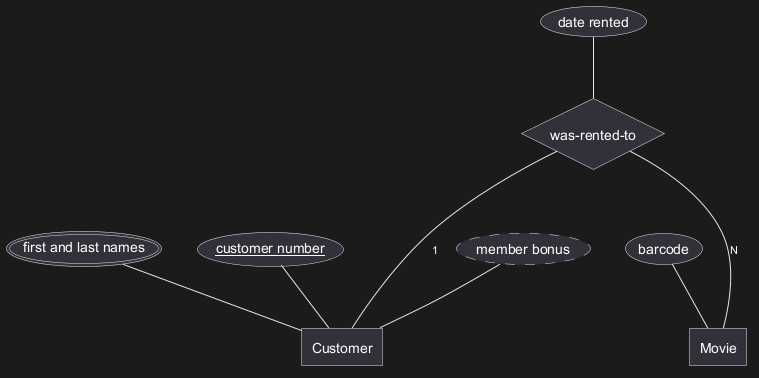

Aliases

Entities, attributes and relationships can be given aliases to make the diagram more readable.

🎉 Copied!

@startchen

entity "Customer" as CUSTOMER {
  "customer number" as Number <<key>>
  "member bonus" as Bonus <<derived>>
  "first and last names" as Name <<multi>>
}

entity "Movie" as MOVIE {
  "barcode" as Code
}

relationship "was-rented-to" as RENTED_TO {
  "date rented" as Date
}

RENTED_TO -1- CUSTOMER
RENTED_TO -N- MOVIE

@endchen

Edit in DokuwikiEdit in AsciidocEdit in Markdown

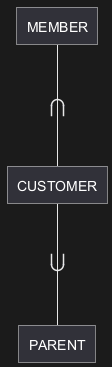

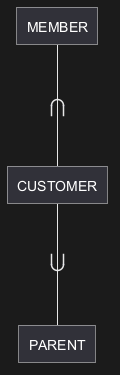

Subclasses and categories

Entities can have subclasses and superclasses, much like in OOP, however a given subclass can have multiple superclasses. These are visually indicated using the subset symbol from set-theory.

🎉 Copied!

@startchen

entity CUSTOMER {
}

entity PARENT {
}

entity MEMBER {
}

CUSTOMER ->- PARENT
MEMBER -<- CUSTOMER

@endchen

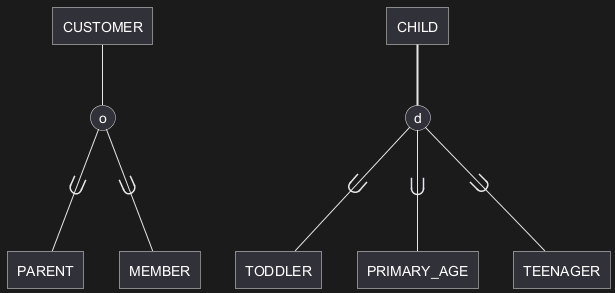

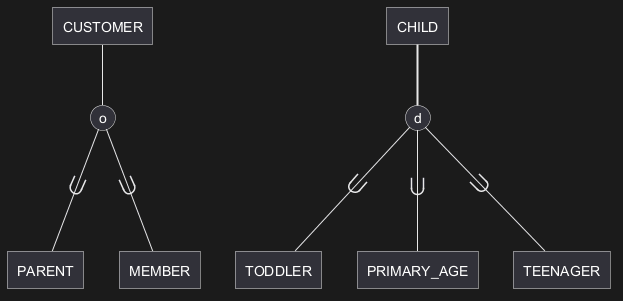

We can show how the different subclasses of a given entity are related by combining the associations. They can be either disjoint (one at a time) or overlapping (multiple at the same time).

🎉 Copied!

@startchen

entity CUSTOMER {
}

entity PARENT {
}

entity MEMBER {
}

CUSTOMER ->- o { PARENT, MEMBER }

entity CHILD {
}

entity TODDLER {
}

entity PRIMARY_AGE {
}

entity TEENAGER {
}

CHILD =>= d { TODDLER, PRIMARY_AGE, TEENAGER }

@endchen

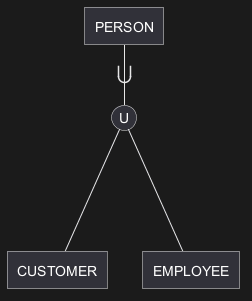

Categories or union types are similar to subclasses and can be used to group together multiple related entities.

🎉 Copied!

@startchen

entity CUSTOMER {
}

entity EMPLOYEE {
}

entity PERSON {
}

PERSON ->- U { CUSTOMER, EMPLOYEE }

@endchen

Edit in DokuwikiEdit in AsciidocEdit in Markdown

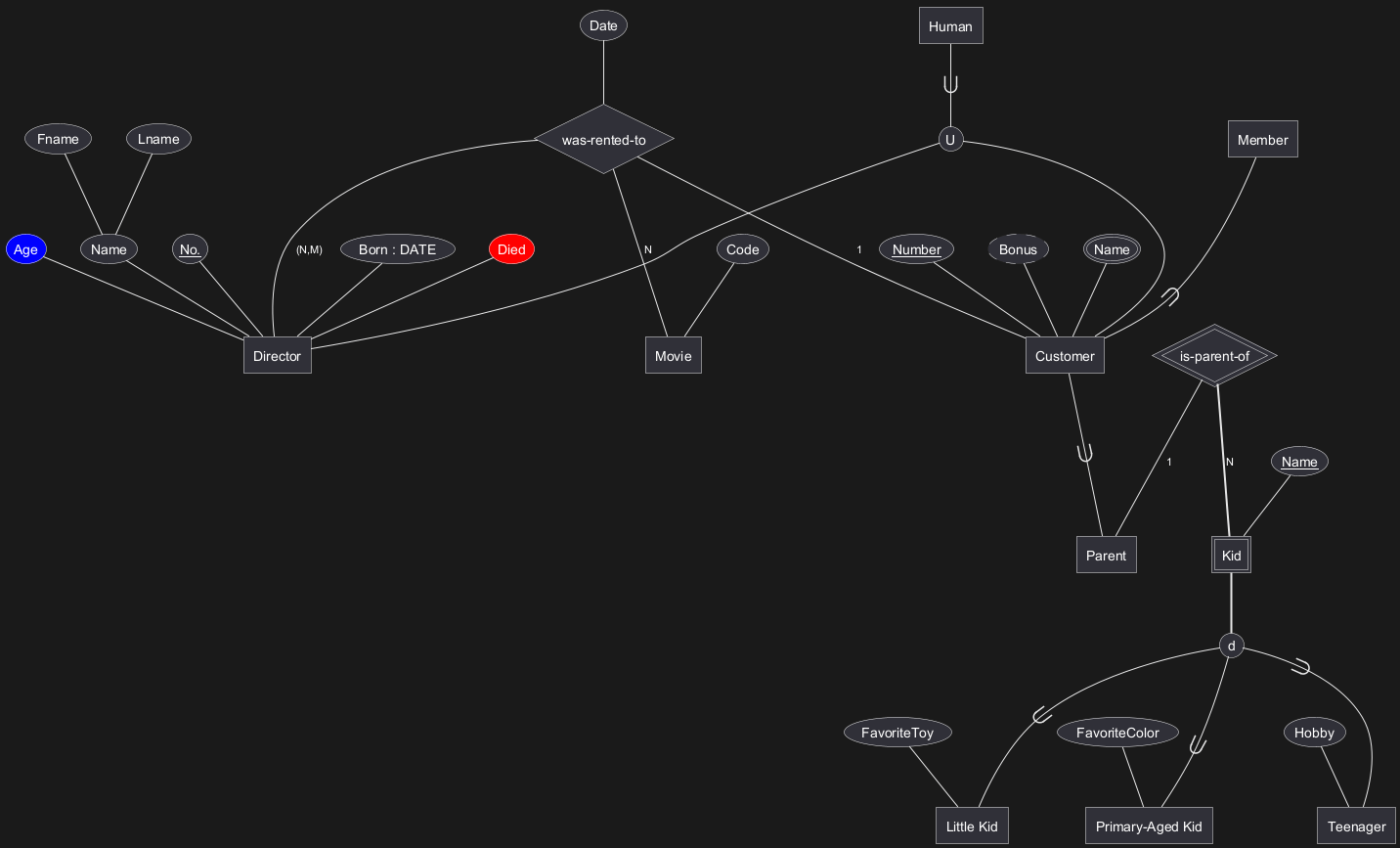

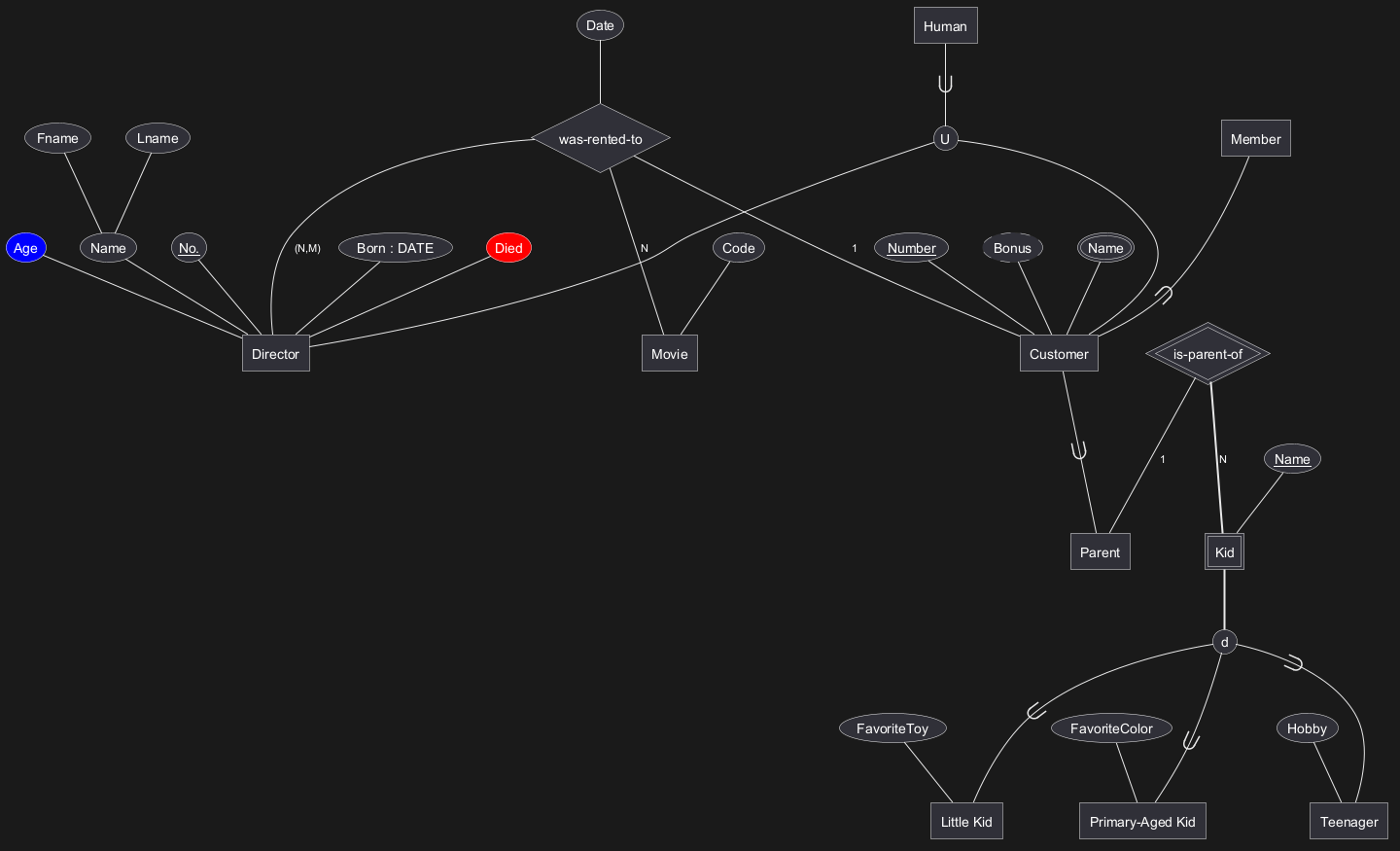

复杂示例

🎉 Copied!

@startchen movies
<style>
.red {
BackGroundColor Red
FontColor White
}
.blue {
BackGroundColor Blue
FontColor White
}
</style>

entity "Director" as DIRECTOR {
"No." as Number <<key>>
Name {
Fname
Lname
}
Born : DATE
Died<<red>>
Age<<blue>>
}

entity "Customer" as CUSTOMER {
Number <<key>>
Bonus <<derived>>
Name <<multi>>
}

entity "Movie" as MOVIE {
Code
}

relationship "was-rented-to" as RENTED_TO {
Date
}

RENTED_TO -1- CUSTOMER
RENTED_TO -N- MOVIE
RENTED_TO -(N,M)- DIRECTOR

entity "Parent" as PARENT {
}

entity "Member" as MEMBER {
}

CUSTOMER ->- PARENT
MEMBER -<- CUSTOMER

entity "Kid" as CHILD <<weak>> {
Name <<key>>
}

relationship "is-parent-of" as PARENT_OF <<identifying>> {
}

PARENT_OF -1- PARENT
PARENT_OF =N= CHILD

entity "Little Kid" as TODDLER {
FavoriteToy
}

entity "Primary-Aged Kid" as PRIMARY_AGE {
FavoriteColor
}

entity "Teenager" as TEEN {
Hobby
}

CHILD =>= d { TODDLER, PRIMARY_AGE, TEEN }

entity "Human" as PERSON {
}

PERSON ->- U { CUSTOMER, DIRECTOR }
@endchen
